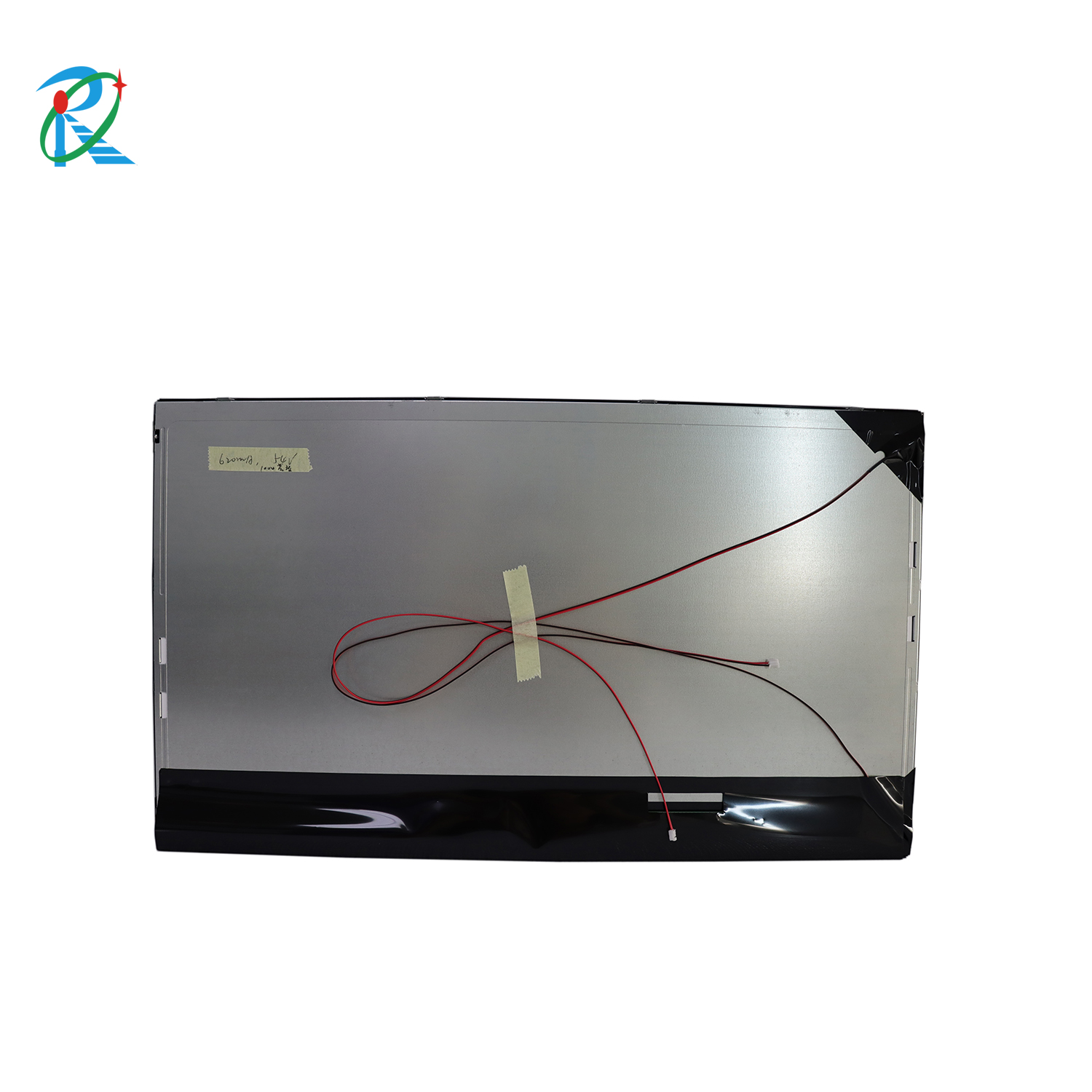

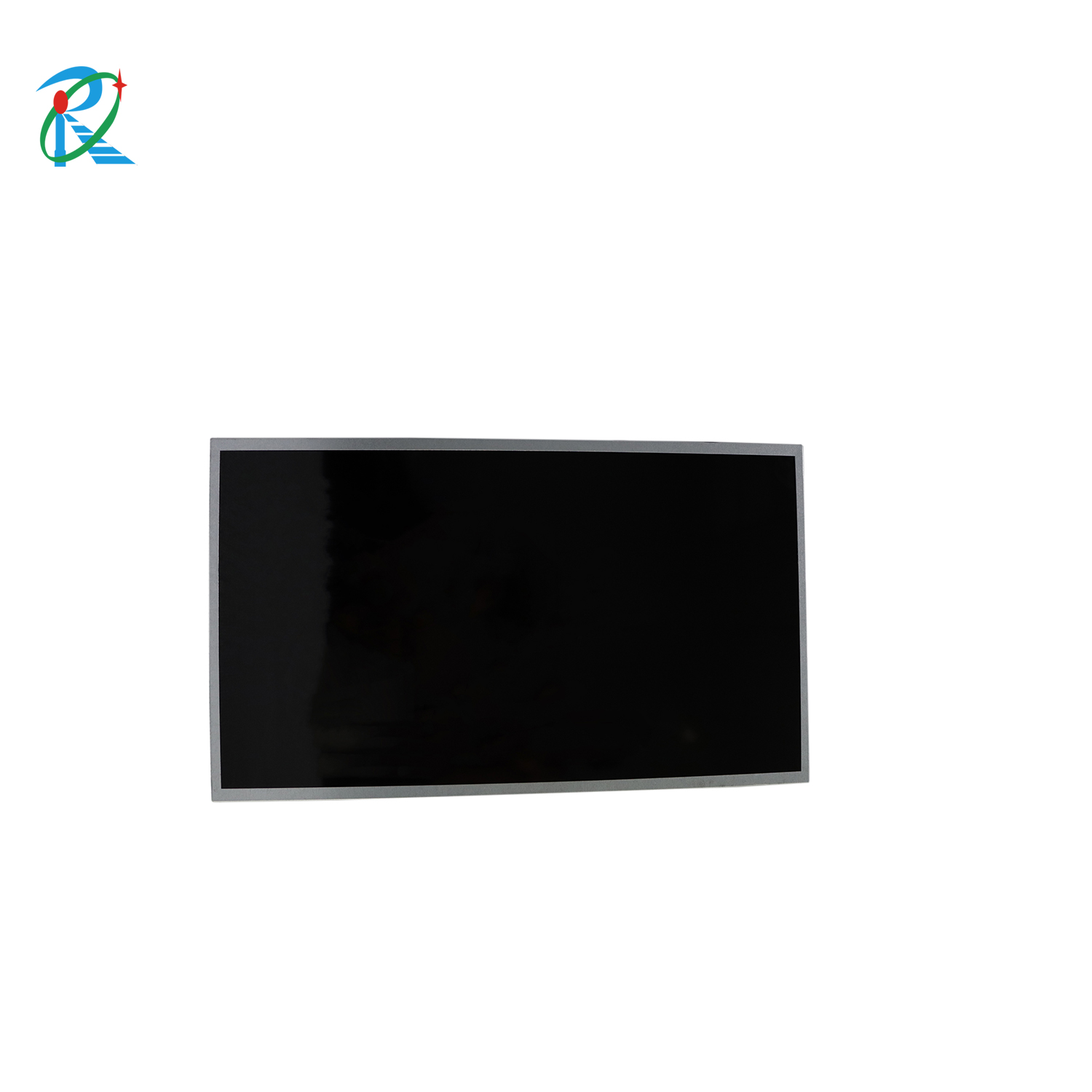

    21.5 Inch 1000nit Screen Lcd Panel 1920*1080

    Brand:

    Risinglcd

    Model name:

    RS215ENT-N10

    Screen size:

    21.5"

    Resolution:

    1920(RGB)×1080 Surface treatment: matte, Hard coating (3H)

    Brightness (cd/m²):

    500 to 2000

    Viewing angle:

     89/89/89/89

    Display color:

    16.7M, 74% NTSC

    Working frequency:

     60Hz

    Panel weight:

     1.67Kgs

    Signal interface:

    LVDS



    21.5 Inch 1000nit Screen Lcd Panel 1920*1080 Display sunlight readable monitor


    Functions and features:

    1. Sunlight readable, 500 to 2000 nits.

    2. Brightness adjustment method: automatic adjustment, manual adjustment, pwm adjustment.

    3. The backlight structure adopts double-sided LED light source, the heat is lower, and the product is more stable.

    4. The backlight driver adopts dual output voltage to be more stable

    5. The backlight adopts 3M brightness enhancement technology, and the brightness is increased by 40% under the same power consumption.

    6. The annual shipment of the same product is more than 100,000 units, which has been verified by the market.


    Hot Tags: 21.5 Inch 1000nit Screen Lcd Panel 1920*1080 , manufacturers, suppliers, factory, Customized

    Techspecs:

    Items

      Specification

      Note

    Panel Brand

    RISINGLCD


    Diagonal Size

    21.5"


    Panel Type

    a-Si TFT-Module


    Resolution

    1920(RGB)×1080   102PPI


    Pixel Format

        RGB Vertical Stripe


    Display Area

       476.64×268.11mm (H×V)


    Outline Size:

    495.6×292.2×7.2mm (H×V×D)


    Surface

    Antiglare (Haze 1%), Hard coating (2H).


    Brightness

       500 to 2000 cd/m² (Typ.)


    Contrast Ratio

       1400:1 (Typ.) (TM)


    waterproof level

       /


    Protection level

       /


    Support Color

    1.67B   100% NTSC


    Viewing Angle

        89/89/89/89 (Min.)(CR≥10)


    Display Mode

    IPS, Normally Black, Transmissive .


    Response Time

    5 (Typ.)(G to G); 8 (Typ.)(MPRT).


    Lamp Type

    WLED , 50K hours , With LED Driver


    Frequency:

        60Hz


    Panel Weight

    1.67Kgs (Typ./Max.)


    Application

    Outdoor digital signage


    Signal Interface

    LVDS


    Input Voltage:

    24V ,110 to 260V (Typ.).


    Operating Temp.

       -20 ~ 85 °C


    Storage Temp.

    -20 ~ 85 °C
