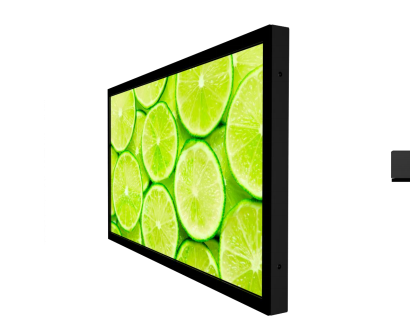

Features of 21.5" industrial high-brightness open-frame display
1. Use industrial LCD panel
2. LCD panel operating temperature -40 ~ 110℃
3. Direct LED backlight 4. Optional local dimming LED backlight
5. Optical materials are made of 3M high temperature resistant synthetic materials
6. Supports various brightness adjustment methods such as PWM, DC, potentiometer, etc.
7. Fan cooling method
Screen Size 21.5 "
Display Area (mm) 478.656(H) x 260.28(V)
Brightness 2500 cd/m 2
Resolution 1920x1080
Aspect Ratio 16 : 9
Contrast Ratio 3000 : 1
Pixel Pitch (mm) 0.2493(H) x 0.241(V)
Viewing Angle 89/89/89/89 (Min.)(CR≥10)
Color Saturation (NTSC) 73%
Display Colors 16.7M
Response Time (Typical) 20 (Typ.)(Tr/Td) (ms)

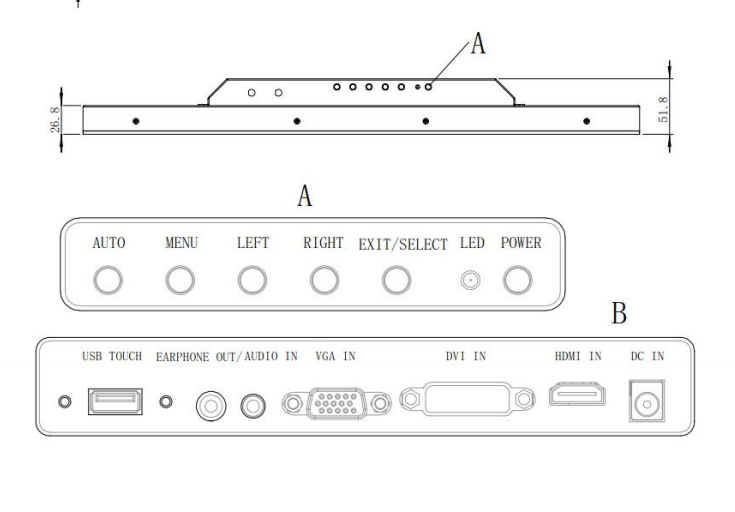

Input Interface USB TOUCH*1 EARPHONE OUT*1 AUDIO IN*1 VGA*1 DVI*1 HDMI*1 DC IN*1
OSD Key AUTO /MENU /LEFT/ RIGHT /EXIT/SELECT /POWER
Glass 3MM Tempered Glass OCR
Touch Type PCAP Input Power DC12V~10A
Power Consumption 70W
Radiator System Automatic heat dissipation
Dimensions (mm) 518.5 x 310.5 x 51.8
Mounting 100x100mm Screws metric M4
Weight (Net) TBD
Operating Temperature -20 ˚ C ~ 70 ˚ C
Storage Temperature -20 ˚ C ~ 80 ˚ C The information described in this specification is preliminary and can be changed without prior notice.
