Technical Specifications – 27" Sunlight Readable LCD Display
| Item | Specification |
|---|---|
| Panel Size | 27.0 inches (Diagonal) |
| Panel Type | a-Si TFT-LCD, Transmissive, AMVA |
| Resolution | 1920 (RGB) × 1080 (FHD), 81 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 597.6 (W) × 336.15 (H) mm |
| Viewable Size | 601.6 (W) × 340.15 (H) mm |
| Brightness (Typical) | 300 cd/m² (Customizable up to 5000 nits) |
| Contrast Ratio | 3000:1 (Typical, Transmissive) |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D, CR≥10) – Full Viewing Angle |
| Display Colors | 16.7M, 72% NTSC |
| Response Time | 7/5 ms (Typical, Tr/Td) |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Refresh Rate | 75Hz (Standard); Optional: 120Hz / 240Hz with MEMC |
| Backlight | 15S4P WLED, 40,000 Hours Lifetime (No Driver Board) |
| Touch Panel | None |
| Signal Interface | LVDS (2 channel, 8-bit), 30 Pins, Terminal Type |
| Power Supply Voltage | 5.0V (Typical) |
| Weight | 2.18 kg (Typical) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | EV Charging Stations, Outdoor Digital Signage |
| Optional Features | IP66 Waterproof, IK10 Vandal Resistance, 2K/4K Resolution, MEMC, High Brightness |
| OEM/ODM Service | Available |

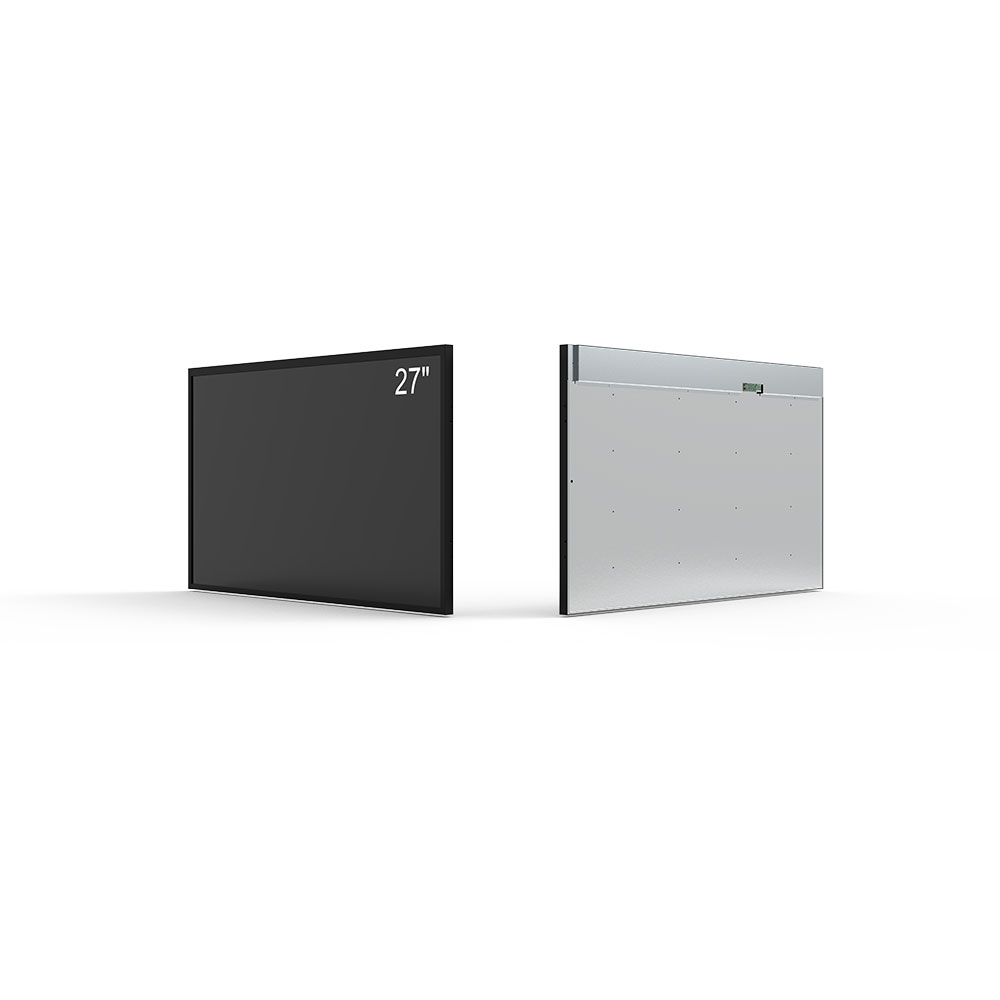

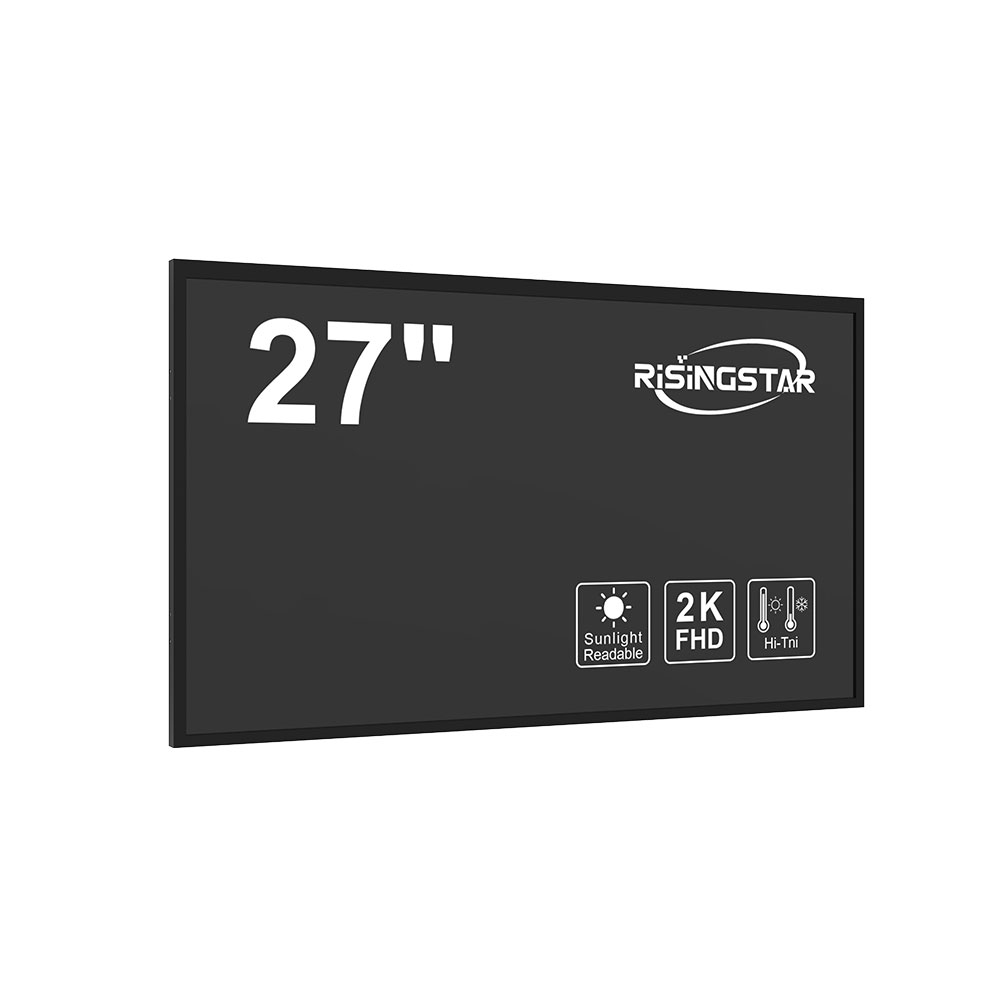

RisingStar's 27-inch sunlight readable LCD display is purpose-built for outdoor EV charging stations, combining industrial-grade reliability with exceptional visibility. Featuring a 1920×1080 FHD resolution and a spacious 597.6×336.15 mm active display area, this panel delivers crisp and vibrant visuals with 16.7M colors and 72% NTSC color gamut. Its AMVA technology ensures a wide 89° viewing angle in all directions, offering full-view readability regardless of position. With an integrated anti-glare, hard-coated surface and a high contrast ratio of 3000:1, it maintains excellent clarity even in bright environments.
While the base brightness is 300 nits (typical), RisingStar also offers high brightness customization up to 5000 nits, ideal for sunlight-readable applications. The display supports advanced motion handling with optional MEMC circuitry enabling up to 240Hz refresh (60Hz input), ensuring smooth content delivery in dynamic interfaces. Weighing only 2.18 kg and housed in a lightweight structure, the panel is suited for rugged outdoor conditions, operating reliably from -20 ~ 70 °C and surviving storage temperatures as low as -20°C.

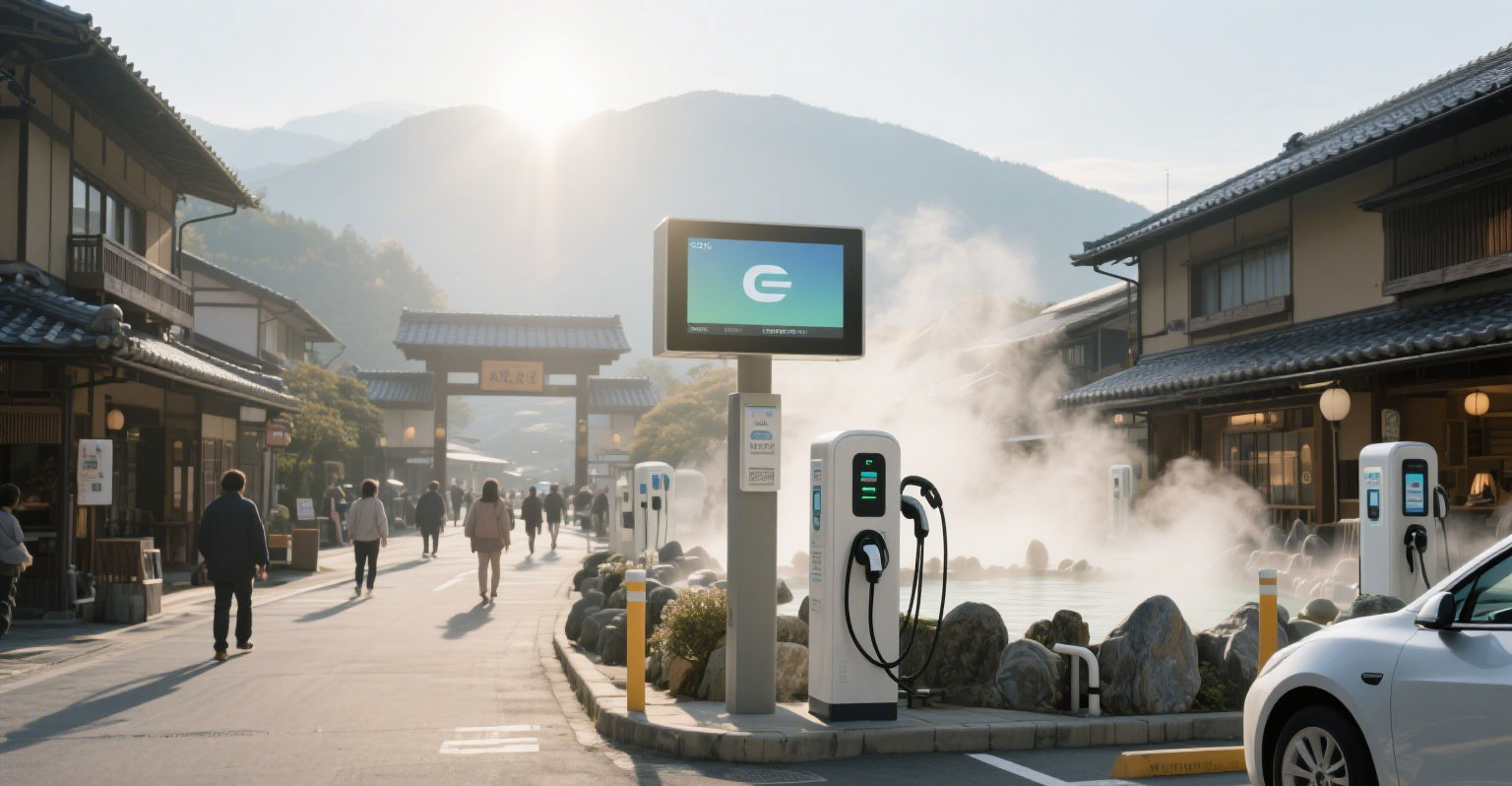

This 27" module is designed without a touch layer for clean integration and is powered via LVDS interface (2ch, 8-bit). Backlit by a durable 15S4P WLED system rated for 40,000 hours, it provides a long lifespan with minimal maintenance. Ideal for EV charging stations, the display supports OEM/ODM needs and can be integrated into waterproof, vandal-resistant (IP66/IK10) enclosures to deliver consistent performance in harsh outdoor environments.
