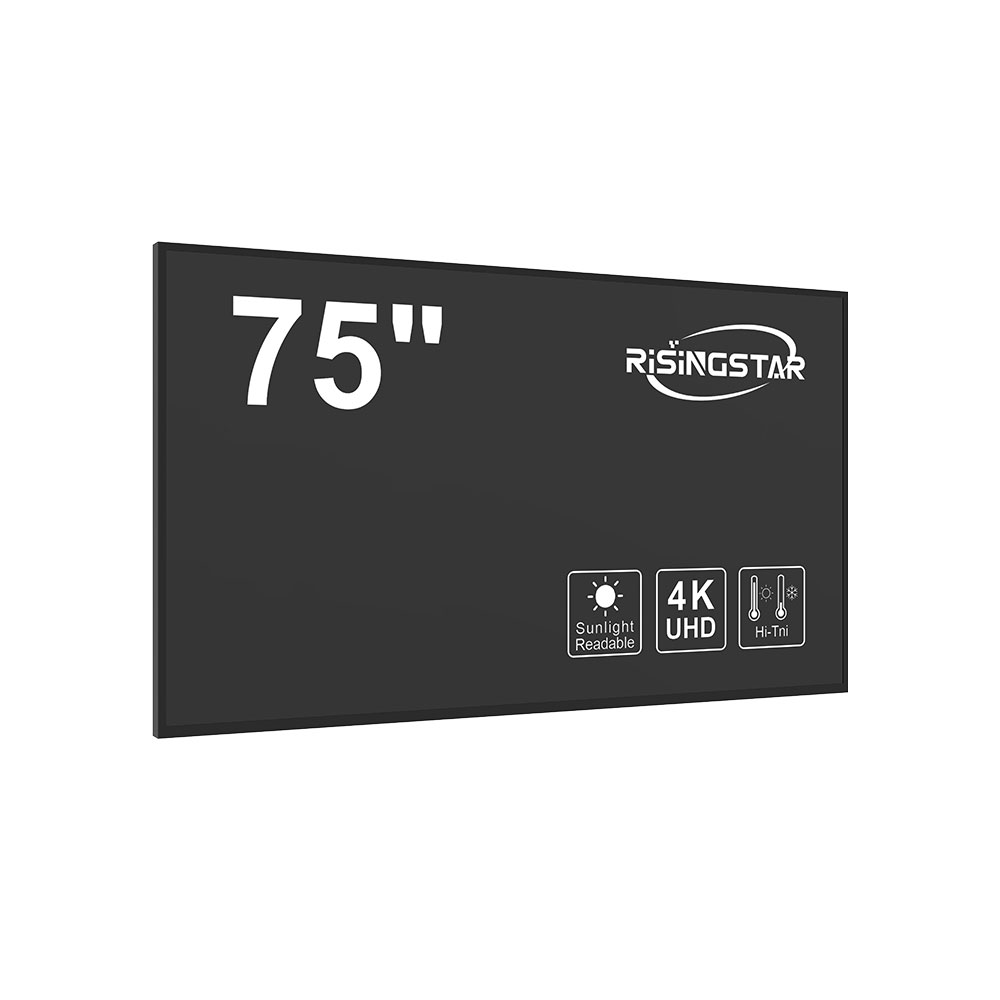

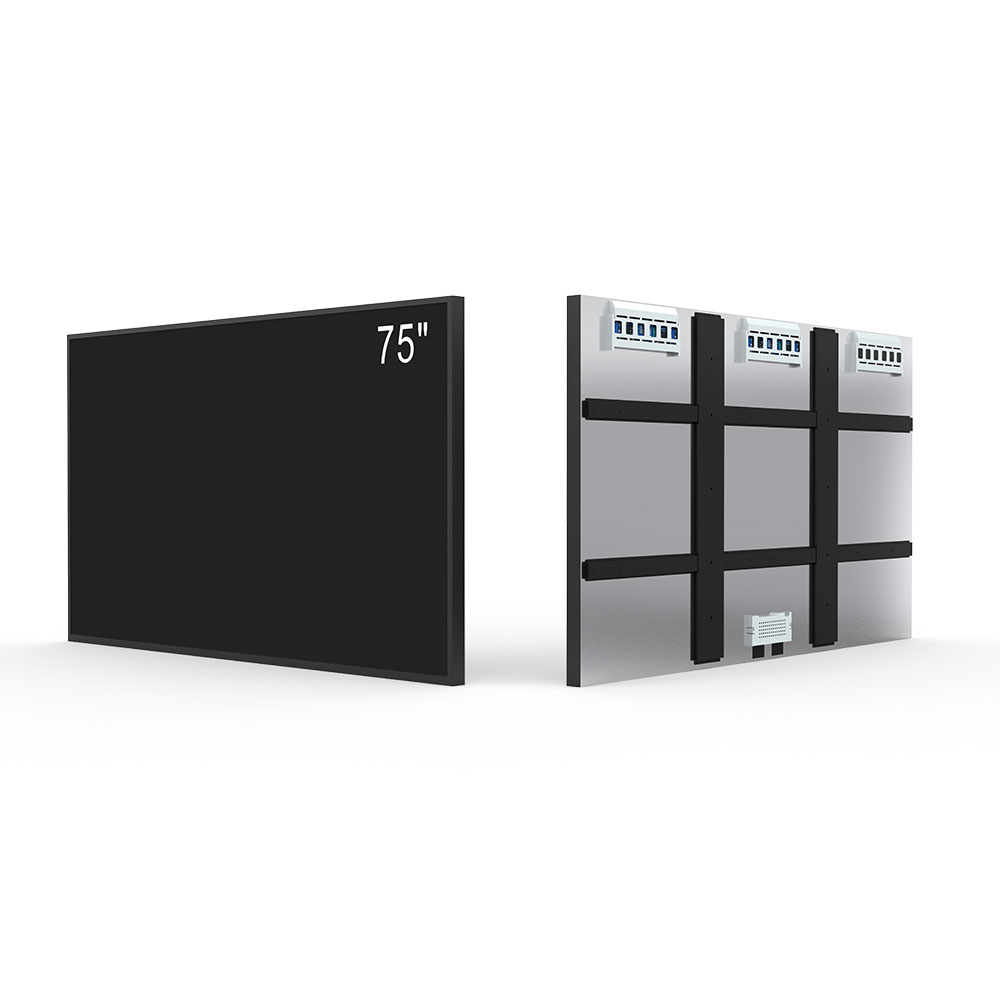

75 Inch Outdoor Sunlight Readable LCD Digital Signage
| Brand | RisingStar |
| Model name | RS750ENT-GD45 |
| Screen size | 75" |
| Screen type | Outdoor LCD Panel |
| Resolution | 3840 (RGB) × 2160 (UHD), 59 PPI |
| Brightness | 1000 to 5000nits |
75 Inch Outdoor Sunlight Readable LCD Digital Signage Specifications
| Specification | Details |
|---|---|
| Panel Size | 75 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840 (RGB) × 2160 (UHD), 59 PPI |
| Pixel Configuration | RGBW Vertical Stripe |
| Active Area | 1649.66(W) × 927.936(H) mm |
| View Area | 1651.6(W) × 930(H) mm |
| Surface Treatment | Anti-glare (Haze 3%), Hard Coating (2H) |
| Brightness | 1000 to 5000 nits (Typical) |
| Contrast Ratio | 1200:1 (Typical) (TM) |
| Viewing Angle (CR≥10) | 89°/89°/89°/89° (Left / Right / Up / Down) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 8 ms (Typical, G to G) |
| Display Colors | 1.07 Billion (10-bit), 69% NTSC |
| Backlight Type | WLED with LED Driver, 50,000 hours lifespan |
| Refresh Rate | 60Hz standard (120Hz MEMC optional) |
| Touch Function | No touch |
| Panel Weight | 27.6 / 30.5 kg (Typical / Max) |
| Signal Interface | V-by-One, 8 lanes, 56 pins |
| Driving Voltage | 12.0V (Typical) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | Outdoor Digital Signage, High Brightness Display |
RisingStar's 75-inch outdoor sunlight readable LCD display is engineered for high-performance digital signage applications in bright and challenging environments. Featuring a UHD resolution of 3840×2160 and a pixel density of 59PPI, this a-Si TFT-LCD panel delivers ultra-clear visuals with wide 89°/89°/89°/89° viewing angles and IPS technology for consistent image quality from any direction.
With a high brightness range from 1000 to 5000 nits and a contrast ratio of 1200:1, the display remains highly readable even under direct sunlight. Its anti-glare surface treatment (3% haze) and hard coating (2H) further enhance outdoor visibility and durability. Designed with WLED backlight and a 50,000-hour lifespan, it ensures long-term reliability and energy efficiency.
This panel supports 1.07 billion colors, 69% NTSC color gamut, and operates at 60Hz with optional MEMC for smoother motion display. Built for industrial and outdoor use, it functions reliably in temperatures from -20 to 70°C, making it ideal for digital signage in transportation hubs, commercial spaces, and smart city environments. Signal input is supported via V-by-One 8-lane interface, and the display is housed in a robust structure with a weight range of 27.6 to 30.5 kg.

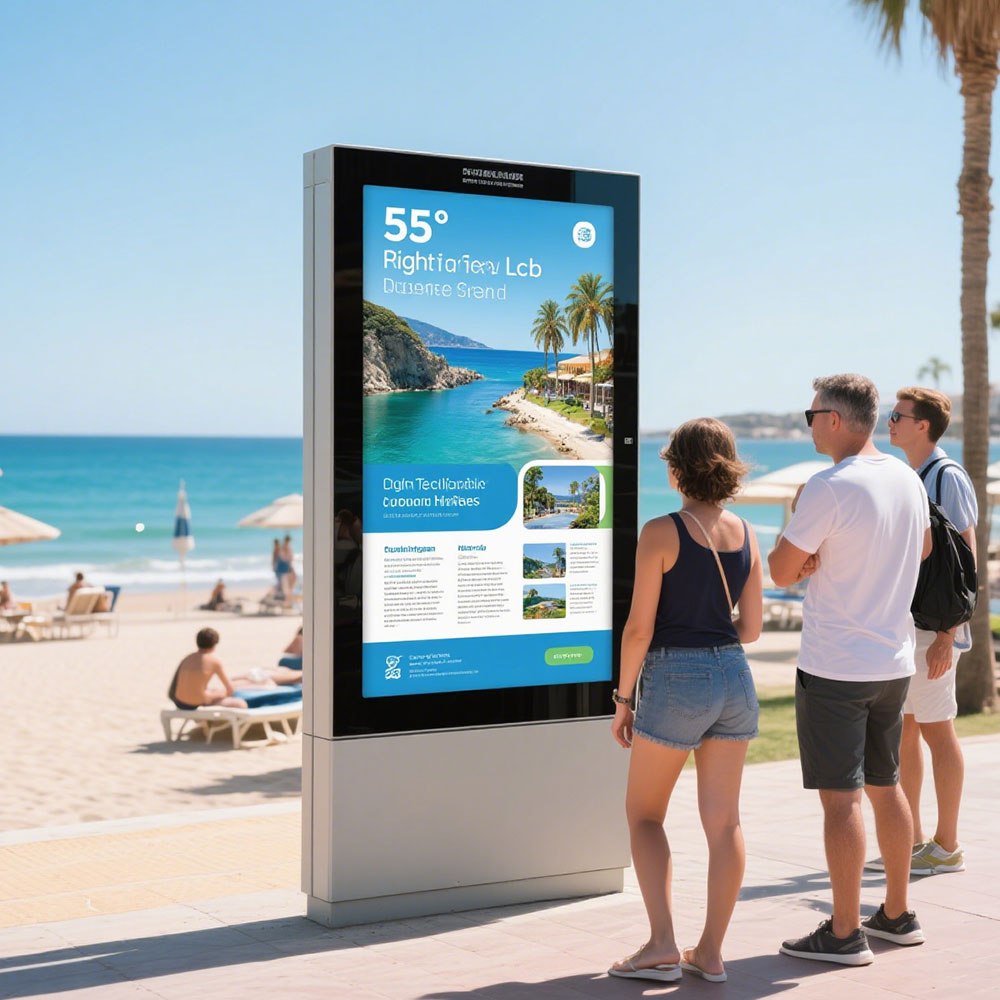

75-inch outdoor digital signage use case
75 Inch Outdoor Sunlight Readable LCD Digital Signage Specifications
| Specification | Details |
|---|---|
| Panel Size | 75 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840 (RGB) × 2160 (UHD), 59 PPI |
| Pixel Configuration | RGBW Vertical Stripe |
| Active Area | 1649.66(W) × 927.936(H) mm |
| View Area | 1651.6(W) × 930(H) mm |
| Surface Treatment | Anti-glare (Haze 3%), Hard Coating (2H) |
| Brightness | 1000 to 5000 nits (Typical) |
| Contrast Ratio | 1200:1 (Typical) (TM) |
| Viewing Angle (CR≥10) | 89°/89°/89°/89° (Left / Right / Up / Down) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 8 ms (Typical, G to G) |
| Display Colors | 1.07 Billion (10-bit), 69% NTSC |
| Backlight Type | WLED with LED Driver, 50,000 hours lifespan |
| Refresh Rate | 60Hz standard (120Hz MEMC optional) |
| Touch Function | No touch |
| Panel Weight | 27.6 / 30.5 kg (Typical / Max) |
| Signal Interface | V-by-One, 8 lanes, 56 pins |
| Driving Voltage | 12.0V (Typical) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | Outdoor Digital Signage, High Brightness Display |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
