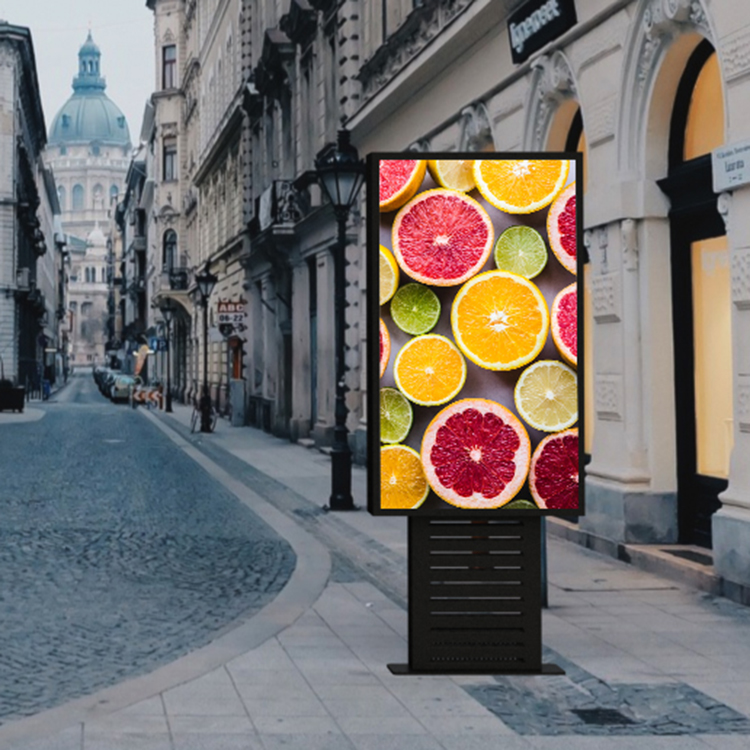

86 inch sunlight readable outdoor digital LCD kiosk with 4000 nits high brightness
| Brand | RisingStar |
| Model name | RS860EQL-GD40 |
| Screen size | 86" |
| Screen type | Outdoor LCD Panel |
| Resolution | 1920(RGB)×1080 |
| Brightness (cd/m²) | 1000~5000nits |

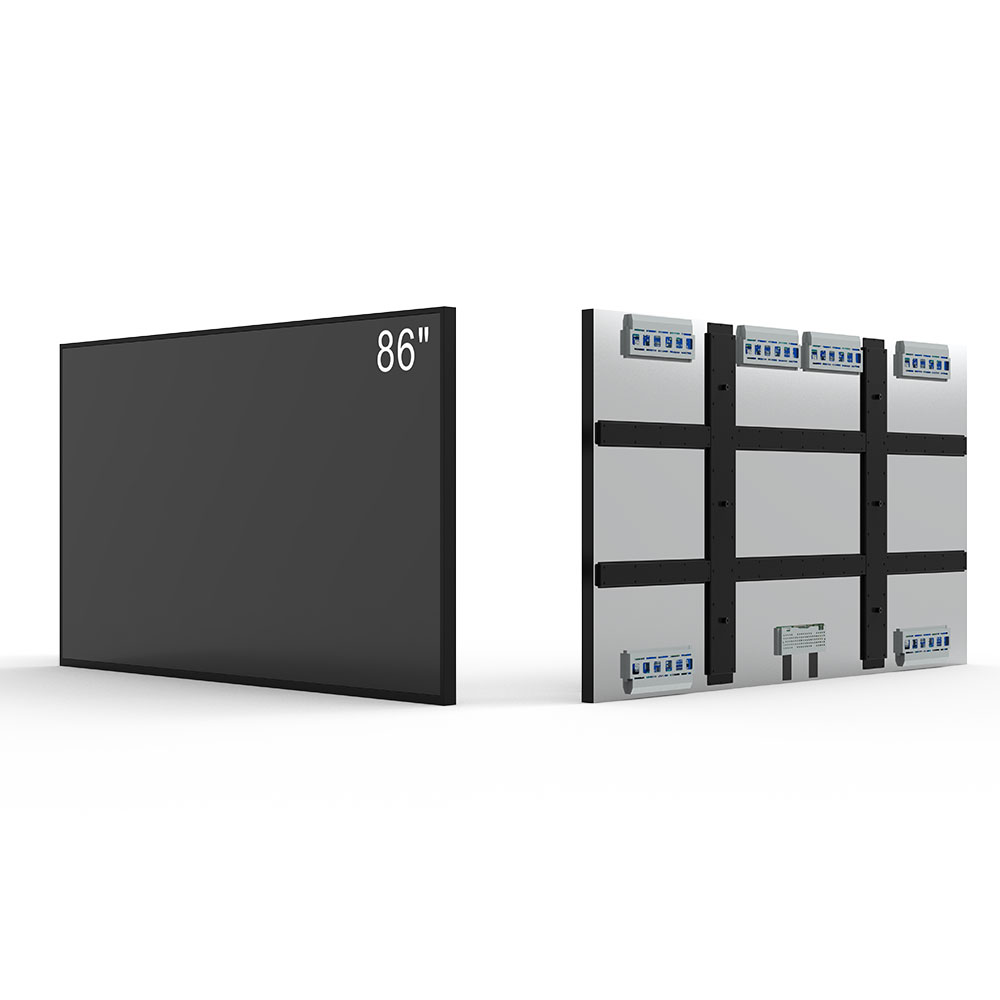

86" LCD Panel Specification
| Category | Specification |
|---|---|
| Panel Size | 86 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840 (RGB) × 2160, UHD, 51 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 1895.04 (W) × 1065.96 (H) mm |
| Outline Opening Size | 1897.0 (W) × 1068.0 (H) mm |
| Surface Treatment | Anti-glare (Haze 3%), Hard Coating (2H) |
| Brightness | 500 ~ 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.) (CR ≥10) – L/R/U/D |
| Display Mode | IPS, Normally Black, Transmissive |
| Supported IPS Types | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| Supported VA Types | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Direction | All View |
| Response Time | 8 ms (Typ., G-to-G) |
| Display Colors | 16.7M / 1.07B, 72% NTSC |
| Backlight Type | WLED, 30,000 hrs, Built-in LED Driver |
| Refresh Rate | 60 Hz |
| Enhanced Refresh | • 120 Hz (60 Hz input, with MEMC) • 120 Hz + 120 Hz (120 Hz panel + 120 Hz backlight) • 240 Hz (60 Hz input, with MEMC) |
| Touch Screen | None |
| Panel Weight | 34.1 / 35.8 kg (Typ. / Max.) |
| Applications | TV, Interactive Whiteboard |
| Signal Interface | V-by-One, 8 lanes, 56-pin terminal |
| Driving Voltage | 12.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Notes | © Panel Database – No unauthorized copying |
Description
This 86-inch a-Si TFT-LCD panel delivers ultra-high-definition 4K resolution with a wide 89-degree viewing angle and IPS “normally black” mode for superior image stability and color accuracy. With adjustable brightness from 500 to 5000 nits, it supports both indoor and high-ambient-light environments. The anti-glare surface and 2H hard coating enhance readability and durability, particularly for professional and commercial display applications.
Equipped with WLED backlight (30,000 hours), high contrast, and optional MEMC up to 240 Hz, the panel provides smooth motion performance suitable for dynamic content such as education, conferencing, digital signage, and interactive systems. The V-by-One 8-lane interface ensures stable high-bandwidth transmission for 4K display requirements.
Application Scenarios
This 86" LCD module is ideal for:
Interactive whiteboards in classrooms, meeting rooms, and corporate training environments
4K televisions and smart TV systems

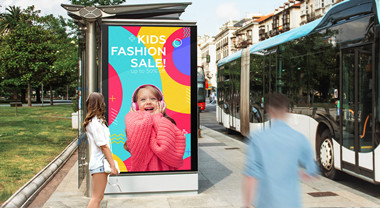

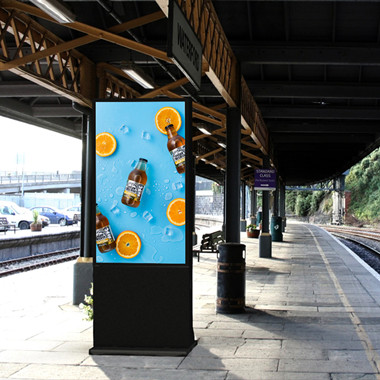

Large-format digital signage in malls, airports, and transportation hubs
Command centers and monitoring systems requiring wide viewing angles
Video conferencing displays with fast response and uniform brightness
86" LCD Panel Specification — Excel-Style Table
| Category | Specification |
|---|---|
| Panel Size | 86 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840 (RGB) × 2160, UHD, 51 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 1895.04 (W) × 1065.96 (H) mm |
| Outline Opening Size | 1897.0 (W) × 1068.0 (H) mm |
| Surface Treatment | Anti-glare (Haze 3%), Hard Coating (2H) |
| Brightness | 500 ~ 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.) (CR ≥10) – L/R/U/D |
| Display Mode | IPS, Normally Black, Transmissive |
| Supported IPS Types | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| Supported VA Types | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Direction | All View |
| Response Time | 8 ms (Typ., G-to-G) |
| Display Colors | 16.7M / 1.07B, 72% NTSC |
| Backlight Type | WLED, 30,000 hrs, Built-in LED Driver |
| Refresh Rate | 60 Hz |
| Enhanced Refresh | • 120 Hz (60 Hz input, with MEMC) • 120 Hz + 120 Hz (120 Hz panel + 120 Hz backlight) • 240 Hz (60 Hz input, with MEMC) |
| Touch Screen | None |
| Panel Weight | 34.1 / 35.8 kg (Typ. / Max.) |
| Applications | TV, Interactive Whiteboard |
| Signal Interface | V-by-One, 8 lanes, 56-pin terminal |
| Driving Voltage | 12.0 V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
