Brand:
BOE
Model No.:
AV121X0M-N10 Screen size:
12.1"
Resolution:
1024*768, XGA, 105PPI
Brightness (cd/m²):
600
Touch:
10 point capacitive touch and resistive touch optional
OS system:
Android ,HDMI optional

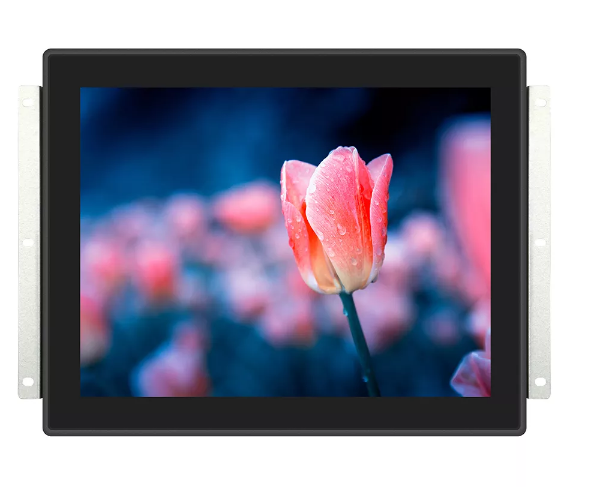

RS121ENT-N06 open-frame touch screen that is with equipped with BOE origial panel, 1024*768 resolution, and 1000:1 contrast ratio and 4:3 aspect Ratio, and wide industrial operation temperature, -20 ~ 80 °C , this is designed to be easily integrated into (or replacing your existing defective LCD monitor) kiosks, gaming and security monitor, no technical skills requires.
Main Feature:
1. Incorporate with touch screen so that it can be used as touch screen open frame,
2. Special Designed for easy integration into industrial machinery and kiosks.
3. With a high resolution panel and wide wiewing angles
4. Multi-touch, 10 point capacitive touch and resistive touch optional
5. Built with WIFI and Ethernet(lan) internet connection
6. The outer frame can be customized
7. The brightness can be customized to 600nits, 1000nits, 1500nits.
8. Ideal for retail, hospitality, healthcare and digital signage applications requiring gesture.
This open frame touch screen with PCAP touch screen, that not easy to touch by mistake, precise positioning, high light transmittance and clarity, lets you take advantage of touch features and navigate web pages, flick through photos, paint and play games - all with your finger tips, that is suitable for various commercial and industrial environments,
Industrial operating temperature range
This module can operate in a stable and failure-free way for a long period within wide range of temperatures, thanks to such option, it may be successfully applied, e.g in transportation and automotive industry.
RisingLCD targets industries field such as, smart city, smart eduction, smart factory, smart payment , Point Of Sale, kiosks, Automotive , Industrial Automation, Security, Hospitality, Home Automation, OEM, Gaming, Banking, Service, Embedded Systems, and so on.
OEM and ODM are welcomed!
RisingLCD is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, open frame monitor, outdoor and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingLCD is your best choice!
Hot Tags: 21.5 inch open frame monitor, BOE 65 inch industrial window facing display, BOE 32 inch industrial floor standing dispaly, 55 inch high brightness window facing display, lg, 21.5inch lg high brightness display, 50 inch touch screen kiosk, 55 inch touch screen display, wall mounted advertising window facing player, dual side floor standing window facing display, dual sided display, floor standing, 43" window facing display, sunlight screen 2500 nits lcd panel, China, factory, cheap, price, customized, quotation, 65 Inches Highlight LCD, 4000 cd/m² LCD Screen, 86" high brightness display, 21.5 LCD Strip Screen 55 inch P550HVN06.4 high brightness lcd display
| Factory Model No: | RS121ENT-N06 |
| Panel Brand | BOE Display |
| Panel No.: | AV121X0M-N10 |
| Screen Size | 12.1" |
| Active Area(mm) | 245.76*206.3 (H×V) |
| Panel Type. | a-Si TFT-LCD, CELL |
| Aspect Ratio | 4:03 |
| Native Resolution | 1024*768, XGA, 105PPI |
| Refresh Rate | 60Hz |
| Brightness | 600nit (Typ, w/ Glass) |
| Contrast Ratio | 1000:1 (Typ) |
| Dynamic CR | 500,000:1 |
| Color gamut | NTSC 70% |
| Viewing Angle (H x V) | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color: | 16.2M , 70% NTSC |
| Response Time | 30 (Typ.) (Tr to Td)ms |
| Life time | 50,000 Hrs (Typ) |
| Operation Hours (Hours/Day) | 24/7 |
| Operating Temperature: | -20 ~ 80 °C ; |
| Storage Temperature: | -30 ~ 85 °C |
| Frame material | metal |
| Interface | USB,HDMI,SD,RJ45,Power input |
| Photo Format | JPEG,BMP,GIF,PNG |
| Audio Format | MP3,WMA,OGG,FLAC |
| Video Format | AVI,MKV,MOV,MP4,RMVB,MPG,VOB,WMV,MPEG,TS,DIVX,XVID ect |
RS121ENT-N06 open-frame touch screen that is with equipped with BOE origial panel, 1024*768 resolution, and 1000:1 contrast ratio and 4:3 aspect Ratio, and wide industrial operation temperature, -20 ~ 80 °C , this is designed to be easily integrated into (or replacing your existing defective LCD monitor) kiosks, gaming and security monitor, no technical skills requires.
Main Feature:
1. Incorporate with touch screen so that it can be used as touch screen open frame,
2. Special Designed for easy integration into industrial machinery and kiosks.
3. With a high resolution panel and wide wiewing angles
4. Multi-touch, 10 point capacitive touch and resistive touch optional
5. Built with WIFI and Ethernet(lan) internet connection
6. The outer frame can be customized
7. The brightness can be customized to 600nits, 1000nits, 1500nits.
8. Ideal for retail, hospitality, healthcare and digital signage applications requiring gesture.
This open frame touch screen with PCAP touch screen, that not easy to touch by mistake, precise positioning, high light transmittance and clarity, lets you take advantage of touch features and navigate web pages, flick through photos, paint and play games - all with your finger tips, that is suitable for various commercial and industrial environments,
Industrial operating temperature range
This module can operate in a stable and failure-free way for a long period within wide range of temperatures, thanks to such option, it may be successfully applied, e.g in transportation and automotive industry.
RisingLCD targets industries field such as, smart city, smart eduction, smart factory, smart payment , Point Of Sale, kiosks, Automotive , Industrial Automation, Security, Hospitality, Home Automation, OEM, Gaming, Banking, Service, Embedded Systems, and so on.
OEM and ODM are welcomed!
RisingLCD is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, open frame monitor, outdoor and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingLCD is your best choice!
