Brand:
RisingStar
Model name:
/
Screen size:
13.3"
Screen type:
Open frame monitor
Resolution:
1920(RGB)×1080
Brightness (cd/m²):
2000
Rising Star Pioneering Global Manufacturing Technology for

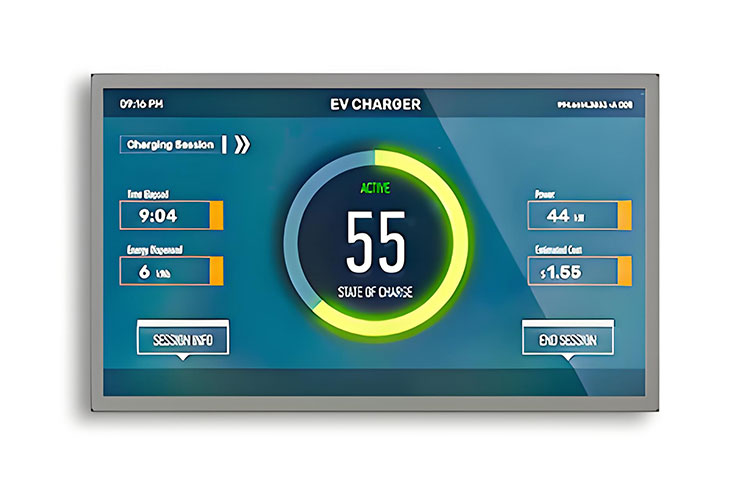

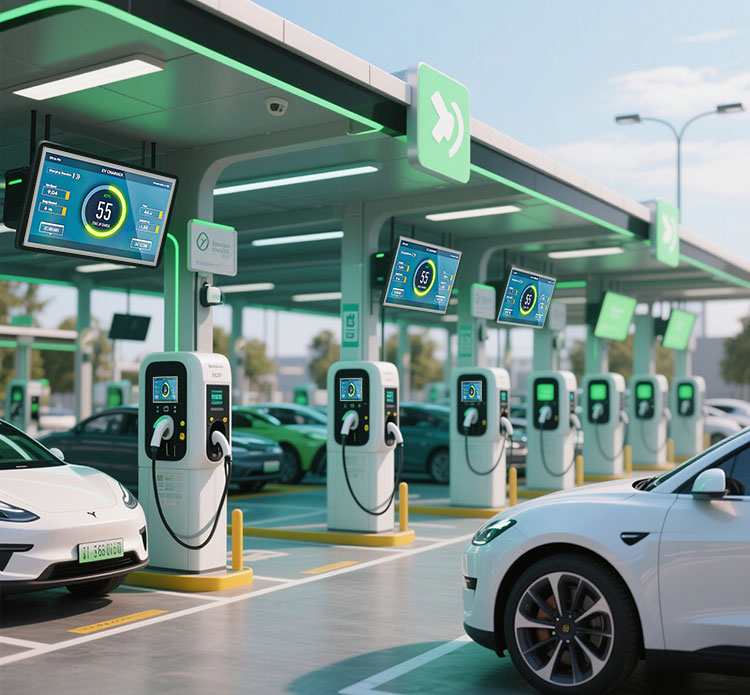

Designed for modern EV charging ecosystems, our 13.3 Inch EV Charging Station Touch Monitor combines compact versatility with industrial-grade durability. Perfect for urban charging hubs, retail parking, and fleet stations, this display delivers sharp visuals and seamless interaction, even in challenging environments.
Key Advantages
1. Space-Optimized Design
A 13.3-inch anti-glare touchscreen maximizes functionality in compact installations without compromising visibility. Ideal for tight urban spaces, indoor parking, or retrofitting existing stations.
2. Full HD Clarity & Sunlight Readability
Crisp 1920x1080 resolution ensures legible real-time data (charging speed, cost, time) and vibrant promotional content. Advanced anti-reflective coating guarantees readability in bright sunlight or low-light conditions.
3. Military-Grade Durability (IP65 Rated)
Built to withstand dust, moisture, and temperature extremes (-20°C to 80°C) for 24/7 reliability in outdoor or high-traffic environments.
Why Partner with Us?
1. Scalable Customization
Tailor bezel finishes, UI themes, and branding to align with your station’s aesthetic.
2. Cost-Effective Bulk Solutions
Streamline deployments with volume pricing, fast lead times (10–15 days), and modular designs for easy maintenance.
3. Global Compliance Assurance
CE, RoHS, and FCC-certified manufacturing ensures hassle-free entry into North American, European, and Asian markets.
Specially designed to provide a perfect solution for EV Charging Station Digital Display
A+ grade wide temperature LCD panel
Normal operation in an environment of 24H -20 ℃ to 80 ℃.

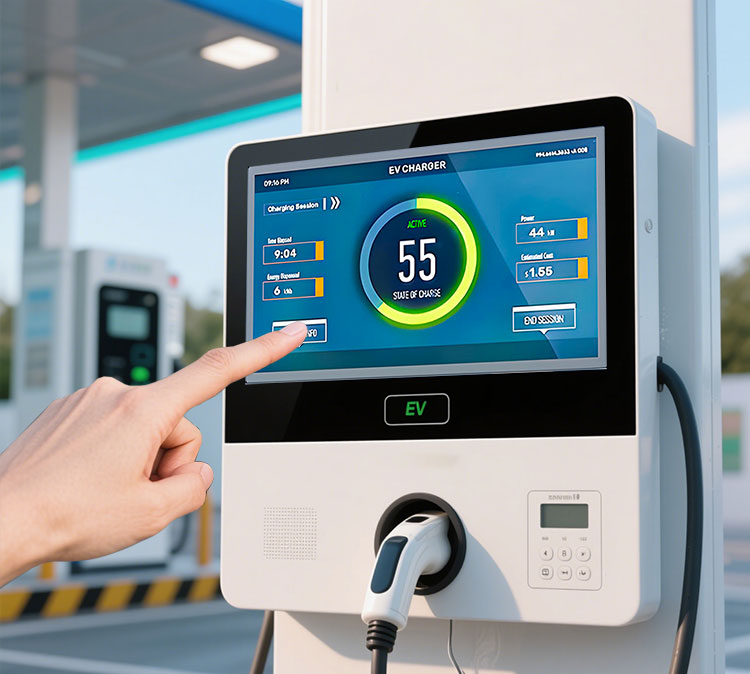

Designed for electric vehicle charging stations, this touchscreen responds instantly to the lightest touch, featuring multi-touch capability and a dustproof, waterproof design. Its anti-glare display ensures crystal-clear visibility even under direct sunlight, enabling effortless navigation, real-time charging monitoring, and instant payment processing
Optically bonded IK10 tempered glass effectively resists violent impacts
Having multiple national patent certificates
Customized LCD screen sizes for various electric vehicle (EV) charging stations
10.1 inches to 110 inches, please contact info@risinglcd.com
| Type | Size | Brightness |
|---|---|---|
| LCD module | 10" to 120" | 500 to 5000 nits |
| outdoor monitor | 32" to 75" | 500 to 5000 nits |
| waterproof monitor | 32" to 75" | 500 to 5000 nits |
| bus stop display | 21.5" to 86" | 500 to 5000 nits |
| window display | 43" to 75" | 500 to 3000 nits |
| double-sided display | 10" to 88" | 500 to 3000 nits |
| stretch display | 32" to 75" | 500 to 5000 nits |
| outdoor TV | 43" to 86" | 500 to 3000 nits |
| terrace TV | 10.1" to 86" | 500 to 3000 nits |
| touch monitor | 55" to 86" | 500 to 2500 nits |
| interactive screen | 43" to 86" | 500 to 2000 nits |
| battery Mobile monitors | 43" | 500 to 2000 nits |
| circular monitors | 23.6" | 500 to 3000 nits |
| mirror display | 21.5" to 65" | 500 to 1500 nits |
| Factory Model No: | RS133ENT-ND20-OP |
| Panel Brand | RisingStar |
| Screen Size | 21.5" |
| Panel Technology | IPS, M+ (WRGB) |
| Active Area(mm) | 293.76(H)x165.24(V) |
| Panel Type. | a-Si TFT-LCD, CELL |
| Aspect Ratio | 16:09 |
| Native Resolution | 3840*2160 (FHD) |
| Refresh Rate | 60Hz |
| Brightness | 2000 nits (Typ, w/ Glass) |
| Contrast Ratio | 1800:1 (Typ) |
| Dynamic CR | 500,000:1 |
| Color gamut | NTSC 72% |
| Viewing Angle (H x V) | 178 x 178 |
| Support Color: | 16.7M , 72% NTSC |
| Response Time | 17 (Typ.) (G to G)ms |
| Surface Treatment (Haze) | Hard coating (2H), Antiglare (Haze 25%) |
| Life time | 50,000 Hrs (Typ) |
| Operation Hours (Hours/Day) | 24/7 |
| Operating Temperature: | -20 ~ 80 °C ; |
| Storage Temperature: | -30 ~ 85 °C |
