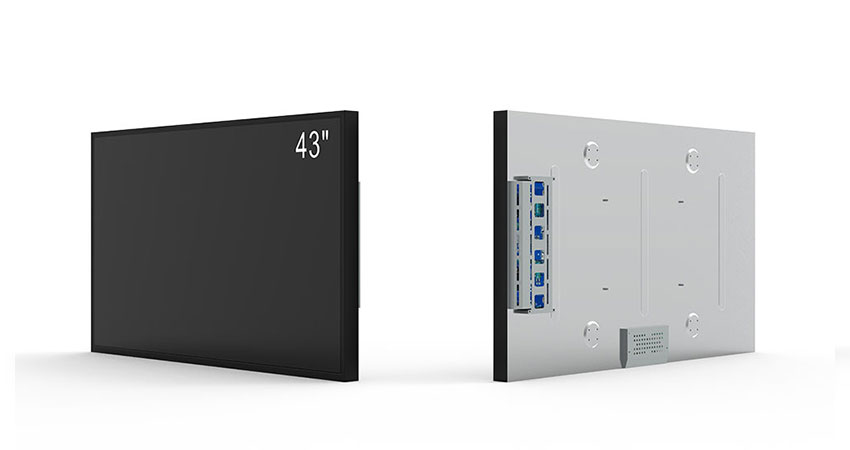

43 inch sunlight readable LCD panel for outdoor application
Model: 43" High Brightness a-Si TFT-LCD Bar Display
| Category | Specification |
|---|---|
| Panel Size | 43 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840 (RGB) × 720 |
| Pixel Density | 90 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area (mm) | 1073.78 (W) × 201.334 (H) |
| Viewing Area (mm) | 1076.3 (W) × 204.5 (H) |
| Surface Treatment | Matte (Haze 1%), Hard Coating (3H) |
| Brightness | 1000 ~ 5000 nits |
| Contrast Ratio | 5000:1 (Typ.) (TM) |
| Viewing Angle (CR ≥ 10) | 89/89/89/89 (L/R/U/D) |
| Display Mode | Super MVA, Normally Black, Transmissive |
| Color Depth | 1.07B, 72% NTSC |
| Response Time | 12 ms (Typ., G to G) |
| Backlight Type | WLED, 50,000 hours, Built-in LED Driver |
| Refresh Rate | 60 Hz |
| Enhanced Modes | 120Hz (60Hz input with MEMC) / 120Hz+120Hz (Panel + Backlight) / 240Hz (60Hz input with MEMC) |
| Touch Screen | No Touch |
| Panel Weight | 4.50 ± 0.3 kg |
| Interface | V-by-One (8 lanes), 51-pin Terminal |
| Driving Voltage | 12V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Applications | Digital Signage, Outdoor High Brightness Display, Bar-Type Stretched Display |
Panel Description
This 43-inch a-Si TFT-LCD bar-type display is engineered for outdoor and commercial digital signage applications that require ultra-wide format, high brightness, and excellent readability under direct sunlight. With up to 5000 nits luminance, Super MVA wide-viewing technology, and 72% NTSC color reproduction, this display ensures vivid images from all angles. The matte surface treatment and 3H hard coating enhance outdoor durability and reduce glare.
Designed for industrial and signage integrators, the panel includes a V-by-One interface, built-in LED driver, long-life WLED backlight, and support for multiple high-refresh solutions such as 120Hz/240Hz MEMC, delivering smooth motion for transportation displays and retail advertising.
Recommended Applications
This 43" stretched high-brightness LCD is ideal for:
Outdoor Digital Signage
Passenger Information Displays (Railway, Metro, Bus)
Retail Shelf Displays / Advertising Bar Screens
Outdoor Kiosks & Totems
EV Charger Displays
Fuel Dispenser Screens (Gas Stations)
Transportation Guidance & Wayfinding Systems
Industrial Control Panels Requiring Ultra-Wide Displays
