Brand:
RisingStar
Model name:
RS750ENT-GD45
Screen size:
75"
Screen type:
Outdoor LCD Panel
Resolution:
3840 (RGB) × 2160 (UHD), 59 PPI
Brightness :
1000 to 5000nits

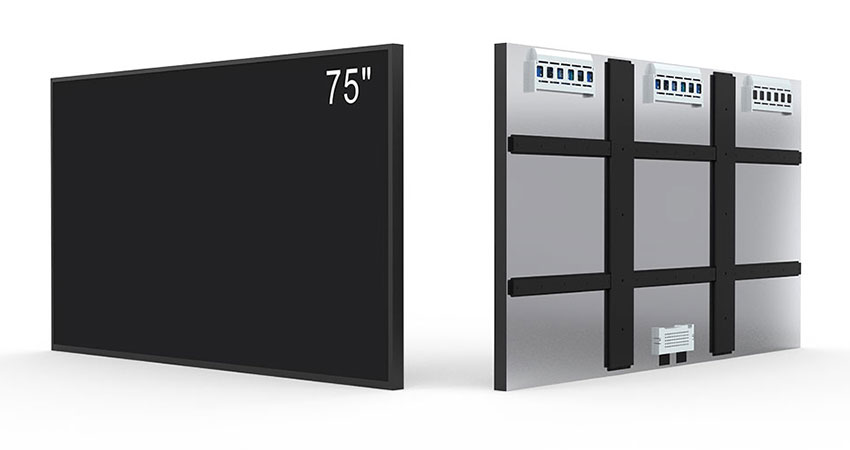

RisingStar's 75-inch outdoor sunlight readable LCD display is engineered for high-performance digital signage applications in bright and challenging environments. Featuring a UHD resolution of 3840×2160 and a pixel density of 59PPI, this a-Si TFT-LCD panel delivers ultra-clear visuals with wide 89°/89°/89°/89° viewing angles and IPS technology for consistent image quality from any direction.
With a high brightness range from 1000 to 5000 nits and a contrast ratio of 1200:1, the display remains highly readable even under direct sunlight. Its anti-glare surface treatment (3% haze) and hard coating (2H) further enhance outdoor visibility and durability. Designed with WLED backlight and a 50,000-hour lifespan, it ensures long-term reliability and energy efficiency.
This panel supports 1.07 billion colors, 69% NTSC color gamut, and operates at 60Hz with optional MEMC for smoother motion display. Built for industrial and outdoor use, it functions reliably in temperatures from 0 to 50°C, making it ideal for digital signage in transportation hubs, commercial spaces, and smart city environments. Signal input is supported via V-by-One 8-lane interface, and the display is housed in a robust structure with a weight range of 27.6 to 30.5 kg.
75-inch outdoor digital signage use case
| Specification | Details |
|---|---|
| Panel Size | 75 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840 (RGB) × 2160 (UHD), 59 PPI |
| Pixel Configuration | RGBW Vertical Stripe |
| Active Area | 1649.66(W) × 927.936(H) mm |
| View Area | 1651.6(W) × 930(H) mm |
| Surface Treatment | Anti-glare (Haze 3%), Hard Coating (2H) |
| Brightness | 1000 to 5000 nits (Typical) |
| Contrast Ratio | 1200:1 (Typical) (TM) |
| Viewing Angle (CR≥10) | 89°/89°/89°/89° (Left / Right / Up / Down) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 8 ms (Typical, G to G) |
| Display Colors | 1.07 Billion (10-bit), 69% NTSC |
| Backlight Type | WLED with LED Driver, 50,000 hours lifespan |
| Refresh Rate | 60Hz standard (120Hz MEMC optional) |
| Touch Function | No touch |
| Panel Weight | 27.6 / 30.5 kg (Typical / Max) |
| Signal Interface | V-by-One, 8 lanes, 56 pins |
| Driving Voltage | 12.0V (Typical) |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -20 ~ 60°C |
| Application | Outdoor Digital Signage, High Brightness Display |
