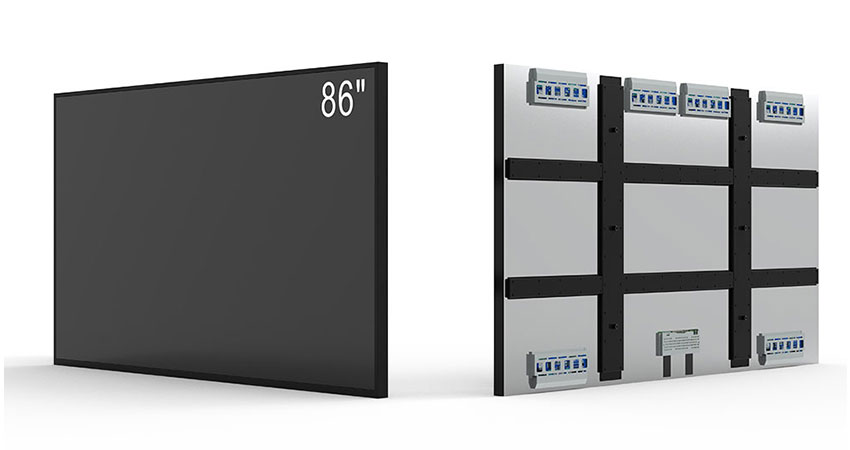

Brand:
RisingStar
Model name:
RS860EQL-GD40
Screen size:
86"
Screen type:
Outdoor LCD Panel
Resolution:
1920(RGB)×1080
Brightness (cd/m²):
1000~5000nits
| Category | Specification |
|---|---|
| Panel Size | 86 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840 (RGB) × 2160, UHD, 51 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 1895.04 (W) × 1065.96 (H) mm |
| Outline Opening Size | 1897.0 (W) × 1068.0 (H) mm |
| Surface Treatment | Anti-glare (Haze 3%), Hard Coating (2H) |
| Brightness | 500 ~ 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.) (CR ≥10) – L/R/U/D |
| Display Mode | IPS, Normally Black, Transmissive |
| Supported IPS Types | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| Supported VA Types | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Direction | All View |
| Response Time | 8 ms (Typ., G-to-G) |
| Display Colors | 16.7M / 1.07B, 72% NTSC |
| Backlight Type | WLED, 30,000 hrs, Built-in LED Driver |
| Refresh Rate | 60 Hz |
| Enhanced Refresh | • 120 Hz (60 Hz input, with MEMC) • 120 Hz + 120 Hz (120 Hz panel + 120 Hz backlight) • 240 Hz (60 Hz input, with MEMC) |
| Touch Screen | None |
| Panel Weight | 34.1 / 35.8 kg (Typ. / Max.) |
| Applications | TV, Interactive Whiteboard |
| Signal Interface | V-by-One, 8 lanes, 56-pin terminal |
| Driving Voltage | 12.0 V (Typ.) |
| Operating Temp. | -20 ~ 70 °C |
| Storage Temp. | -20 ~ 60 °C |
| Notes | © Panel Database – No unauthorized copying |
This 86-inch a-Si TFT-LCD panel delivers ultra-high-definition 4K resolution with a wide 89-degree viewing angle and IPS “normally black” mode for superior image stability and color accuracy. With adjustable brightness from 500 to 5000 nits, it supports both indoor and high-ambient-light environments. The anti-glare surface and 2H hard coating enhance readability and durability, particularly for professional and commercial display applications.
Equipped with WLED backlight (30,000 hours), high contrast, and optional MEMC up to 240 Hz, the panel provides smooth motion performance suitable for dynamic content such as education, conferencing, digital signage, and interactive systems. The V-by-One 8-lane interface ensures stable high-bandwidth transmission for 4K display requirements.
This 86" LCD module is ideal for:
Interactive whiteboards in classrooms, meeting rooms, and corporate training environments
4K televisions and smart TV systems
Large-format digital signage in malls, airports, and transportation hubs
Command centers and monitoring systems requiring wide viewing angles
Video conferencing displays with fast response and uniform brightness
| Category | Specification |
|---|---|
| Panel Size | 86 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840 (RGB) × 2160, UHD, 51 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 1895.04 (W) × 1065.96 (H) mm |
| Outline Opening Size | 1897.0 (W) × 1068.0 (H) mm |
| Surface Treatment | Anti-glare (Haze 3%), Hard Coating (2H) |
| Brightness | 500 ~ 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.) (CR ≥10) – L/R/U/D |
| Display Mode | IPS, Normally Black, Transmissive |
| Supported IPS Types | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| Supported VA Types | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Direction | All View |
| Response Time | 8 ms (Typ., G-to-G) |
| Display Colors | 16.7M / 1.07B, 72% NTSC |
| Backlight Type | WLED, 30,000 hrs, Built-in LED Driver |
| Refresh Rate | 60 Hz |
| Enhanced Refresh | • 120 Hz (60 Hz input, with MEMC) • 120 Hz + 120 Hz (120 Hz panel + 120 Hz backlight) • 240 Hz (60 Hz input, with MEMC) |
| Touch Screen | None |
| Panel Weight | 34.1 / 35.8 kg (Typ. / Max.) |
| Applications | TV, Interactive Whiteboard |
| Signal Interface | V-by-One, 8 lanes, 56-pin terminal |
| Driving Voltage | 12.0 V (Typ.) |
| Operating Temp. | -20 ~ 70 °C |
| Storage Temp. | -20 ~ 60 °C |
| Category | Specification |
|---|---|
| Panel Size | 86 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840 (RGB) × 2160, UHD, 51 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 1895.04 (W) × 1065.96 (H) mm |
| Outline Opening Size | 1897.0 (W) × 1068.0 (H) mm |
| Surface Treatment | Anti-glare (Haze 3%), Hard Coating (2H) |
| Brightness | 500 ~ 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.) (CR ≥10) – L/R/U/D |
| Display Mode | IPS, Normally Black, Transmissive |
| Supported IPS Types | AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich |
| Supported VA Types | ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Direction | All View |
| Response Time | 8 ms (Typ., G-to-G) |
| Display Colors | 16.7M / 1.07B, 72% NTSC |
| Backlight Type | WLED, 30,000 hrs, Built-in LED Driver |
| Refresh Rate | 60 Hz |
| Enhanced Refresh | • 120 Hz (60 Hz input, with MEMC) • 120 Hz + 120 Hz (120 Hz panel + 120 Hz backlight) • 240 Hz (60 Hz input, with MEMC) |
| Touch Screen | None |
| Panel Weight | 34.1 / 35.8 kg (Typ. / Max.) |
| Applications | TV, Interactive Whiteboard |
| Signal Interface | V-by-One, 8 lanes, 56-pin terminal |
| Driving Voltage | 12.0 V (Typ.) |
| Operating Temp. | -20 ~ 70 °C |
| Storage Temp. | -20 ~ 60 °C |
| Notes | © Panel Database – No unauthorized copying |
This 86-inch a-Si TFT-LCD panel delivers ultra-high-definition 4K resolution with a wide 89-degree viewing angle and IPS “normally black” mode for superior image stability and color accuracy. With adjustable brightness from 500 to 5000 nits, it supports both indoor and high-ambient-light environments. The anti-glare surface and 2H hard coating enhance readability and durability, particularly for professional and commercial display applications.
Equipped with WLED backlight (30,000 hours), high contrast, and optional MEMC up to 240 Hz, the panel provides smooth motion performance suitable for dynamic content such as education, conferencing, digital signage, and interactive systems. The V-by-One 8-lane interface ensures stable high-bandwidth transmission for 4K display requirements.
This 86" LCD module is ideal for:
Interactive whiteboards in classrooms, meeting rooms, and corporate training environments
4K televisions and smart TV systems
Large-format digital signage in malls, airports, and transportation hubs
Command centers and monitoring systems requiring wide viewing angles
Video conferencing displays with fast response and uniform brightness
