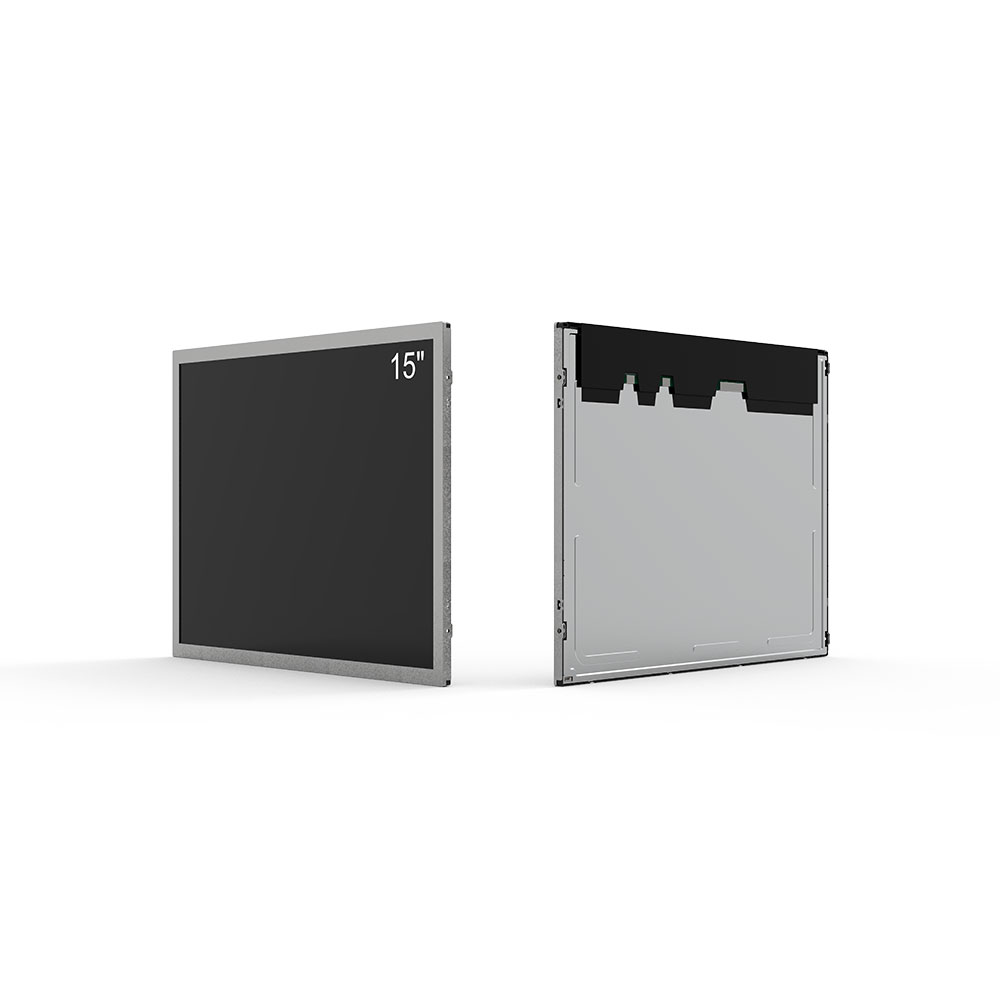

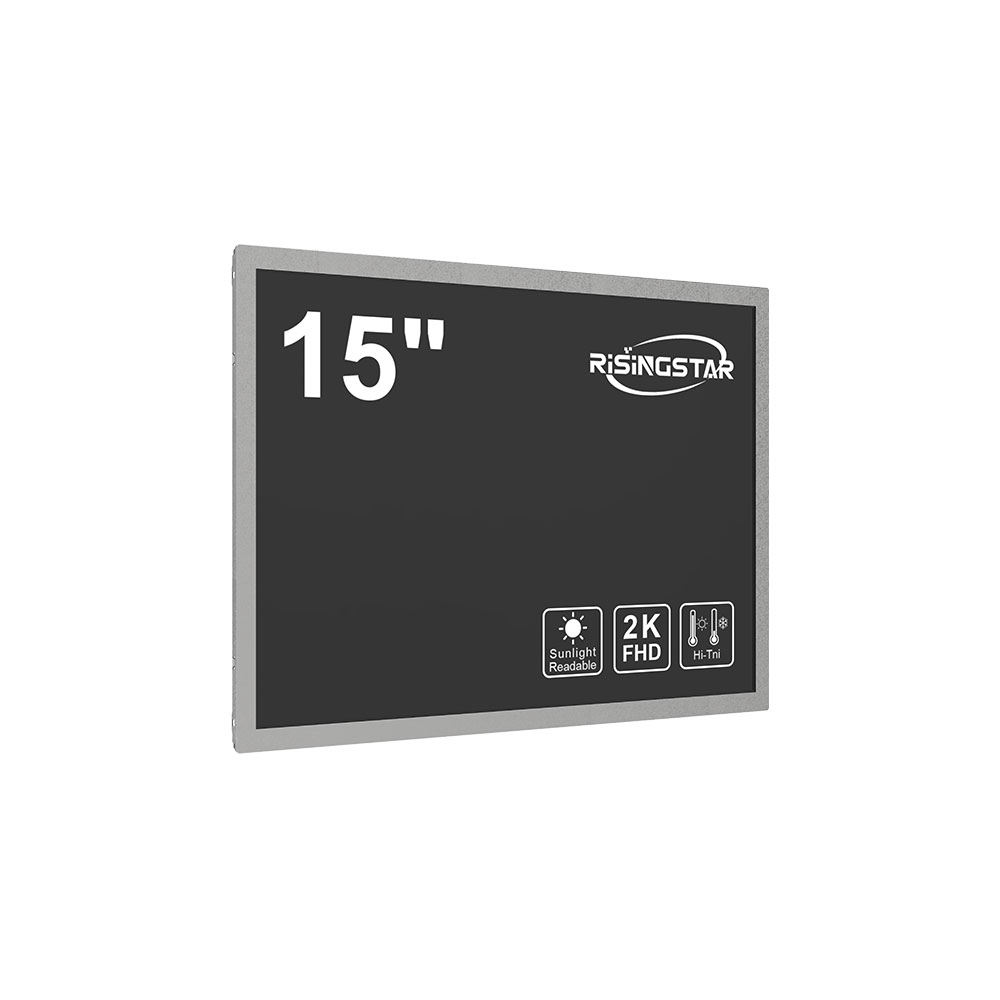

15 inch industrial high brightness TFT LCD panel
| Screen Diagonal | 15 inch |
| Brand | RisingStar |
| Model No | RS150X0M-GE10 |
| Active Area | 304.128(W)×228.096(H) mm |
| Pixels | 1024(RGB)×768, XGA, 85PPI |
| Physical Size | 326.5(W)×253.5(H)×10(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1000:1 |
| White Luminance ( Center ) | 1000 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 30 (Typ.)(Tr+Td) ms |
| Nominal Input Voltage | 3.3 V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [g] | 930g |
| Interface Type | 20 pins LVDS (1 ch, 8-bit) |
| Support Color | 16.7M , 72% NTSC |
| Surface Treatment | Hard coating (3H), |
| RoHS Compliance | RoHS Compliance |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
RisingStarRS150X0M-GE10is a high brightness display that offer very high quality images and can be read even under sunlight, it is idea for outdoor device, such asmarine, military, andindustrialapplication.
RS150X0M-GE10Main Features:
1.OriginalTFT LCD panel
2.High resolution: 1024(RGB)×768, XGA, 85PPI
3.Brightness up to 1000 nits
4.Military grade, Blackening Defect free
5.More brightness adjustment available: Auto brightness sensor, Manual brightness adjustment( PWM brightness adjustment, OSD brightness adjustment)
6.Multi touch (PCAP) is option.
1000nits high brightness
Risingstar RS150X0M-GE10 is 15 inches and boasting an impressive brightness level of 1000nits can be comfortably viewed even in broad daylight. The display has an added advantage of an auto-brightness control feature that ensures optimal brightness levels at all times. A built-in light sensor detects ambient lighting conditions and adjusts image brightness accordingly, providing users with an unrivaled viewing experience. This functionality also helps in cost-saving by reducing energy consumption, heat output, and prolongs the lifespan of the display.
True industrial Grade LCD IPS panel
Thanks to their special sunlight readable LCD panels technology, these displays can withstand surface temperatures up to 110degreewithout suffering from any blackening defect. This is crucial for outward-facing window displays, which must contend with exposure to direct sunlight.
is a Wide Temperature，High Brightness，1024*768 TFT LCD monitor, WLED Backlight，Life ≥ 100K hours，With LED Driver，with LVDS interface.and Wide Operational Operating Temperature -20 ~ 70 °C
