65 inch 2500 nits high brightness TFT LCD panel for passenger information display
| Screen Diagonal | 65 inch |
| Brand | Risingstar |
| Model No | RS650EQC-ND25 |
| Active Area | 1428.48(W)×803.52(H) mm |
| Resolution | 3840(RGB)×2160, UHD, 68PPI |
| Physical Size | 1461（H）*843.1(V)*60.3(D)mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| Contrast Ratio : | 1300:1 |
| White Luminance ( Center ) | 2500 cd/m2 (Typ.) [cd/m2 ] |
| Optical Response Time | 8/10 (Typ.)(Tr/Td) ms |
| Nominal Input Voltage | 12.0V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [kg] | 20.5(Typ.) |
| Interface Type | 120 pins EPI connector |
| Support Color | 1.07B , |
| Surface Treatment | Antiglare (Haze 3%), Hard coating (2H) |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -20 ~70 °C |
| Storage (Non-Operating) | -30 ~ 80 °C |

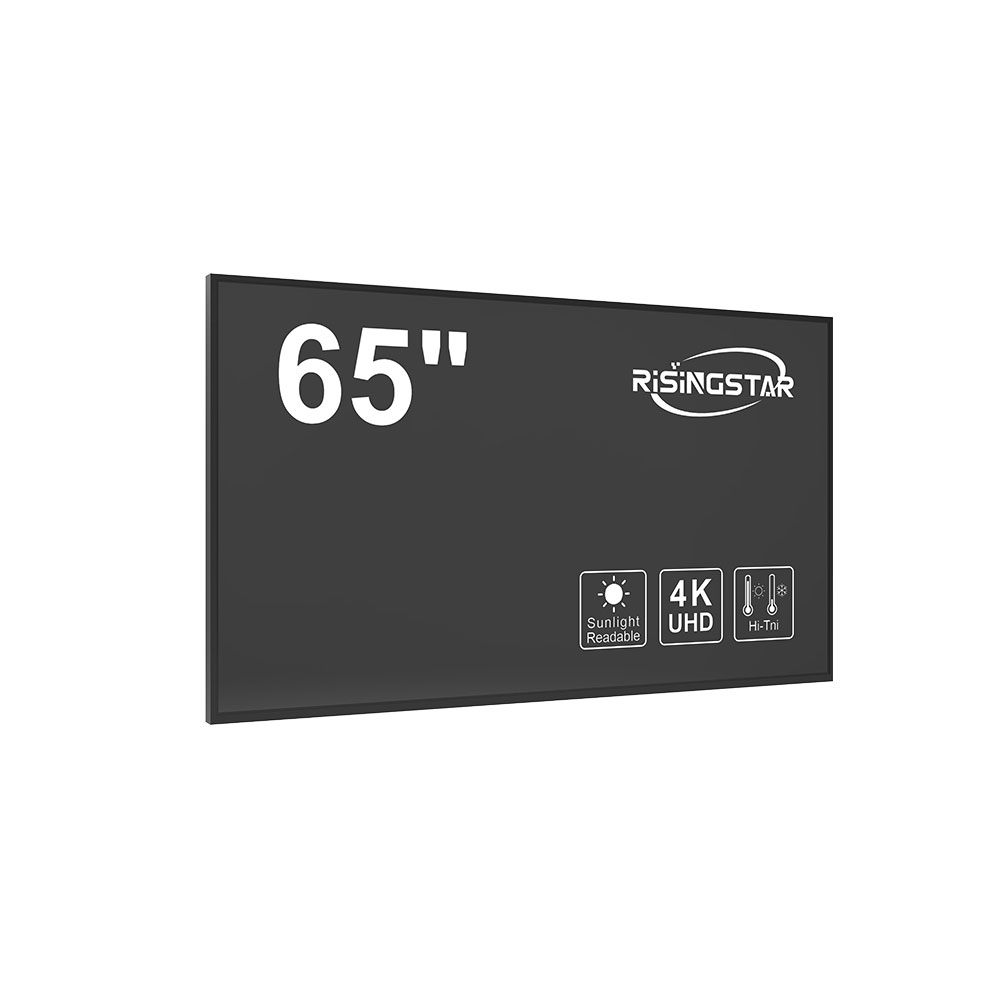

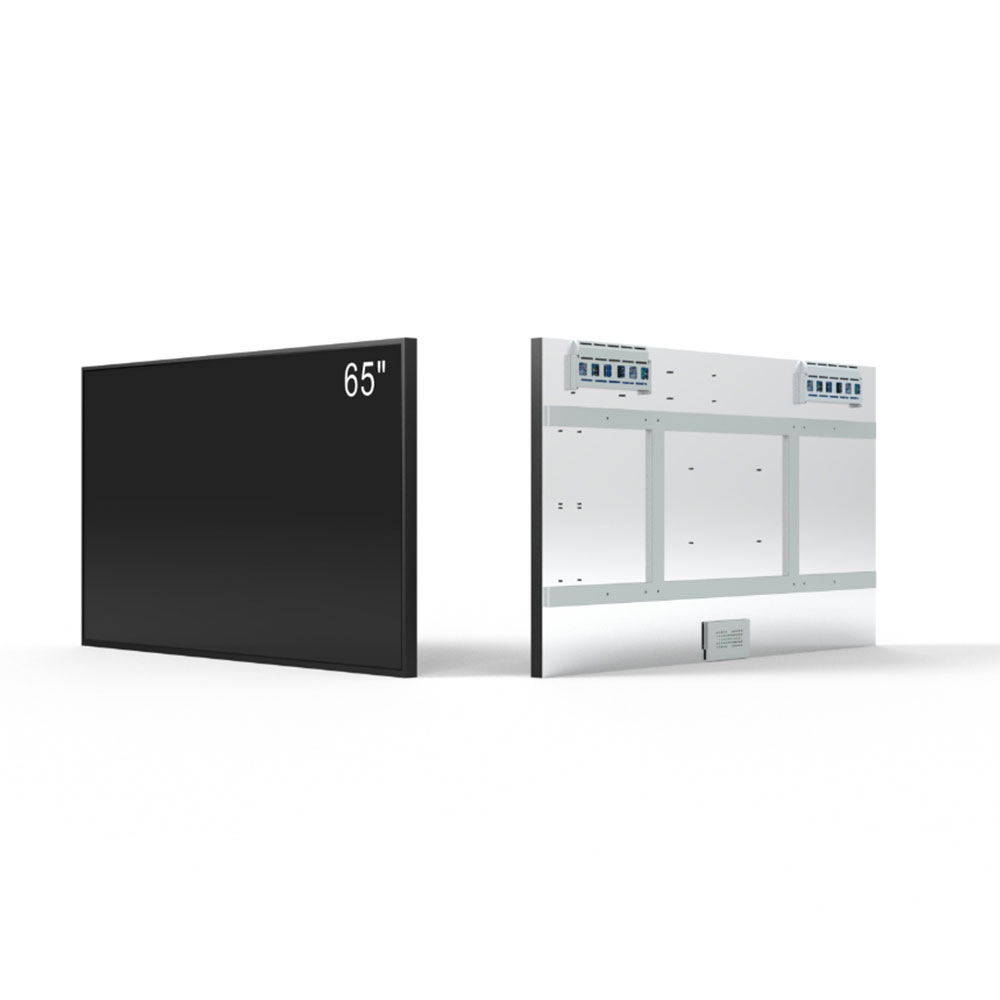

The RS650EQC-ND25 is a high-brightness LCD panel featuring 2,500 nits brightness, ultra-high 4K resolution (3840*2160), and a 1300:1 contrast ratio. With a wide viewing angle of 89/89/89/89 (Min.)(CR≥10) and a 60Hz refresh rate, this display is engineered for mission-critical Passenger Information Display Systems (PIDS) in bus stations, railway terminals, and airports.
65-inch High Brightness TFT LCD Panel Main Features:
Up to 5,000 nits brightness available, ensuring direct sunlight readability.
Full size range from 7 to 100 inches for versatile deployment.
Industrial Hi-Tni technology prevents blackening defects under intense solar radiation.
Up to 4K UHD resolution for crystal-clear imagery.
Noise-less and space-efficient thermal management design.
Automatic brightness control for optimized visibility and energy efficiency.
Supports both landscape and portrait orientation.
2,500 Nits High Brightness
The RS650EQC-ND25 TFT LCD panel utilizes an industrial-grade LED backlight to deliver 2,500 nits brightness with high-contrast picture quality and low power consumption. Specifically designed for sunlight-readable passenger information displays, these panels are equipped with Tier-1 Grade A open cells (LG Display) to ensure your content stands out vividly in any high-ambient commercial location.
65-inch High Brightness TFT Panel Applications:
Public transit hubs (Bus, Rail, and Airport PIDS), high-speed train information screens, large retail shop windows, car dealerships, hospitality venues, and smart city kiosks.
