15.6 Inch Outdoor High Brightness Digital Display – Industrial-Grade LCD Module
The 15.6-inch outdoor high brightness digital display is a robust and reliable LCD module tailored for high-visibility industrial applications in demanding outdoor environments. Utilizing a-Si TFT-LCD technology, this WXGA panel (1366×768 resolution, 100 PPI) delivers clear and sharp images with a wide viewing area of 344.232(W) × 193.536(H) mm. The unit supports a brightness range from 500 nits up to 5000 nits, making it ideal for sunlight-readable use in kiosks, charging stations, and public information systems.
This display features a wide viewing angle of 85°/85°/80°/80° (CR≥10), with 16.2M colors covering 70% NTSC for vibrant and accurate visuals. The screen’s matte surface with 3H hard coating enhances readability while reducing glare. Supporting refresh rates up to 240Hz with integrated MEMC technology, it ensures smooth visual transitions in dynamic environments.
Built with industrial durability in mind, the unit operates reliably between 0°C to 60°C and stores safely from -20°C to 60°C. With a contrast ratio of 500:1 (typical, transmissive mode) and WLED backlighting rated for 50,000 hours, it’s engineered for long-term outdoor use. The display supports LVDS 30-pin signal input, operates at 5.0V, and comes without a touch panel, allowing for flexible system integration.
Whether in transportation, retail signage, or smart vending applications, this 15.6-inch high brightness display delivers performance, visibility, and longevity you can trust.

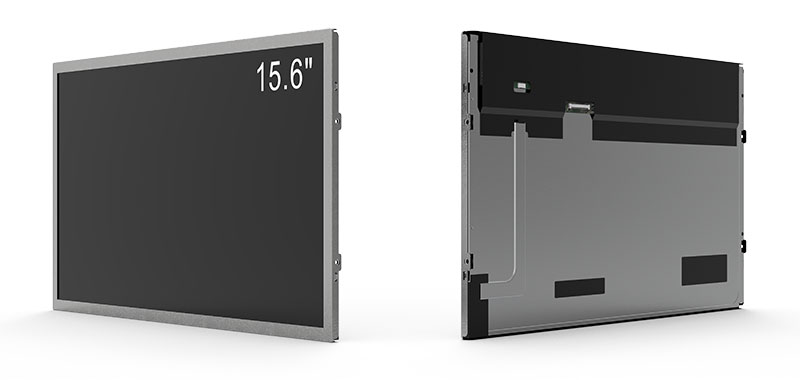

RisingStar 15.6-inch high-brightness display panel
RisingStar 15.6-inch high-brightness display panel outdoor application case
| Specification | Details |
|---|---|
| Panel Size | 15.6 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1366 (RGB) × 768, WXGA, 100 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area (W × H) | 344.232 × 193.536 mm |
| Outline Dimensions | 347.54 × 196.83 mm |
| Brightness Range | 500 nits to 5000 nits |
| Viewing Angle (CR≥10) | 85°/85°/80°/80° (Left/Right/Up/Down) |
| Display Colors | 16.2M Colors, 70% NTSC Coverage |
| Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Response Time (Tr/Td) | 6/2 ms (Typ.) |
| Backlight System | WLED with Driver, 50,000 Hours Lifetime |
| Refresh Rate | 60Hz (Input), MEMC-enhanced 120Hz/240Hz Options Available |
| Optical Mode | TN (Normally White), Optional IPS/VA Variants |
| Signal Interface | LVDS (1 channel, 8-bit), 30-pin Connector |
| Power Supply Voltage | 5.0V (Typ.) |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -20°C ~ 60°C |
| Weight | 1.25 kg (Typ.), 1.35 kg (Max.) |
| Touchscreen | No Touchscreen (Customizable if required) |
| Recommended Applications | Outdoor Digital Signage, EV Charging Stations, Kiosks |
| Specification | Details |
|---|---|
| Panel Size | 15.6 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1366 (RGB) × 768, WXGA, 100 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area (W × H) | 344.232 × 193.536 mm |
| Outline Dimensions | 347.54 × 196.83 mm |
| Brightness Range | 500 nits to 5000 nits |
| Viewing Angle (CR≥10) | 85°/85°/80°/80° (Left/Right/Up/Down) |
| Display Colors | 16.2M Colors, 70% NTSC Coverage |
| Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Response Time (Tr/Td) | 6/2 ms (Typ.) |
| Backlight System | WLED with Driver, 50,000 Hours Lifetime |
| Refresh Rate | 60Hz (Input), MEMC-enhanced 120Hz/240Hz Options Available |
| Optical Mode | TN (Normally White), Optional IPS/VA Variants |
| Signal Interface | LVDS (1 channel, 8-bit), 30-pin Connector |
| Power Supply Voltage | 5.0V (Typ.) |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -20°C ~ 60°C |
| Weight | 1.25 kg (Typ.), 1.35 kg (Max.) |
| Touchscreen | No Touchscreen (Customizable if required) |
| Recommended Applications | Outdoor Digital Signage, EV Charging Stations, Vending Machines, Kiosks |
