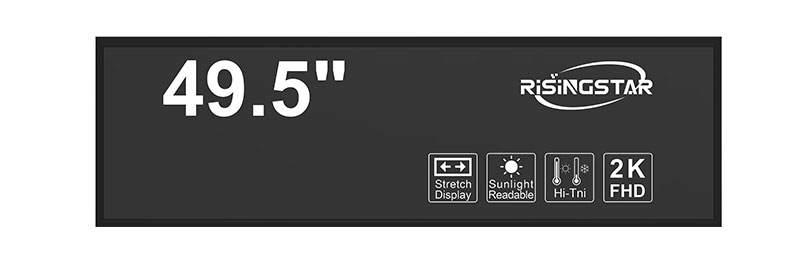

49.5 inch Open Frame High Brightness LCD Monitor
49.5" High Brightness Open Frame Monitor
Key Features
High brightness 4000 nits
Sunlight readable performance
LED backlight
Wide viewing angle: 178°(H) / 178°(V)
Wide operating temperature: -20 ~ 70 °C
LCD blacking defect free
Low power consumption
Backlight MTBF: 50,000 hours
Intelligent temperature control system with active heat dissipation
Specifications
| Item | Details |
|---|---|
| Model Name | RS495FNX01D01 |
| Screen Size | 49.5" |
| Display Area (mm) | 1018.8 (H) × 572.67 (V) |
| Brightness | 4000 cd/m² |
| Resolution | 1920 × 540 |
| Aspect Ratio | ＜ 3 : 1 |
| Contrast Ratio | 4000 : 1 |
| Pixel Pitch (mm) | 0.630 (H) × 0.630 (V) |
| Viewing Angle | 89/89/89/89 (Min.) (CR ≥ 10) |
| Color Saturation (NTSC) | 72% |
| Display Colors | 16.7M |
| Response Time | 8 ms (Typ., Tr/Td) |
| Input Interface | EARPHONE OUT ×1, AUDIO IN ×1, VGA ×1, DVI ×1, HDMI ×1, AC IN ×1 |
| OSD Keys | AUTO / MENU / LEFT / RIGHT / EXIT / SELECT / POWER |
| Glass | N/A |
| Touch Type | N/A |
| Input Power | AC 200–240 V |
| Power Consumption | TBD |
| Radiator System | N/A |
| Dimensions (mm) | 1242.2 × 377.8 × 78 |
| Mounting | 400 × 200 mm, Screws: M8 |
| Weight (Net) | TBD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Support & Shipping
01 / Warranty Policy
Complete System
3 Years Full Warranty for the complete machine assembly. 1 Year Warranty for the original LCD module. Optional extended warranty programs available.
02 / Field Support
Remote & On-site
24/7 technical support and configuration guidance via video link or remote access. Local on-site installation available for large deployments.
03 / Production Timeline
Scalable Manufacturing
Verification and custom prototype delivery within 10 Working Days. Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable Logistics
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS). Cost-optimized bulk shipping in 30 - 45 Days for major ports.
Interested in this product?
Get in touch with our experts for a personalized quote or technical support.
