Brand:
RisingStar
Model name:
RS185ENT-GE15
Screen size:
18.5"
Screen type:
Industrial Ultra High Brightness
Resolution:
1366 (RGB) × 768 (WXGA), 84 PPI
Brightness :
Brightness can be customized from 500 to 1500.

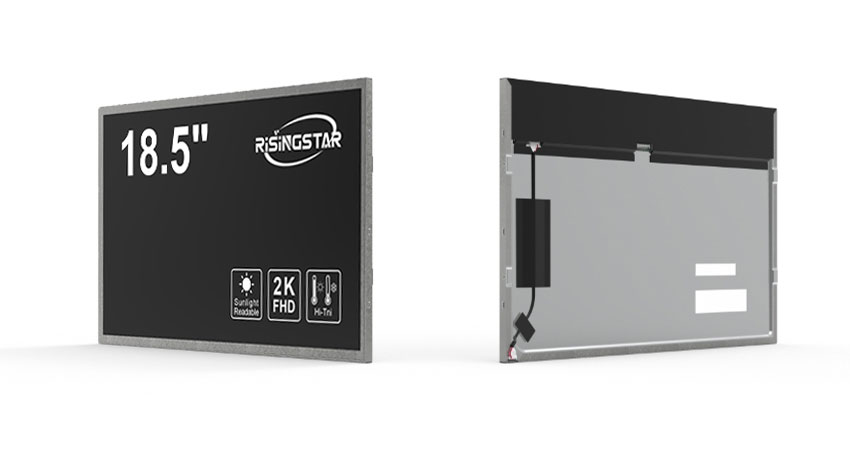

18.5" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (E Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS185ENT-GE05 | 500 | 1366×768 (WXGA), 84 PPI |
| RS185ENT-GE10 | 1000 | 1366×768 (WXGA), 84 PPI |
| RS185ENT-GE15 | 1500 | 1366×768 (WXGA), 84 PPI |
| Item | Specification |
|---|---|
| Panel Size | 18.5 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1366 (RGB) × 768 (WXGA), 84 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Display Area | 409.8 (W) × 230.4 (H) mm |
| View Area (Bezel Opening) | 413.4 (W) × 234.0 (H) mm |
| Surface Treatment | Anti-glare (Haze 13%), Hard Coating (3H) |
| Brightness | 500 ~ 1500 nits |
| Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Recommended Viewing | Full Viewing Angle |
| Response Time | 6 ms (Typ.) (G to G) |
| Viewing Angle (CR ≥10) | 89/89/89/89 (Left/Right/Up/Down) |
| Display Mode | S-IPS, Normally Black, Transmissive |
| Panel Technology Notes | IPS Hard-Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Supported Colors | 16.7M, 68% NTSC |
| Backlight Type | WLED, 50,000 hours lifetime, Built-in LED Driver |
| Weight | 1.04 / 1.10 kg (Typ./Max.) |
| Application Product | TV |
| Frame Rate | 60 Hz |
| High-Refresh Notes | 120 Hz (60 Hz input) with built-in MEMC; 120 Hz + 120 Hz (panel + backlight); 240 Hz (60 Hz input) |
| Interface | 30-pin LVDS (1 ch, 8-bit), Connector |
| Supply Voltage | 5.0 V (Typ.) |
| Operating Temperature | –20 ~ 70 °C |
| Storage Temperature | –20 ~ 70 °C |
This 18.5-inch a-Si TFT-LCD panel is designed for versatile display applications requiring wide viewing angles, stable image performance, and long-term reliability. Featuring an S-IPS “normally black” transmissive mode, the panel delivers consistent color accuracy and excellent contrast even under off-axis viewing—making it ideal for environments where screens are frequently viewed from multiple directions.
With brightness ranging from 500 to 1500 nits, the display supports both indoor and high-brightness outdoor-adapted use cases. Its anti-glare surface (13% haze) and 3H hard coating improve durability and readability, while the WLED backlight offers a 50,000-hour lifespan and integrates the LED driver for simplified system design.
The panel supports up to 120 Hz/240 Hz solutions with MEMC and high-speed backlight modulation, making it suitable for smoother motion display requirements such as gaming TVs, information kiosks, or multimedia screens. The wide operating temperature range (–20 to 70°C) enhances its suitability for industrial and semi-outdoor environments.
With a lightweight structure (1.04–1.10 kg), LVDS 30-pin interface, and robust IPS technology, this panel is commonly used in:
Consumer televisions
Information displays
Industrial monitors
Control panels
Advertising and signage displays
Embedded display systems
