Brand:
RisingStar
Model name:
RS490ENT-GD50
Screen size:
49"
Screen type:
Industrial Ultra High Brightness
Resolution:
1920(RGB) × 1080, FHD, 45 PPI
Brightness :
Brightness can be customized from 2000 to 5000.
49" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS490ENT-GD20 | 2000 | 1920×1080 / 3840×2160 |
| RS490ENT-GD25 | 2500 | 1920×1080 / 3840×2160 |
| RS490ENT-GD30 | 3000 | 1920×1080 / 3840×2160 |
| RS490ENT-GD35 | 3500 | 1920×1080 / 3840×2160 |
| RS490ENT-GD40 | 4000 | 1920×1080 / 3840×2160 |
| RS490ENT-GD45 | 4500 | 1920×1080 / 3840×2160 |
| RS490ENT-GD50 | 5000 | 1920×1080 / 3840×2160 |
| Parameter | Specification |
|---|---|
| Panel Size | 49.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 1080, FHD, 45 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area (W×H) | 1073.78 × 604 mm |
| Visible Area (W×H) | 1078.6 × 609.5 mm |
| Surface Treatment | Anti-Glare (Haze 1%) |
| Brightness (cd/m²) | 2000 ~ 5000 |
| Contrast Ratio | 1200:1 (Typ., Transmissive) |
| Optical Mode | ADS, Normally Black, Transmissive |
| Viewing Angle (L/R/U/D) | 89° / 89° / 89° / 89° (Typ., CR≥10) |
| Response Time (Tr+Td) | 8 ms (Typ.) |
| Color Support | 16.7M colors, 68% NTSC |
| Backlight Type | WLED, 15,000 hours, with LED driver |
| Refresh Rate | 60Hz; 120Hz (60Hz input, MEMC built-in); 120Hz+120Hz; 240Hz (60Hz input, MEMC built-in) |
| Touch Function | None |
| Signal Interface | LVDS (2ch, 8-bit), 51 pins |
| Supply Voltage | 12.0 V (Typ.) |
| Storage Temperature | -20 ~ 70 °C |
| Operating Temperature | -20 ~ 70 °C |
| Weight | 9.80 kg (Max.) |
| Applications | Digital Signage |

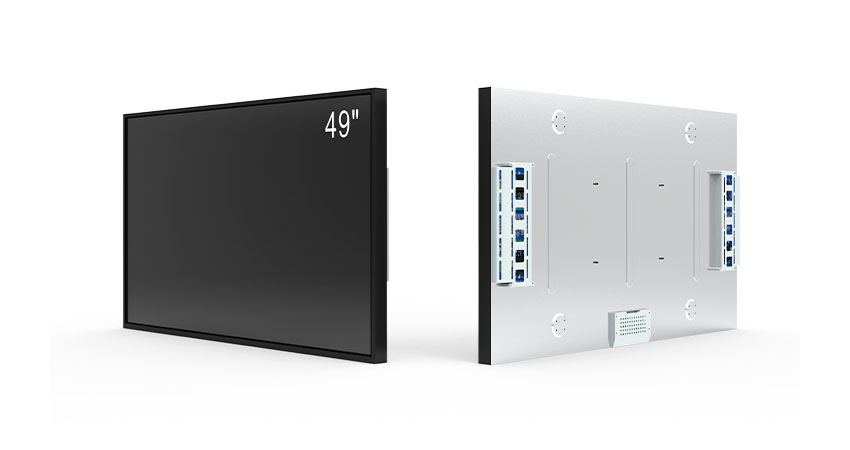

This 49-inch a-Si TFT-LCD module features a Full HD (1920×1080) resolution with RGB vertical stripe pixel arrangement, delivering clear and vibrant images. With an anti-glare surface (Haze 1%) and adjustable brightness range from 2000 to 5000 cd/m², it is suitable for both indoor and semi-outdoor digital signage applications. The ADS optical mode ensures wide viewing angles (89° all around) and consistent color reproduction (16.7M colors, 68% NTSC). The module supports a variety of refresh rates and comes with a WLED backlight rated for 15,000 hours. Lightweight at 9.8 kg, this panel is ideal for high-brightness signage, advertising displays, and information boards. Operating temperature is 0~50 °C, making it suitable for controlled indoor environments.
Digital Signage Displays – Airports, train stations, bus stops, shopping malls.
Advertising Screens – Retail stores, outdoor/indoor promotions.
Information Panels – Passenger information systems, wayfinding signage.
Control & Monitoring – Industrial or commercial monitoring displays in bright environments.
| Parameter | Specification |
|---|---|
| Panel Size | 49.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 1080, FHD, 45 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area (W×H) | 1073.78 × 604 mm |
| Visible Area (W×H) | 1078.6 × 609.5 mm |
| Surface Treatment | Anti-Glare (Haze 1%) |
| Brightness (cd/m²) | 2000 ~ 5000 |
| Contrast Ratio | 1200:1 (Typ., Transmissive) |
| Optical Mode | ADS, Normally Black, Transmissive |
| Viewing Angle (L/R/U/D) | 89° / 89° / 89° / 89° (Typ., CR≥10) |
| Response Time (Tr+Td) | 8 ms (Typ.) |
| Color Support | 16.7M colors, 68% NTSC |
| Backlight Type | WLED, 15,000 hours, with LED driver |
| Refresh Rate | 60Hz; 120Hz (60Hz input, MEMC built-in); 120Hz+120Hz; 240Hz (60Hz input, MEMC built-in) |
| Touch Function | None |
| Signal Interface | LVDS (2ch, 8-bit), 51 pins |
| Supply Voltage | 12.0 V (Typ.) |
| Storage Temperature | -20 ~ 70 °C |
| Operating Temperature | -20 ~ 70 °C |
| Weight | 9.80 kg (Max.) |
| Applications | Digital Signage |
49" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS490ENT-GD20 | 2000 | 1920×1080 / 3840×2160 |
| RS490ENT-GD25 | 2500 | 1920×1080 / 3840×2160 |
| RS490ENT-GD30 | 3000 | 1920×1080 / 3840×2160 |
| RS490ENT-GD35 | 3500 | 1920×1080 / 3840×2160 |
| RS490ENT-GD40 | 4000 | 1920×1080 / 3840×2160 |
| RS490ENT-GD45 | 4500 | 1920×1080 / 3840×2160 |
| RS490ENT-GD50 | 5000 | 1920×1080 / 3840×2160 |
| Parameter | Specification |
|---|---|
| Panel Size | 49.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 1080, FHD, 45 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Area (W×H) | 1073.78 × 604 mm |
| Visible Area (W×H) | 1078.6 × 609.5 mm |
| Surface Treatment | Anti-Glare (Haze 1%) |
| Brightness (cd/m²) | 2000 ~ 5000 |
| Contrast Ratio | 1200:1 (Typ., Transmissive) |
| Optical Mode | ADS, Normally Black, Transmissive |
| Viewing Angle (L/R/U/D) | 89° / 89° / 89° / 89° (Typ., CR≥10) |
| Response Time (Tr+Td) | 8 ms (Typ.) |
| Color Support | 16.7M colors, 68% NTSC |
| Backlight Type | WLED, 15,000 hours, with LED driver |
| Refresh Rate | 60Hz; 120Hz (60Hz input, MEMC built-in); 120Hz+120Hz; 240Hz (60Hz input, MEMC built-in) |
| Touch Function | None |
| Signal Interface | LVDS (2ch, 8-bit), 51 pins |
| Supply Voltage | 12.0 V (Typ.) |
| Storage Temperature | -20 ~ 70 °C |
| Operating Temperature | -20 ~ 70 °C |
| Weight | 9.80 kg (Max.) |
| Applications | Digital Signage |
This 49-inch a-Si TFT-LCD module features a Full HD (1920×1080) resolution with RGB vertical stripe pixel arrangement, delivering clear and vibrant images. With an anti-glare surface (Haze 1%) and adjustable brightness range from 2000 to 5000 cd/m², it is suitable for both indoor and semi-outdoor digital signage applications. The ADS optical mode ensures wide viewing angles (89° all around) and consistent color reproduction (16.7M colors, 68% NTSC). The module supports a variety of refresh rates and comes with a WLED backlight rated for 15,000 hours. Lightweight at 9.8 kg, this panel is ideal for high-brightness signage, advertising displays, and information boards. Operating temperature is 0~50 °C, making it suitable for controlled indoor environments.
Digital Signage Displays – Airports, train stations, bus stops, shopping malls.
Advertising Screens – Retail stores, outdoor/indoor promotions.
Information Panels – Passenger information systems, wayfinding signage.
Control & Monitoring – Industrial or commercial monitoring displays in bright environments.
