Brand:
RisingStar
Model name:
RS750ENT-GD50
Screen size:
75"
Screen type:
Industrial Ultra High Brightness
Resolution:
3840(RGB)×2160, UHD, 59 PPI
Brightness :
Brightness can be customized from 2000 to 5000.
75" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS750ENT-GD20 | 2000 | 3840×2160 |
| RS750ENT-GD25 | 2500 | 3840×2160 |
| RS750ENT-GD30 | 3000 | 3840×2160 |
| RS750ENT-GD35 | 3500 | 3840×2160 |
| RS750ENT-GD40 | 4000 | 3840×2160 |
| RS750ENT-GD45 | 4500 | 3840×2160 |
| RS750ENT-GD50 | 5000 | 3840×2160 |
Specification
| Parameter | Specification |
|---|---|
| Panel Size | 75.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840(RGB)×2160, UHD, 59 PPI |
| Pixel Layout | RGBW Vertical Stripe |
| Active Area | 1649.66(W) × 927.936(H) mm |
| Visible Area | 1651.6(W) × 930(H) mm |
| Surface Treatment | Anti-Glare (Haze 3%), Hard Coating 2H |
| Brightness | 2000~5000 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) [Transmissive] |
| Viewing Angle | 89°/89°/89°/89° (Min.) Left/Right/Up/Down (CR≥10) |
| Optimal Angle | Full View, IPS, Normally Black, Transmissive |
| Optical Mode | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 8 ms (Typ.) G to G |
| Color | 1.07B, 69% NTSC |
| Backlight Type | WLED, 50,000 hours, with LED Driver |
| Weight | 27.6 / 30.5 kg (Typ./Max.) |
| Refresh Rate | 60Hz (Standard) 120Hz (60Hz input) with MEMC 120Hz+120Hz: 120Hz Panel + 120Hz Backlight 240Hz (60Hz input) |
| Signal Interface | V-by-One 8 lane, 56 pins |
| Supply Voltage | 12.0 V (Typ.) |
| Storage Temperature | -20 ~ 70 °C |
| Operating Temperature | -20 ~ 70 °C |
| Typical Applications | Digital Signage, Outdoor High Brightness Display, Commercial Display, Advertising Panels, Interactive Kiosk, Information Boards |
Description:

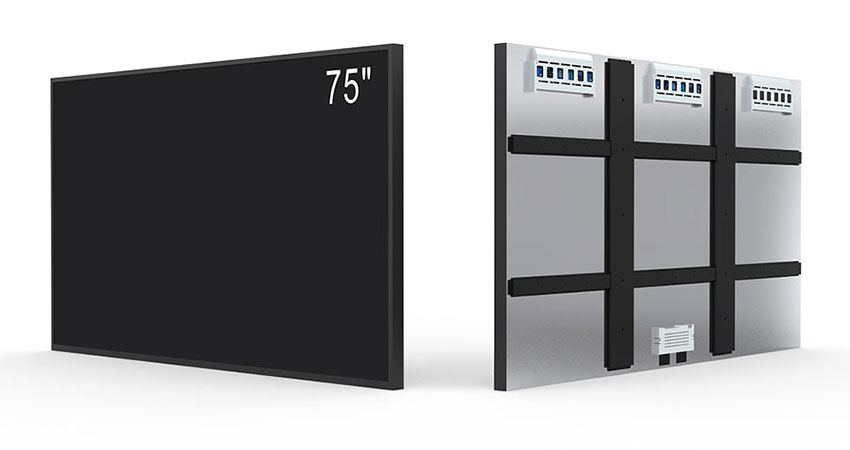

This 75-inch a-Si TFT-LCD module features UHD resolution (3840×2160) with a 59 PPI RGBW vertical stripe layout. The panel offers ultra-high brightness up to 5000 cd/m², making it ideal for sunlight-readable applications. It adopts an IPS optical mode, providing full viewing angles (89°/89°/89°/89°) and excellent color reproduction (1.07B colors, 69% NTSC). The WLED backlight supports up to 50,000 hours of operation with integrated LED drivers. Its robust anti-glare surface (Haze 3%, Hard Coating 2H) ensures durability in commercial and outdoor environments.
Applications:
Digital Signage: Outdoor and indoor high-brightness displays in shopping malls, airports, and train stations.
Advertising Panels: Ultra-visible panels under direct sunlight for promotions and campaigns.
Interactive Kiosks & Info Boards: High-performance display for transport hubs or EV charging stations.
Commercial Displays: Conference rooms, retail showrooms, or large-screen visualization setups.
| Parameter | Specification |
|---|---|
| Panel Size | 75.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840(RGB)×2160, UHD, 59 PPI |
| Pixel Layout | RGBW Vertical Stripe |
| Active Area | 1649.66(W) × 927.936(H) mm |
| Visible Area | 1651.6(W) × 930(H) mm |
| Surface Treatment | Anti-Glare (Haze 3%), Hard Coating 2H |
| Brightness | 2000~5000 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) [Transmissive] |
| Viewing Angle | 89°/89°/89°/89° (Min.) Left/Right/Up/Down (CR≥10) |
| Optimal Angle | Full View, IPS, Normally Black, Transmissive |
| Optical Mode | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 8 ms (Typ.) G to G |
| Color | 1.07B, 69% NTSC |
| Backlight Type | WLED, 50,000 hours, with LED Driver |
| Weight | 27.6 / 30.5 kg (Typ./Max.) |
| Refresh Rate | 60Hz (Standard) 120Hz (60Hz input) with MEMC 120Hz+120Hz: 120Hz Panel + 120Hz Backlight 240Hz (60Hz input) |
| Signal Interface | V-by-One 8 lane, 56 pins |
| Supply Voltage | 12.0 V (Typ.) |
| Storage Temperature | -20 ~ 70 °C |
| Operating Temperature | -20 ~ 70 °C |
| Typical Applications | Digital Signage, Outdoor High Brightness Display, Commercial Display, Advertising Panels, Interactive Kiosk, Information Boards |
75" Industrial Ultra High Brightness LCD Display - All Models (RisingStar)
Industrial Series (D Series)
| Model No. | Brightness (nits) | Resolution |
|---|---|---|
| RS750ENT-GD20 | 2000 | 3840×2160 |
| RS750ENT-GD25 | 2500 | 3840×2160 |
| RS750ENT-GD30 | 3000 | 3840×2160 |
| RS750ENT-GD35 | 3500 | 3840×2160 |
| RS750ENT-GD40 | 4000 | 3840×2160 |
| RS750ENT-GD45 | 4500 | 3840×2160 |
| RS750ENT-GD50 | 5000 | 3840×2160 |
Specification
| Parameter | Specification |
|---|---|
| Panel Size | 75.0 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 3840(RGB)×2160, UHD, 59 PPI |
| Pixel Layout | RGBW Vertical Stripe |
| Active Area | 1649.66(W) × 927.936(H) mm |
| Visible Area | 1651.6(W) × 930(H) mm |
| Surface Treatment | Anti-Glare (Haze 3%), Hard Coating 2H |
| Brightness | 2000~5000 cd/m² (Typ.) |
| Contrast Ratio | 1200:1 (Typ.) [Transmissive] |
| Viewing Angle | 89°/89°/89°/89° (Min.) Left/Right/Up/Down (CR≥10) |
| Optimal Angle | Full View, IPS, Normally Black, Transmissive |
| Optical Mode | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Response Time | 8 ms (Typ.) G to G |
| Color | 1.07B, 69% NTSC |
| Backlight Type | WLED, 50,000 hours, with LED Driver |
| Weight | 27.6 / 30.5 kg (Typ./Max.) |
| Refresh Rate | 60Hz (Standard) 120Hz (60Hz input) with MEMC 120Hz+120Hz: 120Hz Panel + 120Hz Backlight 240Hz (60Hz input) |
| Signal Interface | V-by-One 8 lane, 56 pins |
| Supply Voltage | 12.0 V (Typ.) |
| Storage Temperature | -20 ~ 70 °C |
| Operating Temperature | -20 ~ 70 °C |
| Typical Applications | Digital Signage, Outdoor High Brightness Display, Commercial Display, Advertising Panels, Interactive Kiosk, Information Boards |
Description:
This 75-inch a-Si TFT-LCD module features UHD resolution (3840×2160) with a 59 PPI RGBW vertical stripe layout. The panel offers ultra-high brightness up to 5000 cd/m², making it ideal for sunlight-readable applications. It adopts an IPS optical mode, providing full viewing angles (89°/89°/89°/89°) and excellent color reproduction (1.07B colors, 69% NTSC). The WLED backlight supports up to 50,000 hours of operation with integrated LED drivers. Its robust anti-glare surface (Haze 3%, Hard Coating 2H) ensures durability in commercial and outdoor environments.
Applications:
Digital Signage: Outdoor and indoor high-brightness displays in shopping malls, airports, and train stations.
Advertising Panels: Ultra-visible panels under direct sunlight for promotions and campaigns.
Interactive Kiosks & Info Boards: High-performance display for transport hubs or EV charging stations.
Commercial Displays: Conference rooms, retail showrooms, or large-screen visualization setups.
