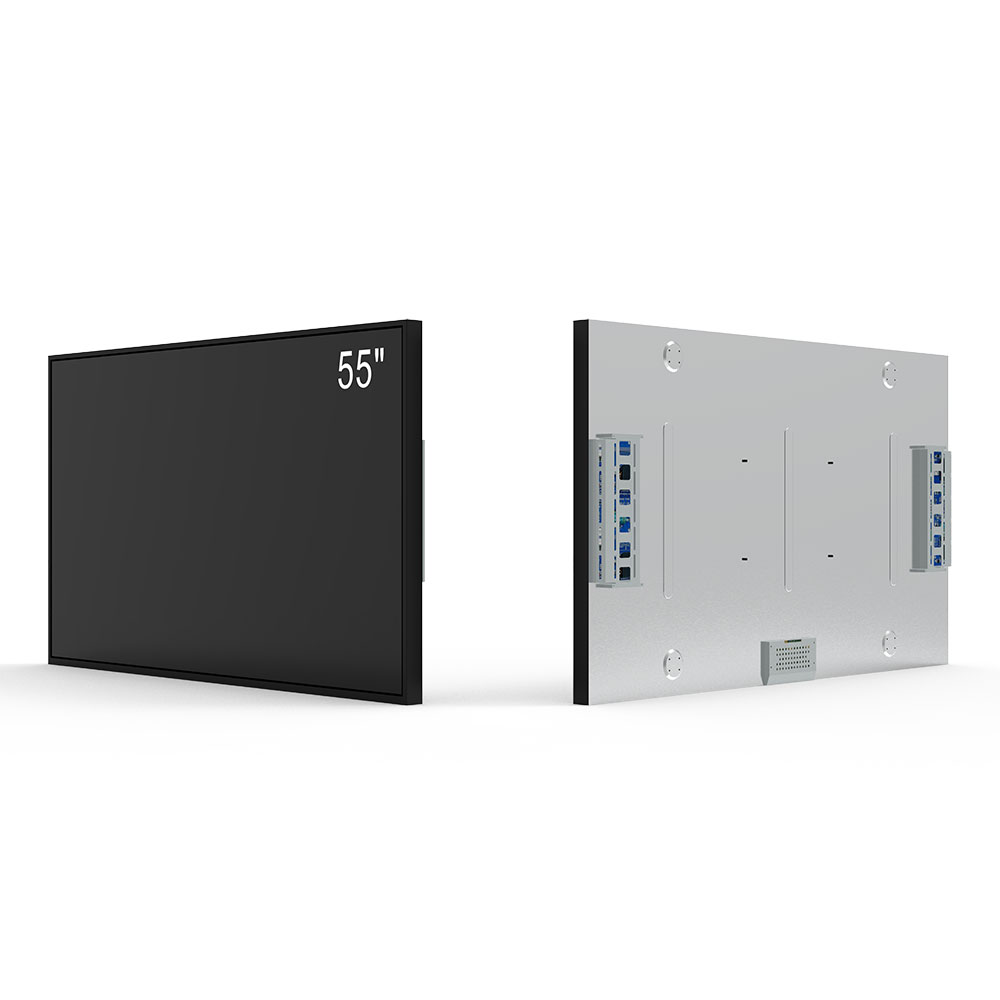

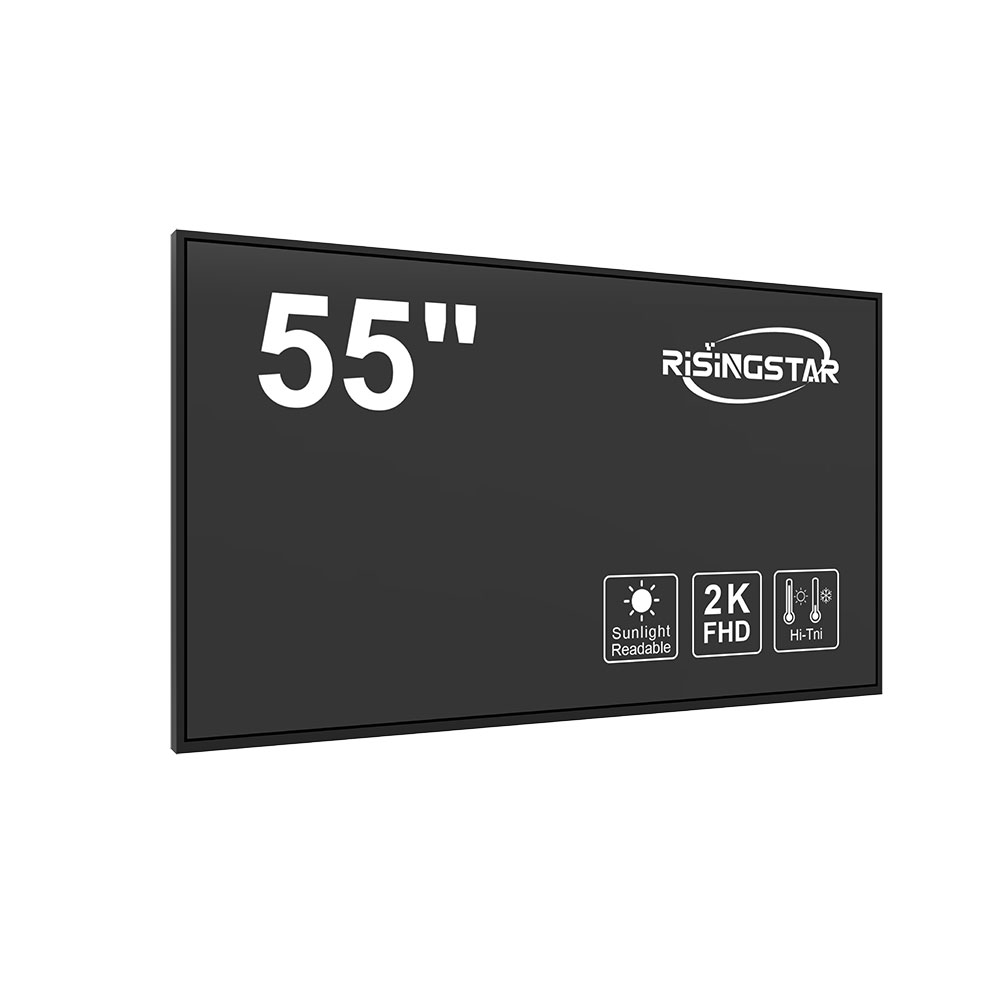

55 inch ultra slim edge LCD display for video wall
Command attention with our videowall display, presentations, live feeds and real time information from multiple sources ensure greater flexibility!
55inch high brightness LCD display for video wall
Main features:
1) Adopting original industrial-grade A+ level DID LCD screen, with a service life of more than 50,000 hours and meeting 7*24 hours of uninterrupted work;
2) High brightness, high color gamut, high contrast, high resolution, ensure perfect display effect;
3) Adopting direct-lit LED backlight system a-Si TFT-LCD, LCD module, energy saving and environmental protection; LCD splicing screen surface is matte treatment.
4) Using the new ultra-wide viewing angle extension technology to ensure that the image is not deformed and the color is not distorted within the horizontal and vertical viewing angles of 178°;
5) Ultra-narrow seams, physical seams 3.5mm (1.75mm also are available), almost seamless display effect;
6) Using image pixel dynamic point-by-point cutting analysis processing technology to compensate for the details of the picture, so that low-pixel images can be clearly reproduced in the full HD display.
7).Flexible Tiling Methods
Diversified tiling: Supports various tiling methods, allowing users to customize screen sizes. It supports conventional tiling such as 2×2, 3×3, 4×4, and even irregular tiling.
Multiple installation methods are avialble, customer can choose different installation way based on their actual reques.
55 inch ultra slim edge LCD splicing unit | ||
Noodles plate ginseng number | Panel type | 55’’ DID LCD Panel |
Display size | 1214 (horizontal) × 685(vertical) mm | |
display scale | 16：9 | |
Backlight type | Direct down LED | |
resolving power | 1920*1080/ 3840*2160 | |
Display color | 16.7M(8bit) | |
Brightness | 500cd/m2 | |
Contrast | 4836:1 | |
viewing angle | 178° | |
response time | ≤8ms | |
service life | 50000 hours | |
Physical joint | 1.8mm | |
Function | Color System | PAL/NTSC/SECAM |
Menu language | Simplified Chinese, traditional Chinese, English multi language | |
Operation mode | Remote control | |
Transport enter transport Out meet mouth | D-15 pin RGB input (VGA) | 1 |
DVI input | 1 | |
HDMI input | 1 | |
Composite video input (AV) | 1(BNC*1) | |
Composite video output (AV) | 1(BNC*1) | |
Control signal input | RS232 | |
Control signal loop out | RS232 | |
Power Supply | Power input | AC198-242V,50 /60HZ |
Power consumption | ≤230W | |
Display function summary | Multi unit splicing; Manual / timing / plan setting, intelligent temperature control, multi signal split screen display (multi-channel signal); Full screen display; Any combination display; Picture in picture. Analog signal needs to be equipped with AV / VGA matrix. Image roaming, overlay, drag and drop function (optional) | |
Install system | Cabinet / bracket | customized |
Installation accessories | customized | |
Installation method | Cabinet, wall hanging, floor support, embedded, mobile, etc | |
Recommend use place | Monitoring center: public security, finance, energy, transportation, coal mine, government, enterprise, etc; Public display: airport, railway, subway, highway and other transportation industries, libraries, museums, zoos, shopping malls and other exhibition places; Commercial demonstration: TV studio, large-scale performance and commercial exhibition, hotel lobby, office hall of enterprises and institutions, conference room; Military scientific research: scientific research and education institutions, medical institutions, military operation command, meteorological and geographical survey, etc | |
