Brand:
RisingStar
Model name:
RS550DPY-GD45
Screen size:
55"
Screen type:
waterproof digital signage
Resolution:
1920 (RGB) × 1080, FHD
Brightness (nits):
2500 to 5000
The 55-inch Waterproof Digital Signage Display by RisingStar is designed for demanding outdoor environments where high visibility, durability, and reliability are critical. Built with an industrial-grade high brightness LCD panel, this display ensures exceptional clarity even under direct sunlight, making it an ideal solution for outdoor advertising, transportation hubs, smart city infrastructure, EV charging stations, retail, and public information systems.

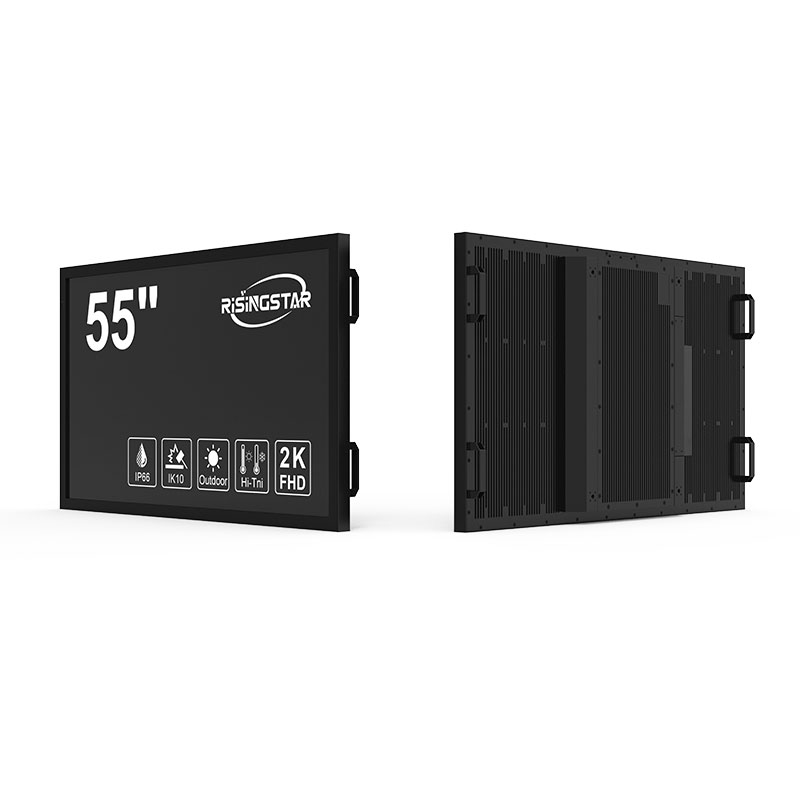

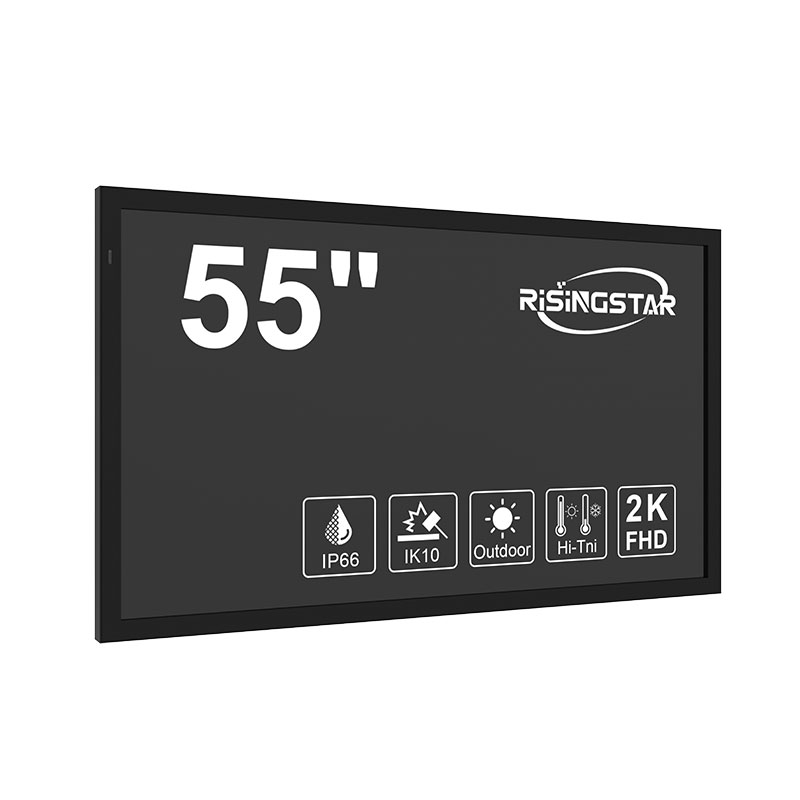

55 Inch Waterproof Digital Signage Display
Display Size: 55 inches
Panel Type: a-Si TFT-LCD, industrial-grade
Resolution: 1920 × 1080 (FHD), optional 4K UHD
Brightness: 2500–5000 nits (sunlight-readable)
Contrast Ratio: 1200:1 (Typ.) for enhanced visibility
Viewing Angle: 178° (H) / 178° (V) wide viewing experience
Backlight Technology: Direct-lit LED with intelligent brightness control
Lifespan: ≥ 50,000 hours (24/7 operation ready)
| Specification | Details |
|---|---|
| Panel Size | 55 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD |
| Pixel Density | 40 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Active Display Area | 1209.6 (W) × 680.4 (H) mm |
| Viewing Area | 1216 (W) × 686.8 (H) mm |
| Surface Treatment | Reflection Rate ≤ 1.45% (Max.) |
| Brightness | 2500 to 5000 nits (Sunlight Readable) |
| Contrast Ratio | 4000:1 (Typ., TM) |
| Viewing Angle | 89° / 89° / 89° / 89° (Typ., CR≥10) – Left / Right / Up / Down |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Viewing Direction | Full Viewing Angle |
| Response Time | 8 ms (Typ., G-to-G) |
| Display Colors | 1.07 Billion (72% NTSC) |
| Light Source | WLED Backlight, 60,000 hours lifespan, Integrated LED Driver |
| Refresh Rate | 60Hz standard 120Hz (60Hz input) with MEMC 120Hz + 120Hz (Panel + Backlight) 240Hz (60Hz input) with MEMC |
| Touchscreen | No Touch |
| Panel Weight | 15.0 kg |
| Application | Outdoor Digital Signage, High Brightness Display |
| Signal Interface | LVDS (2 channel, 10-bit), 51 pins, Terminal |
| Driving Voltage | 12.0V (Typ.) |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -20°C ~ +60°C |
Waterproof & Dustproof: IP65-rated full enclosure for complete protection against rain, dust, and humidity
Operating Temperature: -30°C to +50°C (tested under extreme outdoor conditions)
Anti-Glare & UV Protection: Advanced optical treatments to reduce reflection and ensure long-term color stability
Material: Lightweight aluminum alloy housing with corrosion resistance
Power Efficiency: Optimized LED backlight with low power consumption and reduced heat output
Smart Cooling System: Fanless or intelligent thermal management design for noise-free operation
Environmentally Friendly: RoHS compliant, energy-saving components

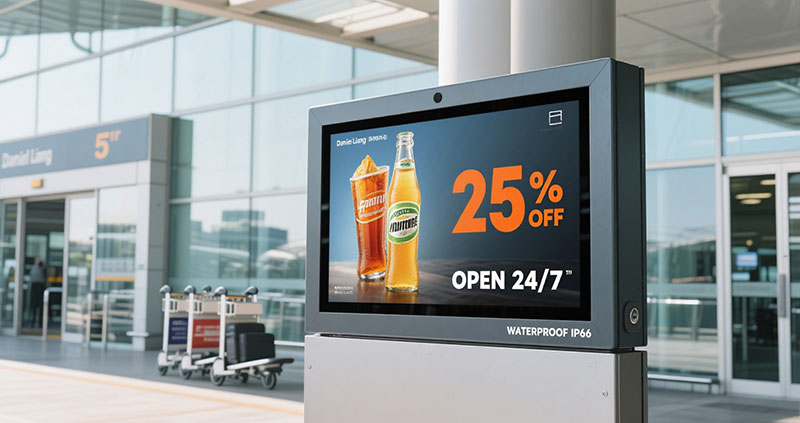

Transportation: Bus stops, metro stations, railway passenger information displays
Retail & Real Estate: Outdoor digital signage for brand promotion, shopping malls, and property showcases
Smart Cities: Public information kiosks, government notice boards
Hospitality & Entertainment: Outdoor TV walls, stadium displays, theme parks
RisingStar is a trusted global manufacturer specializing in high brightness LCD displays and outdoor digital signage solutions. With over a decade of engineering expertise, strict ISO-certified quality control, and thousands of installations worldwide, we ensure every display meets the highest standards of reliability, performance, and longevity.
High Brightness Display (up to 5000 nits) – for sunlight readability
Waterproof Outdoor Digital Signage – built for all-weather applications
Industrial-Grade LCD Panel – ensures long-term stability and performance
Passenger Information Display Ready – trusted in railway and public transport projects
| Specification | Details |
|---|---|
| Panel Size | 55 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD |
| Pixel Density | 40 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Active Display Area | 1209.6 (W) × 680.4 (H) mm |
| Viewing Area | 1216 (W) × 686.8 (H) mm |
| Surface Treatment | Reflection Rate ≤ 1.45% (Max.) |
| Brightness | 2500 to 5000 nits (Sunlight Readable) |
| Contrast Ratio | 4000:1 (Typ., TM) |
| Viewing Angle | 89° / 89° / 89° / 89° (Typ., CR≥10) – Left / Right / Up / Down |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Viewing Direction | Full Viewing Angle |
| Response Time | 8 ms (Typ., G-to-G) |
| Display Colors | 1.07 Billion (72% NTSC) |
| Light Source | WLED Backlight, 60,000 hours lifespan, Integrated LED Driver |
| Refresh Rate | 60Hz standard 120Hz (60Hz input) with MEMC 120Hz + 120Hz (Panel + Backlight) 240Hz (60Hz input) with MEMC |
| Touchscreen | No Touch |
| Panel Weight | 15.0 kg |
| Application | Outdoor Digital Signage, High Brightness Display |
| Signal Interface | LVDS (2 channel, 10-bit), 51 pins, Terminal |
| Driving Voltage | 12.0V (Typ.) |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -20°C ~ +60°C |
The 55-inch Waterproof Digital Signage Display by RisingStar is designed for demanding outdoor environments where high visibility, durability, and reliability are critical. Built with an industrial-grade high brightness LCD panel, this display ensures exceptional clarity even under direct sunlight, making it an ideal solution for outdoor advertising, transportation hubs, smart city infrastructure, EV charging stations, retail, and public information systems.
55 Inch Waterproof Digital Signage Display
Display Size: 55 inches
Panel Type: a-Si TFT-LCD, industrial-grade
Resolution: 1920 × 1080 (FHD), optional 4K UHD
Brightness: 2500–5000 nits (sunlight-readable)
Contrast Ratio: 1200:1 (Typ.) for enhanced visibility
Viewing Angle: 178° (H) / 178° (V) wide viewing experience
Backlight Technology: Direct-lit LED with intelligent brightness control
Lifespan: ≥ 50,000 hours (24/7 operation ready)
| Specification | Details |
|---|---|
| Panel Size | 55 inch |
| Panel Type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD |
| Pixel Density | 40 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Active Display Area | 1209.6 (W) × 680.4 (H) mm |
| Viewing Area | 1216 (W) × 686.8 (H) mm |
| Surface Treatment | Reflection Rate ≤ 1.45% (Max.) |
| Brightness | 2500 to 5000 nits (Sunlight Readable) |
| Contrast Ratio | 4000:1 (Typ., TM) |
| Viewing Angle | 89° / 89° / 89° / 89° (Typ., CR≥10) – Left / Right / Up / Down |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Viewing Direction | Full Viewing Angle |
| Response Time | 8 ms (Typ., G-to-G) |
| Display Colors | 1.07 Billion (72% NTSC) |
| Light Source | WLED Backlight, 60,000 hours lifespan, Integrated LED Driver |
| Refresh Rate | 60Hz standard 120Hz (60Hz input) with MEMC 120Hz + 120Hz (Panel + Backlight) 240Hz (60Hz input) with MEMC |
| Touchscreen | No Touch |
| Panel Weight | 15.0 kg |
| Application | Outdoor Digital Signage, High Brightness Display |
| Signal Interface | LVDS (2 channel, 10-bit), 51 pins, Terminal |
| Driving Voltage | 12.0V (Typ.) |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -20°C ~ +60°C |
Waterproof & Dustproof: IP65-rated full enclosure for complete protection against rain, dust, and humidity
Operating Temperature: -30°C to +50°C (tested under extreme outdoor conditions)
Anti-Glare & UV Protection: Advanced optical treatments to reduce reflection and ensure long-term color stability
Material: Lightweight aluminum alloy housing with corrosion resistance
Power Efficiency: Optimized LED backlight with low power consumption and reduced heat output
Smart Cooling System: Fanless or intelligent thermal management design for noise-free operation
Environmentally Friendly: RoHS compliant, energy-saving components
Transportation: Bus stops, metro stations, railway passenger information displays
Retail & Real Estate: Outdoor digital signage for brand promotion, shopping malls, and property showcases
Smart Cities: Public information kiosks, government notice boards
Hospitality & Entertainment: Outdoor TV walls, stadium displays, theme parks
RisingStar is a trusted global manufacturer specializing in high brightness LCD displays and outdoor digital signage solutions. With over a decade of engineering expertise, strict ISO-certified quality control, and thousands of installations worldwide, we ensure every display meets the highest standards of reliability, performance, and longevity.
High Brightness Display (up to 5000 nits) – for sunlight readability
Waterproof Outdoor Digital Signage – built for all-weather applications
Industrial-Grade LCD Panel – ensures long-term stability and performance
Passenger Information Display Ready – trusted in railway and public transport projects
