Brand:
Risingstar
Model name:
RS750ENT-GD40
Screen size:
75"
Screen type:
waterproof digital signage
Resolution:
3840 × 2160 (UHD), 59 PPI, RGBW vertical stripe layout
Brightness :
2500 to 5000

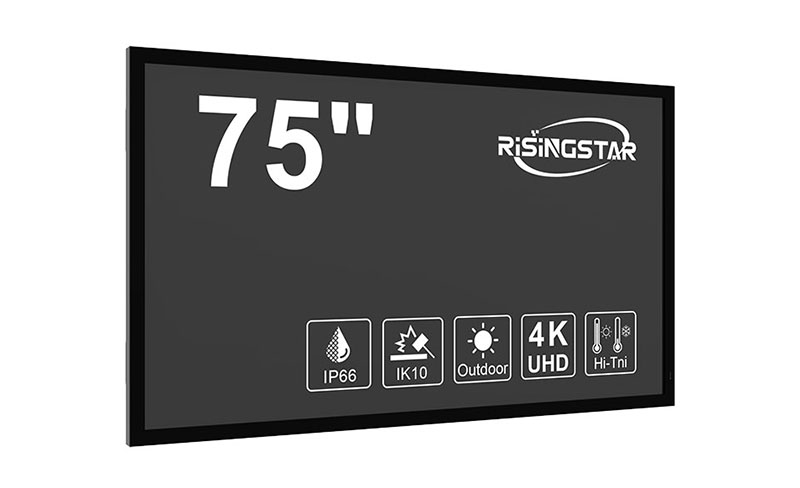

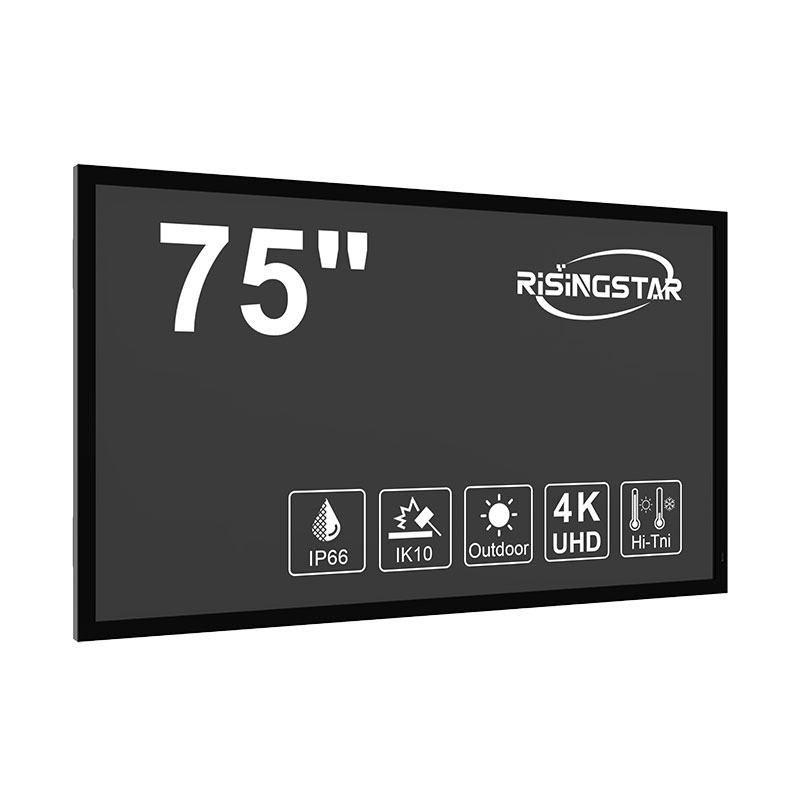

The 75 Inch Waterproof Digital Signage Monitor from RisingStar is a premium outdoor display solution engineered for 24/7 commercial use. Designed with a fully sealed IP65/IP66 waterproof structure, this large-format signage monitor ensures reliable operation in rain, dust, humidity, and extreme temperature environments, making it ideal for transportation hubs, public squares, shopping malls, real estate projects, and outdoor advertising networks.
75-inch waterproof digital signage technical parameters
| Parameter | Specification |
|---|---|
| Panel Size | 75 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 3840 × 2160 (UHD), 59 PPI, RGBW vertical stripe layout |
| Active Area | 1649.66 mm (W) × 927.936 mm (H) |
| Opening Size | 1651.6 mm (W) × 930 mm (H) |
| Surface Treatment | Anti-glare (Haze 3%), Hard coating 2H |
| Brightness | 2500 – 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) |
| Viewing Angle (CR≥10) | 89° / 89° / 89° / 89° (L/R/U/D) |
| Display Mode | IPS, normally black, transmissive |
| Screen Series | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Direction | Full viewing angle |
| Response Time | 8 ms (Typ., G-to-G) |
| Display Colors | 1.07B colors, 69% NTSC |
| Backlight Type | WLED, 50,000 hours, includes LED driver |
| Operating Frequency | 60 Hz (standard), 120 Hz (60 Hz input with MEMC), 120 Hz+120 Hz (panel + backlight), 240 Hz (60 Hz input with MEMC) |
| Touch | No touch |
| Panel Weight | 27.6 kg (Typ.) / 30.5 kg (Max.) |
| Application | Digital signage, Outdoor high-bright display |
| Signal Interface | V-by-One 8 lanes, 56 pins |
| Driving Voltage | 12.0 V (Typ.) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 70 °C |
Large Format Display: 75-inch industrial-grade LCD screen designed for impactful visual communication.
Waterproof & Dustproof: Fully sealed IP65/IP66 structure for reliable outdoor performance in rain, dust, and humidity.
High Brightness: Up to 5000 nits sunlight-readable display ensures clear visibility in any lighting condition.
Industrial Reliability: Engineered with direct-lit LED backlight, low power consumption, and 24/7 operation capability.
Durable & Lightweight: Aluminum alloy housing provides corrosion resistance, efficient heat dissipation, and reduced weight.
Long Service Life: Over 50,000 operating hours, lowering long-term maintenance costs.
Tested for Harsh Environments: Operates stably in extreme temperatures from -30°C to +70°C.
Certified Quality: Complies with CE, RoHS, and international safety standards for global deployments.
Screen Size: 75 inches
Resolution: FHD / 4K (optional)
Brightness Range: 1000 ~ 5000 nits
Contrast: High-contrast direct-lit LED backlight
Viewing Angle: Full wide viewing angles
Housing Material: Lightweight aluminum alloy, corrosion-resistant
Protection Rating: IP65 / IP66
Operating Temperature: -30°C ~ +70°C
Lifespan: ≥ 50,000 hours
Certification: CE, RoHS, ISO9001
Public Transportation: Passenger information displays in metro systems, train stations, and airports.
Retail & Commercial: Outdoor advertising and promotional screens in shopping centers and retail chains.
Smart Energy & Infrastructure: EV charging stations, fuel dispensers, and smart city kiosks.
Real Estate & City Promotion: Digital billboards, property advertising, and public information signage.
Entertainment & Leisure: Outdoor plazas, stadiums, amusement parks, and large-scale event venues.
With over 15 years of expertise in industrial LCD technology, RisingStar is a trusted global supplier of high brightness outdoor digital displays. Our R&D team continuously develops innovative solutions tested under extreme weather, vibration, and long-duration operation to meet the demands of transportation, retail, and smart city applications.
All products undergo strict quality control and reliability testing, ensuring customers receive displays that perform consistently in the field. RisingStar also provides customization options, technical support, and worldwide logistics, making us a reliable long-term partner for system integrators, distributors, and OEM customers.
| Parameter | Specification |
|---|---|
| Panel Size | 75 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 3840 × 2160 (UHD), 59 PPI, RGBW vertical stripe layout |
| Active Area | 1649.66 mm (W) × 927.936 mm (H) |
| Opening Size | 1651.6 mm (W) × 930 mm (H) |
| Surface Treatment | Anti-glare (Haze 3%), Hard coating 2H |
| Brightness | 2500 – 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) |
| Viewing Angle (CR≥10) | 89° / 89° / 89° / 89° (L/R/U/D) |
| Display Mode | IPS, normally black, transmissive |
| Screen Series | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Direction | Full viewing angle |
| Response Time | 8 ms (Typ., G-to-G) |
| Display Colors | 1.07B colors, 69% NTSC |
| Backlight Type | WLED, 50,000 hours, includes LED driver |
| Operating Frequency | 60 Hz (standard), 120 Hz (60 Hz input with MEMC), 120 Hz+120 Hz (panel + backlight), 240 Hz (60 Hz input with MEMC) |
| Touch | No touch |
| Panel Weight | 27.6 kg (Typ.) / 30.5 kg (Max.) |
| Application | Digital signage, Outdoor high-bright display |
| Signal Interface | V-by-One 8 lanes, 56 pins |
| Driving Voltage | 12.0 V (Typ.) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 70 °C |
The 75 Inch Waterproof Digital Signage Monitor from RisingStar is a premium outdoor display solution engineered for 24/7 commercial use. Designed with a fully sealed IP65/IP66 waterproof structure, this large-format signage monitor ensures reliable operation in rain, dust, humidity, and extreme temperature environments, making it ideal for transportation hubs, public squares, shopping malls, real estate projects, and outdoor advertising networks.
75-inch waterproof digital signage technical parameters
| Parameter | Specification |
|---|---|
| Panel Size | 75 inches |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 3840 × 2160 (UHD), 59 PPI, RGBW vertical stripe layout |
| Active Area | 1649.66 mm (W) × 927.936 mm (H) |
| Opening Size | 1651.6 mm (W) × 930 mm (H) |
| Surface Treatment | Anti-glare (Haze 3%), Hard coating 2H |
| Brightness | 2500 – 5000 nits |
| Contrast Ratio | 1200:1 (Typ.) |
| Viewing Angle (CR≥10) | 89° / 89° / 89° / 89° (L/R/U/D) |
| Display Mode | IPS, normally black, transmissive |
| Screen Series | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich; VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Viewing Direction | Full viewing angle |
| Response Time | 8 ms (Typ., G-to-G) |
| Display Colors | 1.07B colors, 69% NTSC |
| Backlight Type | WLED, 50,000 hours, includes LED driver |
| Operating Frequency | 60 Hz (standard), 120 Hz (60 Hz input with MEMC), 120 Hz+120 Hz (panel + backlight), 240 Hz (60 Hz input with MEMC) |
| Touch | No touch |
| Panel Weight | 27.6 kg (Typ.) / 30.5 kg (Max.) |
| Application | Digital signage, Outdoor high-bright display |
| Signal Interface | V-by-One 8 lanes, 56 pins |
| Driving Voltage | 12.0 V (Typ.) |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 70 °C |
Large Format Display: 75-inch industrial-grade LCD screen designed for impactful visual communication.
Waterproof & Dustproof: Fully sealed IP65/IP66 structure for reliable outdoor performance in rain, dust, and humidity.
High Brightness: Up to 5000 nits sunlight-readable display ensures clear visibility in any lighting condition.
Industrial Reliability: Engineered with direct-lit LED backlight, low power consumption, and 24/7 operation capability.
Durable & Lightweight: Aluminum alloy housing provides corrosion resistance, efficient heat dissipation, and reduced weight.
Long Service Life: Over 50,000 operating hours, lowering long-term maintenance costs.
Tested for Harsh Environments: Operates stably in extreme temperatures from -30°C to +70°C.
Certified Quality: Complies with CE, RoHS, and international safety standards for global deployments.
Screen Size: 75 inches
Resolution: FHD / 4K (optional)
Brightness Range: 1000 ~ 5000 nits
Contrast: High-contrast direct-lit LED backlight
Viewing Angle: Full wide viewing angles
Housing Material: Lightweight aluminum alloy, corrosion-resistant
Protection Rating: IP65 / IP66
Operating Temperature: -30°C ~ +70°C
Lifespan: ≥ 50,000 hours
Certification: CE, RoHS, ISO9001
Public Transportation: Passenger information displays in metro systems, train stations, and airports.
Retail & Commercial: Outdoor advertising and promotional screens in shopping centers and retail chains.
Smart Energy & Infrastructure: EV charging stations, fuel dispensers, and smart city kiosks.
Real Estate & City Promotion: Digital billboards, property advertising, and public information signage.
Entertainment & Leisure: Outdoor plazas, stadiums, amusement parks, and large-scale event venues.
With over 15 years of expertise in industrial LCD technology, RisingStar is a trusted global supplier of high brightness outdoor digital displays. Our R&D team continuously develops innovative solutions tested under extreme weather, vibration, and long-duration operation to meet the demands of transportation, retail, and smart city applications.
All products undergo strict quality control and reliability testing, ensuring customers receive displays that perform consistently in the field. RisingStar also provides customization options, technical support, and worldwide logistics, making us a reliable long-term partner for system integrators, distributors, and OEM customers.
