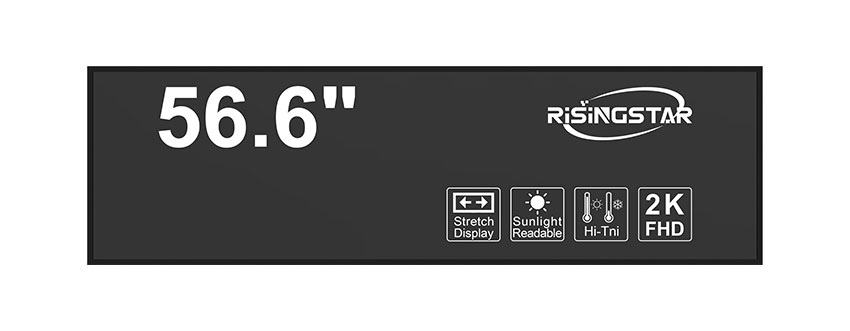

56.6 Inch Ultra High Brightness Stretched Bar LCD Display

Product Description:

The 56.6-inch ultra-wide stretched bar LCD display offers a unique solution for specialized signage applications requiring a slim, high-visibility form factor. Engineered from a 65-inch panel with a precise 1/5 cut, it delivers an exceptional resolution of3840×430and a pixel density of68PPI, presenting clear and sharp content across a panoramicAMVA3display. With abrightness of 2500/ 3000/ 4000/ 5000nits, a4000:1 contrast ratio, andwide viewing angles of 89° in all directions, this display ensures excellent readability even in environments with challenging lighting.

Its durablea Si TFT LCD panel, anti-glare surface (28% haze), and hard coating (3H) make it ideal for semi-outdoor or high-traffic commercial settings. Supporting1.07 billion colorsand73% DCI-P3 color gamut, it brings content to life with rich and accurate visuals. The built-inMEMC circuitsupports 120Hz motion interpolation for smoother playback, even from 60Hz input, ensuring seamless performance in dynamic content applications.

With an ultra-wide aspect ratio and a sleek depth of just27.3 mm, the display is ideal for space-constrained installations. It includes a long-lifeWLED backlight (50,000 hours)and an integrated LED driver for easier integration. The system usesV-by-One 8 lanesignal interface and operates on12V DC, offering both flexibility and efficiency.

Application Areas:

Transportation Hubs: Passenger information systems at airports, train stations, and metro platforms.

Retail and Supermarkets: Aisle and shelf edge digital signage for promotions, pricing, and branding.

EV Charging Stations: Narrow-format digital advertising or instructions on charging kiosks.

Gas Stations: Fuel pump top displays with weather-resistant, high-visibility messaging.

Outdoor Digital Signage: Where space constraints demand a stretched format display.

Real Estate: Building directories or digital window displays.

Public Spaces: Information panels in museums, galleries, or city centers.

Commercial Value:

The 56.6-inch ultra-high brightness bar LCD display presents a transformative opportunity for businesses seeking to enhance engagement and communication through unique digital signage formats. Its high durability, extended lifespan, and superior visibility enable uninterrupted operation in both indoor and semi-outdoor settings. The form factor allows brands and operators to utilize previously unusable spaces (e.g., narrow walls, shelf edges, or kiosks) for high-impact visual communication, thereby unlocking new avenues for revenue generation, customer interaction, and operational efficiency.

56.6 Inch Ultra High Brightness Stretched Bar LCD Display – Specification Table

56.6 Inch Ultra High Brightness Stretched Bar LCD Display
