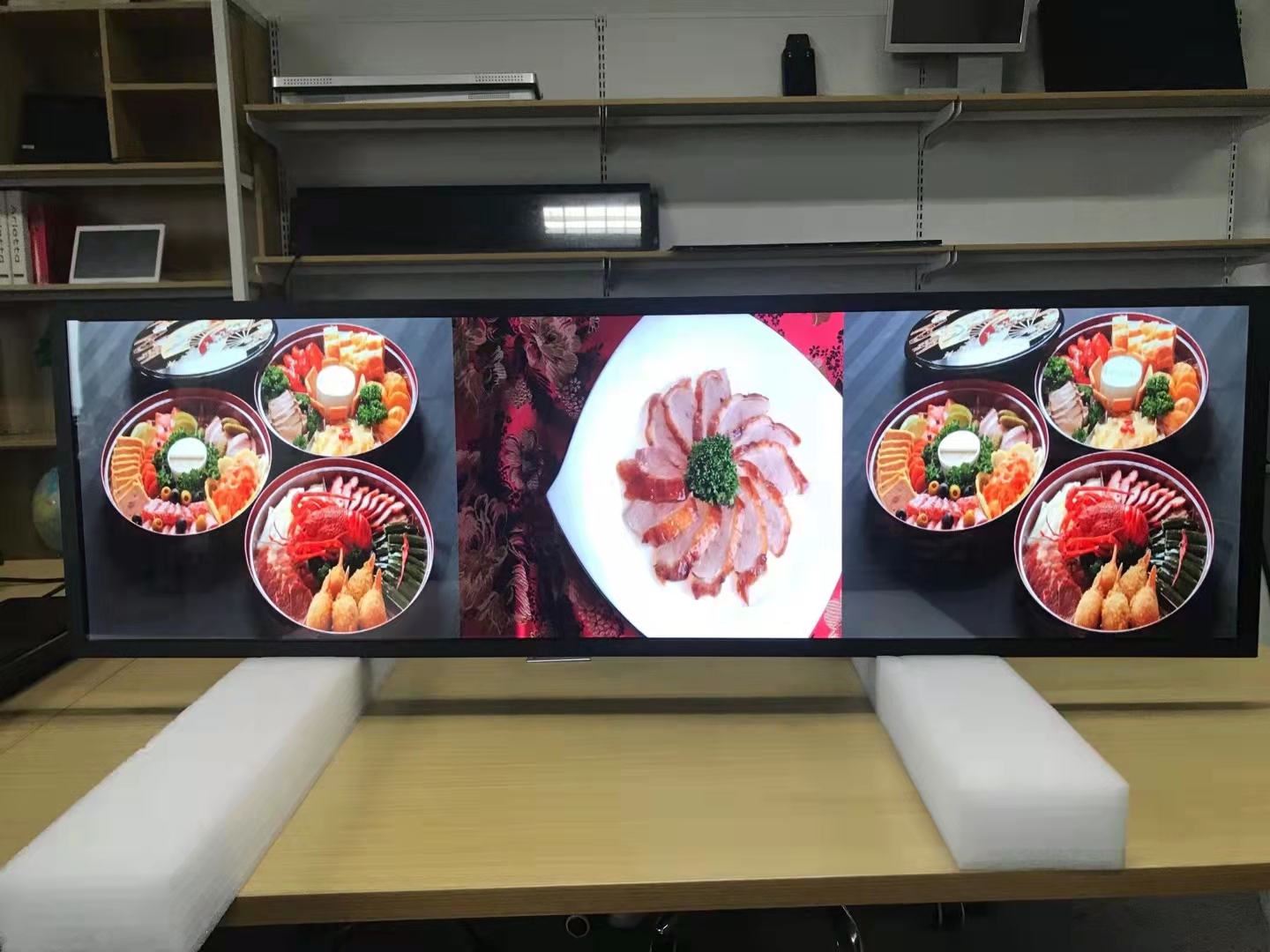

58.5 inch high brightness stretch bar LCD display
| Item | Specification |
|---|---|
| Screen Diagonal | 58.5 inch |
| Model No. | RS58.5ENT-NE10 |
| Active Area | 1428.48(W) × 401.76(H) mm |
| Pixels / PPI | 3840(RGB) × 1080, 41 PPI |
| Physical Size | 1444.08(W) × 420.36(H) × 27.58 / 57.2(D) mm |
| Pixel Arrangement | RGB Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance (Center) | 500–5000 nits |
| Contrast Ratio | 1200:1 (Typ.) |
| Optical Response Time | 8 ms (Typ., G-to-G) |
| Backlight | Down-edge side, 2-LED light bar |
| Operating System | Android 8.0 |
| Viewing Angle | 89/89/89/89 (Typ., CR ≥ 10) |
| Support Color | 16.7M, 72% NTSC |
| Surface Treatment | Anti-glare (Haze 28%) |
| RoHS Compliance | Yes |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Weight | 11.8 kg |
| VESA Mounting | 300 × 400 mm |
Product Description
The RisingStar RS58.5ENT-NE10 is a 58.5-inch high-brightness stretched LCD display designed for professional and semi-outdoor environments. With 500–5000-nit luminance, 3840×1080 ultra-wide resolution, and an industrial a-Si TFT-LCD panel, it ensures excellent visibility even under direct sunlight. The anti-glare surface, wide 178° viewing angle, and 72% NTSC color performance deliver vibrant and clear images in public spaces.
Powered by Android 8.0, the display supports intelligent content playback, scheduling, and cloud-based digital signage systems. Its lightweight construction, VESA mounting compatibility, and robust temperature endurance make it reliable for long-term continuous operation.
Application Scenarios
The RS58.5ENT-NE10 is ideal for:
✔ Passenger Information Display (PID)
Metro stations
Railway platforms
Bus shelters
✔ Outdoor Digital Signage
Semi-outdoor advertising kiosks
Shopping mall entrances
Stadium and sports venues
✔ Industrial & Commercial Use
Factory dashboards
Logistics and warehouse monitoring
EV charging station displays
✔ Retail & Wayfinding
Digital menu boards
Directional displays
Ultra-wide promotional screens
Its ultra-wide 32:9 format and high brightness make it especially suitable for locations requiring sunlight-readable stretched displays.
Support & Shipping
01 / Warranty Policy
Complete System
3 Years Full Warranty for the complete machine assembly. 1 Year Warranty for the original LCD module. Optional extended warranty programs available.
02 / Field Support
Remote & On-site
24/7 technical support and configuration guidance via video link or remote access. Local on-site installation available for large deployments.
03 / Production Timeline
Scalable Manufacturing
Verification and custom prototype delivery within 10 Working Days. Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable Logistics
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS). Cost-optimized bulk shipping in 30 - 45 Days for major ports.
