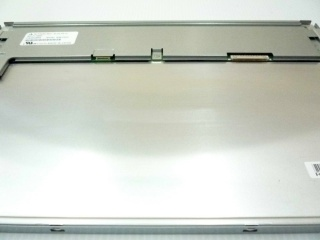

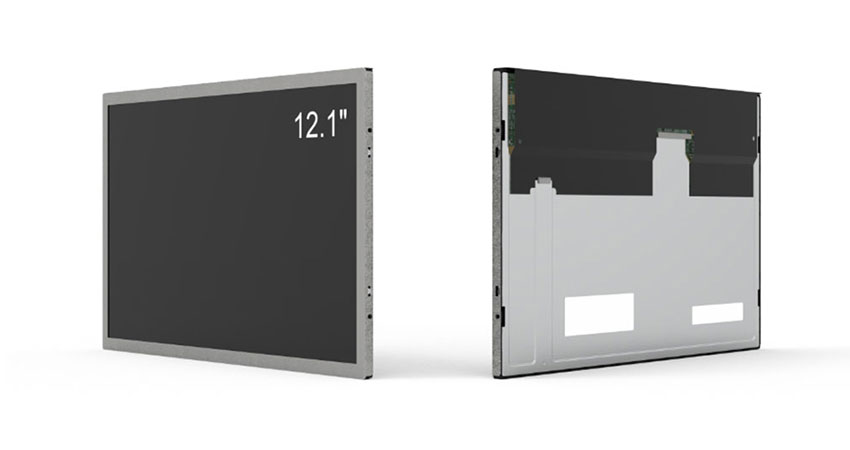

12.1 inch 1500 nits sunlight readable TFT LCD panel
12.1 inch High Brightness Industrial LCD Module – Specification Table
Excel-Style Specification Table
| Item | Specification |
|---|---|
| Panel Size | 12.1 inch |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1280 (RGB) × 800, WXGA, 124 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 261.12 (W) × 163.20 (H) mm |
| Bezel Opening Area | 264.12 (W) × 166.20 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness (Luminance) | 500–3000 nits |
| Contrast Ratio | 1000:1 (Typ., Transmissive) |
| Viewing Direction Recommended | All-view |
| Viewing Angle (CR ≥ 10) | 89/89/89/89 (L/R/U/D) |
| Response Time (Tr/Td) | 12 / 8 ms (Typ.) |
| Display Mode | AAS, Normally Black, Transmissive |
| Color Support | 262K / 16.7M, 72% NTSC |
| Backlight Type | WLED, 30,000 hours, LED Driver Included |
| Weight | 470 g (Typ.) / 490 g (Max.) |
| Refresh Rate | 60 Hz |
| MEMC / High-Frame Options | 120 Hz (60 Hz input, built-in MEMC) / 120 Hz panel + 120 Hz backlight / 240 Hz (60 Hz input, MEMC) |
| Touch Option | No Touch |
| Interface | 30-pin LVDS (1 ch, 6/8-bit) |
| Supply Voltage | 3.3V (Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Application | Industrial Equipment |
Product Description & Application
The 12.1-inch a-Si TFT-LCD module is designed for industrial environments requiring high brightness, stable performance, and long-term reliability. Featuring up to 5000 nits sunlight-readable luminance, this display delivers excellent visibility under direct sunlight, making it ideal for both indoor and outdoor deployments.
With AAS (IPS-equivalent) technology, the panel offers ultra-wide 89° viewing angles in all directions, ensuring clear readability from any position. The panel supports up to 16.7M colors with 72% NTSC coverage, delivering accurate image reproduction for industrial visualization systems.
Its rugged structure, wide operating temperature range (-20 ~ 70 °C), and integrated WLED backlight with 30,000-hour lifetime make it suitable for harsh environments. The module uses a 30-pin LVDS interface, making it compatible with a wide range of embedded systems and industrial controllers.
Typical Applications
Industrial control systems
Factory automation terminals
Outdoor HMI (human–machine interface)
Instrumentation and measurement devices
Medical and diagnostic equipment
Transportation displays
Kiosks, vending machines, ticketing systems
