65 inch window facing sunlight readable lcd display
Technical Specifications of 65 Inch Window Facing Sunlight Readable LCD Display
| Specification | Details |
|---|---|
| Screen Size | 65 inch |
| Panel Type | a-Si TFT-LCD |
| Resolution | 1920 (RGB) × 1080 (FHD), 34 PPI |
| Display Area | 1428.48 (W) × 803.52 (H) mm |
| Outline Dimensions | 1430.78 × 805.82 mm |
| Brightness | 1000 to 5000 nits |
| Contrast Ratio | 4000:1 (Typical, Transmissive) |
| Viewing Angle | 89°/89°/89°/89° (L/R/U/D, CR≥10) |
| Optical Mode | AMVA3, Transmissive, Normally Black |
| Surface Treatment | Hard Coating (2H), Reflection ≤ 2.0% |
| Color Depth | 1.07 Billion Colors, 99% sRGB |
| Response Time | 8 ms (Typ., G to G) |
| Backlight Type | WLED, up to 50,000 hoursours, with LED Driver |
| Refresh Rate | 60Hz (Optional: 120Hz MEMC, up to 240Hz input support) |
| Touch Function | None |
| Signal Interface | LVDS (2 ch, 10-bit), 51 pins |
| Power Supply | 12.0V (Typical) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Weight | 30.0 kg |
| Application Fields | Window-Facing Digital Signage, Outdoor Displays |

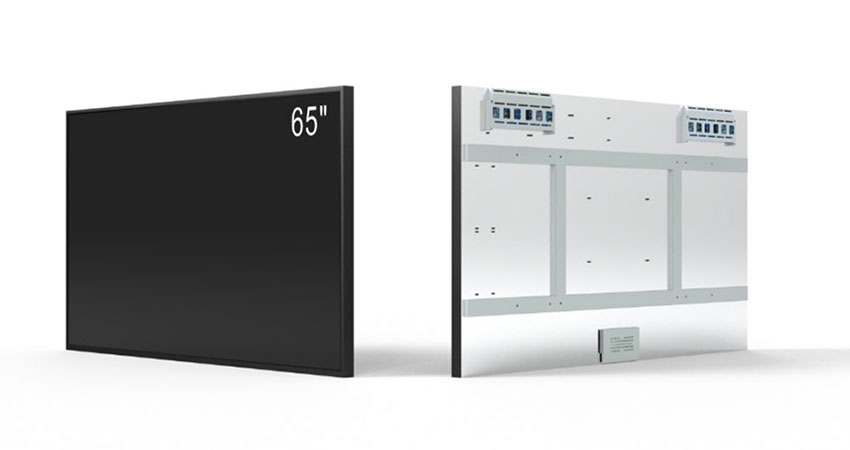

RisingStar’s 65 inch window-facing sunlight readable LCD display is a premium solution designed for high-impact digital signage in storefronts, transportation hubs, and public venues. Built on an advanced a-Si TFT-LCD platform with AMVA3 technology, it delivers exceptional image quality, wide viewing angles, and superior sunlight readability, even when installed behind glass.
With a native resolution of 1920×1080 (FHD) and an expansive display area of 1428.48(W) × 803.52(H) mm, this display supports ultra-bright luminance ranging from 1000 to 5000 nits, ensuring visibility under direct sunlight. The panel boasts an impressive 4000:1 contrast ratio and supports 1.07 billion colors at 99% sRGB coverage, delivering vivid, lifelike visuals that capture attention in any lighting environment.
Engineered for 24/7 reliability, the 65" screen features a durable hard-coated (2H) anti-reflective surface with a maximum reflectivity of only 2.0%, reducing glare and enhancing legibility. Viewing angles reach 89° from all directions (CR≥10), maintaining image integrity across large open spaces.
Equipped with a high-efficiency WLED backlight system rated for up to 50,000 hoursours and a built-in LED driver, this panel is optimized for long-term performance. It supports a default 60Hz refresh rate with optional MEMC enhancements up to 240Hz, ideal for smooth video playback in digital signage applications.
With a robust structure weighing 30 kg and operating within a temperature range of -20°C to 70°C, it is well-suited for harsh environments. The panel integrates seamlessly via LVDS (2ch, 10-bit, 51-pin) and operates at 12V power input. Whether for retail storefront windows or transit displays, RisingStar’s 65 inch high-brightness LCD ensures unmatched visibility and performance in high-light environments.
65 inch Application Case
Support & Shipping
01 / Warranty Policy
Complete System
3 Years Full Warranty for the complete machine assembly. 1 Year Warranty for the original LCD module. Optional extended warranty programs available.
02 / Field Support
Remote & On-site
24/7 technical support and configuration guidance via video link or remote access. Local on-site installation available for large deployments.
03 / Production Timeline
Scalable Manufacturing
Verification and custom prototype delivery within 10 Working Days. Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable Logistics
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS). Cost-optimized bulk shipping in 30 - 45 Days for major ports.
Interested in this product?
Get in touch with our experts for a personalized quote or technical support.
