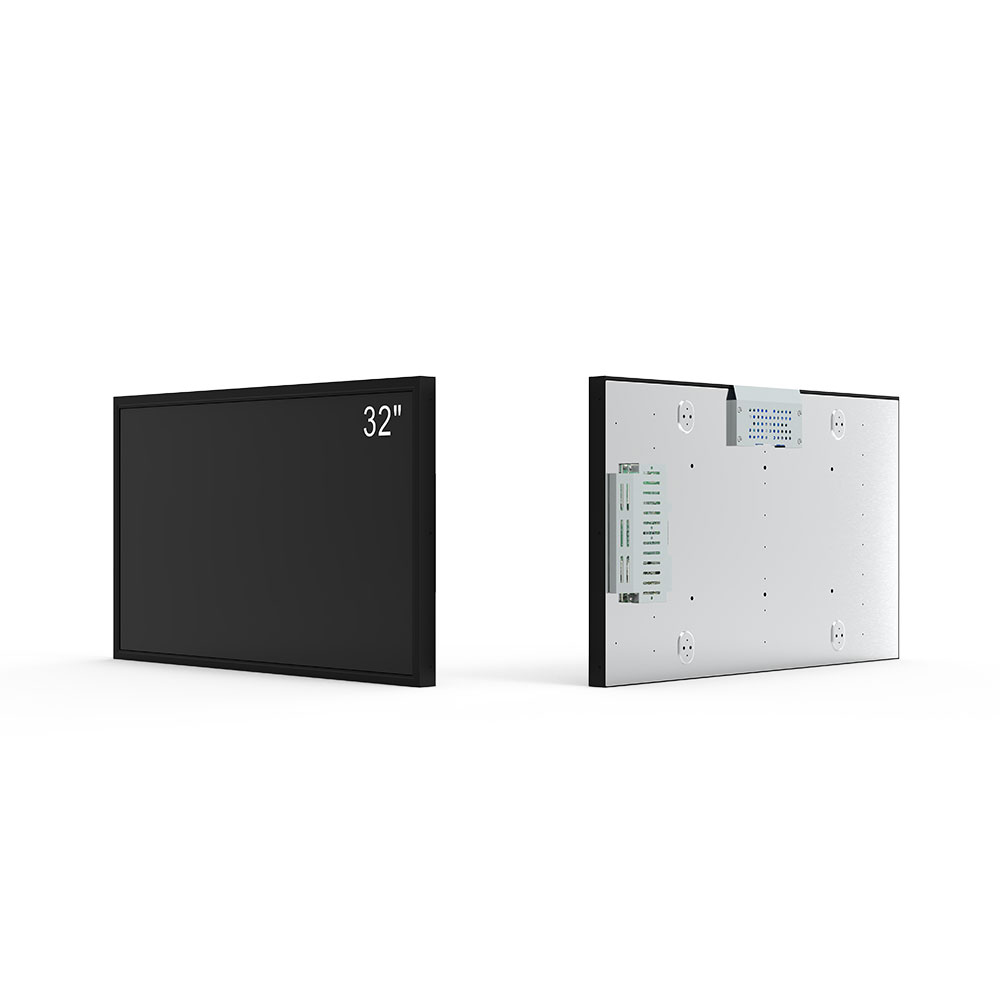

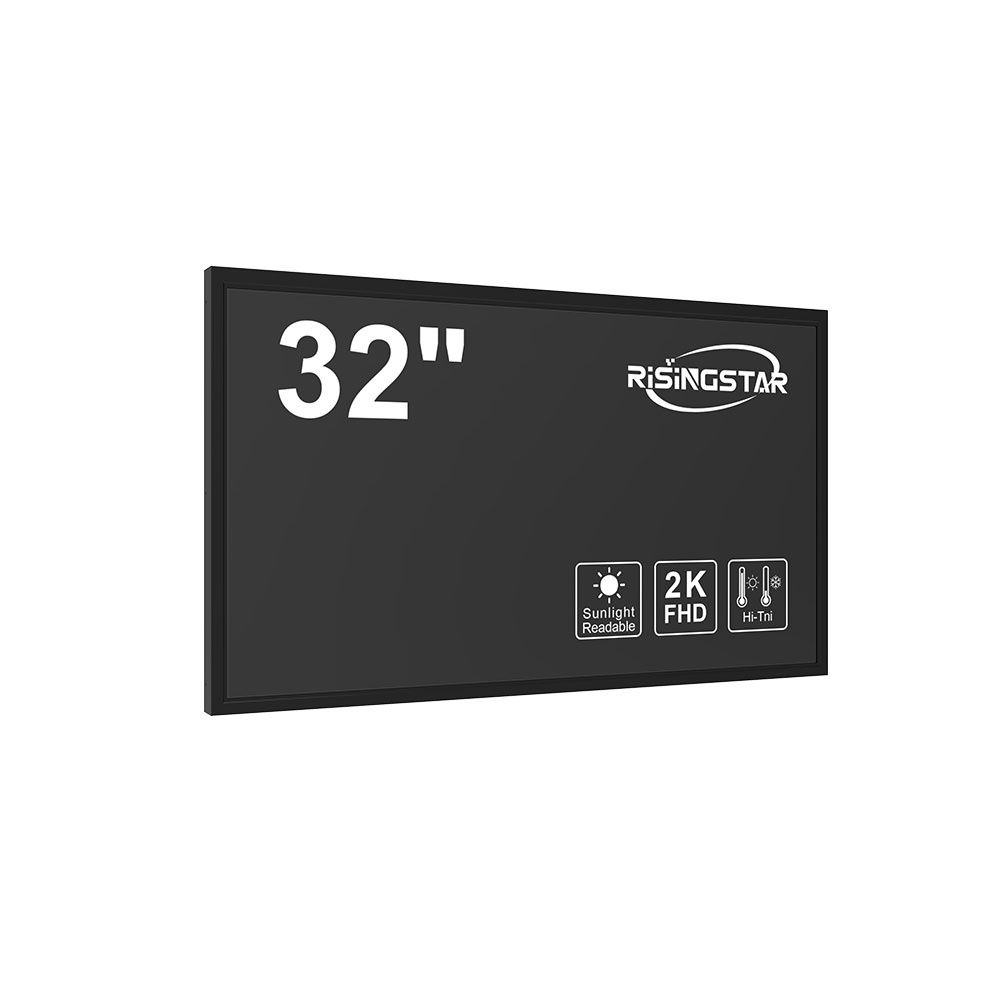

RS320MNX01D01 is a 32 inch LCD display from Risingstar, which is the first and primary type of the 32-inch window facing display series, with the typical Risingstar style: High brightness and minimalism outer design, support multiple mounting way including floor standing or hanging, whatever landscape or portrait, also the AG and AR glass help the screen is visible under direct sunlight.
Risingstar monitors always has far higher brightness than most of our competitors, for the specific 32-inches we can reached 4000 nits even much higher, more information please searching on our website: www.risinglcd.com
Model number | RS215MNX01D01 | RS320MNX01D01 | RS430MNX01D01 | RS550MNX01D01 | RS650MNX01D01 |
Brightness (cd/m2) | 1000 | 1500 | 2000 | 2000 | 3000 |
Resolution (pixels) | 1920*1080 | 1920*1080 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 | 1920*1080 /3840*2160 |
Power (Watt) | 230 | 265 | 300 | ||
Operating temperature | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ | 0 ~ 50℃ |
Top grade LCD panel: Risingstar has ability making our own design LCD panel, and we purchase A and A+ level Open-cell from LG, BOE, AUO and other famous liquid crystal glasses maker directly, this is the proof to make the high quality displays for each of our customers.
Rugged and unique housing: This display has unique outershell, you can see the crave on the display is as sort of thermal dissipition design by our own design, this allowed the display dissiption heat without fan or A/C, to save the power consumption; it can be fully muted if you need mount it in some quiet place such like library, this also the reason why this outdoor display sometimes will mounted indoor by our customers.
High adaptability electronic: Risingstar has customers from all over the world, EU, US, Asia...using the right plug and adapt different voltage is the basic issue we should figure out for our customers, you do not need worry about this; the possibly OS for the display, we can offer both PC and Android to make you using easier; also the interfaces, HDMI/USB/VGA/DVI/DP/Type-C/RJ45 by your choice, our enegineer will help you found the most suitable motherboard.
Ultra wide viewing angle: Most of the Risingstar display is IPS screen, which has extremely high viewing angle could reach 178° for both horizontal and vertical direction.
Multiple mounting type: for each display our engineer will reserved the mounting hole by your request, you can mounting it on the wall, ceiling, floor standing, hanging...whatever your choice, and our default mounting is VESA.
window facing display series:
RS320HNX02D05, outdoor no fans and A/C self dissipition monitor, save the consumption also muted design...
RS320MNX03D01, semi-outdoor and super slim design, the most highest integrated display we ever made...
RS430MNX01D01, classic design, the standard type of 43-inch window facing display...
| Model | RS320MNX01D01 | |
| Panel | Size(Diagonal) | 32″ |
| Resolution | 3840*2160(16:9)/1920*1080 | |
| Active Area(mm) | 697.31(W)×392.23(H) mm | |
| Brightness(Typ.) | 2500nit | |
| Contrast Ratio | 1300:1 | |
| Back light type | Direct back light | |
| Viewing Angle (HxV) | 178×178 | |
| Orientation | Landscape & Portrait | |
| Connectivity | Input | RJ45/HDMI/VGA/USB/DVI |
| OutPut | Audio out | |
| External Control | IR Receiver, Auto-Dimming Sensor IR Receiver, Auto Dimming Sensor. | |
| Physical SPEC | Bezel Color | Black |
| Bezel Width | 40mm | |
| Display Dimension | 731.9*432.4*40mm | |
| Net Weight | 32kg | |
| Operation Condition | Working Temperature | 0~50 ℃ |
| Storage Temperature | -20~60 ℃ | |
| Power | Input Supply | AC 110~240V 50/60Hz |
| Consumption | 150W | |
| Internal Player | Processor Coretex | Rockchip, RK3288, CoretexA17, 1.8GHz |
| Memory Interace | HYNI, DDR3, 2GB | |
| Storage | 8GB | |
| Operation System | Android 5.1 | |
| Multimedia Video Decoder | MPEG 1/2/4, H264, WMV, WV, TS, FLV,JPEG, PNG, BMP, GIF,MP3 | |
| Special Features | Temperature sensor, Auto Brightness sensor, Silent fans cooling Source selection. | |
| Accessories | Included Accessories | Remote control (W/O battery), AC powe plug |
| Optional Acessories | Mounting brachet (Wall mount, roof hanging, floor stand) | |
