RisingLCD's high brightness LCD panels offer exceptional visibility and optimal performance, making them the perfect choice for outdoor advertising and information display. With a customized brightness of 3000nits, these panels are easily readable even in bright sunlight, providing an unparalleled viewing experience.
RisingLCD's high brightness LCD panels offer exceptional visibility and optimal performance, making them the perfect choice for outdoor advertising and information display. With a customized brightness of 3000nits, these panels are easily readable even in bright sunlight, providing an unparalleled viewing experience. Choose RisingLCD for your outdoor display needs and enjoy the brilliance of high-performance technology.
55 inch high brightness LCD panel Main Features
· 24/7 Commercial Grade LG open cell
· High brightness 3000cd/m2 IPS Panel
· 1920*1080 FHD resolution
· Wide viewing angel 89/89/89/89 (Typ.)(CR≥10)
· 1000:1 contrast ratio
· Low Power Consumption
· Lightweight Design

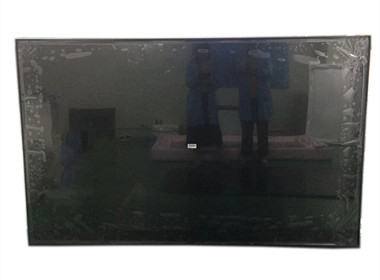

RS550DPY-GD30 is an 55-inch high brightness TFT LCD panel is equipped with LG LD550DPY-SHP1 screen. The display features 2K FHD resolution with a high brightness LED backlight producing a sunlight viewable 3000 nits image. IPS type panel, display size 1209.6(H)X680.4(V)mm, 1920*1080 FHD resolution, all aluminum profile frame, built in light sensor, it can be operated in both portrait and landscape orientation.

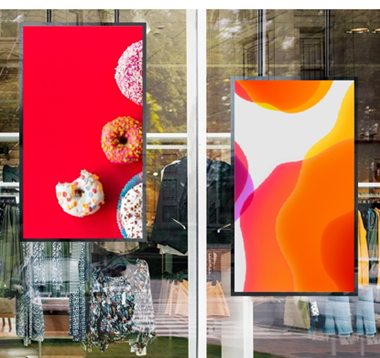

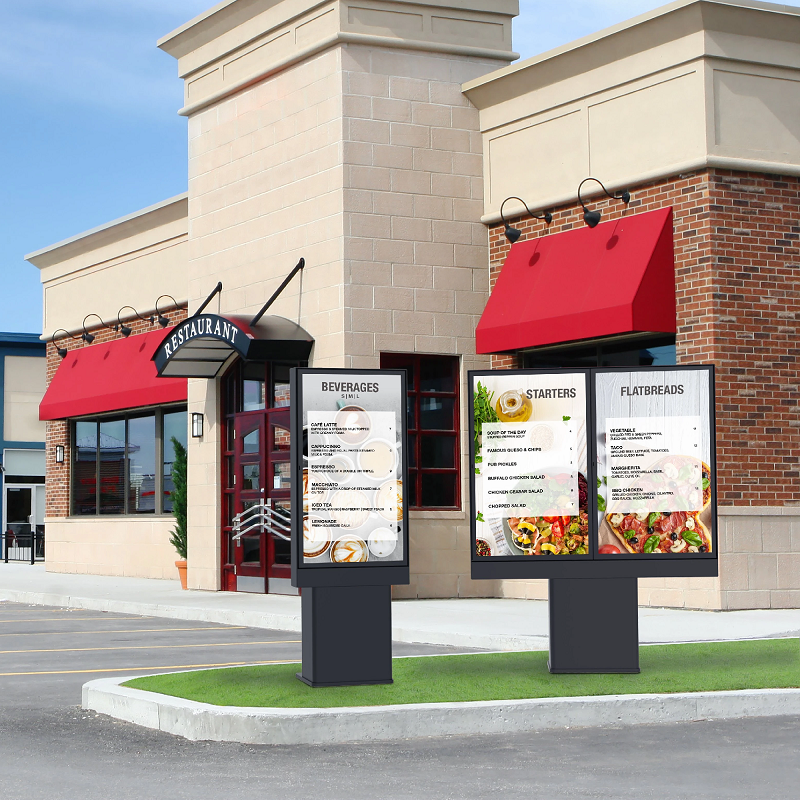

It is the perfect for outdoor digital signage, bus electronic platform, new energy charging pile, outdoor electronic newspaper reading column, security monitor, medical monitor.
| Screen Diagonal | 55 inch |
| LG panel no | LD550DPY-SHP1 |
| Panel Brand | RisingStarLCD |
| Model No | RS550DPY-GD30 |
| Active Area | 1209.6(W)×680.4(H) mm |
| Pixels | 1920(3)×1080, FHD, 40PPI |
| Physical Size | 1242.7(H)×718(V)×60.3(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 3000 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 1000:1 (Typ.) |
| Optical Response Time | 6 (Typ.)(G to G) ms |
| Nominal Input Voltage | 12.7V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Weight [g] | 14kgs(Typ.) |
| Interface Type | 51 pins LVDS (2 ch, 8-bit) |
| Support Color | 16.7M , 70% NTSC |
| Surface Treatment | Hard coating (2H), |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | 0 ~50 °C |
| Storage (Non-Operating) | -20 ~ 60 °C |
