High Brightness Display Manufacturer — Up to 5000 nits
Sunlight readable, CE and RoHS compliant. Designed for harsh outdoor and transportation environments — rated for -20°C to 70°C operation with a lifespan of up to 50,000 hours.
- ✓Sunlight readable — Up to 5000 nits with optical bonding
- ✓Industrial-grade — Low power consumption, low heat, long lifespan
- ✓CE & RoHS compliant
Trusted high brightness display manufacturer. 500+ clients in 50+ countries rely on our outdoor display solutions.
Authorized Panel Partners
Heat Resistant
No blackening under direct sunlight. Engineered for extreme heat.
Cleanroom Production
Class 10,000 dust-free assembly ensures zero-pixel defects.
ISO9001 Certified
Fully traceable B2B quality control for large-scale projects.
72H Aging Test
100% rigorous screening before international shipping.
Find Your Perfect Display
Browse high brightness LCD modules across 5 specialized categories — from outdoor waterproof to open frame, engineered for any environment.

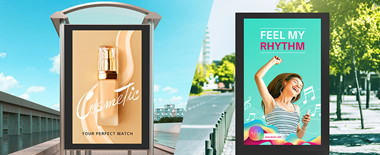

Outdoor Waterproof Display
| Model name | RS750HNX05A01 |
| Screen size | 75 inch |
| Screen type | outdoor digital signage |
| Resolution | 3840(3)×2160, UHD, 16:9 |
| Brightness | 2500 nits |
| Model name | RS430HNX05A01-bk |
| Screen size | 43" |
| Screen type | Outdoor waterproof digital signage |
| Resolution | 1920(RGB)×1080 |
| Brightness (cd/m²) | 3500 nits |
| Model name | RS550MNW02A01 |
| Screen size | 55" |
| Screen type | waterproof digital signage |
| Resolution | 3840 x 2160 |
| Brightness (nits) | 2500 |

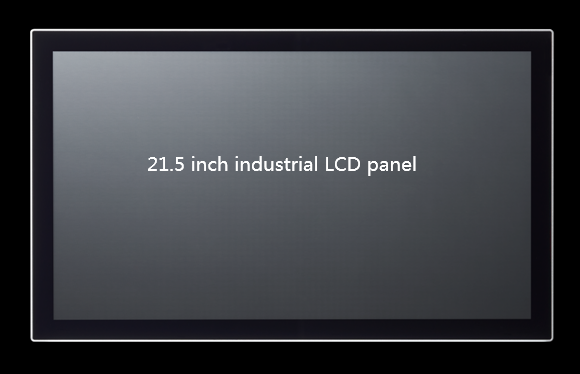

| Model name | RS215HNX04D01-BK |
| Screen size | 21.5" |
| Screen type | outdoor digital signage |
| Resolution | 1920 (RGB) × 1080, FHD, 102 PPI |
| Brightness | 2500 nits |

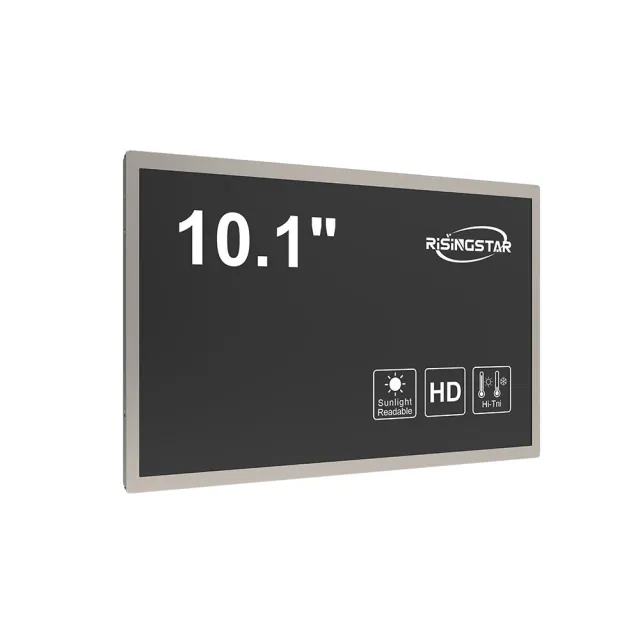

| Model | RS101ENT-N15 |
|---|---|
| Display Size | 10.1 inch (16:9 aspect ratio) |
| Resolution | 1280 × 720 pixels (WXGA) |
| Panel Technology | IPS (In-Plane Switching), normally black, transmissive |
| Active Area | 224.64 × 126.36 mm |
| Pixel Density (PPI) | 149 |
| Brightness | 1500 nits (cd/m²), typical |
| Model name | RS550HNX01-A01-BK |
| Screen size | 55" |
| Resolution | 1920 × 1080 |
| Brightness (cd/m²) | 2500 cd/m² |
| Contrast | 1000:1 |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
| Model name | RS320HNX02D05 |
| Screen size | 32" |
| Screen type | Outdoot digital display |
| Resolution | 1920(RGB)×1080 /4K |
| Brightness | 1000 to 5000nits |
| Model name | RS490HNX02D05 |
| Screen size | 49" |
| Screen type | waterproof digital signage |
| Resolution | 3840(RGB)×2160 |
| Brightness (cd/m²) | 1000 |
Sunlight Readable Display
| Model name | RS550ENT-N20 |
| Screen size | 55" |
| Screen type | LCD Monitor |
| Resolution | 1920×1080 / 3840×2160 |
| Brightness (cd/m²) | 1000-3000 |
| Panel Size | 55 inch |
|---|---|
| Brightness | 2500 nits |
| Contrast Ratio (Static) | 1300:1 (Typ., Transmissive) |
| Dynamic Contrast Ratio | 150000:1 (Typ., with Local Dimming ON) |
| Backlight Type | FALD WLED, 512 dimming zones, 50,000 hours lifespan |
| Model name | RS270FNX01A01 |
| Screen size | 27" |
| Screen type | LCD Monitor |
| Resolution | 1920(RGB)×1920 |
| Brightness | 2000 |
| Model name | RS860EQL-GD40 |
| Screen size | 86" |
| Screen type | Outdoor LCD Panel |
| Resolution | 1920(RGB)×1080 |
| Brightness (cd/m²) | 1000~5000nits |
| Screen size | 13.3 inch |
| Screen type | a-Si TFT-LCD, Transmissive |
| Resolution | 1920(RGB) × 1080 (FHD), 166 PPI |
| Brightness (cd/m²) | 1000 to 5000 |
| Contrast | 800:1 (Typ., Transmissive) |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
| Model name | RS430ENT-N25 |
| Screen size | 43" |
| Screen type | Window facing display |
| Resolution | 1920(RGB)×1080 |
| Brightness (cd/m²) | 1000~5000 |
| Model name | RS750ENT-GD45 |
| Screen size | 75" |
| Screen type | Outdoor LCD Panel |
| Resolution | 3840 (RGB) × 2160 (UHD), 59 PPI |
| Brightness | 1000 to 5000nits |
| Model name | RS980ENT-GD45 |
| Screen size | 98" |
| Screen type | Outdoor LCD Panel |
| Resolution | 3840 (RGB) × 2160 (UHD), 45 PPI |
| Brightness (cd/m²) | 1000 to 5000 |

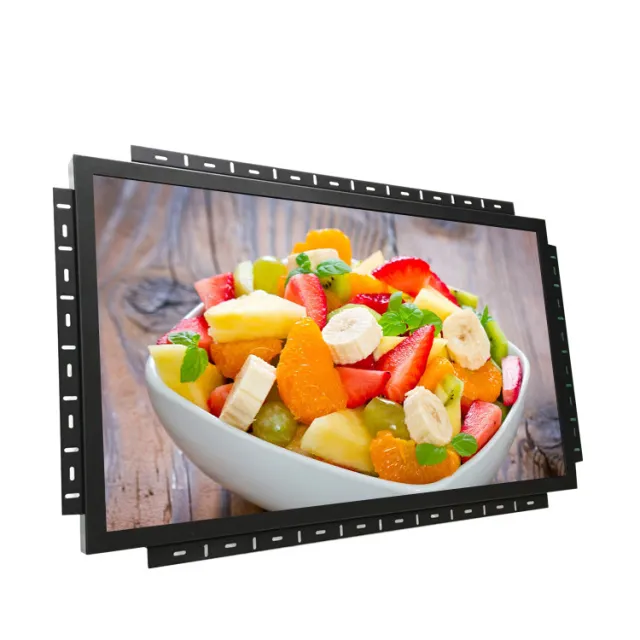

Open Frame Display
| Model name | RS156MNX01D01 |
| Screen size | 15.6 " |
| Screen type | LCD Monitor |
| Resolution | 1920 1080 |
| Brightness (cd/m²) | 2000 |
| Contrast degree | 800:1 |
| Model name | RS156ENT-N03 |
| Screen size | 15.6-inch |
| Screen type | a-Si TFT-LCD |
| Resolution | 1920*1080 |
| Brightness (cd/m²) | 300-1500cd/m2(optinal) |
| Contrast | 300:1 |
| Model No. | RS320ENT-N15 |
| Screen size | 32 " |
| Resolution | 1920 1080 |
| Brightness (cd/m²) | 1500 |
| Model name | / |
| Screen size | 10" |
| Screen type | Open frame monitor |
| Resolution | 1280(RGB)x800 |
| Brightness (cd/m²) | 1000 |
| Model No. | RS430ENT-N25 |
| Screen size | 43 " |
| Resolution | 1920 1080 |
| Brightness (cd/m²) | 2500 |
| Model name | RS185-N10 |
| Screen size | 18.5" |
| Screen type | Outdoor LCD Panel |
| Resolution | 1920(RGB)x1080 |
| Brightness (cd/m²) | 1000 |
| Model name | RS43-OEM |
| Screen size | 46" |
| Screen type | Open frame monitor |
| Resolution | 1920(RGB)x1080 |
| Brightness (cd/m²) | 4000 |
| Model name | RS430ENT-N15 |
| Screen size | 55" |
| Screen type | Outdoor LCD Panel |
| Resolution | 1920(RGB)x1080 |
| Brightness (cd/m²) | 4000 |

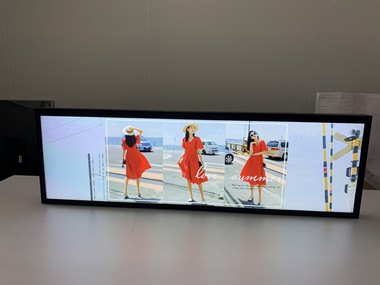

Stretched Bar Display
| Model name | RS438FNX01A01 |
| Screen size | 43.8inch |
| Screen type | a-Si TFT-LCD |
| Resolution | 3840*1080 |
| Brightness (cd/m²) | 2000 nits |
| Contrast | 1200:1 |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
| Screen size | 37 inch |
| Screen type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920(RGB) × 540, 53 PPI |
| Brightness (cd/m²) | 2500 nits |
| Contrast | 5000:1 (Typ.) [Transmissive] |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
| Screen size | 28.0 inch |
| Screen type | a-Si TFT-LCD, LCD Module |
| Resolution | 1920 (RGB) × 360, 69 PPI |
| Brightness (cd/m²) | 2000 nits |
| Contrast | 5000:1 (TM) |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
| Model name | RS140XTM-GE12 |
| Screen size | 14.1 inch |
| Resolution | 1440(RGB)×900, WXGA+, 120PPI |
| Brightness (cd/m²) | 500~5000nits |
| Contrast | 1200:1 |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
| Screen size | 29.4 inch |
| Screen type | a-Si TFT-LCD, Transmissive, AMVA3 Technology |
| Resolution | 1920 (RGB) × 720 |
| Brightness (cd/m²) | 500~5000 |
| Contrast | 4000:1 (Typ.) |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
| Model name | RS566KVN01-GE15 |
| Screen size | 56.6" |
| Backlight | Direct-lit/side-lit backlighting is available for customization. |
| Resolution | 1440(RGB)×900, WXGA+, 120PPI |
| Brightness (cd/m²) | Brightness can be customized from 500 to 5000. |
| Model name | RS860ENT-NE10 |
| Screen size | 86" |
| Backlight | Direct-lit/side-lit backlighting is available for customization. |
| Resolution | 3840(RGB) × 600, 45 PPI |
| Brightness (cd/m²) | Brightness can be customized from 500 to 5000. |

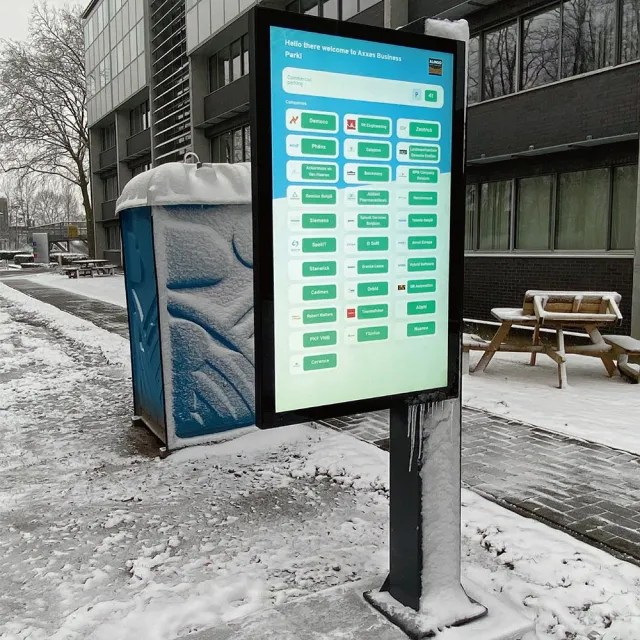

Window Facing Display
| Model name | RS320HNX02A01-BK |
| Screen size | 32" |
| Resolution | 1920 × 1080 |
| Brightness (cd/m²) | 2500 |
| Input power | AC 100–240V |
| Weight | 21.4 kg |
| Panel NO | DV320FHB-R00 |
| Screen size | 32" |
| Screen type | LCD Monitor |
| Resolution | 1920*1080 |
| Brightness (cd/m²) | 3500 |
| Model name | RS750MNX02D01-BK |
| Screen size | 75" |
| Resolution | 3840 × 2160 |
| Brightness (cd/m²) | 2500 cd/m² |
| Contrast | 1200:1 |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
| Model name | RS860MNX01D01-BK |
| Screen size | 86" |
| Resolution | 3840 × 2160 |
| Brightness (cd/m²) | 2000 |
| Input power | AC 100–240V |
| Weight | TBD |
| Model name | RS650MNX02D01-BK |
| Screen size | 65" |
| Resolution | 3840 × 2160 |
| Brightness (cd/m²) | 2500 |
| Input power | AC 100–240V |
| Weight | TBD |
| Model name | RS550MNX02D01-BK |
| Screen size | 55" |
| Resolution | 1920 × 1080 |
| Brightness (cd/m²) | 3500 |
| Input Power | AC 100–240V |
| Weight | TBD |
| Model name | RS490MNX02D01-BK |
| Screen size | 49" |
| Resolution | 1920 × 1080 |
| Brightness (cd/m²) | 2500 |
| Input Power | AC 100–240V |
| Weight | TBD |
Customized Performance
Solutions Built for Your Application
We don't just sell screens; we provide fully integrated modules tailored for specific outdoor infrastructures.
EV Charging Piles
- memory Open Frame Integration: Slim design for easy embedding into charger shells.
- light_mode Heat Resistant: No blackening in direct sunlight — vital for unshaded charging sites.
- visibility Anti-Reflective Glass: Maximum readability under intense ambient lighting.
Stretched LCD Display
- aspect_ratio Ultra-Wide Aspect Ratio: Space-saving bar design perfectly fits headers, shelves, and transit transoms.
- schedule 24/7 Industrial Reliability: Engineered for non-stop operational environments with low power consumption.
- vibration Anti-Vibration Design: High shock and vibration resistance, ideal for train and bus passenger information.
Window Facing Display
- bolt Up to 5000 Nits: High-luminance output that cuts through double-glazing and direct outdoor glare.
- light_mode Polarized Sunglasses Visible: Clear image visibility even when viewed through polarized sunglasses.
- thermostat Smart Thermal System: Built-in cooling structures prevent heat buildup inside sealed window enclosures.
Engineered for Extreme Outdoor Environments.
Standard screens fail within weeks outdoors. Our weatherproof LCD displays integrate 5 core technologies — from large outdoor display screens to outdoor digital menu boards — ensuring 5+ years of reliable, 24/7 operation in any condition.
Certified IP66 Waterproof Protection
100% dust-tight and water-resistant enclosures for rainstorms and coastal salt spray.
IK10 Vandal-Proof Tempered Glass
IK10-rated tempered front glass with a ruggedized metal chassis to absorb heavy impacts.
Intelligent Auto-Brightness Control
Overpowers noon sunlight & auto-dims at night for maximum visibility.
Professional Grade Thermal Management
Flawless operation from -20°C to 70°C with intelligent heat dissipation.

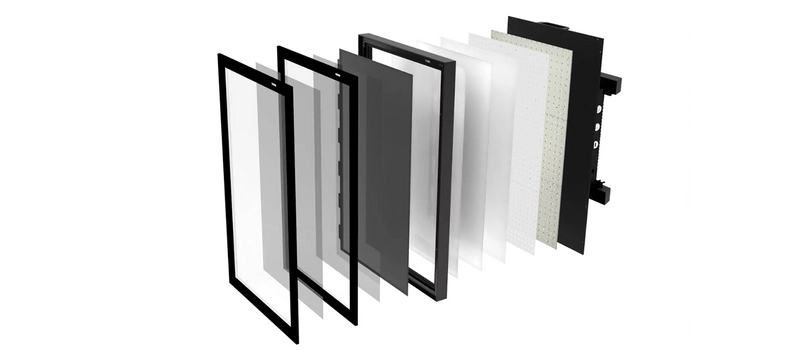

Full-Lamination Optical Bonding
Reduces light reflection by 80% and prevents moisture condensation.
Our Certifications
Where Our Displays Are Made
Step inside our factory. A straightforward look at how our outdoor LCD screens are assembled, handled, and prepared for shipping.
Ready to Start?
Get a Tailored Technical Quote
Response Time
Quotes provided within 8 hours.
Technical Support
Free consultation on thermal & mounting design.
Expert Guide 2026
High Brightness Display The Complete Guide
A comprehensive guide covering everything engineers, integrators, and buyers need to know about high brightness LCD technology.
What Is a High Brightness Display?
A High Brightness Display is a specialized LCD engineered to remain clearly visible under strong ambient light, including direct sunlight.
Unlike consumer-grade 250–400 nits screens, these displays deliver 1,000–5,000 nits, ensuring excellent readability in harsh environments such as outdoor kiosks, transportation hubs, retail windows, and smart-city systems.
Understanding Nits (cd/m²)
High Brightness Display Comparison
A display is considered sunlight readable when brightness exceeds ambient reflected light. Industrial-grade displays deliver up to 5,000 nits for harshest environments.
Why High Brightness Display Solutions Are Needed
Overcoming Sunlight Glare
Outdoor environments reach 100,000 lux. A 300-nit screen is nearly invisible, while a 2,500–5,000-nit display stays perfectly readable.
Maintaining Contrast Ratio
High brightness LCDs prevent black levels from washing out due to UV and heat exposure, maintaining clear visibility.
Mission-Critical Legibility
Transport, EV chargers, and wayfinding kiosks require guaranteed legibility for safety and user experience.
Brightness Levels & Applications
| Brightness | Application | Sunlight Performance |
|---|---|---|
| 700–1,000 nits | Indoor window / semi-outdoor | Moderate |
| 1,500 nits | Bright indoor / covered outdoor | Good |
| 2,500 nits | EV chargers / kiosks | Very Good |
| 3,000 nits | Outdoor signage / QSR menu boards | Excellent |
| 4,000–5,000 nits | Harsh sunlight / smart city | Superior |
Industry insight: 3,000 nits covers 80% of outdoor environments.
Understanding High Brightness Display Types
Still comparing panel technologies? Read our breakdown of sunlight readable display: LCD vs LED vs OLED.
High Brightness vs Regular LCD
-
Backlight System
Industrial-grade direct LED vs consumer edge-lit
-
Thermal Stability
Optical bonding, thermal sensors, UV-resistant layers, anti-blackening
-
Power Efficiency
Optimized LED drivers reduce power consumption by 15–25%
-
Optical Bonding
Reduces reflections, increases sunlight readability by up to 25%
Outdoor High Brightness Display vs Semi-Outdoor Display
Outdoor High Brightness Displays
EV charger displays, gas pump displays, bus stops, outdoor digital signage
Semi-Outdoor High Brightness Displays
Retail window displays, mall directories, covered patios
Applications
High Brightness Display Key Features
- High Brightness Display — Up to 5,000 nits
- up to 50,000 Hours Life (24/7)
- Low Power Engineering
- Lightweight Aluminum Structure
- IP65/IP66 Waterproof
- Anti-Blackening Technology
FAQs
1,000 nits is semi-outdoor level. True high brightness display solutions begin at 1,500–5,000 nits for reliable outdoor performance.
Industrial-grade LED architecture reduces energy consumption by 15–25% compared to standard high brightness display solutions.
At least 1,000 nits minimum, though 2,500–5,000 nits is ideal for full sunlight environments.
Extremely important. AR coatings combined with optical bonding significantly enhance contrast and readability in bright conditions.
Yes. Industrial-grade high brightness display models feature IP65 or IP66 protection ratings for complete water and dust resistance in outdoor environments. Learn what each rating means in our guide to IP ratings for outdoor displays.
Quality displays use thermal sensors, LED drivers, and anti-blackening LCD technology to manage heat effectively.
Optical bonding fills the air gap between the display and glass, eliminating reflections and improving sunlight readability by up to 25%. See our full breakdown of optical bonding for sunlight readable displays.
Generally yes, but optimized LED backlighting minimizes extra energy use while maximizing brightness.
Absolutely. Industrial-grade high brightness display solutions are tested for -20°C to 70°C operation and sealed against moisture, rain, and dust.
