Brand:
RisingStar
Model name:
RS156HCE-GE10
Screen size:
15"
Resolution:
1024 (RGB) × 768 (XGA), 85 PPI
Brightness (cd/m²):
500 to 5000
Viewing angle:
89/89/89/89
Working frequency:
60Hz
RisingStar’s 15-inch 4:3 high brightness LCD display is engineered for industrial and commercial applications demanding consistent performance in high ambient light environments. This display features a robust a-Si TFT-LCD panel with a native resolution of 1024×768 (XGA), delivering 85 PPI and a wide viewing angle of 88° in all directions (CR≥10) using advanced NPVA technology for true-black performance and excellent contrast.
The 15-Inch 4:3 High Brightness LCD Display by RisingStar is an industrial-grade TFT-LCD module engineered for optimal visibility in direct sunlight and extreme environments. Featuring up to 1500–2000 nits brightness, wide viewing angles, and rugged construction, it is the ideal choice for public information systems, outdoor kiosks, transportation hubs, marine navigation, and retail signage.

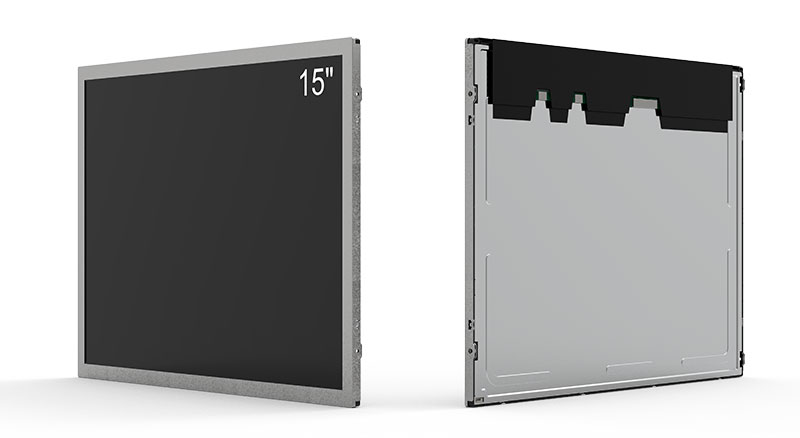

15 inch 4:3 high brightness LCD screen
15 inch 4:3 high brightness LCD display case
15 Inch 4:3 High Brightness LCD Display Specifications – Sunlight Readable Industrial Panel
Product Specification Table:
| Item | Details |
|---|---|
| Panel Size | 15.0 inches (4:3 aspect ratio) |
| Panel Type | a-Si TFT-LCD (Transmissive, NPVA technology, Normally Black) |
| Resolution | 1024 (RGB) × 768 (XGA), 85 PPI |
| Pixel Configuration | RGB Vertical Stripe |
| Active Area | 304.128 (W) × 228.096 (H) mm |
| Bezel Opening | 307.4 (W) × 231.3 (H) mm |
| Surface Treatment | Anti-glare, Hard Coating (3H) |
| Brightness | 500 nits to 5000 nits (sunlight readable) |
| Contrast Ratio | 2000:1 (Typical) |
| Viewing Angle | 88°/88°/88°/88° (L/R/U/D, CR≥10) |
| Response Time | 16 ms (Tr) / 7 ms (Td) Typical |
| Color Support | 262K / 16.7M colors, 72% NTSC gamut |
| Backlight | WLED, 70,000 hours lifespan, with LED driver |
| Weight | 0.96 / 1.00 kg (Typical / Max) |
| Frame Rate | 60Hz (Standard); Optional MEMC: 120Hz / 240Hz |
| Touch Technology | touch |
| Interface | 20-pin LVDS (1 channel, 6/8-bit) |
| Power Supply | 3.3V (Typical) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +70°C |
| Applications | Industrial terminals, outd |
Ultra-High Brightness – Up to 5000 nits for perfect visibility under bright sunlight.
4:3 Aspect Ratio – Ideal for legacy systems, industrial controls, and public information boards.
Wide Viewing Angle – All-direction clarity for multi-user environments.
Durable Industrial Design – Built with lightweight aluminum housing and tested for extreme temperatures.
Energy-Efficient Backlight – Industrial-grade LED technology with low heat generation.
Long Service Life – Up to 70,000 hours of reliable operation.
Multiple Interface Options – Compatible with VGA, HDMI, and custom signal input requirements.
Full IP-rated Protection – Optional waterproofing for outdoor installations.
Passenger Information Display – Railway, metro, bus terminals

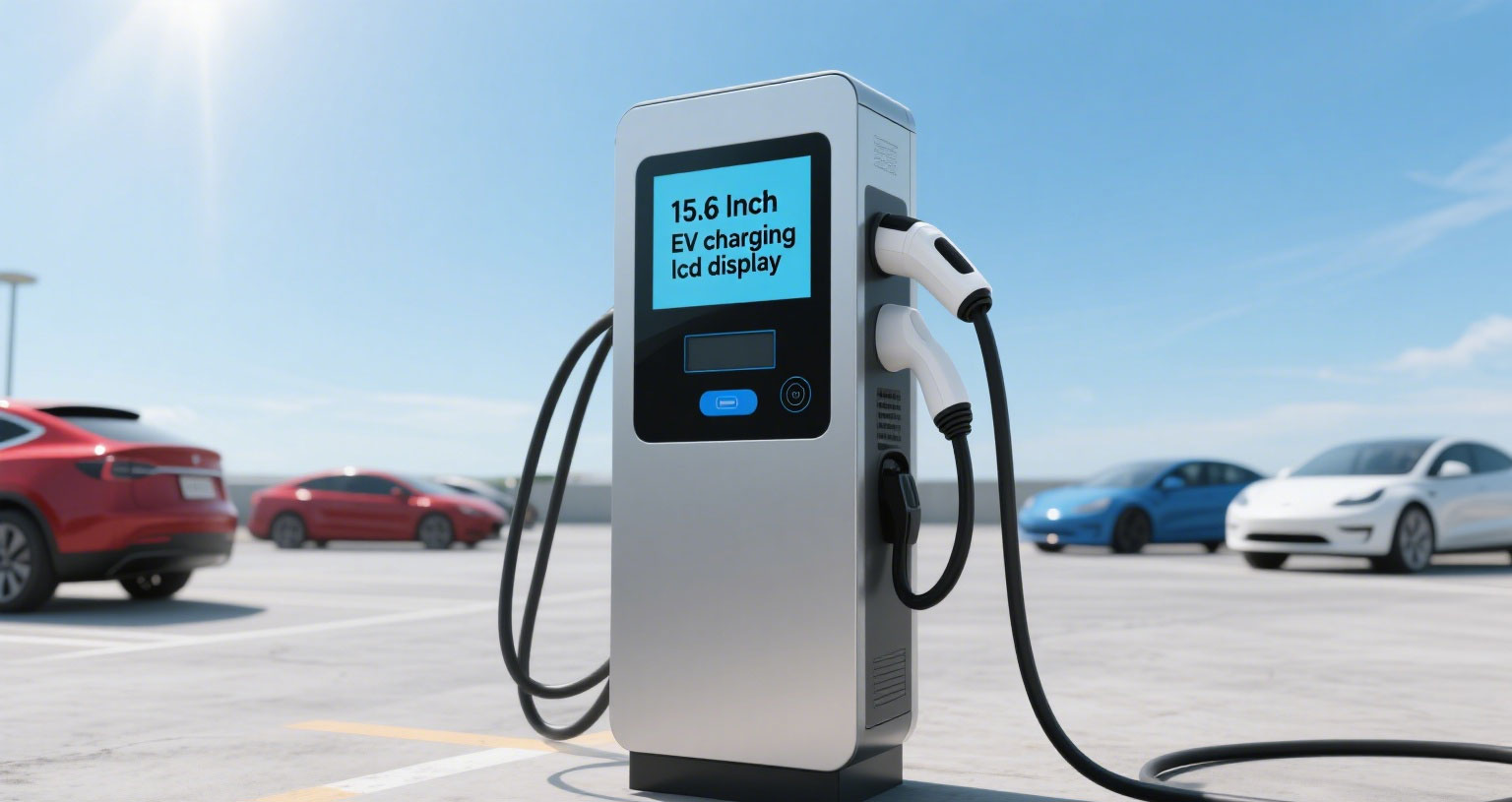

Outdoor Digital Signage – Shopping malls, real estate displays, EV charging kiosks
Marine & Navigation Systems – High visibility in bright marine environments
Industrial Control Panels – Reliable 24/7 operation in harsh conditions
Retail Advertising Screens – Clear visuals even under store lighting or window glare
With over 15 years of experience in industrial display solutions, RisingStar is a trusted manufacturer supplying high-brightness LCDs to transportation, energy, and retail sectors worldwide. Our engineering team tests each display for extreme temperature resilience, IP protection, and long-term stability to ensure reliable performance.
ISO 9001:2015 Certified Production
RoHS & CE Compliance
100% factory inspection before shipment
Optional waterproof IP65/67 customization
Q1: Can this display be used in direct sunlight?
A: Yes, its high brightness and anti-glare coating make it perfectly sunlight-readable.
Q2: Does it support 24/7 continuous operation?
A: Absolutely, it is designed for industrial-grade 24/7 usage.
Q3: Can it be customized for my project?
A: Yes, size, brightness, interface, and enclosure can be tailored.
Model: RS1504HB-43
Lead Time: 2–4 weeks
Warranty: 2 years standard, extended warranty available
MOQ: 1 unit for sample orders
📧 Contact Sales: ai@risinglcd.com
📞 Phone: +86-15889469208
🏢 Address: [10 Floor, Building H, Chuangxinyungu Industrial Park, Lisonglang village, Gongming Street, Guangming District, Shenzhen, China]
