21.5 inch outdoor digital signage dedicated open frame LCD screen, sunlight readable LCD TFT module, industrial TFT module, stretch LCD TFT module, high brightness monitor, suitable for vending machines, outdoor digital signage, outdoor advertising, bus stop information display, touchable display, risinglcd focus on outdoor LCD screen, sunlight readable, waterproof, terrace application, etc.

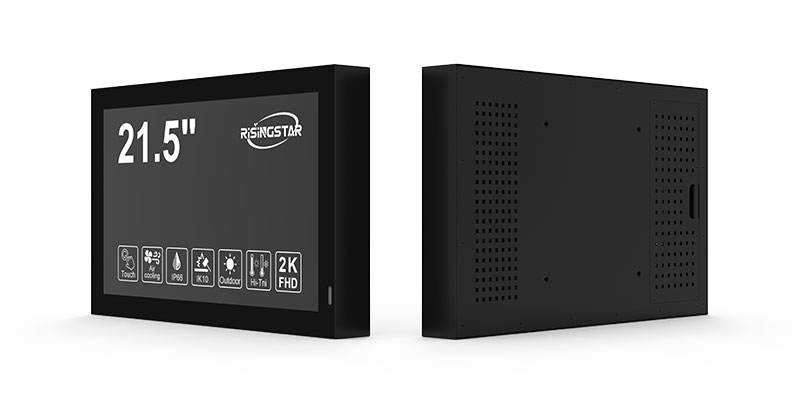

RisingStar 21.5 inch outdoor digital signage display image
21.5-inch Sunlight Readable LCD Module - Technical Parameters
Parameter | Specification |
Brand | risinglcd |
Model name | rs215ent-n10 |
Screen size | 21.5" |
Screen type | LCD module, a-Si TFT-LCD |
Resolution | 1920 (RGB) × 1080 |
Pixel configuration | RGB vertical bar |
Display size (H × V) | 476.064 × 267.786 mm |
Appearance dimension (H × V × D) | 501.1 × 292.2 × 16.12 mm |
Visual size (H × V) | 480.7 × 271.8 mm |
Surface treatment | Foggy surface, hard coating (3H) |
Brightness | 1000 cd/m² |
Contrast | 1000:1 |
Best angle | Full view |
Optical mode | AHVA, normally black display, transmissive |
Viewing angle | 89 / 89 / 89 / 89 |
Response speed | 25 ms |
Number of colors | 16.7M, 72% NTSC |
Backlight type | 4 strings × 2CN WLED, 50K hours, no drive |
Screen weight | 2.10 kgs |
Applicable to | Outdoor highlight of digital signs |
Refresh frequency | 60Hz |
Signal system | LVDS (2 CH, 8-bit), terminal, 30 pins |
Supply voltage | 5.0V (typ.) |
Maximum rated storage temperature | -30 ~ 80 °C |
Operating temperature | -20 ~ 70 °C |
Contact | risingstarlcd11@Foxmail.com |

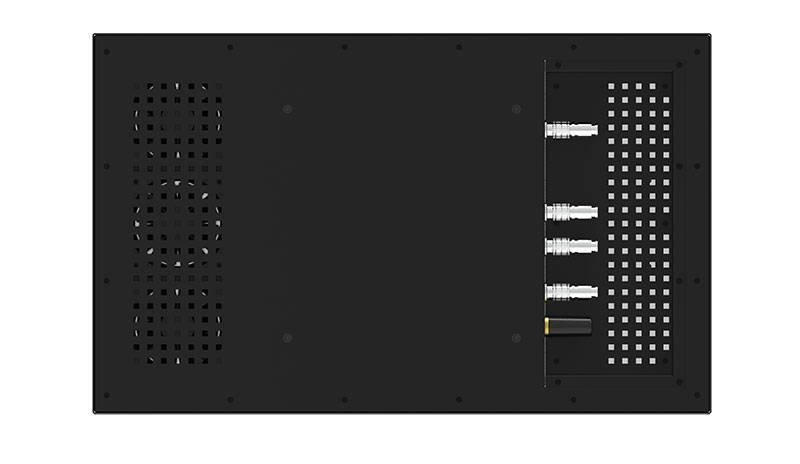

RisingStar 21.5-inch outdoor digital signage display back
About Us
RisingStar – Professional Manufacturer of High-Brightness Outdoor Displays
With over XX years of R&D and manufacturing experience, RisingStar holds international certifications such as CE, RoHS, and UL. Every batch of products undergoes high-temperature cycling tests (-20 °C to 60 °C, ≥8 hours) and 24–48 hours of continuous aging tests to ensure stability and reliability. Our products are widely used in outdoor digital signage, bus stop information boards, vending machine interfaces, and more, and are exported to Europe, the United States, Southeast Asia, and the Middle East.
Technical Advantages
| Feature | Benefit |
|---|---|
| 1000 cd/m² High Brightness | Maintains clear visibility even under direct sunlight, greatly enhancing outdoor readability. |
| AHVA Optical Technology | Provides ultra-wide viewing angles and high contrast for vivid and accurate image reproduction. |
| 3H Hard-Coated Anti-Glare Surface | Improves scratch resistance and minimizes reflections for harsh outdoor environments. |
| Wide Temperature Design | Operates reliably between -20 °C and 70 °C, adapting to extreme weather and day-night temperature shifts. |
| Driverless Backlight Design | Reduces system complexity and potential points of failure, simplifying long-term maintenance. |
RisingStar 21.5-inch outdoor digital signage display thickness
Real Project Case
Outdoor Advertising Machine Deployment
“We installed the 21.5″ high-brightness display at a shopping mall for outdoor advertising. Even under strong sunlight and high temperatures, the image stayed crystal clear and eye-catching, significantly improving the effectiveness of our advertising content.”
— Client Feedback
Downloads & Resources
Product Specification Sheet (PDF)
Installation & User Guide
Certification Reports & Environmental Test Records
Contact & Support
For more details or to request a quote:
Email: risingstarlcd11@Foxmail.com
Phone / WhatsApp: +86 158 8946 9208
We guarantee a 24–48 hour response time along with long-term technical support and warranty service.
