    46.6 inch Ultra wide Bar LCD display
    • 46.6 inch Ultra wide Bar LCD display
    • 46.6 inch Ultra wide Bar LCD display
    • 46.6 inch Ultra wide Bar LCD display

    46.6 inch Ultra wide Bar LCD display

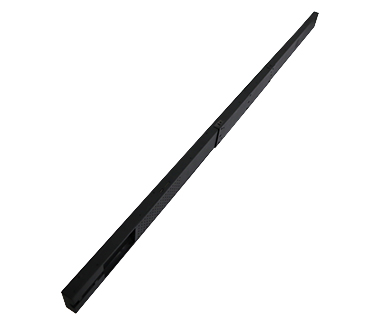

    RS466LNX01A01-BK is a ultra wide Bar LCD panel, 46.6 inch, HCK original LCD panel, with Risingstar own designed backlight, brightness can achieve 400 nits,  Operating Temperature from 0 ~40 °C , perfect for indoor device,Shelf screen.



    Model name:


    Screen size:


    Screen type:

    Indoor LCD Monitor



    Brightness (cd/m²):

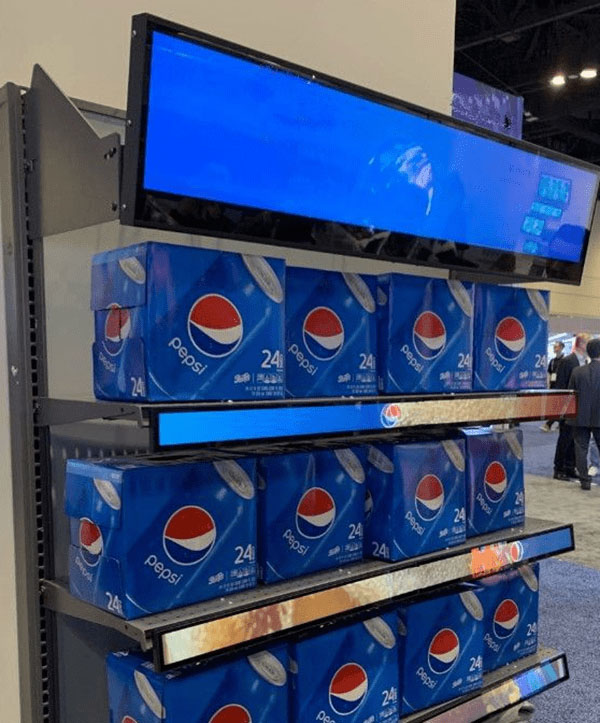

    One of the features of the product is its trapezoidal edge design, which allows it to perfectly integrate with the edge of the shelf. In this way, it can be easily installed on various shelves and display shelves, which can not only provide space for product display, but also attract consumers' attention and play an important role in the shopping experience.

    This stretch-shaped bar is designed to be ultra-thin, lightweight and easy to carry and install. It also has a high-strength metal case that better protects the screen and avoids damage. Therefore, it is very suitable for use in shopping malls, supermarkets, hotels, exhibitions and other places.

    This product not only has excellent display effect, but also has a variety of video format support functions. It can play various formats of video files, such as MP4, AVI, WMV, etc., to meet the needs of different enterprises.


    In addition, the product also has a powerful media playback function, which can be updated and changed by USB or SD card. This makes it easier and more efficient to update advertising, product information, etc.

    Finally, it is worth mentioning that the product uses a low energy consumption design, which has the advantages of energy saving and environmental protection. Its efficient energy management system reduces energy consumption and extends product life.

    In short, the 46.6-inch trapezoidal edge stretch bar LCD is an excellent product, not only with excellent display and reliable performance, but also with multiple video format support and powerful media playback capabilities. Its low-energy design and convenient way to update content make it an ideal choice for shopping malls, supermarkets, hotels, exhibitions and other places.

    Hot Tags: 46.6 inch Ultra wide Bar LCD display, manufacturers, suppliers, factory, Customized
    Screen Diagonal46.6 inch
    Brand Risingstar
    Model NoRS466LNX01A01-BK
    Active Area1183.68(H) x 36.99(V) mm
    Physical Size1202.4 x 52.7 x 20.3 mm
    Pixel ArrangementR.G.B. Vertical Stripe
    Display Modea-Si TFT-LCD, LCM
    Contrast Ratio :3000:1
    White Luminance ( Center )400 cd/m2 (Typ.)  [cd/m2 ]
    Optical Response Time9.5 (Typ.)(G to G) ms
    Input PowerDC12V
    Frame Rate60Hz
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)
    Weight [kg]TBD
    Interface TypeV-by-One 8 lane , 端子 , 51 pins
    Support Color1.07B , 72% NTSC
    Surface TreatmentAntiglare, Hard coating (3H)
    RoHS ComplianceRoHS Compliance
    Working Temperature Range0 ~40 °C
    Storage (Non-Operating)-20 ~ 60 °C
