21.5 inch 1000 nits all in one LCD display with HDMI

21.5 inch 1000 nits all in one LCD display with HDMI

BrandRisingStar
Model nameRS2150ENT-N10
Screen size21.5"
Screen typeOutdoor LCD Monitor
Resolution1920(RGB)×1080
Brightness (cd/m²)2000
Overview Specifications Customized Services Support & Shipping

RS215ENT-N10 all in one LCD display is a unique and powerful communications medium that provides unparalleled opportunities to caputure the qudience’s attention, build brands, improve customer experience and drive sales.

RS215ENT-N10 all in one LCD display with HDMI boasts a 1920*1080 high resolution, Diagonal size is 21.5 inch, 1000nit high brightness, 33W LCD panel, which we can readily provide with either projected touch functionality, or if you would rather opt for a non touch display, we also can covered it with you.

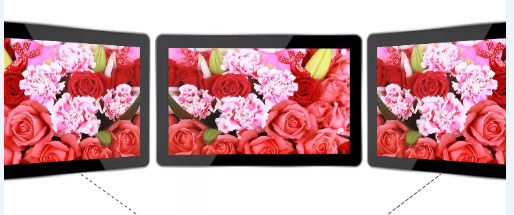

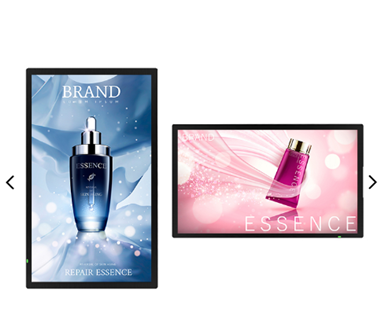

With a panel wide viewing angle of this generous display, our all in one 21.5 inch LCD display with HDMI can fully operate in landscape and portrait orientations. And the HD pictures quality ensure great colour and rich details in all possible broadcasting surroundings, ranging from retail stores, to restaurants and office buildings.

 21.5 inch 1000 nits all in one LCD display with HDMI

The all in one LCD display with HDMI is with 1000 nits brightness, it can captive viewers with superior messaging carity it make your contents vividly stand out in any commercial location.

Applications:

Kiosk information system

Gaming and amusement

Light industrial shop-floor automation

RS2150ENT-N10 21.5 inch high brightness display 21.5 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Item NoRS2150ENT-N10
Panel BrandRisingStar
Size21.5 inch
Panel Typea-Si TFT-LCD,   LCM
Resolution: 1920(RGB)×1080   [FHD]    102PPI
Pixel FormatRGB Horizontal Stripe
Display Area476.64 × 268.11 mm   (H×V)
Outline   Size 479.84 × 271.31 mm   (H×V)
Bezel Area---
Surface   Treatment Antiglare (Haze 25%),
Brightness1000cd/m² RisingLCD   customized
Constrast   Ratio.3000:1
Aspect   Ratio: 16:9
View Angle89/89/89/89   (Typ.)(CR≥10)
Display ModelVA, Normally Black,   Transmissive
Response Time13/5 (Typ.)(Tr/Td) ms
Display Color16.7B 74% NTSC
Backlight WLED , 50K hours , W/O LED Driver
Touch   Screen Optiona
Interface TypeLVDS (2 ch, 8-bit) ,   30 pins Connector
Panel   Weight 780 g   (Typ./Max.)
Frame Rate60Hz
Operation   system: Android 5.1
Memory adn   storage: 2GB+8G
Network portsLAN*1, WIFI *1
Storage   extension: Micro SD card
other ports:USB2.0*2, SIM Card*1,   AC switch, DVI, VGA, HDMI
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.

Sampling
10-15 Working Days
Standard
SUS316L / IP69K
Certifications
CE / FCC / UKCA
Response
8H Expert Team
verified

01 / Warranty Policy

Industry-leading protection for your investment.

Complete System

3 Years Full Warranty for the complete machine assembly.

LCD Module

1 Year Warranty for the original LCD assembly.

Extended Support

Optional extended warranty programs (up to 5 years) available upon request.

support_agent

02 / Field Support

Expert guidance throughout the product lifecycle.

Remote Assistance

24/7 technical support and configuration guidance via video link or remote access.

On-site Services

Local on-site installation and maintenance available for large-scale deployments.

schedule

03 / Production Timeline

Scalable manufacturing for urgent project schedules.

Sample Prototyping

Verification and custom prototype delivery within 10 Working Days.

Bulk Production

Standard bulk order fulfillment in 15 - 25 Working Days.

public

04 / Global Distribution

Reliable logistics via air, sea, or rail.

Express & Air

Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).

Ocean & Rail

Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
