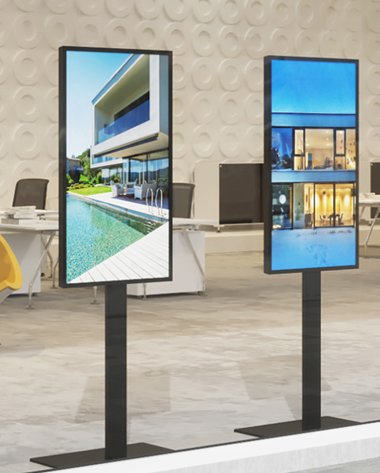

QLED 4K 32inch outside floor standing window facing display
| Brand | AUO |
| Model name | RS320ENT-N25 |
| Screen size | 25" |
| Screen type | Outdoor LCD |
| Resolution | 3840(RGB)×2160 |
| Brightness (cd/m²) | 1000 |

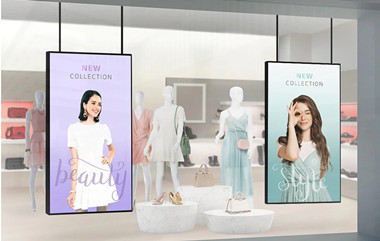

Outside floor standing window facing display really had their start with the billboard advertising industry, engaging the content that you want to prompt in a storefront window that have much power to engage the customers and ultimately lead them into your store for shopping.RisingLCD RS320ENT-N25 not only deliver an image with flawless clarity, but also designed to keep its superior picture quality even when it exposed to the direct sunlight.

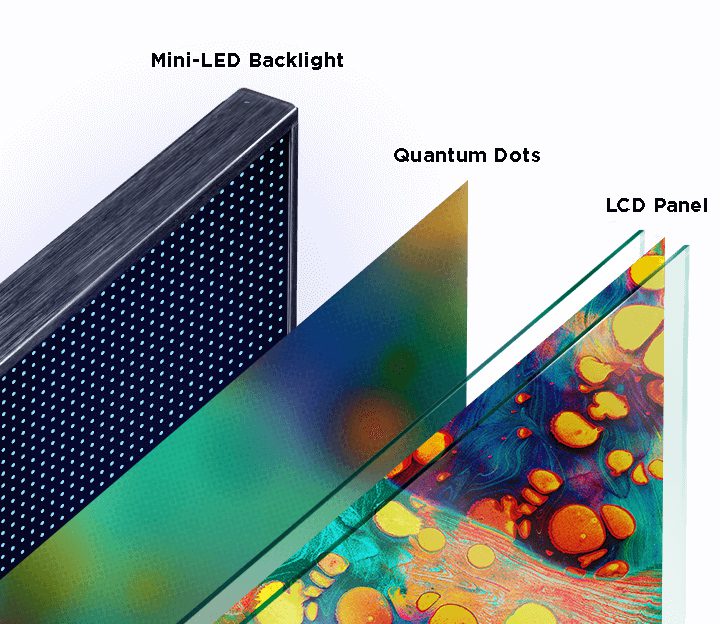

'RS320ENT-N25 is a 32 inch QLED floor standing window facing display that uses the quantum dot technology to provide high brightness, that will affect the image and pictures color quality, QLED display has a quantum dot layer between the LCD screen and its LED backlight, when light hits these microscopic quantum dots, it produces brighter colors that are more heavily saturated than the traditional LED montior, the quantum dot layer can change the LED spectrum to low the blue color, and balance the R/G/B peak which can evenly stimulate people’s cone celles and effectively reduce visual fatigue. they are widely applying for the advertising industry, LCD monitor, industrial equipment, TV monitor, outdoor advertising screen, game monitor.

QLED helps to extend the colour spectrum with solutions for implementing black such as direct full array. the viewing experience of the QLED is more realistic than the OLED monitors. With this 4K QLED display, the customer can experience superior pictures quality and optimized visibility for outside environment, perfect for meeting the demands of the business.

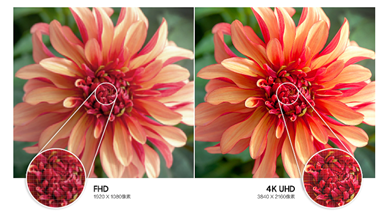

With 2500nit customized high brightness, you do not worry the brightness even the suns rays are beating down on your outdoor display, the panels are well equipped to make your content vividly stand out in any commercial location. And the The 4K Ultra HD picture quality ensures perfect colour and rich images in all possible surroundings, ranging from stores, to restaurants and office buildings.
OEM and ODM are welcomed!
RisingLCD is a professional highlight LCD manufacturer from China, specializes in manufacturing and distributing all types of LCD module, LCD monitors, outdoor and indoor digital signage and goods are exported all of the world, could customize the products based on the customer needs with a competitive price, RisingLCD is your best choice!
| Item No: | RS320ENT-N25 |
| Panel Brand | AUO display |
| Panel Item | M320QAN01.0 CELL |
| Size | 32 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution: | 3840*2160 UHD 163PPI |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 708.48*398.52(H*V)mm |
| Outline Size | 720.68*412.92*1.36(H*V*D)mm |
| Bezel Area | // |
| Surface Treatment | Antiglare |
| Brightness | 700cd/m²-2500cd/m² RisingLCD customized |
| Constrast Ratio. | 4000:1 |
| View Angle | 89/89/89/89(Min) |
| Display Model | AHVA Normally Black, transmissive Display |
| Best View on | Symmetry |
| Response Time | 12 (Typ.)(G+G) ms |
| Display Color | 1.07B, 100% , Srgb- |
| Backlight | 51 pins V-by-One 8 lane, |
| Touch Screen | Without |
| Panel Weight | 920g (typ.) |
| Frame Rate | 60Hz |
| Signal Interface | Edp (8 Lanes), 41pins connector |
| Input Voltage | 12V(Typ.) |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Current State: | In Production |
01 / Chassis & Materials
Structural integrity for extreme environments.
Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.
Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.
Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.
Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.
Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.
Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.
03 / Interface & I/O
Industrial signal and power regulation.
Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.
Wide voltage DC 9V - 36V input with integrated surge and polarity protection.
Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.
04 / Embedded & Data
Software architecture and data sync.
Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.
High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
01 / Warranty Policy
Industry-leading protection for your investment.
3 Years Full Warranty for the complete machine assembly.
1 Year Warranty for the original LCD assembly.
Optional extended warranty programs (up to 5 years) available upon request.
02 / Field Support
Expert guidance throughout the product lifecycle.
24/7 technical support and configuration guidance via video link or remote access.
Local on-site installation and maintenance available for large-scale deployments.
03 / Production Timeline
Scalable manufacturing for urgent project schedules.
Verification and custom prototype delivery within 10 Working Days.
Standard bulk order fulfillment in 15 - 25 Working Days.
04 / Global Distribution
Reliable logistics via air, sea, or rail.
Door-to-door global delivery in 5 - 7 Working Days (DHL, FedEx, UPS).
Cost-optimized bulk shipping in 30 - 45 Days for global major ports.
