RisingLCD 55 inch high brightness TFT LCD panel adopts LG original+ grade TFT screen and with RisingLCD customized led backlight which increase the brightness to 4500nits, it is designed to be installed in cabinets or shop windows, bus station for outdoor applications.
RS490DEP-GD45 is a Wide Temperature, sunlight readable screen，1920*1080, 4500 nits high brightness, TFT LCD panel, WLED Backlight，Life ≥ 50K hours，With LED Driver，with LVDS interface.
49 inch sunlight readable LCD Main features:
High brightness: 4500nits,
Screen Type: LCM a-Si TFT-LCD
Display size: 55 inch (all sizes optional from 21.5 inch to 86 inch)
Wide Viewing Angle (H x V) 178 x 178
Web Monitor control, Android or Window system is optional
Auto brightness control
With Android system, and built-in Wifi

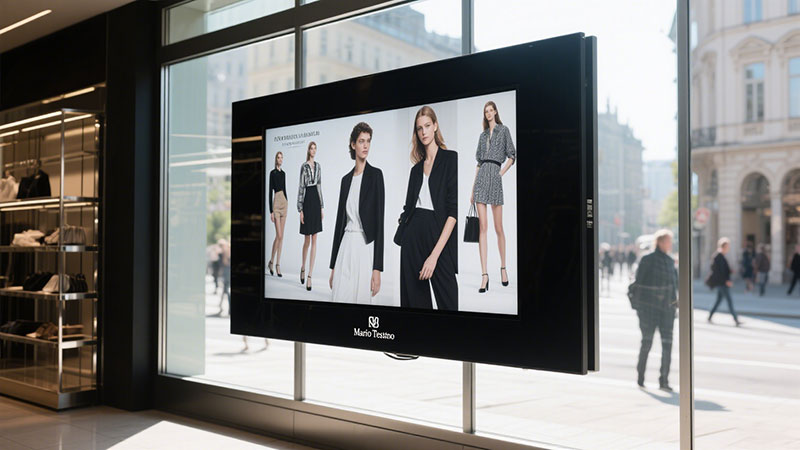

Window facing display
Blackening defect free* – IPS LCD panels can withstand temperatures up to 110°C (230°F)!

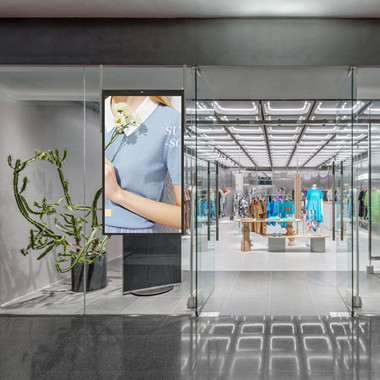

Application: Advertising publish, retail store, shopping mall
All, bus station.
Low power consumption
Full HD 1080p resolution – resolution of 1920 x 1080 full HD provides a super sharp image for easy-to-read text and incredible detail
Automatic Brightness Control – onboard light sensor measures the ambient light in the area and automatically adjusts the image accordingly
|Screen Diagonal||49 inch|
|Active Area||1073.78(W)×604(H) mm|
|Pixels||1280(RGB)×1024, SXGA, 86PPI|

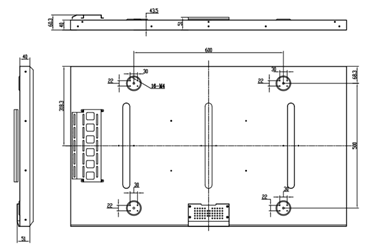

|Physical Size||1106.4(W)×641.6(H)×60.3(D) mm|
|Pixel Arrangement||R.G.B. Vertical Stripe|
|Display Mode||a-Si TFT-LCD, LCM|
|White Luminance ( Center )||4500 cd/m2 (Typ.) [cd/m2 ]|
|Contrast Ratio||1300:1 (Typ.)|
|Optical Response Time||8 (Typ.)(G to G) ms|
|Nominal Input Voltage||12V (Typ.)|
|Viewing Angle||85/85/80/80 (Typ.)(CR≥10)|
|Interface Type||LVDS (2 ch, 8-bit) , 30 pins Connector|
|Support Color||16.7M, 73% NTSC|
|Surface Treatment||Hard coating (2H),|
|RoHS Compliance||RoHS Compliance|
|Temperature Range||0 ~50 °C|
|Storage (Non-Operating)||-20 ~ 65 °C|
Ask a quote for the latest price and one of our team members will respond as soon as possible.
