Outdoor Waterproof Displays
Engineered for Extreme Environments

IP66 Certified Outdoor Waterproof Displays. All-Weather Engineering. Sunlight Readable Brightness Up to 5000 Nits. Flexible Warranty Options.

  • ✓IP66 Weatherproof — Full dust & high-pressure water protection
  • ✓Sunlight Readable — Up to 5000 nits with optical bonding
  • ✓Industrial grade — -20°C to 70°C operation, 50,000h lifespan
verified ISO 9001 / CE / FCC / RoHS Factory Direct Flexible Warranty
LG Display AUO INNOLUX BOE TIANMA

Authorized Panel Partners

Product Range

Find Your Outdoor Waterproof Display

Outdoor waterproof display models with IP65/IP66 sealing, engineered to stay readable and reliable in rain, dust and direct sun — up to 5,000 nits, with optical bonding and all-weather thermal management.

RS750HNX05A01 75" 2500 Nits Sunlight Readable Waterproof LCD Display
Model nameRS750HNX05A01
Screen size75 inch
Screen typeoutdoor digital signage
Resolution3840(3)×2160, UHD, 16:9
Brightness2500 nits
RS430HNX05A01-BK 43" 3500 Nits Sunlight Readable LCD Display
Model nameRS430HNX05A01-bk
Screen size43"
Screen typeOutdoor waterproof digital signage
Resolution1920(RGB)×1080
Brightness (cd/m²)3500 nits
RS550MNW02A01 55" 2500 Nits FHD LCD Panel
Model nameRS550MNW02A01
Screen size55"
Screen typewaterproof digital signage
Resolution3840 x 2160
Brightness (nits)2500
RS215HNX04D01-BK 21.5" 2500 Nits Sunlight Readable Digital Signage
Model nameRS215HNX04D01-BK
Screen size21.5"
Screen typeoutdoor digital signage
Resolution1920 (RGB) × 1080, FHD, 102 PPI
Brightness2500 nits
RS101ENT-N15 10.1" 1500 Nits Sunlight Readable LCD Display
ModelRS101ENT-N15
Display Size10.1 inch (16:9 aspect ratio)
Resolution1280 × 720 pixels (WXGA)
Panel TechnologyIPS (In-Plane Switching), normally black, transmissive
Active Area224.64 × 126.36 mm
Pixel Density (PPI)149
Brightness1500 nits (cd/m²), typical
RS550HNX01-A01-BK 55" 2500 Nits Sunlight Readable LCD Display
Model nameRS550HNX01-A01-BK
Screen size55"
Resolution1920 × 1080
Brightness (cd/m²)2500 cd/m²
Contrast1000:1
Operating temperature-20 ~ 70 °C
Storage temperature-30 ~ 80 °C
RS320HNX02D05 32" 3000 Nits Sunlight Readable Digital Signage
Model nameRS320HNX02D05
Screen size32"
Screen typeOutdoot digital display
Resolution1920(RGB)×1080 /4K
Brightness1000 to 5000nits
Outdoor waterproof display showing bus departure information at a transit stop in heavy rain

What Is an Outdoor Waterproof Display?

An outdoor waterproof display is an industrial-grade LCD unit built with a sealed enclosure that blocks rain, dust, humidity and salt spray, so the panel keeps working where commercial screens fail. Unlike a consumer TV in an outer cabinet, it combines IP65 or IP66 ingress protection, anti-corrosion coatings and condensation control with wide-temperature electronics rated from -20°C to 70°C.

Choosing the right unit means matching brightness, sealing and thermal design to the site: 2,500-5,000 nits for direct sun, NEMA 4X stainless steel for coastal or fueling stations, and optical bonding for readability through glare and rain.

Engineered for Extreme Outdoor Environments.

Standard screens fail within weeks outdoors. Our outdoor waterproof displays integrate 5 core technologies — from large outdoor display screens to outdoor digital menu boards — ensuring 5+ years of reliable, 24/7 operation in any condition.

IP65/IP66 Waterproof Ingress

Certified IP66 Waterproof Protection

Technical Solution

100% dust-tight and water-resistant enclosures for rainstorms and coastal salt spray.

IK10 Vandal-Resistant Design

IK10 Vandal-Proof Tempered Glass

Technical Solution

IK10-rated tempered front glass with a ruggedized metal chassis to absorb heavy impacts.

Smart Auto-Brightness

Intelligent Auto-Brightness Control

Technical Solution

Overpowers noon sunlight & auto-dims at night for maximum visibility.

Advanced Thermal Control

Professional Grade Thermal Management

Technical Solution

Flawless operation from -20°C to 70°C with intelligent heat dissipation.

Zero-Gap Optical Bonding

Full-Lamination Optical Bonding

Technical Solution

Reduces light reflection by 80% and prevents moisture condensation.

Deployed Across Industries Worldwide.

From transit hubs in freezing climates to retail windows in tropical heat, our outdoor displays perform where standard technology fails.

Transportation & PIDS

High-Reliability PIDS for Transit

Built for 24/7 transit operations. Our stretch bar displays feature sunlight-readable panels and IP66-rated weather protection, ensuring vital passenger information remains crystal clear on open platforms and terminals regardless of environmental conditions. See our passenger information displays for transit.

EV Charging Stations

Outdoor EV Charging Displays

Designed for seamless user interaction. Featuring high-brightness output and glove-friendly PCAP touch, our displays maintain perfect responsiveness and visibility even under direct sunlight and heavy rain, ensuring optimal uptime for your charging network. Explore EV charging station displays.

Gas Station Displays

Fueling Station Signage

Engineered for extreme heat and exposure. Our UV-resistant and tempered glass construction prevents yellowing and fogging. Combined with Remote CMS integration, it ensures your pricing and promotional content remains sharp and synchronized in high-heat outdoor environments. Browse fueling station outdoor display models.

Retail Window Displays

High-Brightness Retail Windows

Command attention through storefront glass. With ultra-high brightness (up to 5000 nits) and advanced thermal management, these displays operate continuously in windows without overheating, maintaining vivid image quality even under direct solar loading. See window facing displays.

Industrial HMI

Rugged Industrial HMI Solutions

Built for harsh manufacturing environments. Featuring IK10-rated vandal-proof glass and ruggedized enclosures, our HMI solutions deliver stable, reliable performance in dust-heavy, high-vibration, and high-temperature factory zones. View industrial high brightness panels.

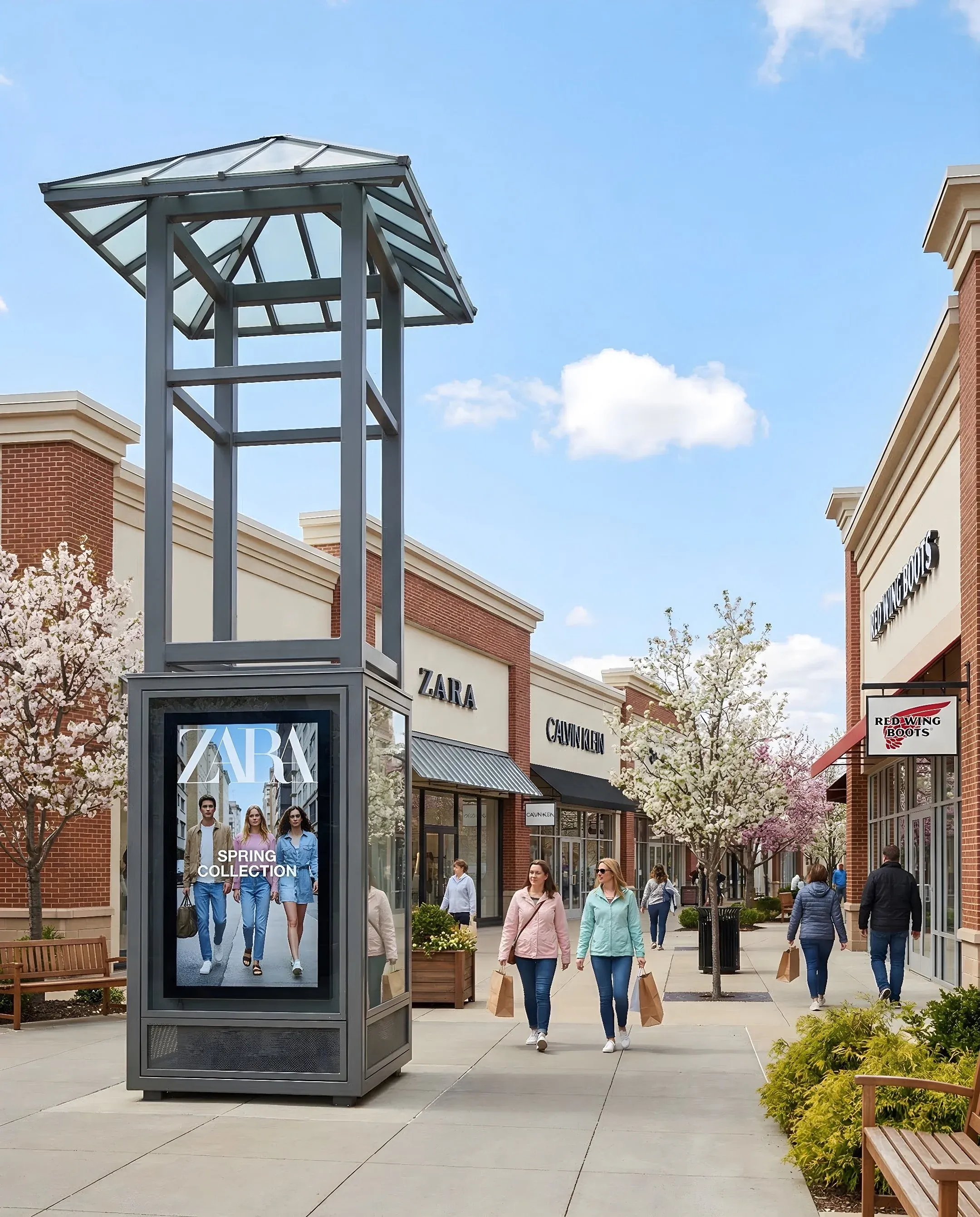

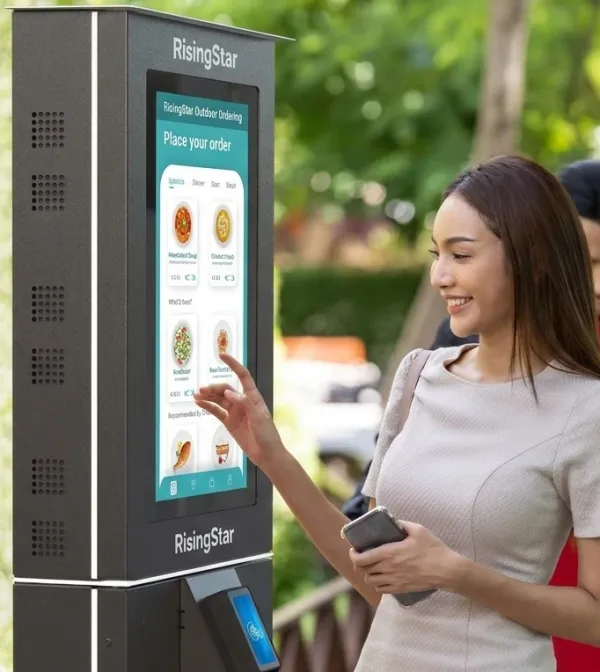

Smart City & Public Info

Smart City Infrastructure

Engineered for public space resilience. Our weatherproof displays feature intelligent auto-brightness control and anti-graffiti coatings, providing efficient, 24/7 public information services that withstand the rigors of urban life. Explore open frame monitors for smart city kiosks.

Outdoor Waterproof Display Benchmark Specs

Industrial-grade specifications for mission-critical outdoor waterproof display, digital signage and commercial outdoor TV applications.

brightness_high Luminance

1,000 to 5,000 nits

Auto-dimming with ambient sensor

schedule Lifespan

Up to 50,000 Hours

Industrial-grade WLED backlight

wb_sunny Solar Resilience

Anti-Discoloration

Prevents yellowing & blackening

touch_app Touch System

PCAP / IR Touch

Glove & rain supported

check_circle Quality Control

100% Inspected

72-hour burn-in testing certified

thermostat Operating Temp

-20°C to 70°C

Industrial-grade stability

water_lock Protection

IP65 / IP66

NEMA 4X stainless steel optional — see IP65 and IP66 rated display models

visibility Viewing Angle

178°

Full viewing angle IPS/ADS panels

integration_instructions Interfaces

HDMI / VGA / USB-c

10-36V DC wide voltage input

Frequently Asked Questions

Everything you need to know about deploying an outdoor waterproof display in your project.

1,000 nits is the baseline for overcast or shaded outdoor areas. For full direct sunlight (e.g. gas station canopy at 2 PM), 1,500-2,500 nits is recommended, with 3,500+ nits for premium all-day readability in extreme conditions.

IP65 is dust-tight and resistant to low-pressure water jets, suitable for most covered outdoor installations. IP66 is dust-tight and resistant to powerful high-pressure water jets, required for car washes, coastal areas, and heavy rain environments. Browse IP65 and IP66 rated display models for both installation types.

Choose displays with solar-resilient anti-discoloration technology and industrial-grade LCD panels rated for -20°C to 70°C operating range. Optical bonding also prevents internal fogging that accelerates degradation.

Yes, PCAP (Projected Capacitive) touchscreens with optical bonding can be tuned to ignore rain droplets and support gloved hand operation, making them ideal for EV charging stations, kiosks, and industrial outdoor use.

Industrial-grade outdoor displays have MTBF (Mean Time Between Failures) of up to 50,000 hours. At 24/7 operation, this equals ~5.7 years of continuous use, with many units lasting 8-10 years in real-world conditions.

Yes, but with important distinctions. A commercial outdoor TV is purpose-built for 24/7 outdoor operation with IP65/IP66 weatherproofing, 2,500+ nits brightness, and industrial-grade thermal management — unlike consumer TVs that overheat, fog up, and fail within weeks outdoors. Our outdoor display screens are engineered as direct commercial outdoor TV replacements with far superior durability and sunlight readability.

An all weather display is specifically engineered to operate continuously in rain, snow, extreme heat, and freezing temperatures. Key differences include: IP65/IP66 sealed enclosures for waterproof protection, intelligent thermal management systems for -20°C to 70°C operation, anti-glare optical bonding for sunlight readability, and IK10-rated vandal-resistant front glass. Standard indoor signage lacks all of these critical protections.

Absolutely. Our weatherproof digital signage is rated for operating temperatures as low as -20°C (-4°F), with optional integrated heaters for deployments in sub-arctic conditions down to -40°C. The sealed IP66 enclosure prevents ice ingress, and our Hi-Tni LCD panels maintain fast response times even in freezing weather — critical for transit stations, ski resorts, and northern climate outdoor advertising.

Yes, we manufacture a full range of outdoor kiosk displays and touchscreens from 10.1" to 65". Our outdoor kiosk touchscreen solutions feature PCAP (Projected Capacitive) touch panels with glove and wet-hand support, IP65/IP66 waterproof enclosures, and sunlight-readable brightness up to 3,000 nits. They are widely deployed in EV charging stations, self-service ordering kiosks, wayfinding systems, and public information terminals.

Need the Right Outdoor Waterproof Display?

With hundreds of display configurations across 7" to 98" sizes and brightness up to 5,000 nits, our technical experts will help you find the perfect model for your application.

Factory-direct pricing • Flexible warranty options • 24/7 technical support • Samples within 10 working days
