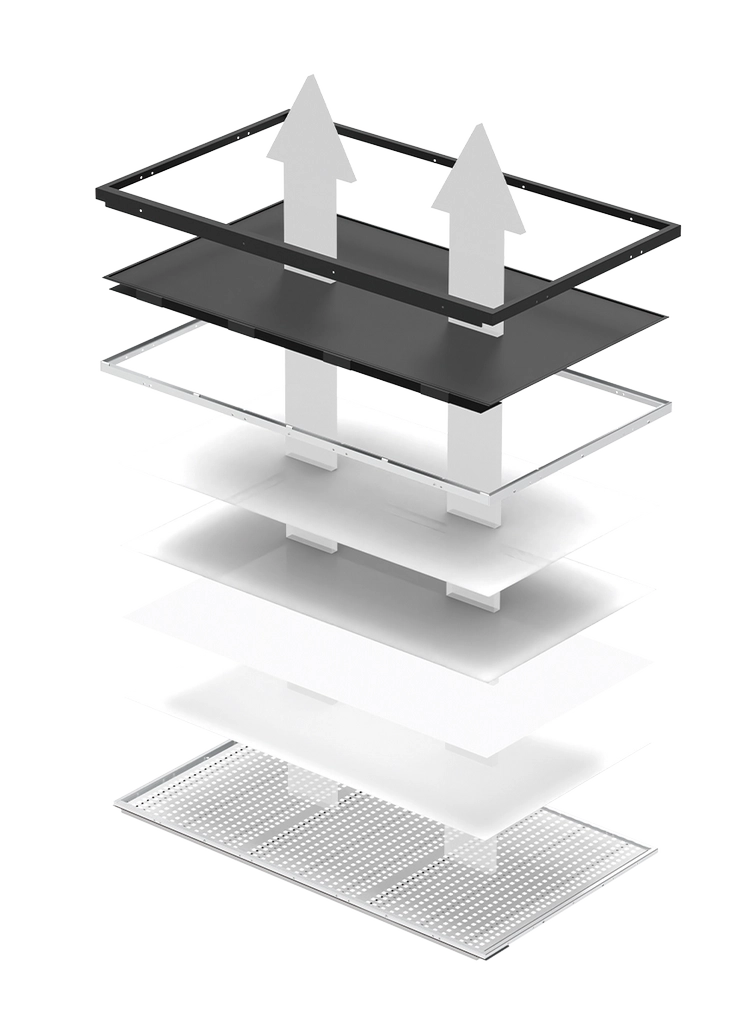

Exploded cross-section of an optically bonded LCD stack: cover glass, OCR/OCA layer and LCD cell with the air gap removed Full Lamination
500–5,000
Nits · Luminance range
110°C
Hi-TNI clearing point
80%
Glare reduction
-20→70°C
Enclosure operating range
Trusted Panel Partners
LG Display AUO BOE Innolux Tianma
ISO 9001 CE FCC RoHS UL
Exploded view showing how an OCR or OCA layer fills the air gap between LCD cell and cover glass
Definition

What Is a Sunlight Readable Display?

A sunlight-readable panel is an LCD engineered to stay legible under intense ambient light — up to 100,000 lux of direct sunlight, roughly 300× the illuminance of a typical office. Brightness alone is only the first requirement; sustaining legibility outdoors also demands optical, thermal, and environmental engineering.

Three non-negotiable criteria
  1. 01
    Luminance ≥ 1,000 nits for legibility, 2,500–5,000 nits for full colour

    Below 1,000 nits the contrast ratio collapses under direct solar load and text becomes unreadable.

  2. 02

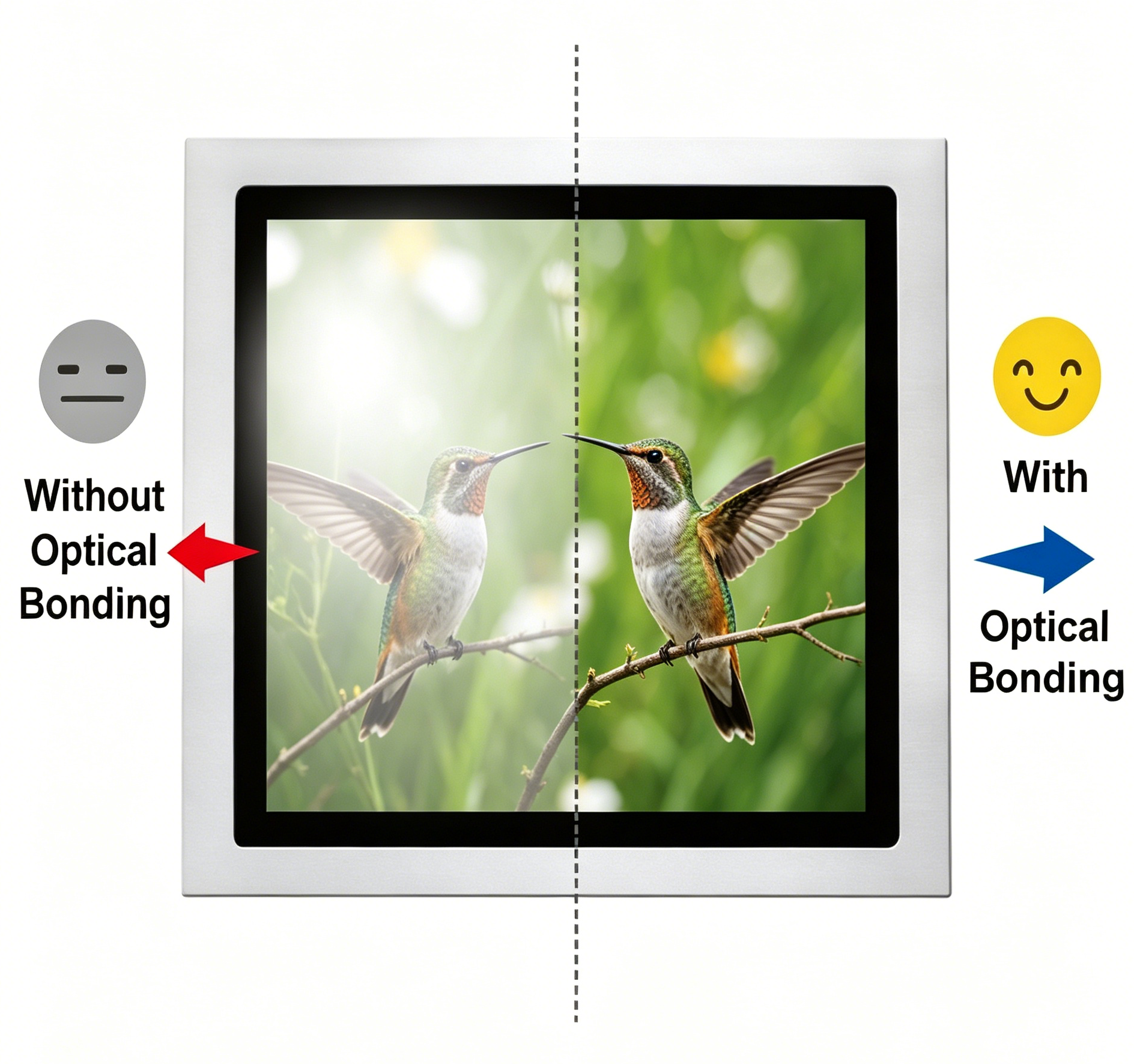

    Full-lamination optical bonding

    An OCR or OCA fill layer removes the air gap, cutting internal reflection by up to 80% and eliminating internal condensation.

  3. 03
    Hi-TNI liquid crystal with a clearing point above 90°C

    Conventional TN and IPS cells transition to an isotropic state near 70–80°C and blacken permanently inside a sealed enclosure.

This page covers the engineering behind these criteria. For manufacturer-level specifications, model selection and current availability, see our high brightness display range.

The Problem

Why Sunlight Readable Displays Fail Outdoors

Three physical phenomena conspire to destroy outdoor display readability. Understanding them is the first step to engineering a solution that survives.

01 wb_sunny Failure Mode 01

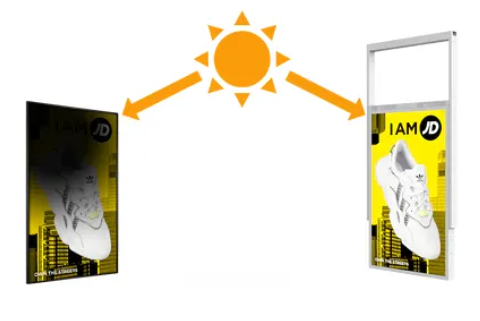

Sunlight Washout

Direct sunlight delivers up to 100,000 lux ambient illuminance — roughly 300 times brighter than a typical office. A standard 300–400 nit indoor display produces a contrast ratio below 3:1 under these conditions, rendering all content invisible. The human eye requires a minimum contrast ratio of approximately 5:1 to discern text and graphics in direct sun.

Root Cause

Insufficient luminance (cd/m²) cannot overcome ambient light reflected from the display surface. Standard backlight architectures typically top out around 500 nits.

How many nits for full sunlight? arrow_forward
02 thermostat Failure Mode 02

Solar-Induced Blackening

When direct infrared and ultraviolet radiation heats the LC layer beyond its clearing point (TNI), liquid crystal molecules transition from an ordered nematic phase to a disordered isotropic phase. The panel turns black, losing all image; prolonged exposure causes permanent damage. Standard TN and IPS panels exhibit clearing points at 70–80°C — a threshold easily exceeded inside a sealed enclosure under direct solar load.

Root Cause

Standard LC compounds lack thermal stability. Internal enclosure temperatures can reach 90–120°C under direct sun, permanently destroying display function without Hi-TNI panels.

Hi-TNI LC chemistry explained arrow_forward
03 water_drop Failure Mode 03

Condensation & Fogging

Air-gapped displays create an internal cavity where moisture accumulates during rapid temperature drops. When the dew point is reached, condensation forms on the inner surface of the cover glass, causing fog, light scattering, and eventual corrosion of PCB traces and ribbon connectors. This failure mode is progressive and often undetectable until optical degradation is severe.

Root Cause

The air gap between LCD cell and cover glass acts as a moisture reservoir. Traditional desiccants are insufficient for sealed enclosures with wide thermal cycling (-20°C to 70°C).

Optical bonding for outdoor panels arrow_forward
Why It Matters

Sunlight Readable Display vs. Standard Outdoor LCD

Not all outdoor displays are created equal. Here's how a purpose-built outdoor-readable panel outperforms standard industrial panels in real-world conditions.

Specification Standard Industrial Display RisingStar Sunlight Readable Display
Peak Luminance 300–500 nits 1,000–5,000 nits
Contrast in Direct Sun (100k lux) < 3:1 — content unreadable > 5:1 — text & graphics legible
Panel Clearing Point (TNI) 70–80°C (isotropic failure risk) 110°C (zero blackening)
Glare Reduction None (air gap present) 80% via optical bonding
Condensation Prevention Desiccant (temporary fix) OCR/OCA bonding (permanent)
Operating Temp (Enclosure) 0°C to 50°C -20°C to 70°C
Auto-Dimming (ALS) Manual or absent Dynamic PWM (50–5,000 nits)
LED Backlight Lifespan ~30,000 hours 50,000+ hours

Every specification above is verified on bonded, Hi-TNI production units. To review current brightness tiers, panel sizes and lead times, see our high brightness LCD manufacturer range.

The Solution

Core Technologies Inside a Sunlight Readable Display

Three proprietary engineering capabilities — each addressing a specific failure mode — combine to deliver displays that perform where others fail.

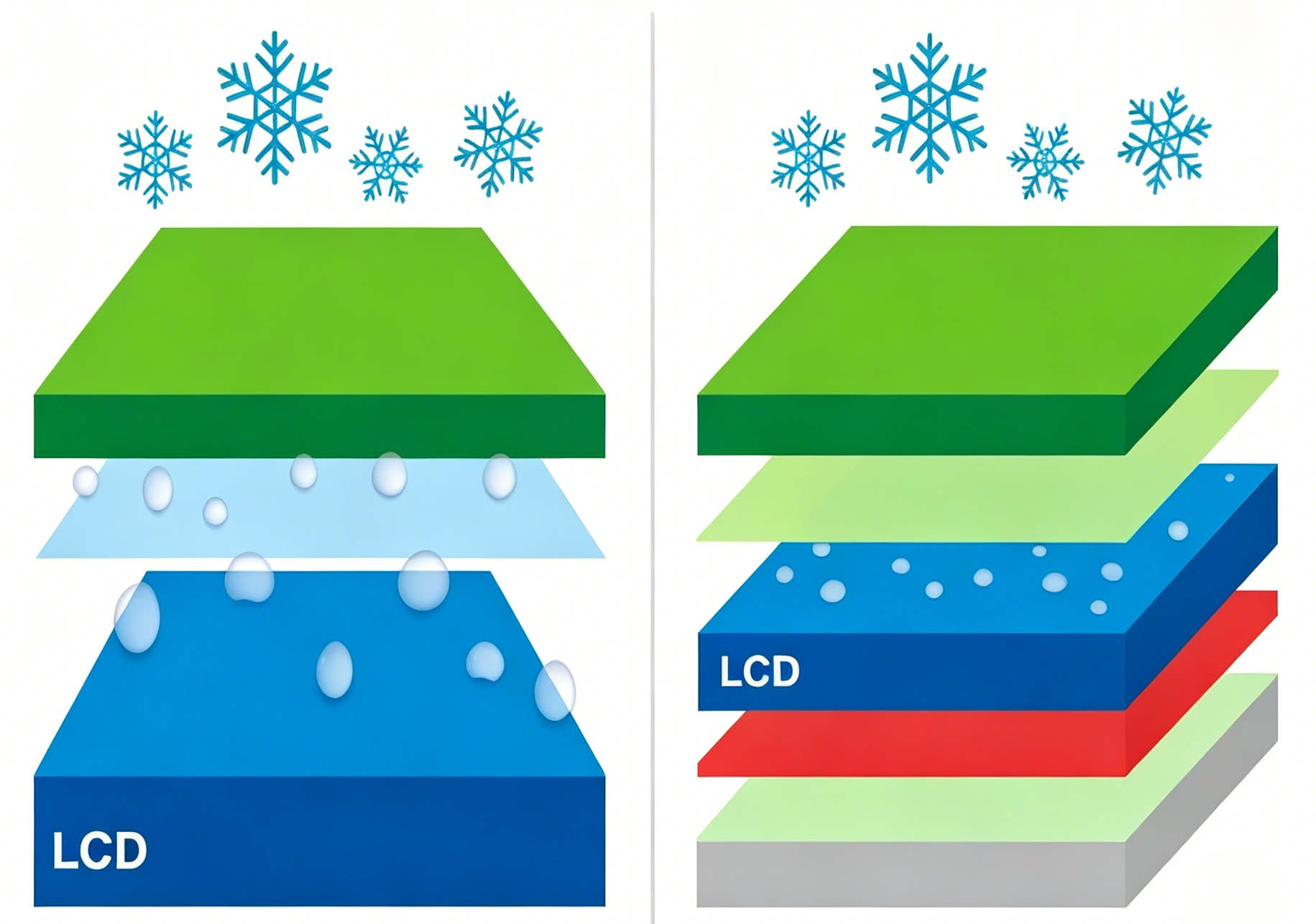

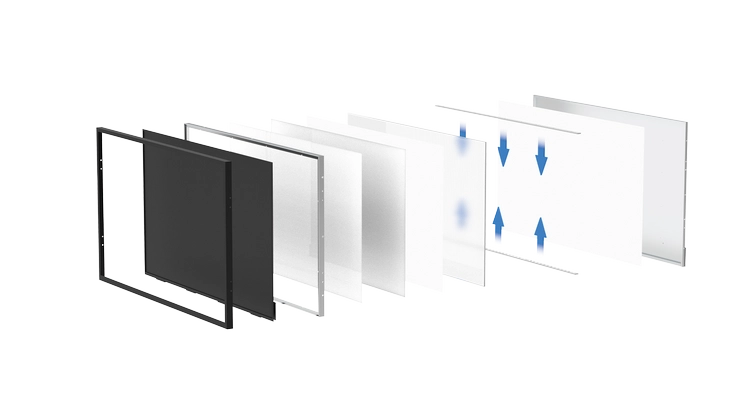

Exploded diagram of the optical bonding process, with the air gap between LCD and cover glass filled by OCR or OCA Optical Properties
Optical Properties Engineering

In-House Optical Bonding

OCR Lamination OCA Film Cleanroom Bonding

Optical bonding laminates an OCR (Optically Clear Resin) or OCA (Optically Clear Adhesive) layer between the LCD cell and cover glass, permanently eliminating the air gap. Performed in our Class 10,000 cleanroom to prevent particulate contamination. Bonded assemblies ship as complete sunlight readable LCD panel modules.

  • 1
    Glare Reduction: 80%

    The air-glass interface causes ~4% reflective loss per surface. Removing two air gaps eliminates up to 8% total internal reflection, improving contrast ratio by up to 80%.

  • 2
    Fog Prevention

    Eliminating the air cavity removes the space where moisture condenses. The OCR/OCA compound is moisture-resistant and chemically inert, providing a permanent barrier against humidity.

  • 3
    Structural Reinforcement

    Bonded assemblies improve IK impact resistance and eliminate air-gap vibration rattle, critical for transit and industrial deployments.

In-house optical bonding process arrow_forward
Thermal Resilience

Hi-TNI Liquid Crystal Panels

110°C Stability Zero Blackening Solar-Grade LC

Standard liquid crystal compounds undergo isotropic phase transition at 70–80°C — well below the internal temperature of a sun-exposed enclosure. Hi-TNI panels use proprietary LC mixtures with elevated clearing points, maintaining molecular alignment up to 110°C. For panel-level ordering, see our industrial high brightness LCD panels.

  • check
    Extended Nematic Range

    Operating range of -20°C to 70°C (enclosure), with Hi-TNI panel clearing point at 110°C — compared to the standard 0°C to 50°C range of conventional IPS/TN panels.

  • check
    No Active Cooling Required

    Eliminates HVAC dependency, reducing system complexity, maintenance cost, and power consumption. Passive aluminum heat sinks suffice for most installations.

  • check
    Recovery After Thermal Cycling

    Unlike standard panels that suffer permanent damage after isotropic failure, Hi-TNI panels recover full optical performance after temperature drops.

Deep-Dive: Anti-Blackening Technology arrow_forward
Hi-TNI liquid crystal panel holding image stability at 110°C with no isotropic blackening
Ambient light sensor and PWM LED backlight driving for automatic brightness control Adaptive Control
Adaptive Luminance Control

Auto-Dimming ALS & LED Driving

Ambient Light Sensor Dynamic PWM Night Anti-Glare

Industrial-grade ambient light sensors (ALS) continuously measure lux levels and dynamically adjust backlight luminance via PWM (Pulse Width Modulation) LED driving. This ensures optimal readability while extending panel lifespan and reducing power consumption.

  • check
    Dynamic Brightness Curve

    Backlight scales from 50 nits (night) to 5,000 nits (peak sun) along a logarithmic curve matching human visual perception. Transition time <200ms.

  • check
    Energy Efficiency & Light Pollution Compliance

    Auto-dimming reduces average power draw by 40–60%. Night dimming complies with municipal light pollution ordinances for street-facing DOOH and transit displays.

  • check
    LED Lifespan Extension

    Reducing average drive current extends LED backlight life from ~30,000 hours to 50,000+ hours, critical for 24/7 mission-critical installations.

How many nits do you actually need? arrow_forward
Production Range

Production Models Built on This Platform

Every configuration described on this page is available as a production model. Choose the size and brightness tier that match your ambient light condition, then confirm the mechanical and interface details with our engineering team.

View All 33 Models arrow_forward
RS550FNW01-A01-LD 55" 2500 Nits UHD LCD Panel RS550FNW01-A01-LD 55" 2500 Nits UHD LCD Panel
RS550FNW01-A01-LD
  • 55"
  • 2500 nits
  • 1300:1
  • -20°C ~ 70°C

Looking for a size outside this range? We manufacture custom dimensions and stretched formats in-house — see our OEM and ODM production capabilities.

Deployment Scenarios

Sunlight Readable Display Applications by Industry

Each vertical imposes unique environmental constraints. Our engineered configurations are specified to meet the specific demands of your deployment scenario.

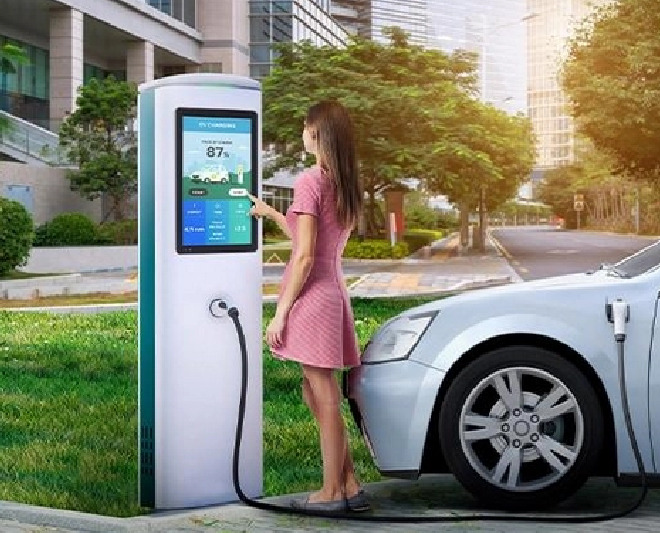

EV charging station display with PCAP touch in an IP65 outdoor enclosure

EV Charging Stations

Optical Bonding PCAP Touch IK10 Glass ALS Auto-Dimming

Engineered for extreme environments, our Hi-TNI panel approach eliminates screen blackening entirely. While the enclosure and PCAP systems operate flawlessly from -20°C to 70°C, the core LCD panel handles direct solar loads up to 110°C.

EV charging station display solution arrow_forward

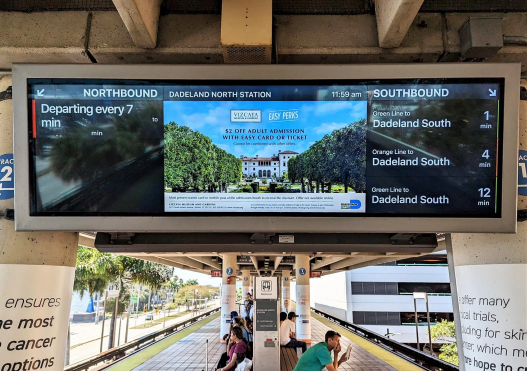

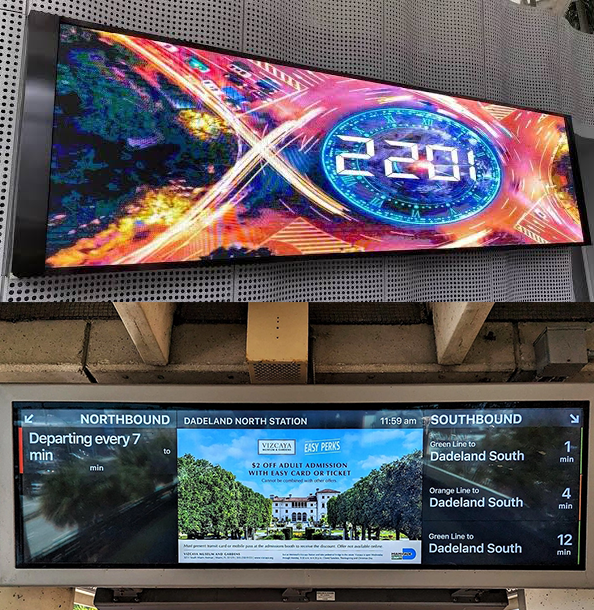

Stretch-bar LCD passenger information display in a transit shelter, IK10 rated

Public Transportation & PIDs

Stretch / Bar LCD IK10 Vandal-Proof Vibration Resistant Hi-TNI Panel

24/7 reliability under continuous vibration, dust, and thermal cycling. Ruggedized metal chassis meets railway (EN 50155) standards. Custom stretch/bar formats (16:3, 32:9) for overhead bus shelter and platform-mounted information boards.

Transit PID display solution arrow_forward

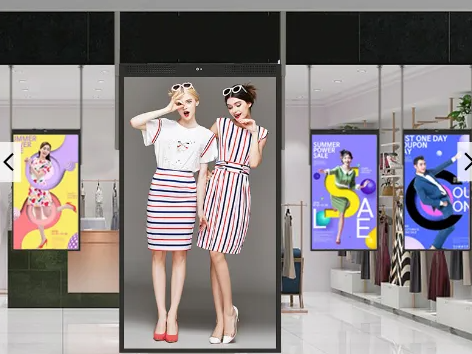

High-brightness LCD in a retail window with QWP polarization for sunglasses readability

Retail Window & DOOH

QWP Polarized 5,000 nits Fanless Cooling AR Coating

Our QWP (Quarter Wave Plate) configuration overcomes double-glazed glass reflections and direct sunlight while keeping the panel visible through polarized sunglasses. Auto-dimming ALS complies with urban light pollution ordinances.

Retail window display solution arrow_forward
Manufacturing Capability

Specifying and Prototyping a Sunlight Readable Display

From rapid prototyping to volume production, our ISO 9001 certified facility delivers precision-manufactured display solutions with industry-leading quality control.

factory

Class 10,000 Cleanroom

In-house optical bonding performed under ISO Class 7 controlled environment. Particle count <352,000/m³ ensures zero-defect lamination for OCR/OCA processes.

verified

ISO 9001 Certified

Full traceability from component sourcing through final QC. Every display undergoes 72-hour high-temperature aging and environmental cycle testing before shipment.

speed

10-Day Prototyping

Fully functional, optically bonded prototypes delivered in as fast as 10 business days. Validate optical performance, touch response, and thermal behavior before committing to mass production.

Standard Module Sizes

We maintain inventory and production tooling for the most frequently specified industrial display dimensions. Each size is available with high-brightness backlight options, optical bonding, and optional PCAP touch integration.

Custom sizes, aspect ratios, and stretch/bar formats available upon request. Contact our engineering team for mechanical drawings and interface specifications.

Integration Quick-Start

  • 1 Select your target size and brightness tier from our published high nits display ladder (500 / 1,500 / 3,000 / 5,000 nits)
  • 2 Specify interface (LVDS / eDP / HDMI / DP), touch type, and enclosure requirements
  • 3 Receive a 3D mechanical drawing and optical simulation within 48 hours
  • 4 Approve the prototype → mass production begins in 3–4 weeks
Browse All TFT LCD Modules
Customization Workflow

Custom Sunlight Readable Display Manufacturing

From concept to mass production, we provide end-to-end customization for your specific project requirements.

01

Requirements

Define your exact specifications: size, luminance (cd/m²), interfaces (LVDS/eDP/HDMI), touch type, and ruggedness levels. Our engineers provide thermal and mechanical consultation.

02

Rapid Prototyping

Get a fully functional, optically bonded prototype delivered in as fast as 10 business days for real-world evaluation and thermal validation.

03

Validation Testing

Every design undergoes rigorous 72-hour high-temperature aging and extreme environmental cycle tests to ensure zero-defect reliability in the field.

04

Mass Production

Scalable manufacturing in our ISO 9001 certified, dust-free cleanroom facility, ensuring consistent quality from the first unit to the thousandth.

Start a Project

Need a Custom Sunlight Readable Display?

Whether you need a standard module or a fully customized optical-bonded system with enclosure design and interface integration — our engineering team responds within 8 hours.

verified ISO 9001 Certified schedule 8-Hour Response factory Factory Direct

Submit Your Project Brief

Include your target size, nits, touch requirements, and environmental conditions.

Technical FAQ

Sunlight Readable Display FAQ

Precise technical answers to common integration and specification questions.

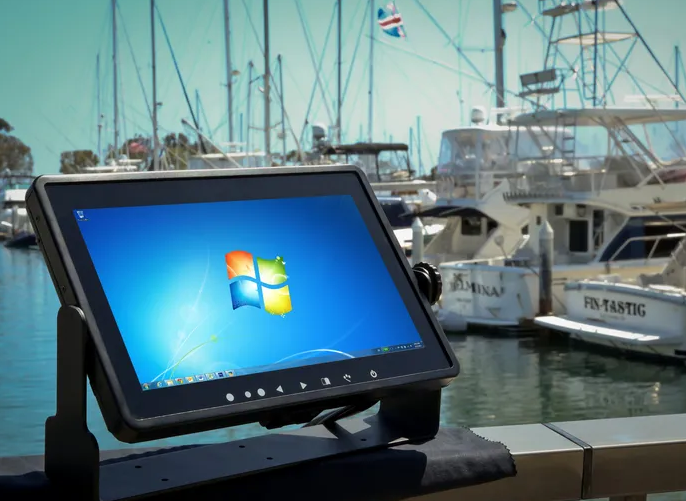

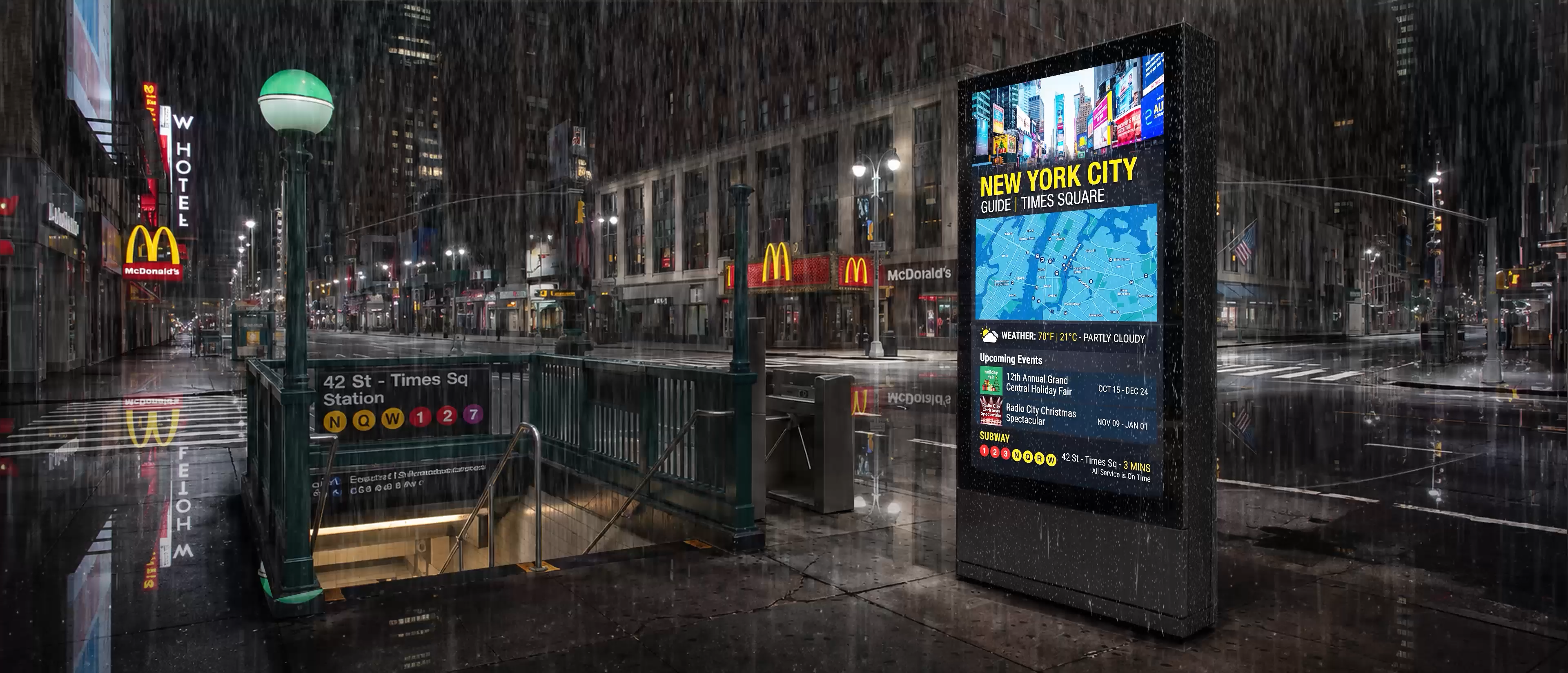

IP65 enclosures are dust-tight and protected against low-pressure water jets from any direction. IP66 adds protection against powerful water jets and heavy seas. For coastal or marine deployments, IP66 or higher is recommended. Both ratings require gasket-sealed I/O connectors and conformal-coated PCBs to prevent corrosion in humid environments.

Nits (cd/m²) measure luminance. Indoor displays operate at 250–350 nits. Direct sunlight delivers approximately 100,000 lux ambient, requiring 1,000+ nits for legibility and 2,500–5,000 nits for full-color vibrancy. Below 1,000 nits, contrast ratio degrades below 3:1, rendering content unreadable under direct solar load.

Isotropic failure occurs when liquid crystal temperature exceeds the clearing point, causing molecules to lose orientation and the panel to turn black. Standard TN/IPS panels fail at 70–80°C. Hi-TNI (high clearing-point, T_NI) panels use specialized LC mixtures stable up to 110°C, preventing solar-induced blackening in direct-sun applications.

Optical bonding fills the air gap between the LCD cell and cover glass with OCR (Optically Clear Resin) or OCA (Optically Clear Adhesive). This eliminates internal reflections that cause 80% of glare, improves contrast by up to 80%, and prevents moisture condensation inside the display by removing the air cavity where fogging occurs.

Technically a sunlight-readable panel is a high brightness display with three additional engineering requirements: full-lamination optical bonding, a Hi-TNI liquid crystal with a clearing point above 90°C, and a verified outdoor operating range. A high brightness display may reach 2,000–5,000 nits yet still fog internally or blacken in a sealed enclosure if those three are missing. We manufacture both families — browse the high brightness display range for ready-to-order modules, or outdoor waterproof display models for fully sealed IP66 units.

Quarter Wave Plate (QWP) film converts linearly polarized light into circularly polarized light. Standard LCDs appear black when viewed through polarized sunglasses due to crossed polarizers. QWP-equipped displays remain visible at all polarization angles, making them essential for retail window and DOOH installations targeting pedestrian traffic wearing sunglasses.
