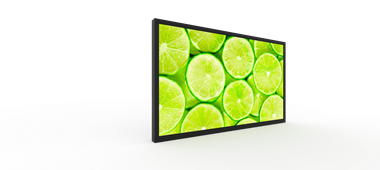

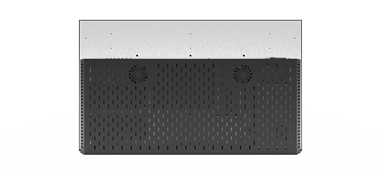

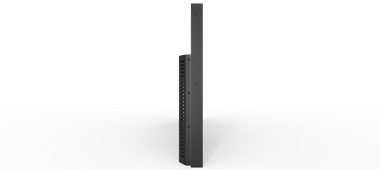

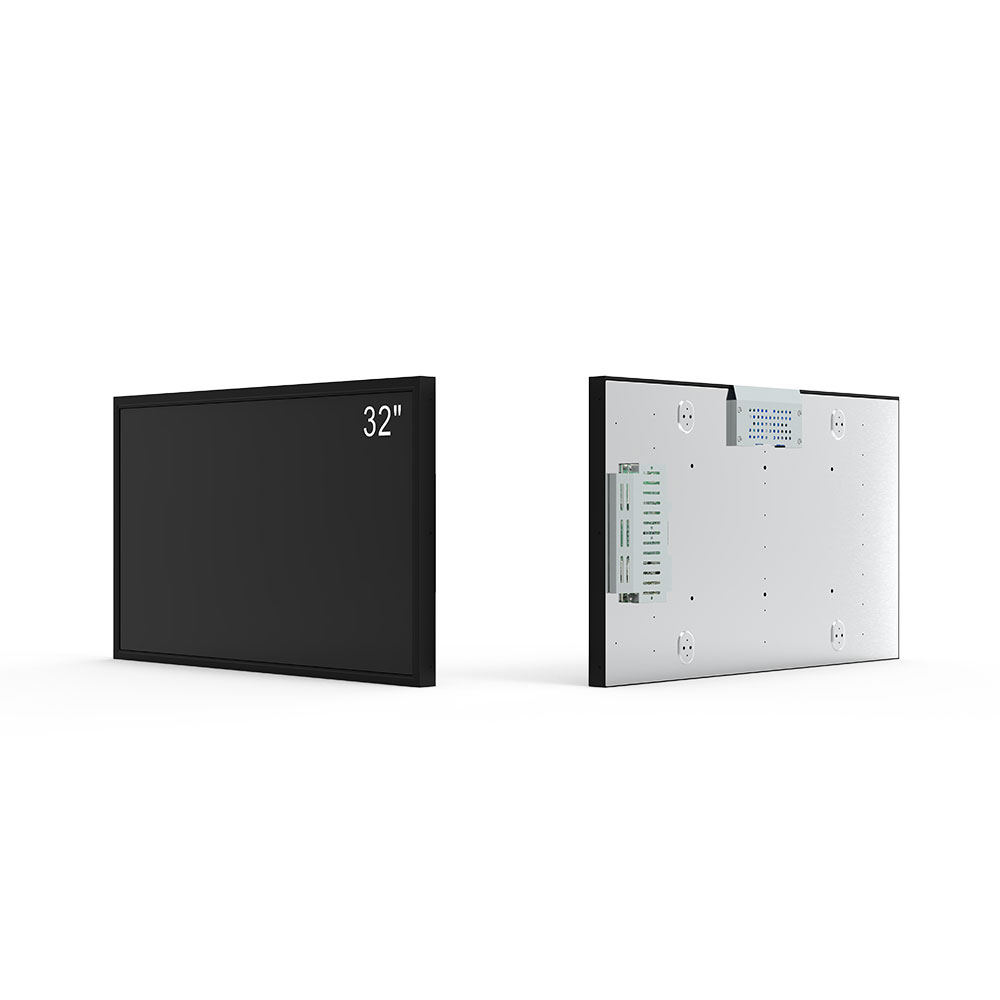

8K 32 inch high brightness LCD panel

8K 32 inch high brightness LCD panel

BrandRisingstar
Model nameRS315QU1-DG15
Screen size32"
Screen typeOutdoor LCD Panel
Resolution7860(RGB)×4320
Brightness (cd/m²)1500
Overview Specifications Customized Services Support & Shipping

RS315QU1-DG15 is Ringstar 32 inch high brightness LCD pane that is well equipped with LG original 8K open cellLM (315QU1-SSA2), it is 31.5 inch diagonally measured active display area with QUHD resolution (7680 horizontal by 4320 vertical pixel array), and with Risingstar customizes LED DLED back light, it can achieve 1500 nits brightness. it is a trans missive, operating in the normally black mode,

This 8K high brightness panel is intended to support displays where high brightness, super wide viewing angle, high color saturation and high color are important.

32 inch 8k high brightness panel features

High brightness panel 1500 nits

8K QUHD 7680(RGB)*4320 resolution (16:9)

High contrast ratio (1300:1)

Wide viewing angle (178°)

Fast response time: gray to gray (G to G) 6ms

IPS trans missive, normally black mode,

High frame rate: 60HZ

Low power consumption

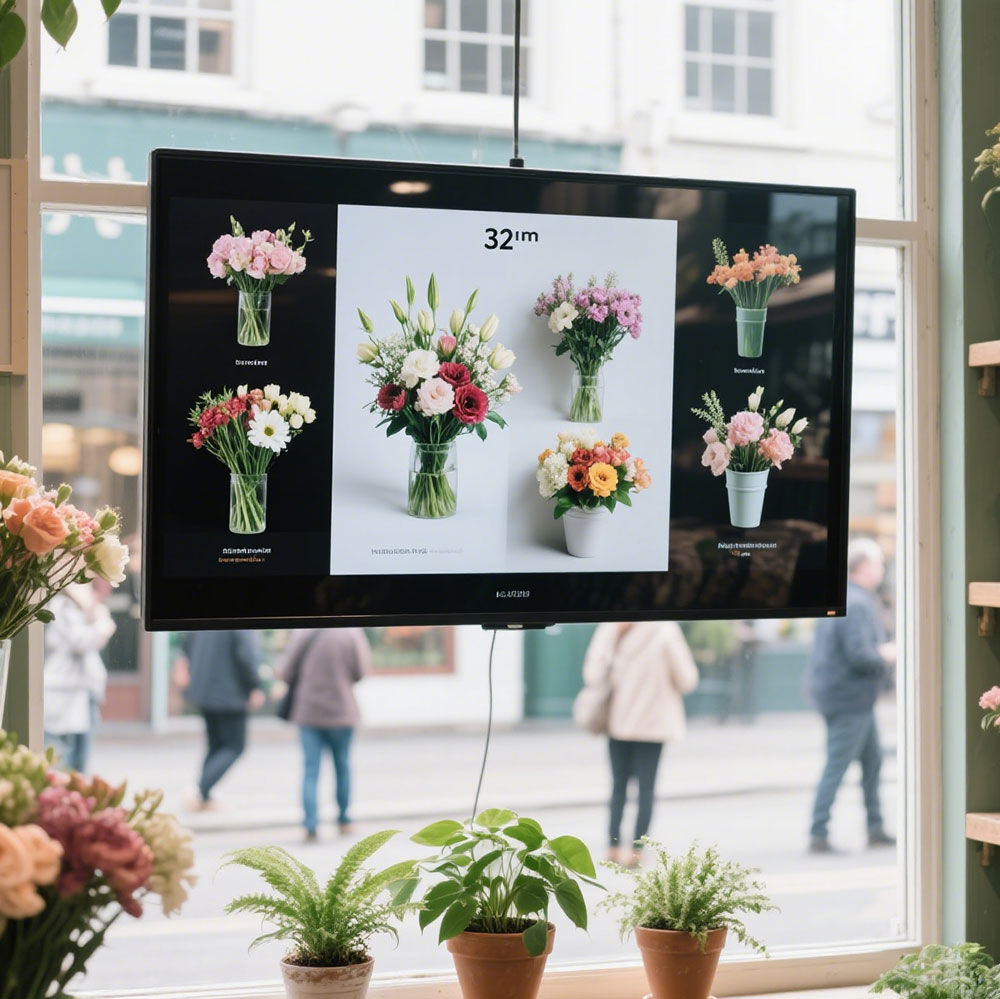

Based on its 1500 nits high brightness, DCI-P3, Adobe RGB, sRGB, 4-side borderless, white LED backlight, reverse terminal, 10-bit gray scale, 100% Adobe RGB, 99% DCI-P3, 4-side borderless and other features, this model is recommended Used in outdoor devices.

RS315QU1-DG15 32 inch high brightness display 32 inch sunlight readable LCD High brightness display Sunlight readable display Outdoor waterproof display
Screen Diagonal32  inch
LG panel noLM315QU1-SSA2
Panel Brand RisingStarLCD
Model NoRS315QU1-DG15
Active Area 698.11(W)×392.69(H) mm
Pixels7680(RGB)×4320, QUHD, 279PPI
Physical Size731.4(W)×430.4(H)×64.5(D) mm
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode a-Si TFT-LCD, LCM
White Luminance ( Center )1500 cd/m2 (Typ.)  [cd/m2 ]
Contrast Ratio1300:1 (Typ.)
Optical Response Time14 (Typ.)(G to G) ms
Nominal Input Voltage 10.0V (Typ.)
Frame Rate60Hz
Viewing Angle85/85/85/5 (Typ.)(CR≥10)
Weight [g] 4.8kgs(Typ.)
Interface TypeV-by-One 16 lane × 2ch, 143 pins
Support Color 1.07B , 100% Adobe RGB
Surface Treatment Hard coating (2H),
RoHS Compliance RoHS Compliance
Operating Temperature-20 ~ 70 °C
Storage Temperature-30 ~ 80 °C
inventory_2

01 / Chassis & Materials

Structural integrity for extreme environments.

Enclosure Grade

Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel.

Protection Rating

Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10.

Surface Finish

Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting.

Format Architecture

Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations.

blur_on

02 / Optical & Display

Visibility optimization for extreme ambient lighting.

Luminance Output

Scalable 1500 - 5000 Nits with integrated Hi-Tni (110掳C) anti-blackening technology.

Optical Bonding

Full Vacuum Optical Bonding (OCR) - eliminates air gaps, fogging, and maximizes contrast ratio.

Advanced Coating

Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films.

settings_input_component

03 / Interface & I/O

Industrial signal and power regulation.

Connectors

Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB.

Power Regulation

Wide voltage DC 9V - 36V input with integrated surge and polarity protection.

Sensor Suite

Integrated ambient light sensors, thermal probes, and custom GPIO control protocols.

dns

04 / Embedded & Data

Software architecture and data sync.

Operating Systems

Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14.

Communication

High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet.
