43 inch Outdoor Battery powered digital LCD display A-Frame board
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

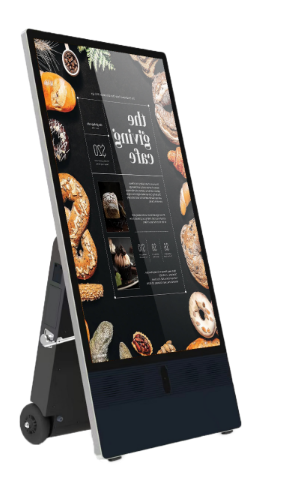

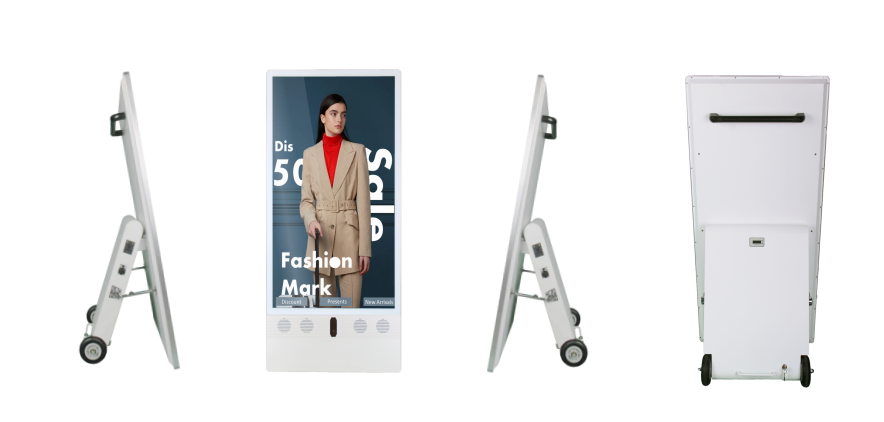

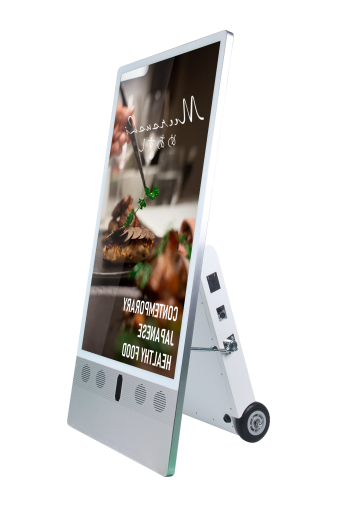

These Risingstar A frame LCD boards are powered by a rechargeable battey, display sizes are available from 32 inch to 55inch. they are designed to be lightweight and portable, without cable trouble, it can be easily moved and repositioned as customer needed. with IP65 waterproof/weather-resistant enclosures for outdoor use.
The battery-powered feature allows the A-frame to be placed in areas where there is no electrical outlet available, making it more versatile than other types of digital displays. They can be programmed to display different content at different times of the day, which makes them a versatile tool for businesses to showcase their promotions, events, and products.

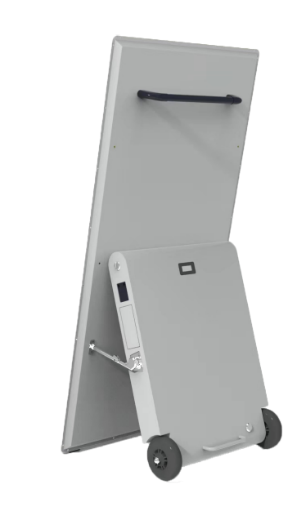

Advanced locking mechanism for simpler operation, ensuring the stability and safety of the display.
Six colors aluminium alloy frame, high-strength metal housing, and front tempered glass panel, provide a solid backing and guarantee for display operation environment and service life.
| Item | Sub Item | 43'' Smart TFT-LCD |
| Panel | Display Model | BOE IPS High TNI 105 °C |
| Resolutions | 1920x1080 (FHD) | |
| Display Area(mm) | 940.896(H) x 529.254(V) | |
| Aspect Ratio | 0.672916667 | |
| Brightness (cd/m²) | 700 | |
| Colour | 16.7M | |
| Viewing Angle | 178° | |
| Contrast Ratio | 4000:01 | |
| Touch | optional function | |
| Computer | Media Formats | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA) , Image, JPG, GIF, BMP, PNG) |
| Media Resolution | 1080x1920 (Downward compatibility) | |
| CPU | RK3288, Quad core CPU Frequency: 1.8GHZ | |
| GPU | Mali-T764 GPU MP4 Quad core GPU Support OpenGL ES1.1/2.0,OpenVG1.1,OpenCL | |
| RAM | DDR3, 4GB | |
| ROM | 16GB | |
| USD | USB2.0 HOST(x2) | |
| LAN | 10/100M Ethernet | |
| WiFi | 802.1 1b/g/n | |
| OS | Android7.1.2 | |
| Content control method | Wi-Fi APP，U disk，Ethernet，Cloud | |
| Speaker Specification | 8Ω 12W x2 | |
| GPS | Optional Features | |
| Battery | Battery Technology | CATL Ternary lithium blade battery |
| Charging Time | 7 hours | |
| Working Time | 14 hours | |
| (When the temperature is lower than 0 degrees, the running time will reduce by 10% for every 5 degrees drop) | ||
| Batter Capacity | 25000mAh | |
| Power Supply | 24V | |
| Power Consumption | 90W | |
| Energy | 1088.54Wh | |
| Mechnical | Outside Color | 7 colors available |
| Unit Size (WxHxD mm) | 1235x586x250 | |
| Package Size(WxHxD mm) | 1335x700x300 | |
| Footprint (WxH mm) | 604.7x478 | |
| Net Weight (Kg) | 38.16 | |
| Gross Weight(Kg) | 46 | |
| Environmental | Operating Temperatureeaure | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C | |
| Operation Humidity | 10% to 80% | |
| Storage Humidity | 5% to 95% | |
| Accessories | GPS and wheel lock | Accurate positioning and voice recording (Optional Features) |
| Included | Remote Contol, User Manual, Charger, Power Cable | |
| Warranty | Warranty Period | 1 Year Warranty |
| Warranty Period (Battery) | 1 Year Warrenty | |
| Technical Support | Lifetime |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
