Specifications
| Parameter | Value |
|---|---|
| Model Name | RS101WXM-GE10 |
| Screen Size | 10.1" |

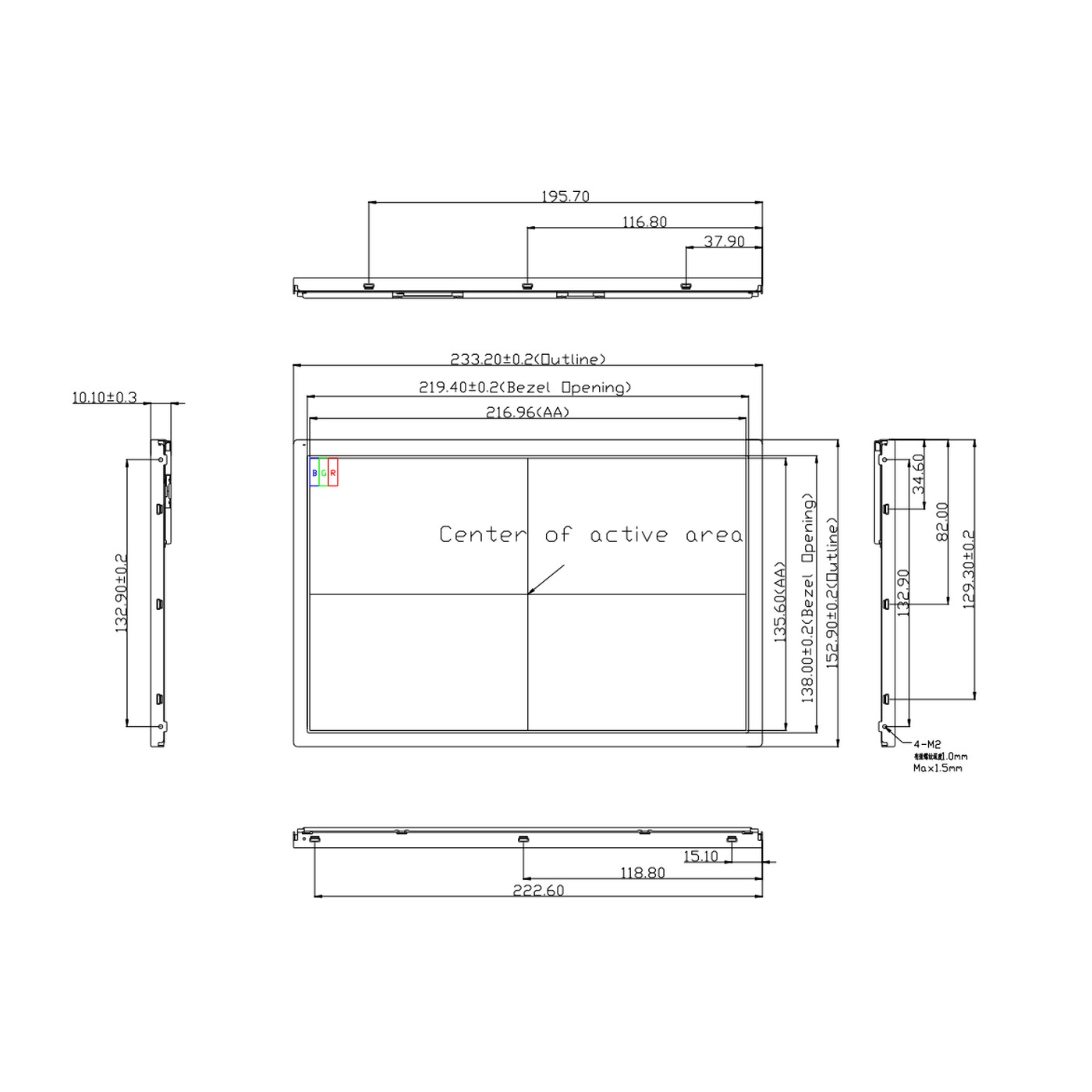

| Display Area (mm) | 216.96 (H) * 135.6 (V) mm |
| Dimensions (mm) | 233.2 (H)* 152.9 (V)* 10.1 (D) mm |
| Brightness | 1000 cd / m2 |
| Resolution | 1280 * 800 |
| Aspect Ratio | 16: 10 |
| Pixel Pitch (mm) | 0.1695 (H) * 0.1695(V) mm |
| Pixel Per Inch (PPI) | 149.85 |
| Pixel Arrangement | RGB Vertical strip |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Contrast Ratio | 900:1 |
| Display Colors | 16.2 M |
| Response Time (Typical) | 30 (Typ.) (Tr+Td) ms |
| Input Power | DC 12V for Backlight /5V for LVDS |
| Power Consumption | 4.4W |
| Driver Element | a-Si TFT - LCD |
| Surface Treatment | Normal |
| Interface | LVDS,20 Pin ; BL,9 Pin |
| Weight (Net) | TBD |
| Operating Temperature | -20 ℃ ~ 70 ℃ |
| Storage Temperature | -30 ℃ ~ 80 ℃ |
| Backlight life | 50K(Typ.) |
Product Overview

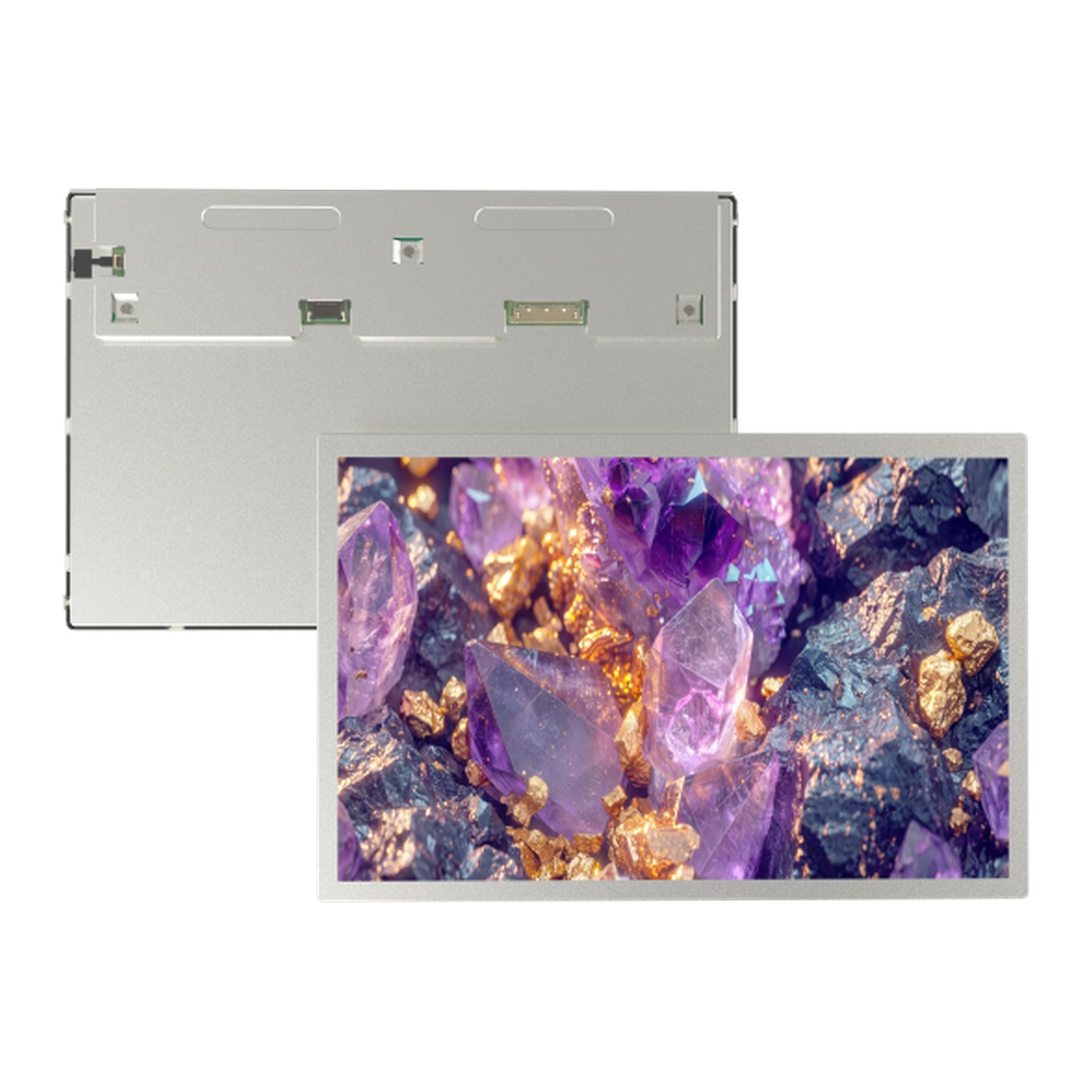

The 10.1 inch Sunlight Readable TFT LCD Panel RS101WXM-GE10 from RisingStar is a compact 10.1 inch module for handheld terminals, POS systems and portable industrial equipment. 1000 cd/m2 of brightness, 1280 x800 resolution and a 85/85/85/85 viewing angle make it a dependable building block for equipment makers that need a readable panel without a full enclosure.
Key Features
- Brightness 1000nits
- LED Backlight
- Low Power Consumption
- BL MTBF: 50,000 hours
Typical Applications
Typical uses include digital signage controllers, industrial HMIs, transport information displays, retail POS terminals and in-store video walls. Custom brightness, interface and bezel options are available on request.
