Specifications
| Parameter | Value |
|---|---|
| Model Name | RS13.3HAN-GE10 |
| Screen Size | 13.3" |
| Display Area (mm) | 293.472 (H) * 165.078 (V) mm |

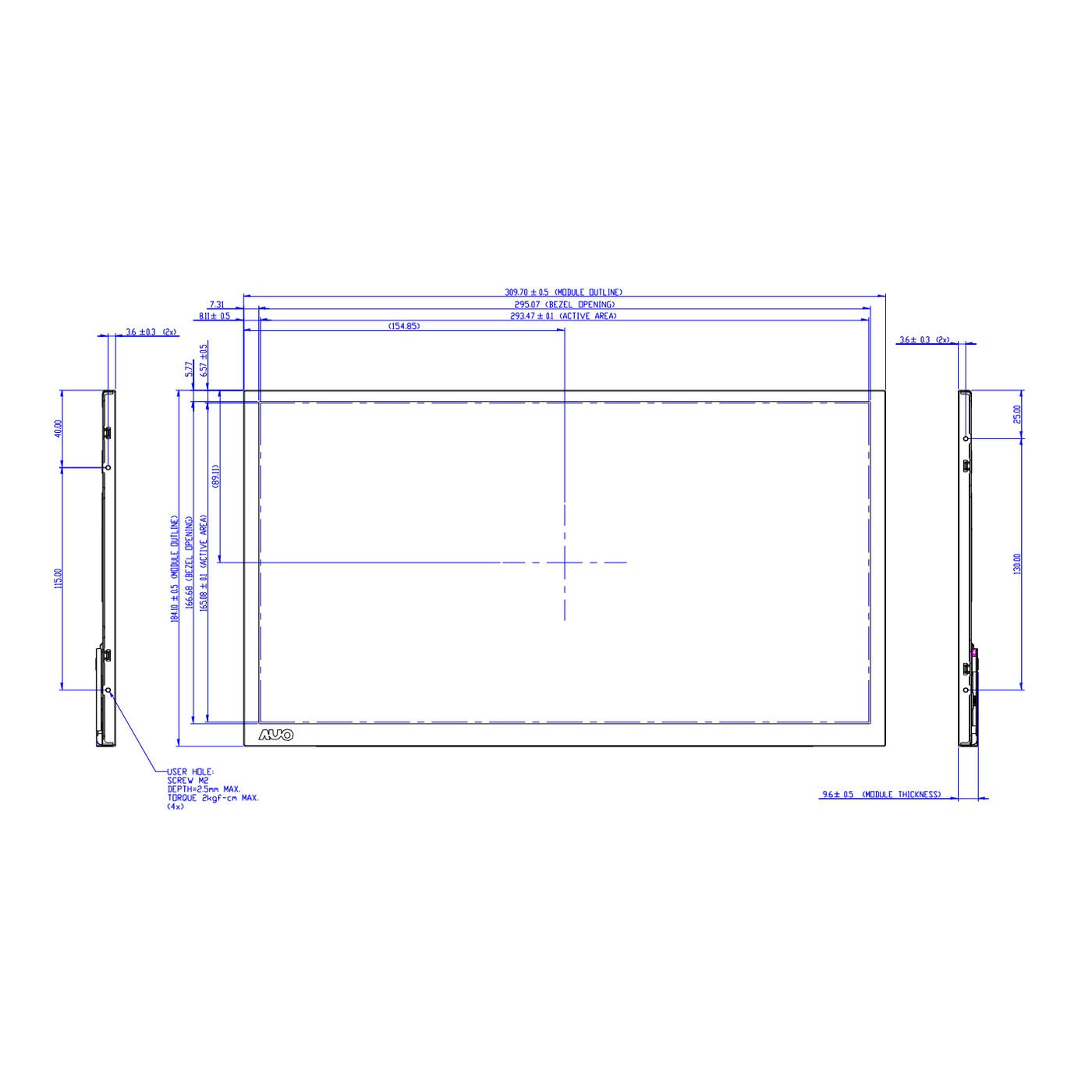

| Dimensions (mm) | 309.7 (H)* 184.1 (V)* 10.1 (D) mm |
| Brightness | 1000 cd / m2 |
| Resolution | 1920 * 1080 |
| Aspect Ratio | 16:9 |
| Pixel Pitch (mm) | 0.1528 (H) * 0.1528(V) mm |
| Pixel Per Inch (PPI) | 166 |
| Pixel Arrangement | RGB Vertical strip |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast Ratio | 800:1 |
| Display Colors | 16.7 M |
| Response Time (Typical) | 25 (Typ.) (Tr+Td) ms |
| Input Power | DC 12V for Backlight /5V for LVDS |
| Power Consumption | TBD |
| Driver Element | a-Si TFT - LCD |
| Surface Treatment | Matte surface |
| Interface | LVDS(2 ch, 8-bit) |
| Weight (Net) | TBD |
| Operating Temperature | -20~70 °C |
| Storage Temperature | -30~80 °C |
| Backlight life | 50K(Typ.) |

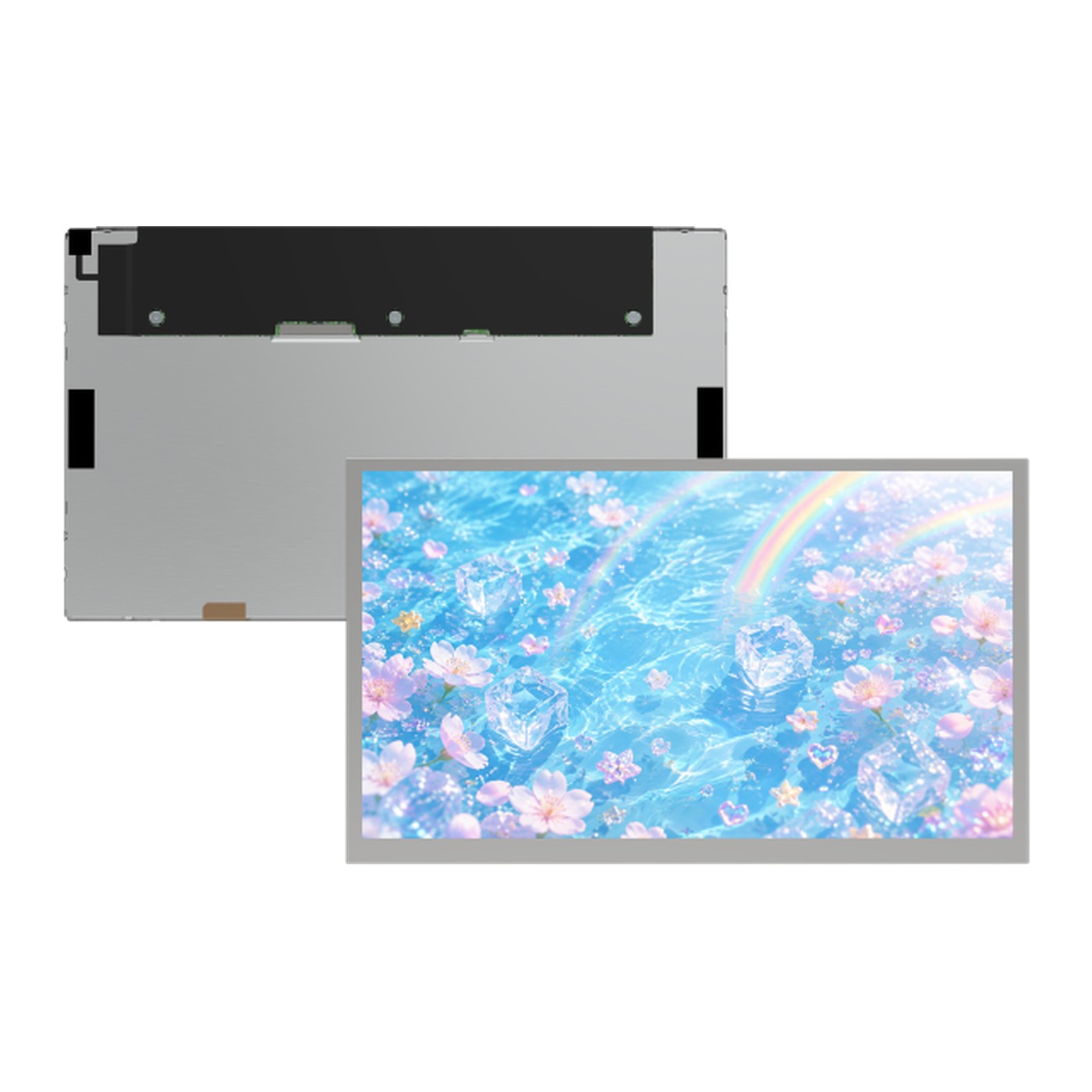

RS13.3HAN-GE10 is a 13.3-inch LCD display with 1,000 nits brightness, 1920×1080 resolution and 800:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.
Product Overview
The 13.3 inch Sunlight Readable TFT LCD Panel RS13.3HAN-GE10 from RisingStar is the 13.3 inch size most industrial tablets and medical carts are built around. 1000 cd/m2 of brightness, 1920 x1080 resolution and a 89/89/89/89 viewing angle make it a dependable building block for equipment makers that need a readable panel without a full enclosure.
Key Features
- Brightness 1000nits
- LED Backlight
- Low Power Consumption
- BL MTBF: 50,000 hours
Typical Applications
Typical uses include digital signage controllers, industrial HMIs, transport information displays, retail POS terminals and in-store video walls. Custom brightness, interface and bezel options are available on request.
Product FAQs
How bright is the RS13.3HAN-GE10?
It is rated at 1,000 nits (cd/m²) brightness.
What are the main display specifications?
It uses a 13.3-inch panel, 1920×1080 resolution, 800:1 contrast ratio.
What is the operating temperature range?
The operating temperature range is -20 °C to 70 °C.
Is this product available for OEM or ODM customization?
Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.
What interface does the RS13.3HAN-GE10 use?
It adopts LVDS(2 ch, 8-bit) interface.
What is the power input requirement for the RS13.3HAN-GE10?
The power input requirement is DC 12V for Backlight /5V for LVDS.
What is the pixel pitch of the RS13.3HAN-GE10?
The pixel pitch is 0.1528 (H) * 0.1528(V) mm.
What is the viewing angle?
The viewing angle is 89/89/89/89 (Typ.)(CR≥10).
Is the RS13.3HAN-GE10 suitable for outdoor or high-ambient-light use?
Yes. Rated at 1,000 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.
How is the screen surface treated?
The panel surface treatment is Matte surface.
