Specifications
| Parameter | Value |
|---|---|
| Model Name | RS156HCE-GE10 |
| Screen Size | 15.6" |

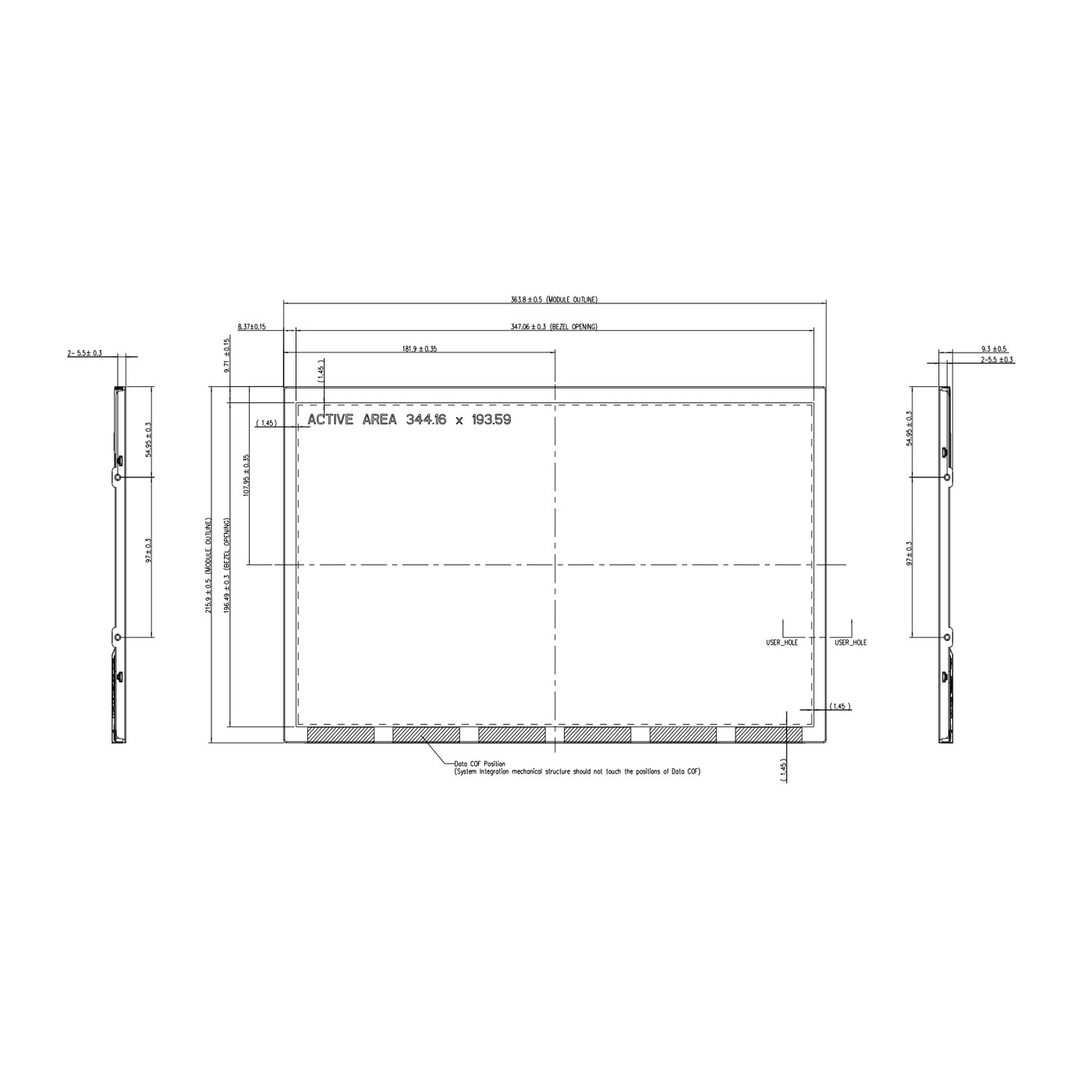

| Display Area (mm) | 344.16 (H) * 193.59 (V) mm |
| Dimensions (mm) | 363.8 (H)* 215.98 (V)* 9.3 (D) mm |
| Brightness | 1000 cd / m2 |
| Resolution | 1920* 1080 |
| Aspect Ratio | 16 : 9 |
| Pixel Pitch (mm) | 0.17925 (H) * 0.17925(V) mm |
| Pixel Per Inch (PPI) | 141 |
| Pixel Arrangement | RGB Vertical strip |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Contrast Ratio | 800:1 |
| Display Colors | 16.2 M |
| Response Time (Typical) | 13/12 (Typ.) (Tr+Td) ms |
| Input Power | DC 12V for Backlight /5V for LVDS |
| Power Consumption | TBD |
| Driver Element | a-Si TFT active matrix |
| Surface Treatment | AG type , Hard coating (3H) |
| Interface | LVDS(2 ch , 8-bit) |
| Weight (Net) | TBD |
| Operating Temperature | -20 ℃ ~ 70 ℃ |
| Storage Temperature | -30 ℃ ~ 80 ℃ |
| Backlight life | 50K(Typ.) |
Product Overview

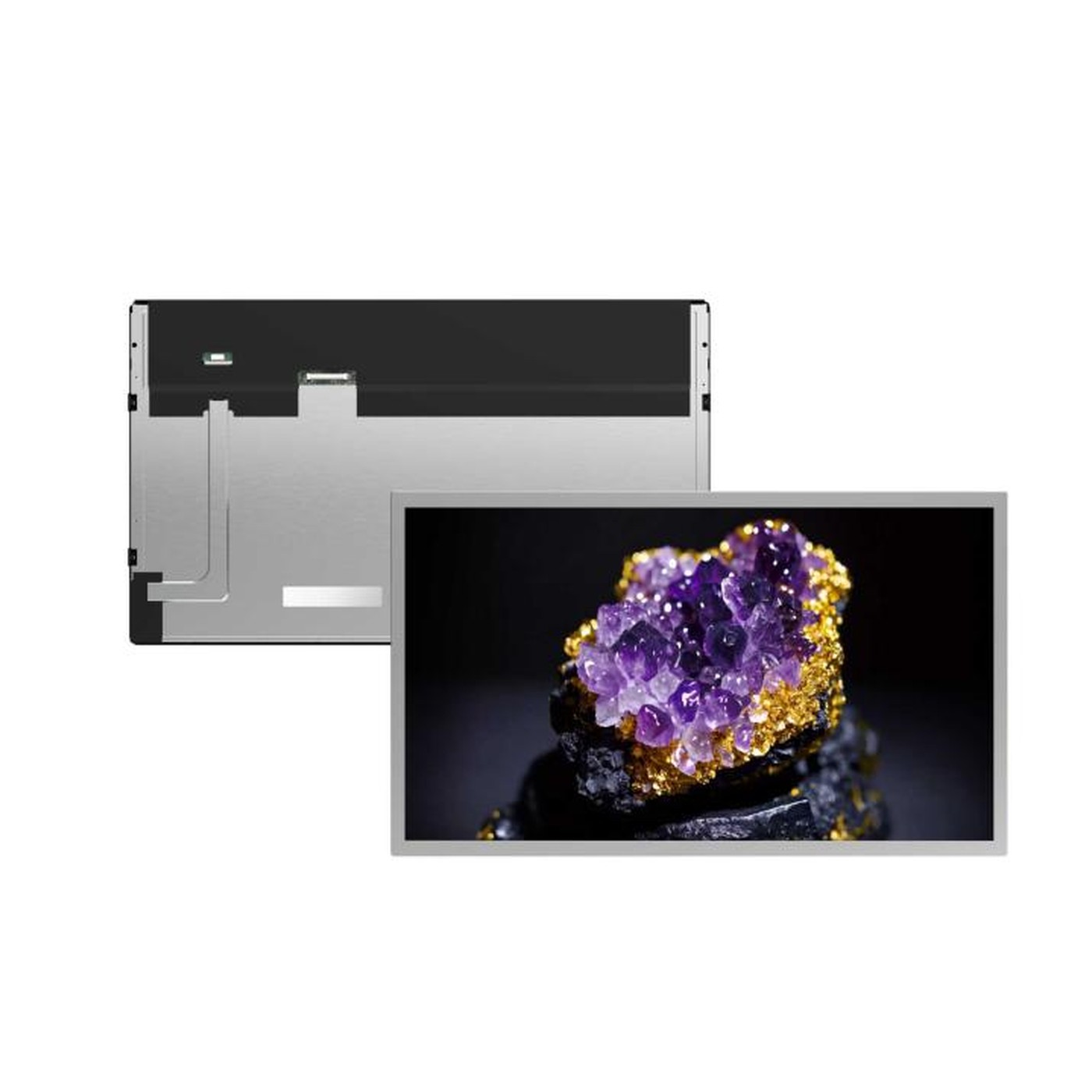

The 15.6 inch Sunlight Readable TFT LCD Panel RS156HCE-GE10 from RisingStar is the 15.6 inch panel used across laptop housings, test benches and POS terminals. 1000 cd/m2 of brightness, 1920x1080 resolution and a 85/85/85/85 viewing angle make it a dependable building block for equipment makers that need a readable panel without a full enclosure.
Key Features
- Brightness 1000nits
- LED Backlight
- Low Power Consumption
- BL MTBF: 50,000 hours
Typical Applications
Typical uses include digital signage controllers, industrial HMIs, transport information displays, retail POS terminals and in-store video walls. Custom brightness, interface and bezel options are available on request.
