Specifications
| Parameter | Value |
|---|---|
| Model Name | RS185FHB-GE10 |
| Screen Size | 18.5" |

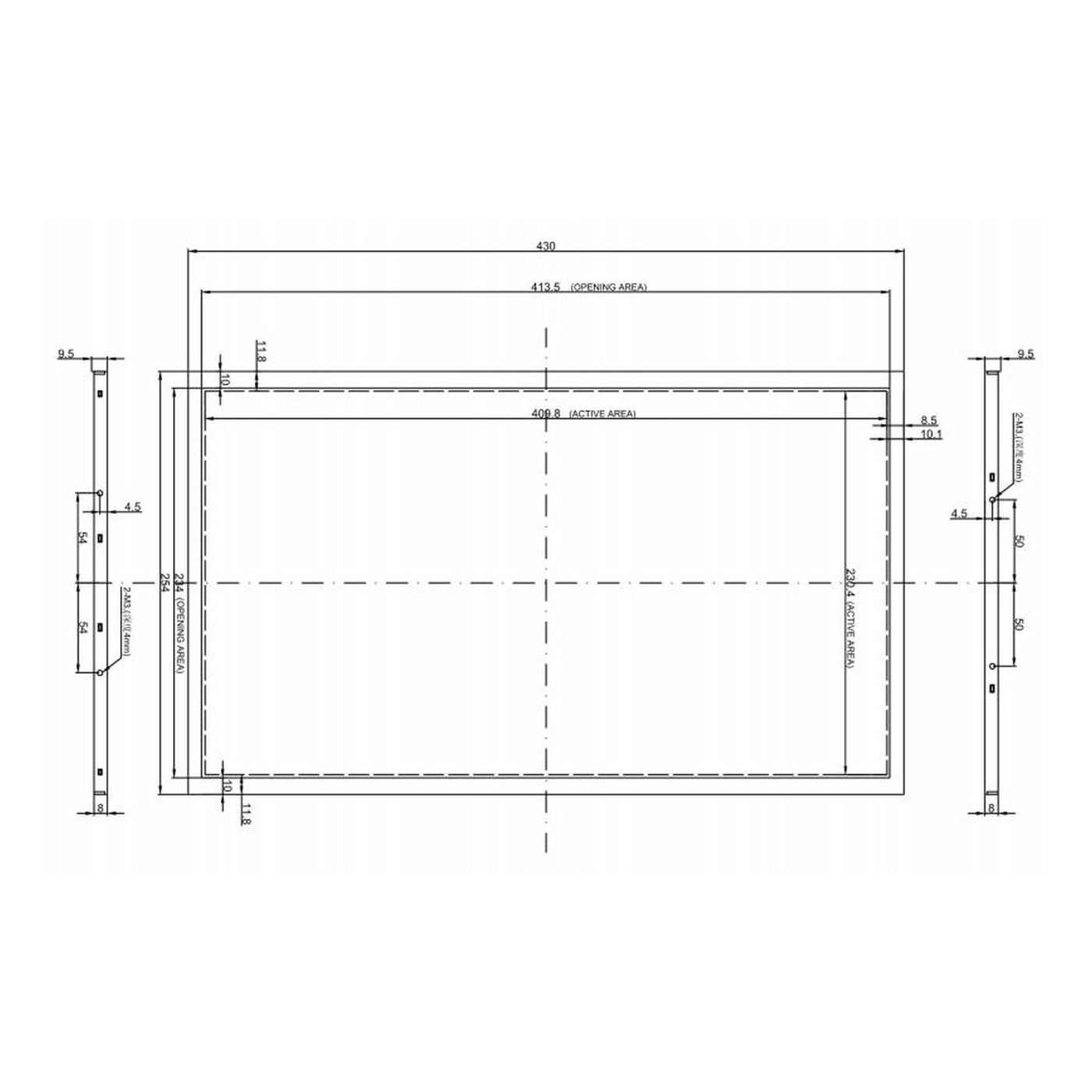

| Display Area (mm) | 408.96 (H) * 230.04 (V) mm |
| Dimensions (mm) | 430 (H)* 254 (V)* 9.5 (D) mm |
| Brightness | 1000 cd / m2 |
| Resolution | 1920 * 1080 |
| Aspect Ratio | 16: 9 |
| Pixel Pitch (mm) | 0.213 (H) * 0.213(V) mm |
| Pixel Per Inch (PPI) | 119 |
| Pixel Arrangement | RGB Vertical strip |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Contrast Ratio | 1200:1 |
| Display Colors | 8-bit , 16.7 M |
| Response Time (Typical) | 30 (Typ.) (Tr+Td) ms |
| Input Power | DC 12V for Backlight /5V for LVDS |
| Power Consumption | 21.7 W |
| Driver Element | a-Si TFT - LCD |
| Surface Treatment | Anti-Glare,Haze 25%,Hard coating (3H) |
| Interface | LVDS(2 ch,8-bit),30 pins 1.0mm |
| Weight (Net) | 1.8 kg |
| Operating Temperature | -20 ℃ ~ 60 ℃ |
| Storage Temperature | -20 ℃ ~ 60 ℃ |
| Backlight life | 50K(Typ.) |
Product Overview

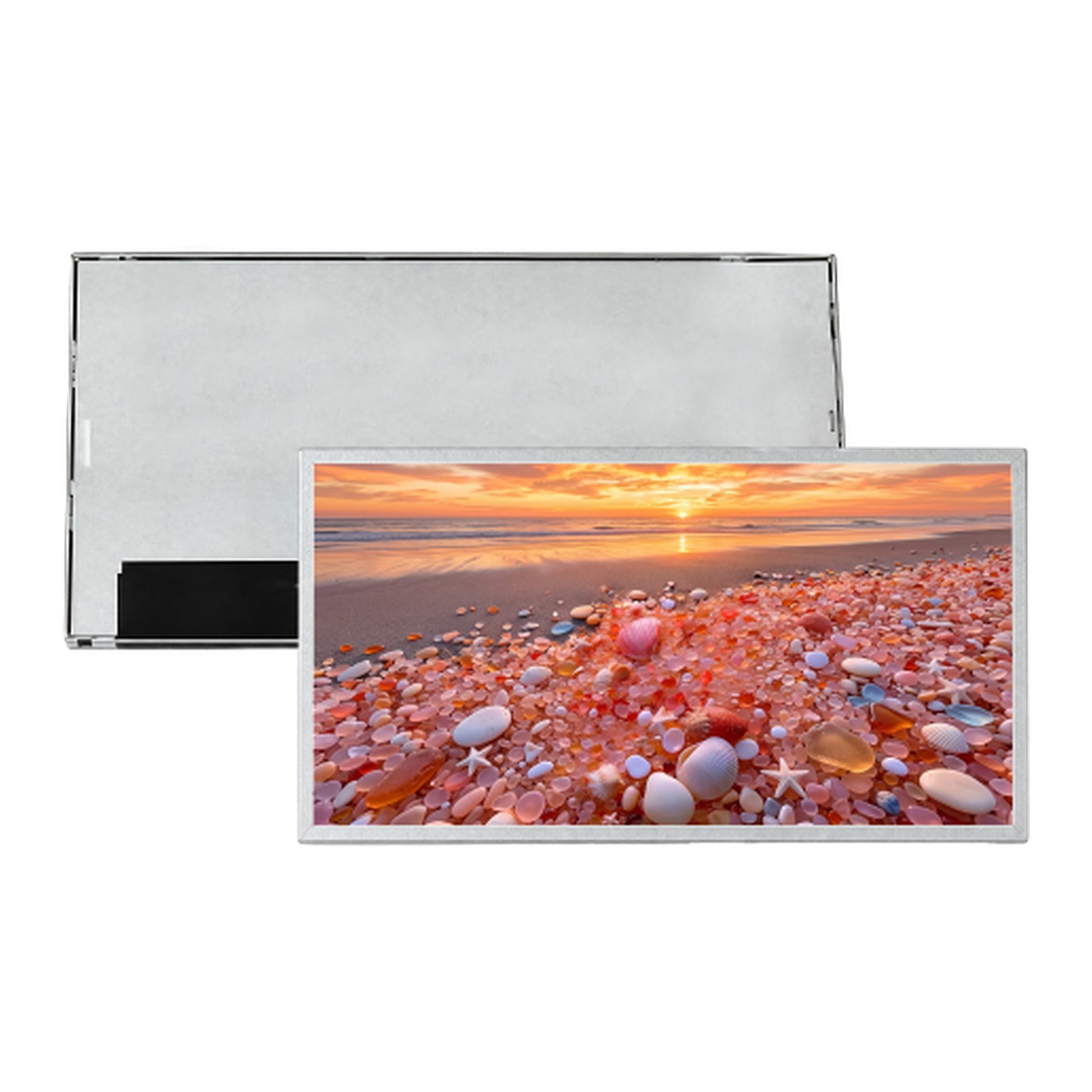

The 18.5 inch Sunlight Readable TFT LCD Panel RS185FHB-GE10 from RisingStar is an 18.5 inch module for operator consoles, cabin displays and process terminals. 1000 cd/m2 of brightness, 1920x1080 resolution and a 85/85/85/85 viewing angle make it a dependable building block for equipment makers that need a readable panel without a full enclosure.
Key Features
- Brightness 1000nits
- LED Backlight
- Low Power Consumption
- BL MTBF: 50,000 hours
Typical Applications
Typical uses include digital signage controllers, industrial HMIs, transport information displays, retail POS terminals and in-store video walls. Custom brightness, interface and bezel options are available on request.
