Specifications
| Parameter | Value |
|---|---|
| Model Name | RS420HJ2-NE10 |
| Screen Size | 42" |
| Display Area (mm) | 919.296 (H) * 517.104 (V) mm |

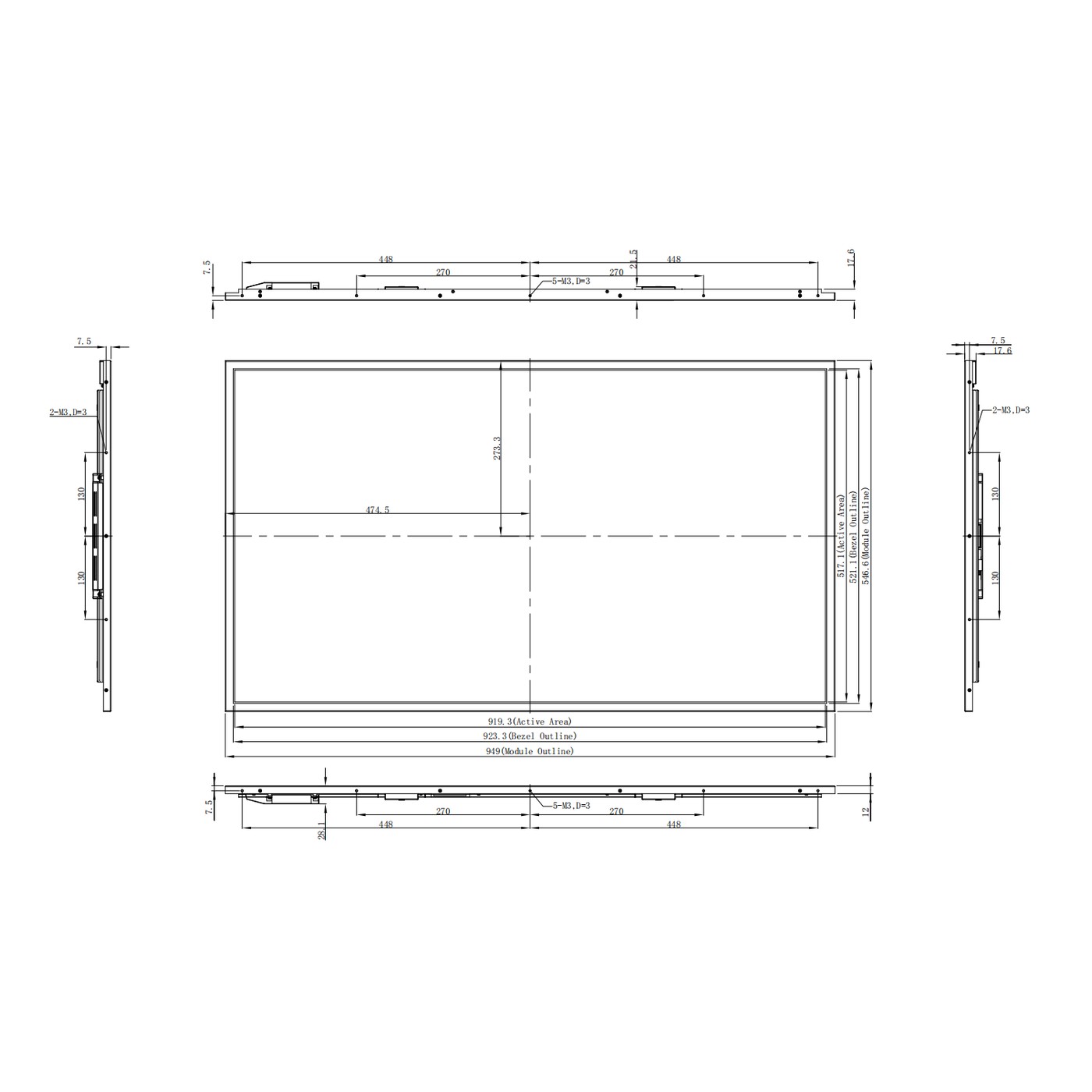

| Dimensions (mm) | 949 (H)* 546.6 (V)* 28.1 (D) mm |
| Brightness | 1000 cd / m2 |
| Resolution | 1920 * 1080 |
| Aspect Ratio | 16: 9 |
| Pixel Pitch (mm) | 0.4788 (H) * 0.4788(V) mm |
| Pixel Per Inch (PPI) | 52.45 |
| Pixel Arrangement | RGB Vertical strip |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast Ratio | 4000:1 |
| Display Colors | 8-bit , 16.7 M |
| Response Time (Typical) | 9.5 (Typ.) (G to G) ms |
| Input Power | DC 24V for Backlight /12V for LVDS |
| Power Consumption | 90 W |
| Driver Element | a-Si TFT - LCD |
| Surface Treatment | Haze 1% |
| Interface | LVDS(2 ch,8-bit),51 pins 0.5 mm |
| Weight (Net) | 8.2 kg |
| Operating Temperature | 0 ℃ ~ 50 ℃ |
| Storage Temperature | -20 ℃ ~60 ℃ |
| Backlight life | 50K(Typ.) |
Product Overview

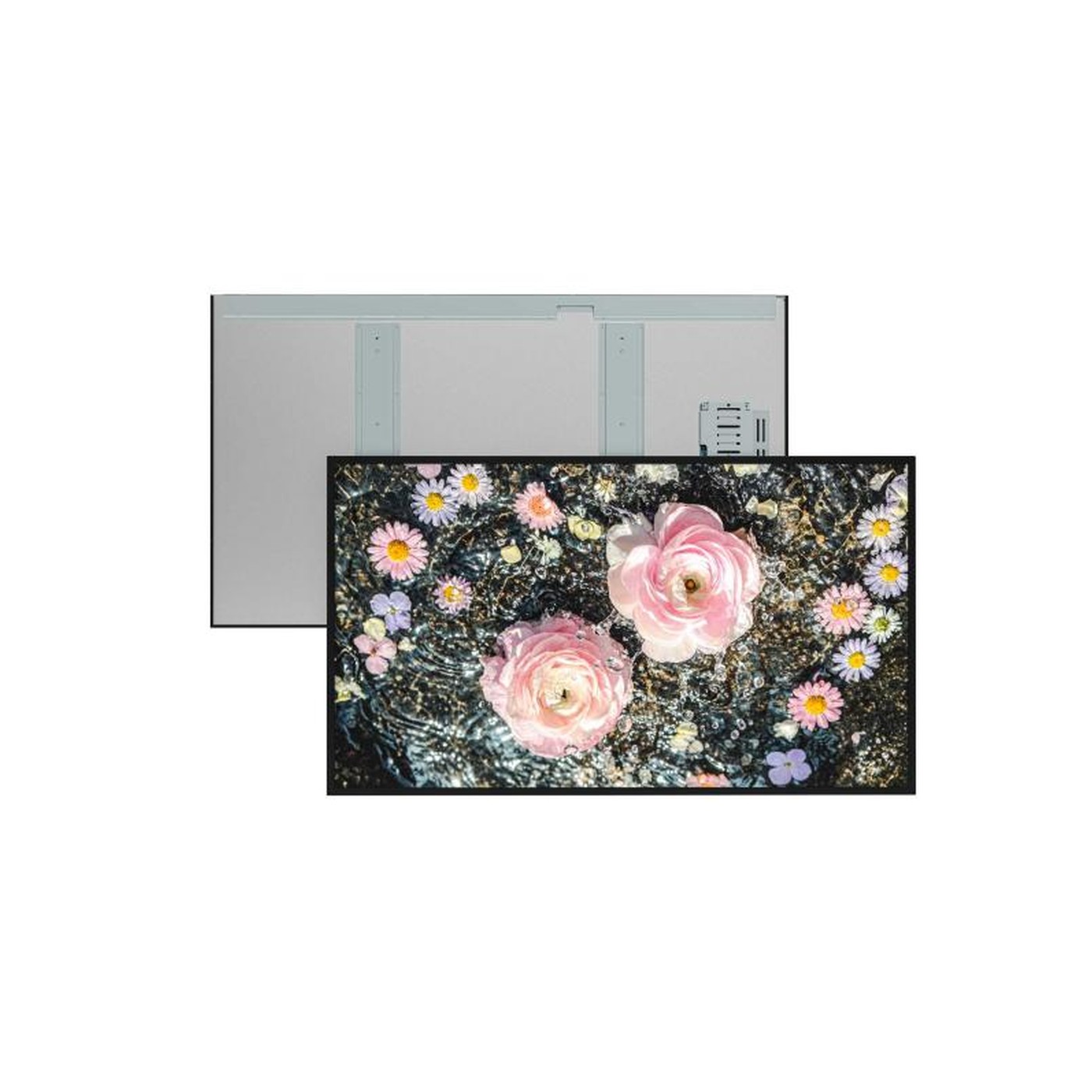

The 42 inch Sunlight Readable TFT LCD Panel RS420HJ2-NE10 from RisingStar is a 42 inch module for indoor signage, retail displays and interactive information boards. 1000 cd/m2 of brightness, 1920x1080 resolution and a 89/89/89/89 viewing angle make it a dependable building block for equipment makers that need a readable panel without a full enclosure.
Key Features
- Brightness 1000nits
- LED Backlight
- Low Power Consumption
- BL MTBF: 50,000 hours
Typical Applications
Typical uses include digital signage controllers, industrial HMIs, transport information displays, retail POS terminals and in-store video walls. Custom brightness, interface and bezel options are available on request.
