Specifications

ParameterValue
Model NameRS860EQL-ND40
Screen Size86"
Display Area (mm)1895.04 (H) * 1065.96 (V) mm

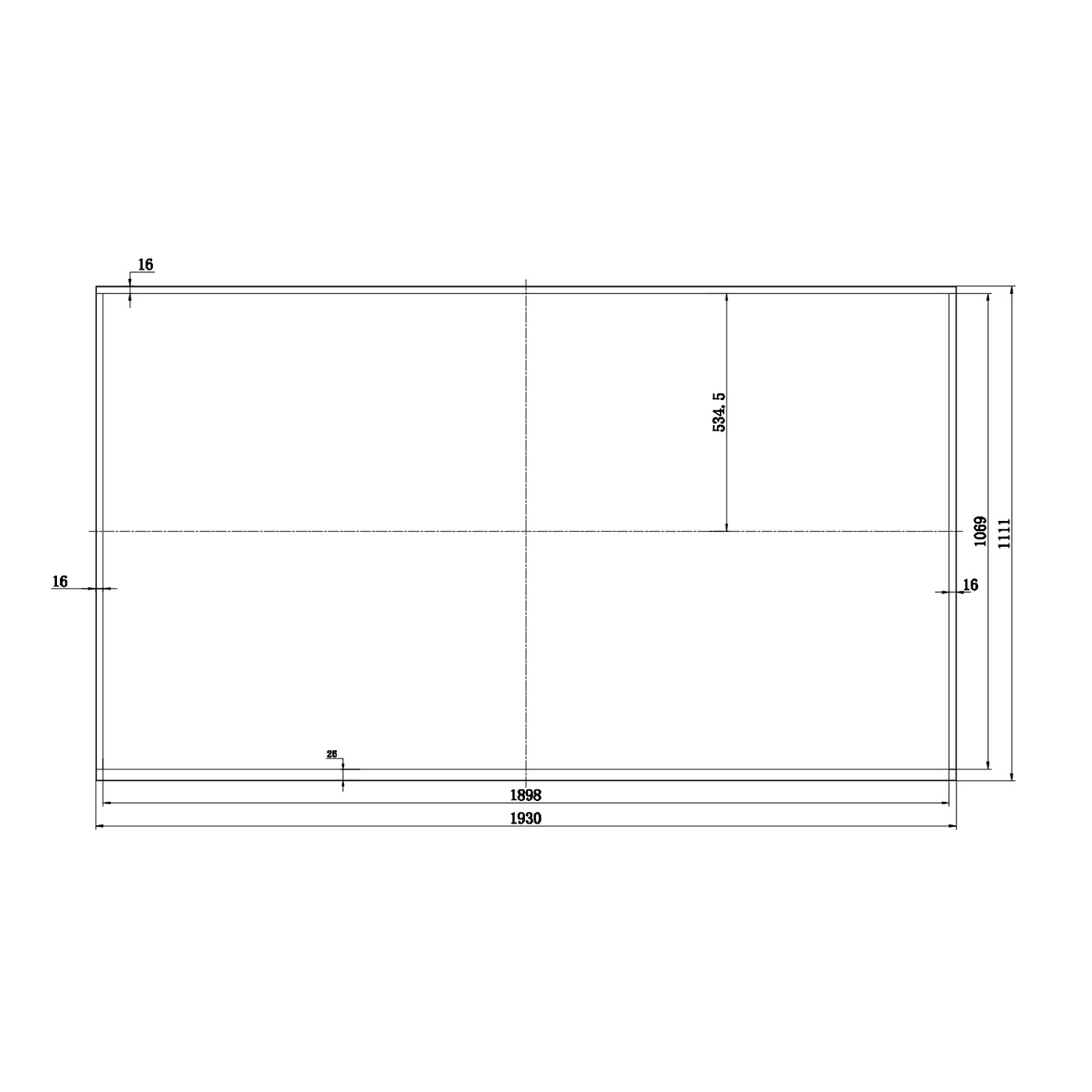

Dimensions (mm)1930 (H)* 1111 (V)* 77.5 (D) mm
Brightness4000 cd / m2
Resolution3840 * 2160
Aspect Ratio16:9
Pixel Pitch (mm)0.4935 (H) * 0.4935(V) mm
Pixel Per Inch (PPI)51.23
Pixel ArrangementRGB Vertical strip
Viewing Angle89/89/89/89 (Typ.)(CR≥10)
Contrast Ratio1200:1
Display Colors10-bit, 1.07 B
Response Time (Typical)8 (Typ.) (G to G) ms
Input PowerDC 24V for Backlight /12V for V-by-One
Power Consumption1245 W
Driver Elementa-Si TFT - LCD
Surface TreatmentHaze 3%,Hard coating (2H)
InterfaceV-by-One 16 lanes, 97 pins 0.5 mm
Weight (Net)44 kg
Operating Temperature-20~70 °C
Storage Temperature-30~80 °C
Backlight life50K(Typ.)

RS860EQL-ND40 is a 86-inch LCD display with 4,000 nits brightness, 3840×2160 resolution and 1200:1 contrast ratio. Its operating temperature range is -20 °C to 70 °C.

Product Overview

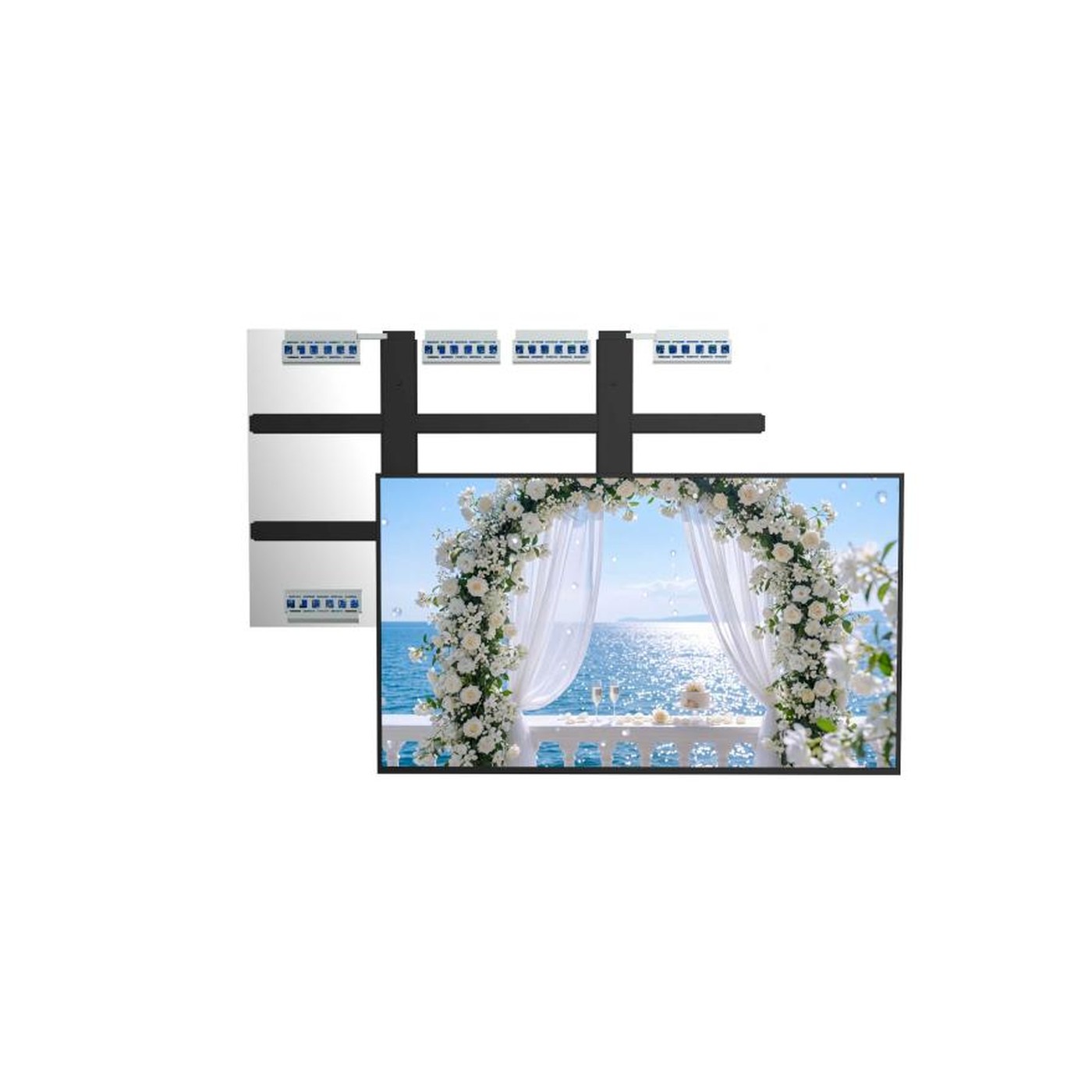

The 86 inch High Brightness TFT LCD Panel RS860EQL-ND40 from RisingStar is an 86 inch 4K panel at 4000 nits for daylight-visible large-format signage. 4000 cd/m2 of brightness, 3840 x2160 resolution and a 89/89/89/89 viewing angle make it a dependable building block for equipment makers that need a readable panel without a full enclosure.

Key Features

  • Brightness 4000nits
  • LED Backlight
  • Low Power Consumption
  • BL MTBF: 50,000 hours

Typical Applications

Typical uses include digital signage controllers, industrial HMIs, transport information displays, retail POS terminals and in-store video walls. Custom brightness, interface and bezel options are available on request.

Product FAQs

How bright is the RS860EQL-ND40?

It is rated at 4,000 nits (cd/m²) brightness.

What are the main display specifications?

It uses a 86-inch panel, 3840×2160 resolution, 1200:1 contrast ratio.

What is the operating temperature range?

The operating temperature range is -20 °C to 70 °C.

Is this product available for OEM or ODM customization?

Yes. RisingStar is an OEM/ODM manufacturer and accepts customization requirements for volume orders; contact the sales team with your target specification.

What interface does the RS860EQL-ND40 use?

It adopts V-by-One 16 lanes, 97 pins 0.5 mm interface.

What is the power input requirement for the RS860EQL-ND40?

The power input requirement is DC 24V for Backlight /12V for V-by-One.

What is the pixel pitch of the RS860EQL-ND40?

The pixel pitch is 0.4935 (H) * 0.4935(V) mm.

What is the viewing angle?

The viewing angle is 89/89/89/89 (Typ.)(CR≥10).

Is the RS860EQL-ND40 suitable for outdoor or high-ambient-light use?

Yes. Rated at 4,000 nits, it is a high-brightness panel built for sunlight-readable and outdoor applications.

How is the screen surface treated?

The panel surface treatment is Haze 3%,Hard coating (2H).
