Specifications
| Parameter | Value |
|---|---|
| Model Name | RS980DQY-ND10 |
| Screen Size | 98" |
| Display Area (mm) | 2158.85 (H) * 1214.35 (V) mm |
| Dimensions (mm) | 1930 (H)* 1111 (V)* 77.5 (D) mm |
| Brightness | 1000 cd / m2 |
| Resolution | 3840 * 2160 |
| Aspect Ratio | 16: 9 |
| Pixel Pitch (mm) | 0.5622 (H) * 0.5622(V) mm |
| Pixel Per Inch (PPI) | 44.96 |
| Pixel Arrangement | RGB Vertical strip |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Contrast Ratio | 1200:1 |
| Display Colors | 10-bit , 1.07 B |
| Response Time (Typical) | 8 (Typ.) (G to G) ms |
| Input Power | DC 24V for Backlight /12V for V-by-One |
| Power Consumption | 460 W |
| Driver Element | a-Si TFT - LCD |
| Surface Treatment | Haze 28%,Hard coating (2H) |
| Interface | V-by-One 8 lanes ,56 pins 0.5 mm |
| Weight (Net) | TBD |
| Operating Temperature | -20 ℃ ~ 70 ℃ |
| Storage Temperature | -20 ℃ ~ 70 ℃ |
| Backlight life | 50K(Typ.) |
Product Overview

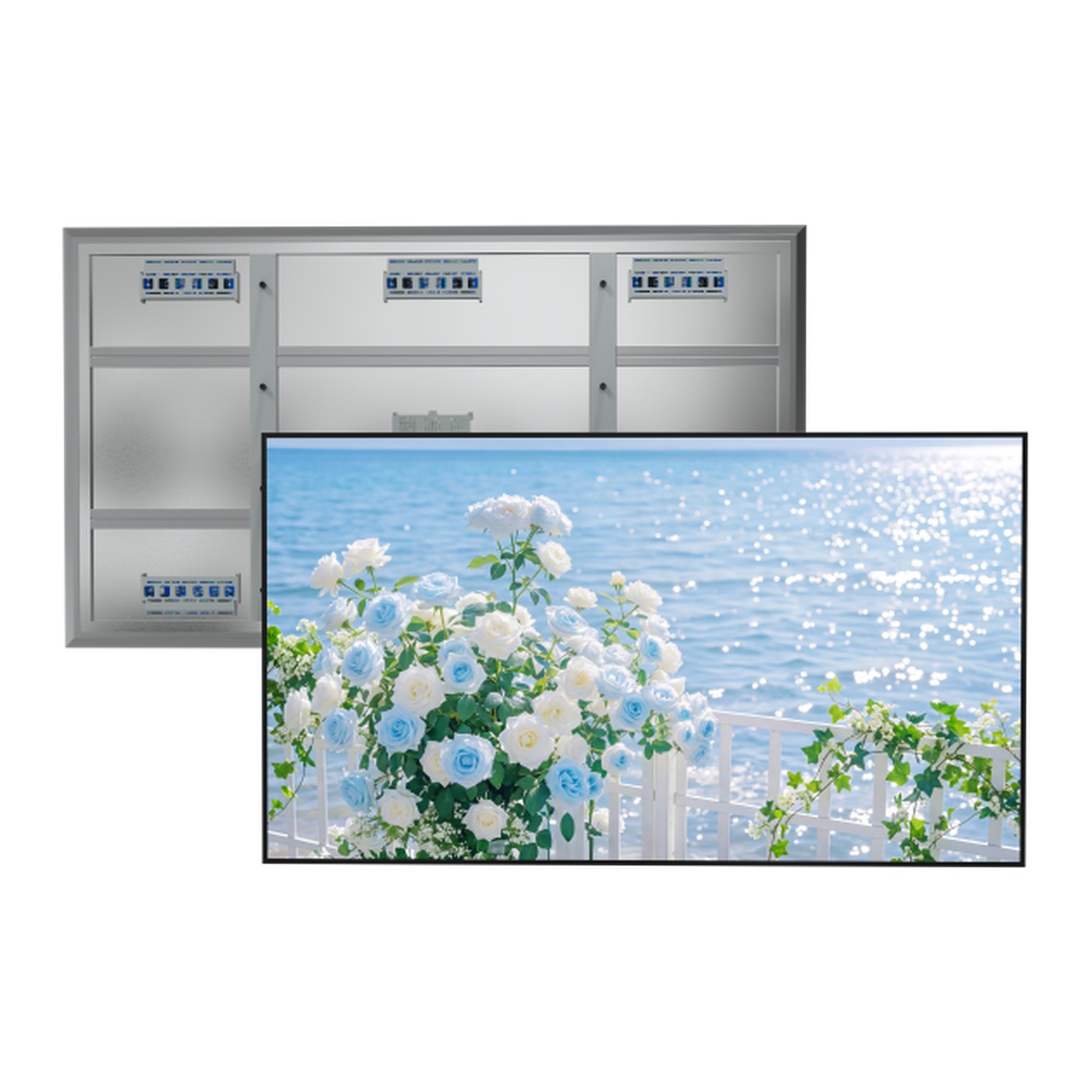

The 98 inch Sunlight Readable TFT LCD Panel RS980DQY-ND10 from RisingStar is a 98‑inch 4K panel designed for extra-large format signage and control wall installations. Delivering 1000 cd/m² brightness with a 3840 × 2160 resolution and 89/89/89/89 wide viewing angles, it serves as a reliable core component for equipment manufacturers requiring a sunlight-readable panel, without the need for a complete enclosure assembly.
Key Features
- 1000 nits high brightness
- LED backlight
- Low power consumption
- Backlight MTBF: 50,000 hours
Typical Applications
Typical applications cover digital signage systems, industrial HMIs, transportation information displays, retail POS terminals and in-store video walls. Custom brightness, interface and bezel configurations are available upon request.
