Stretch Bar Type TFT LCD Monitor
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

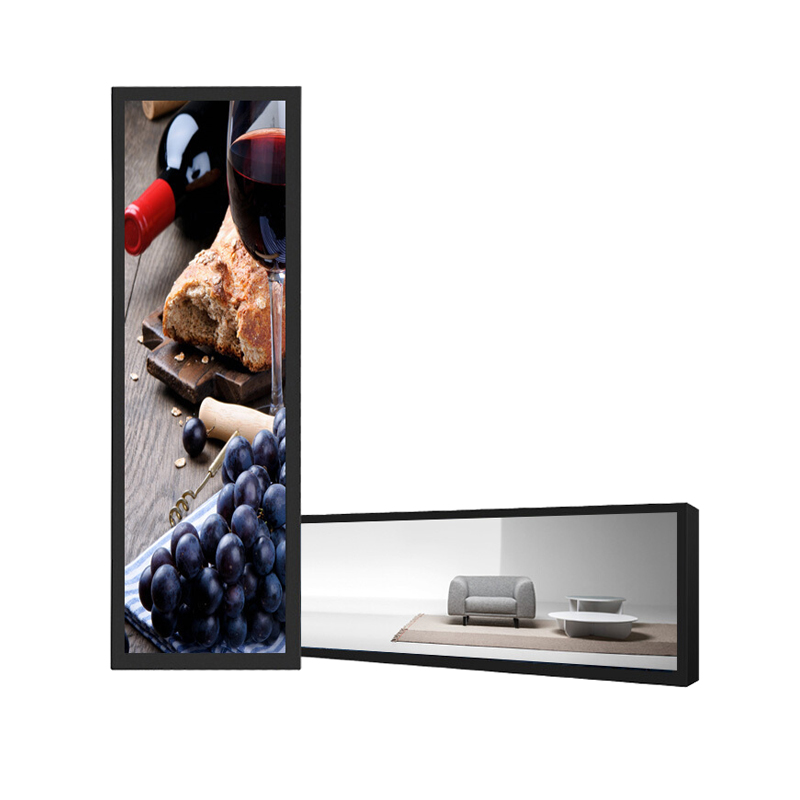

Wall Mount 49 Inch Ultra Wide Stretch Bar Type TFT LCD Monitor Screen
| Main Features | ||
| 1. Custom design available without addtional cost. | ||
| 2. Building 2*5W speakers | ||
| 3. With VGA, HD input, Audio in/out, power input | ||
| 4. Touch screen: Infrared | ||

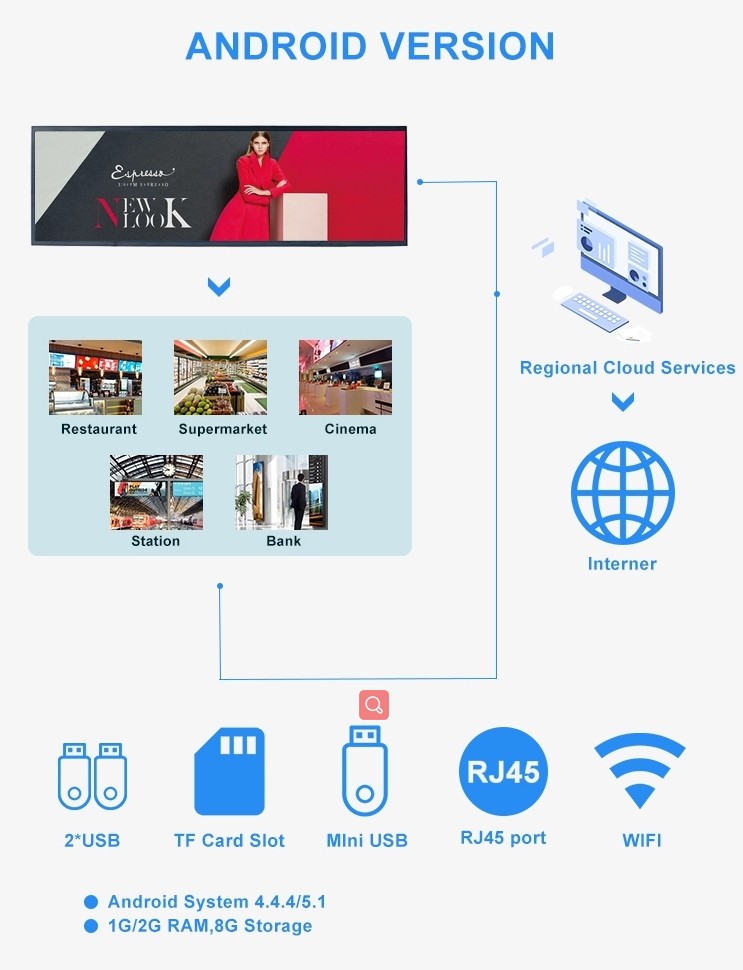

| 5. With Android TV stick option | ||

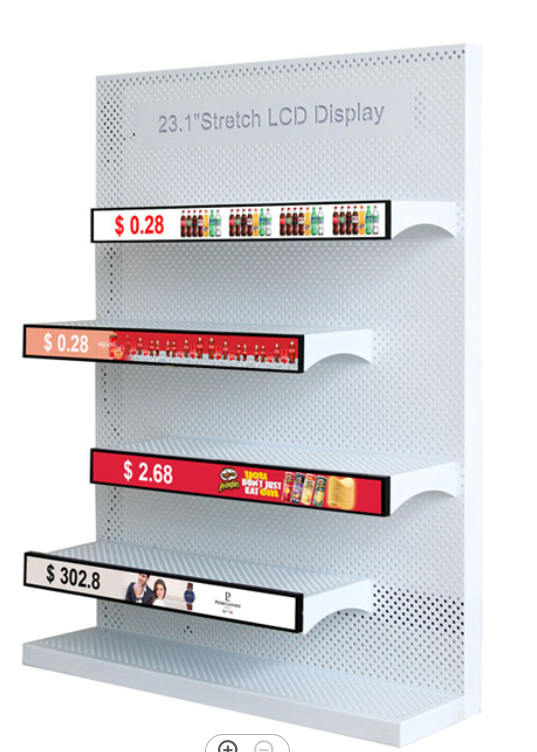

| 6. Easily build-in any kind of display rack | ||
| 7. Accessories: use manual, power adapter | ||
| More Specs | ||
| LCD screen specs | Model number | 495 |
| Screen size: | 49.5" | |
| Display ratio: | 16:5 | |
| Resolution(Pixel): | 1920*540 | |
| Display color: | 16.7 M | |
| Response time: | 8 ms | |
| Luminance: | 400 cd/m2 | |
| Contrast ratio: | 4000:1 | |
| Power supply | AC Input: | 110-240V |
| Appearance | Color option: | Black or optional |
| Housing material: | Metal | |
| I/O interface: | USB, DP, HD input, Audio in, Power switch, power input | |
| Installation: | Shelf mount, wall mount and stand on table are available | |
| Unit dimensions: | 1222*556*40MM | |
| Screen area: | 1209.6*340.2MM | |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |
| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
