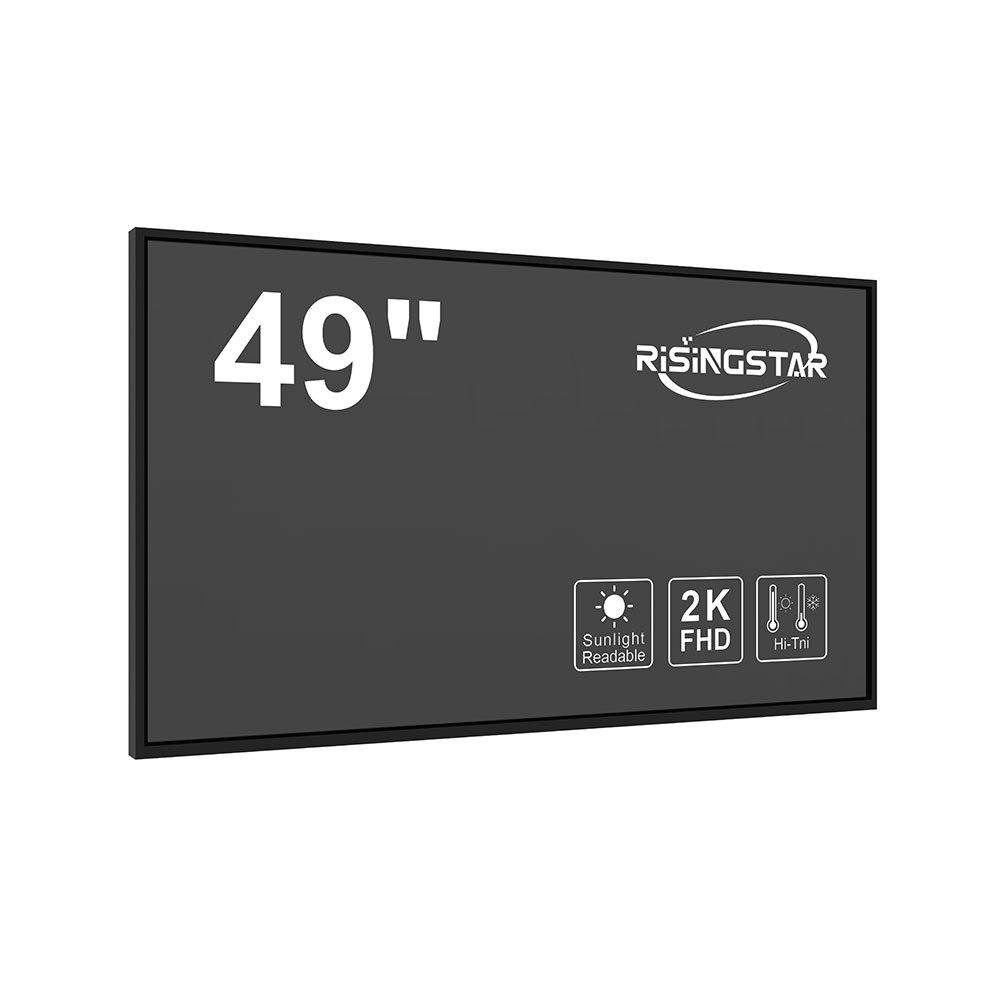

49inch UHD sunlight readable panel for turkey
OEM / ODM Manufacturer
Factory Direct
Order & Lead Time
Need 50+ units? for framework agreements.
Global Shipping Options
Samples ship in ~10 working days; Bulk orders in 15-25 working days.
- Express: DHL/FedEx door-to-door delivery (5-7 days)
- Sea Freight: Cost-optimized bulk shipping (30-45 days)
- Rush Orders: Available upon request for urgent projects
1-3 Year Standard Warranty
3 years for Display Units and 1 year for LCD modules. Extendable to 5 years. Includes 24/7 support, remote troubleshooting, and long-term spare parts availability.
All products are manufactured in our ISO 9001-certified facility.
CE, FCC, RoHS Certified

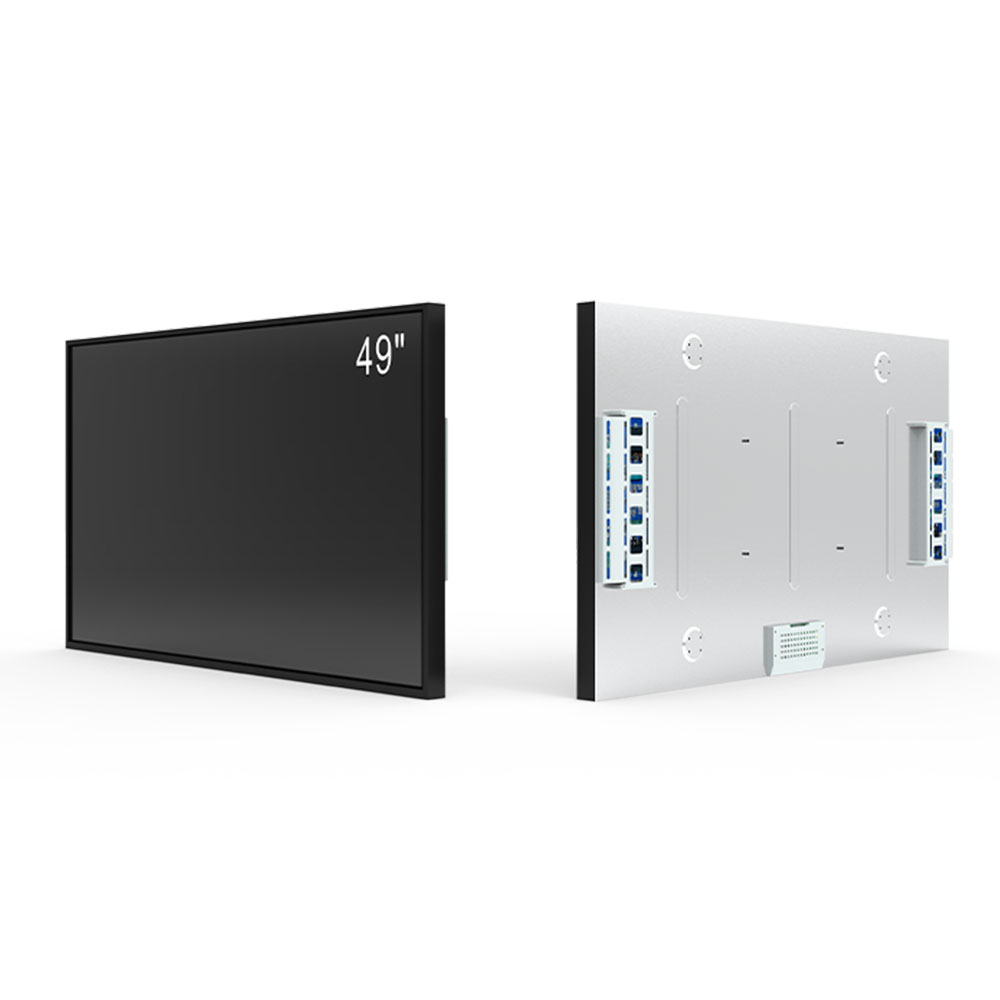

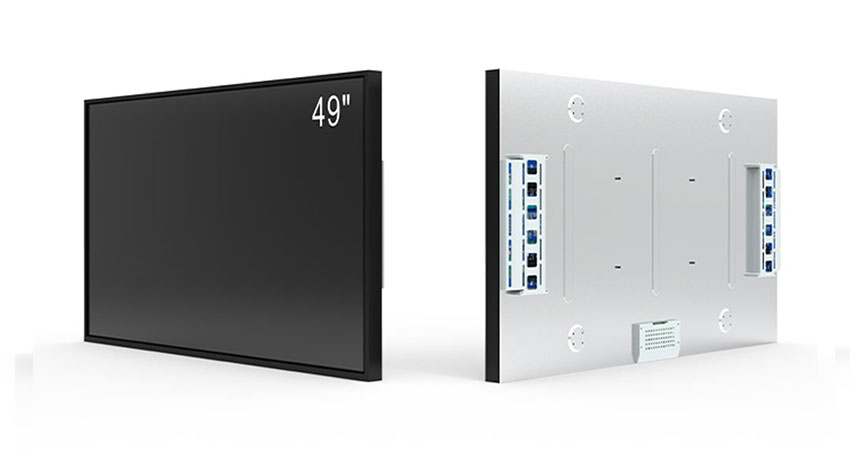

49-Inch LCD Panel Specification
| Item | Specification |
|---|---|
| Panel Size | 49 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB) × 2160 (UHD), 90 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 1073.8(W) × 604(H) mm |
| Viewing Area | 1078.4(W) × 608.6(H) mm |
| Surface Treatment | Matte (Haze 28%), Hard Coating (2H) |
| Brightness | 500–5000 nits |
| Contrast Ratio | 1100:1 (Typ.) Transmissive |
| Optical Mode | IPS, Normally Black, Transmissive |
| Viewing Angle | 89/89/89/89 (Min., CR≥10) |
| Response Time | 8 ms (Typ., G to G) |
| Color Depth | 1.07B Colors, 68% NTSC |
| Backlight Type | WLED, 30,000 Hours, Driverless |
| Weight | 11.0 / 11.6 kg (Typ./Max.) |
| Refresh Rate | 120Hz (with MEMC) |
| Signal Interface | V-by-One, 8 Lane, 51 Pins |
| Input Voltage | 12.0V (Typ.) |
| Storage Temperature | -30 ~ 80 °C |
| Operating Temperature | -20 ~ 70 °C |
| Touch Function | No Touch |
| Application | Digital Signage |
Product Description
This 49-inch a-Si TFT-LCD panel is designed for professional-grade digital signage and high-brightness outdoor display applications. Featuring a UHD 3840×2160 resolution and RGB vertical stripe pixel structure, it delivers sharp detail, high color accuracy, and uniform image performance. With a peak brightness range from 500 to 5000 nits, the panel can remain fully visible under strong ambient light, including direct sunlight environments.

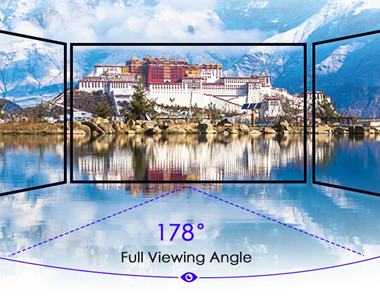

The IPS optical mode (normally black) ensures excellent color stability and a wide 89/89/89/89 viewing angle, making it ideal for public information displays that require consistent readability from all directions. The matte 28% haze surface treatment reduces glare, while the 2H hard coating improves durability against scratches.
A built-in MEMC engine supports 120 Hz and 240 Hz motion enhancement, ensuring smooth playback for dynamic retail content and fast-moving visuals. The robust WLED backlight provides 30,000 hours lifetime, suitable for 24/7 operation.
With a wide operational temperature range of –20 to 70°C, this panel is engineered for demanding indoor and outdoor environments such as transportation hubs, retail kiosks, quick-service restaurants, smart city terminals, EV charging stations, and professional signage systems.
| Item | Specification |
|---|---|
| Panel Size | 49 inch |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 3840(RGB) × 2160 (UHD), 90 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 1073.8(W) × 604(H) mm |
| Viewing Area | 1078.4(W) × 608.6(H) mm |
| Surface Treatment | Matte (Haze 28%), Hard Coating (2H) |
| Brightness | 500–5000 nits |
| Contrast Ratio | 1100:1 (Typ.) Transmissive |
| Optical Mode | IPS, Normally Black, Transmissive |
| Viewing Angle | 89/89/89/89 (Min., CR≥10) |
| Response Time | 8 ms (Typ., G to G) |
| Color Depth | 1.07B Colors, 68% NTSC |
| Backlight Type | WLED, 30,000 Hours, Driverless |
| Weight | 11.0 / 11.6 kg (Typ./Max.) |
| Refresh Rate | 120Hz (with MEMC) |
| Signal Interface | V-by-One, 8 Lane, 51 Pins |
| Input Voltage | 12.0V (Typ.) |
| Storage Temperature | -30 ~ 80 °C |
| Operating Temperature | -20 ~ 70 °C |
| Touch Function | No Touch |
| Application | Digital Signage |
01 / Chassis & Materials
Structural integrity for extreme environments.
| Enclosure Grade | Medical and Food grade SUS316L Stainless Steel, AL5052 Aluminum, or SECC Galvanized Steel. |
| Protection Rating | Certified IP65 / IP69K waterproof sealing. Mechanical impact protection rated at IK10. |
| Surface Finish | Industrial powder coating (RAL spectrum), sandblasting, and anti-acid marine painting. |

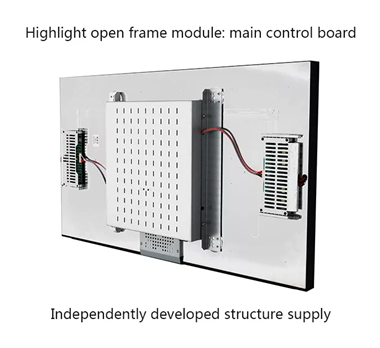

| Format Architecture | Chassis-mount, Open-frame, Panel-mount, and VESA-integrated configurations. |
03 / Interface & I/O
Industrial signal and power regulation.
| Connectors | Support for M12 Aviation Circular Connectors, DB9/RS232, and waterproof RJ45/USB. |
| Power Regulation | Wide voltage DC 9V - 36V input with integrated surge and polarity protection. |
| Sensor Suite | Integrated ambient light sensors, thermal probes, and custom GPIO control protocols. |
02 / Optical & Display
Visibility optimization for extreme ambient lighting.
| Luminance Output | Scalable 1500 - 5000 Nits with integrated Hi-Tni (110°C) anti-blackening technology. |
| Optical Bonding | Full Vacuum Optical Bonding (OCR) — eliminates air gaps, fogging, and maximizes contrast ratio. |
| Advanced Coating | Integrated AR (Anti-Reflective), AG (Anti-Glare), and AF (Anti-Fingerprint) nano-films. |
04 / Embedded & Data
Software architecture and data sync.
| Operating Systems | Full compatibility with Windows 7, 10/11 IoT; Linux support covering the last 3 generations (Ubuntu 20.04, 22.04, 24.04 LTS) and Debian; as well as comprehensive support for Android 11 through 14. |
| Communication | High-speed 4G/5G LTE modules, Dual-band Wi-Fi 6, and Gigabit Ethernet. |
