The RS15.6HCE-GE10 is 15.6 inch sunlight readable LCD panel, it features at least 1,000 nits brightness and a 16:9 aspect ratio. The resolution is 1920*1080 . We design this LCD panel for use in direct sunlight.

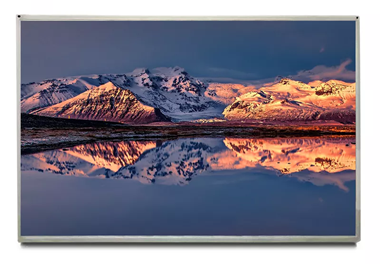

RisingLCD 15.6 inch 1920*1080 sunlight readable TFT LCD panel
· 1,000NIT Sunlight Readable with Long Life LED Backlight
· High brightness, sunlight readable, 1000 nits brightness
· 1920x1080 Native Resolution, 16x9 Aspect Ratio
· Industry leading LED backlight
· High contrast ratio (800:1)
· Low power consumption
· Ultra wide operation temperatureSuper Wide Operating Temperature range of -22°F ~ 185°F (-30°C ~ 85°C)
The RS15.6HCE-GE10 is 15.6 inch sunlight readable LCD panel, it features at least 1,000 nits brightness and a 16:9 aspect ratio. The resolution is 1920*1080 . We design this LCD panel for use in direct sunlight. Consequently, it is also perfect for other high ambient-light conditions. They utilize state-of-the-art LED back lights. RS15.6HCE-GE10 produce at least 1000 nits brightness. In contrast, this is over 3 to 5 times brighter than standard panel. 1000 nits brightness is an amazingly bright screen, that will provide you with crystal-clear images, even with bright, direct sunlight on the face of the screen.
| Screen Diagonal | 15.6 inch |
| Model No | RS15.6HCE-GE10 |
| Active Area | 344.16(W)×193.59(H) mm |
| Pixels | 1920(RGB)×1080, FHD, 141PPI |
| Physical Size | 363.8(W)×215.98(H)×9.6(D) mm |
| Pixel Arrangement | R.G.B. Vertical Stripe |
| Display Mode | a-Si TFT-LCD, LCM |
| White Luminance ( Center ) | 1000 cd/m2 (Typ.) [cd/m2 ] |
| Contrast Ratio | 800:1 (Typ.) |
| Optical Response Time | 13/12 (Typ.)(Tr/Td) ms |
| Nominal Input Voltage | 3.3V (Typ.) |
| Frame Rate | 60Hz |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Weight [g] | 0.84Kgs |
| Interface Type | LVDS (2 ch, 8-bit) , 40 pins Connector |
| Support Color | 16.7M, 73% NTSC |
| Surface Treatment | Hard coating (3H), |
| RoHS Compliance | RoHS Compliance |
| Temperature Range | -30 ~85 °C |
| Storage (Non-Operating) | -40 ~ 90 °C |
