The 32-inch Waterproof Outdoor Digital Signage from RisingStar is engineered for mission-critical applications that demand exceptional visibility, durability, and reliability. Designed with industrial-grade a-Si TFT-LCD technology, this display delivers Full HD resolution (1920×1080), up to 5000 nits brightness, and a wide 178° viewing angle, ensuring flawless performance even under direct sunlight.
With IP65 weatherproof protection, anti-corrosion aluminum housing, and an integrated thermal management system, this model is the ideal solution for transportation hubs, EV charging stations, fuel dispensers, retail signage, and public information displays.

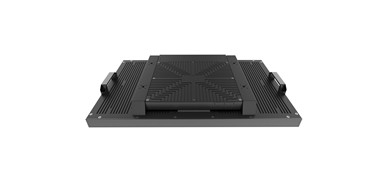

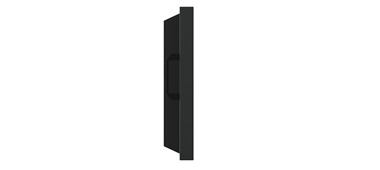

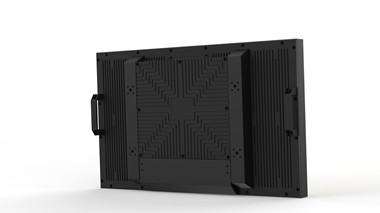

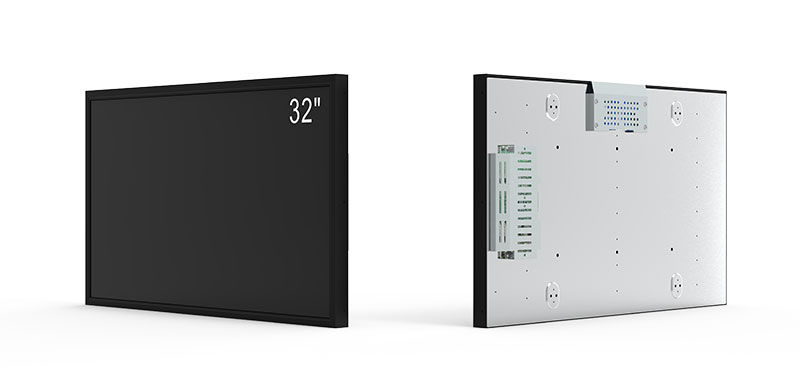

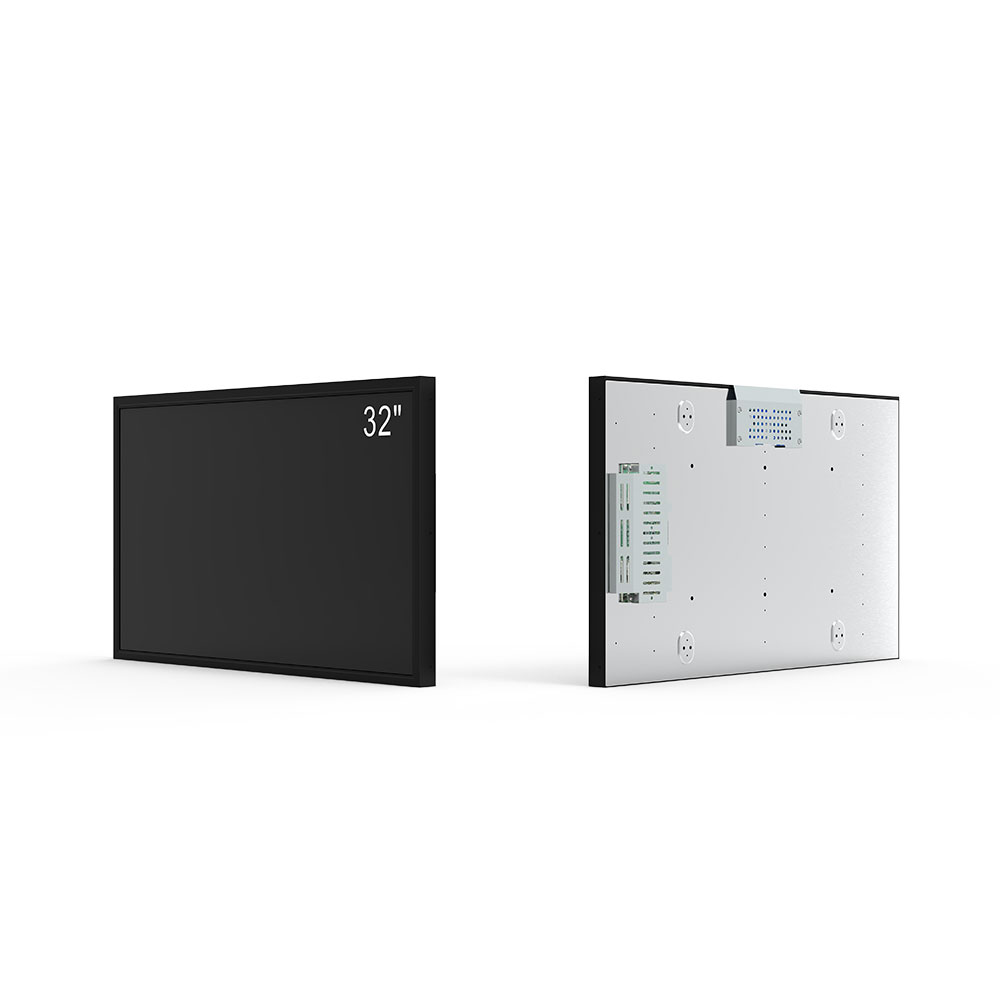

Physical product

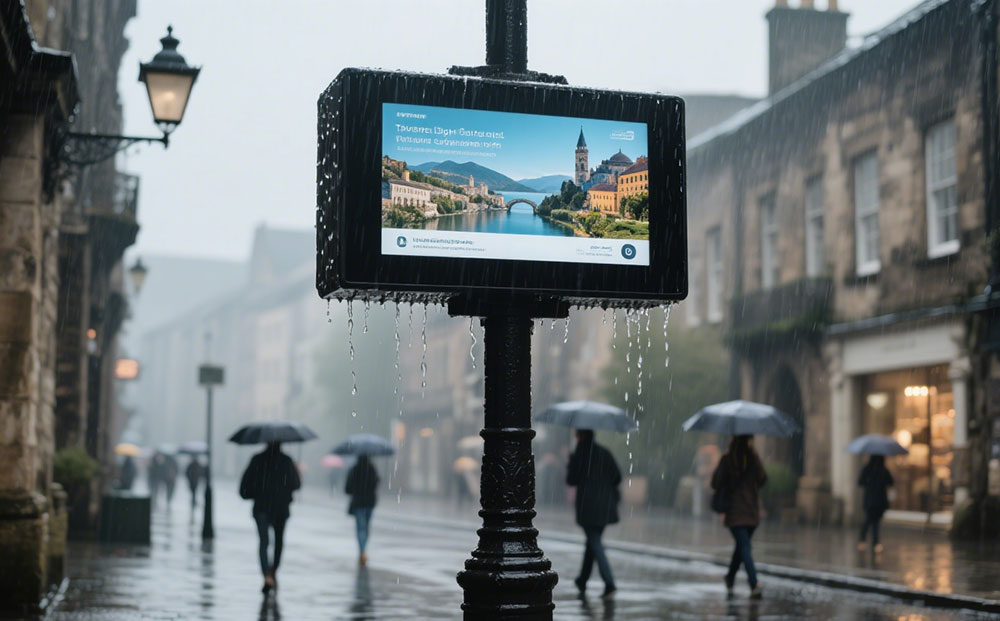

Application cases
32.0" a-Si TFT-LCD Module Specifications
| Category | Specification |
|---|---|
| Panel Size | 32.0 inch |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD, 69 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 698.4 (W) × 392.85 (H) mm |
| Outline Opening | 703.4 (W) × 397.9 (H) mm |
| Surface Treatment | Matte (Haze 2%), Hard Coating (3H) |
| Brightness | 500 – 5000 nits (Typ.) |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| Viewing Angle (CR≥10) | 89/89/89/89 (L/R/U/D) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Colors | 16.7M, 99% sRGB |
| Response Time | 8 ms (Typ., G to G) |
| Panel Technologies | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Refresh Rate | 60 Hz 120 Hz (60 Hz input): Built-in MEMC 120 Hz + 120 Hz: Panel + Backlight 240 Hz (60 Hz input): Built-in MEMC |
| Backlight Type | WLED, 50,000 hrs lifetime, Integrated LED Driver |
| Touch Function | None |
| Panel Weight | 4.59 kg (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins, Terminal |
| Power Supply Voltage | 12.0 V (Typ.) |
| Operating Temperature | 0 ~ 70 °C |
| Storage Temperature | -20 ~ 70 °C |
| Application | Digital Signage, Information Display, Industrial & Commercial Display |
With IP65 waterproof certification, sealed connectors, and anti-UV coating, the display withstands rain, dust, humidity, and direct sunlight.
Up to 5000 nits high brightness combined with anti-glare surface treatment (Haze 2%, 3H hard coating) ensures content remains clear and legible in bright outdoor conditions.
The aluminum alloy structure prevents corrosion, while the optimized heat dissipation system ensures stable operation and prevents blackening under high temperatures.
With automatic brightness adjustment, the display consumes less power during low-light conditions, reducing operational expenses. The 50,000-hour backlight lifespan minimizes maintenance and replacement costs.
We support OEM/ODM customization, including brightness levels, housing design, mounting solutions, and interface options to meet project-specific requirements.
Public Transportation: Passenger information displays at bus stops, railway stations, and airports
EV Charging & Fuel Dispensers: Outdoor digital displays integrated into charging kiosks and fuel stations
Retail & QSR Signage: Outdoor menu boards, advertising screens, and drive-thru solutions
Smart Cities: Digital information kiosks, wayfinding systems, and outdoor billboards
Real Estate & Property: Outdoor promotional displays for residential and commercial projects
RisingStar displays comply with international standards, including:
IP65 Rating for outdoor waterproof & dustproof protection
CE, RoHS, and ISO Certifications for safety and environmental compliance
Factory Reliability Testing: Extreme temperature cycles, vibration, and waterproof testing
Each unit undergoes strict QC inspection before shipment, ensuring consistent performance and long-term reliability trusted by system integrators worldwide.
Bulk Order Discounts: Flexible pricing for distributors and large-scale projects
Stable Supply Chain: Monthly production capacity to support high-volume deployments
Fast Delivery: In-stock models and custom lead times available
Dedicated Support: Engineering assistance, technical documentation, and after-sales services
Extended Warranty: Clear warranty policy with spare parts availability
Q1: What is the IP rating of this display?
A1: The unit is certified to IP65, meaning it is fully protected against dust and water jets, suitable for permanent outdoor installation.
Q2: How bright should outdoor signage be?
A2: For direct sunlight readability, a minimum of 2500 nits is recommended. This model offers up to 5000 nits, exceeding standard outdoor requirements.
Q3: Can the brightness be adjusted automatically?
A3: Yes. An integrated light sensor automatically adapts brightness to ambient lighting, improving visibility and reducing power consumption.
Q4: What mounting options are available?
A4: The display supports VESA mounts, custom enclosures, and kiosk integration. OEM customization is available for project requirements.
Q5: What is the product warranty?
A5: RisingStar provides an extended warranty with options for on-site support and spare parts supply.
The 32-inch Waterproof Outdoor Digital Signage by RisingStar is a high-brightness, fully weatherproof, industrial-grade solution that meets the demanding needs of system integrators, distributors, and end-users worldwide. Combining cutting-edge engineering, global certifications, and proven reliability, it ensures outstanding performance for outdoor advertising, information systems, and smart city projects.
| Size (Inch) | Resolution | Brightness | Typical Use | Notes |
|---|---|---|---|---|
| 21.5” | 1920×1080 (FHD) | 1500–2500 nits | EV chargers, fuel pumps | Embedded design |
| 32” | 1920×1080 / 4K | 2000–3000 nits | Wayfinding, kiosks | Wall/pole mounting |
| 43” | 1920×1080 / 4K | 2500–3500 nits | Retail, smart city | Balance of size & brightness |
| 49” | 1920×1080 / 4K | 3000–4000 nits | Digital kiosks, plazas | Often interactive |
| 55” | 1920×1080 / 4K | 3000–5000 nits | Bus stops, info boards | Most widely used |
| 65” | 3840×2160 (UHD) | 3000–5000 nits | Tourism, luxury real estate | Elegant housing design |
| 75” | 3840×2160 | 3000–5000 nits | City centers, malls | High traffic areas |
| 86” | 3840×2160 | 3500–5000 nits | Metro exits, squares | Extra-wide visibility |
| 98”+ | 4K / Custom | 3500–5000+ nits | Government, transport hubs | Custom build required |
🔗 Learn more about industrial-grade waterproof digital signage: RisingStar Outdoor Digital Signage
this product line is designed to operate in any outdoor, rainning, wet environment, or a direct sunlight. This series waterproof outdoor LCD displays have internal environmental control system that maintain the long lifetime of the sign system, fanless cooling system, maintenance free
All-aluminum structure design,
Outstanding visibility 3000 ntis high brightness
Smart brightness control
Blackening Defect Free
Conformal Coating
Manage content easily and efficiently
RisingStar use aluminum alloy structure that is high thermal conductivity to maximize heat transfer, reduces the overall operation temperature, it is ideal to use in a higher environment, the heat dissipation is four times that of the ordinary metal structure.
Outstanding visibility high brightness
With a great brightness of 3000nits, this waterproof outdoor LCD display are well equipped to make the contents and images vividly stand out in any commercial location, you can experience superior pictures quality and optimized visibility.
Smart brightness control
The built-in auto-brightness sensor adjusts backlight brightness according to the surrounding brightness to save power energy and protect your eyes.
Blackening Defect Free
Most residential and commercial screens will blacken or result in isotropic failure when the LCD panel overheats. Our outdoor sunlight readable digital signage LCD display is equipped with a high-temperature LCD panel capable of withstanding temperatures up to 110˚C (230°F) without blackening – crucial for direct sunlight applications.
Conventional parameter comparison table
| Outdoor Waterproof High Brightness LCD Display | ||||||
| Display | Panel Size | 32 inch | 43 inch | 49 inch | 55 inch | 65 inch |
| Panel Brand | RisingStar | |||||
| Display Area | 698.4*392.8mm | 941*529.4MM | 1074*604mm | 1209*680mm | 1428*803mm | |
| Brightness | 1000 nits / 2000 nits / 3000 nits | |||||
| Resolution: | 1920*1080 | 1920*1080 | 1920*1080/ 3840*2160 | 1920*1080/ 3840*2160 | 1920*1080/ 3840*2160 | |
| Aspect Ratio: | 16:9 | |||||
| Constrast Ratio. | 1300/1 | |||||
| Response Time | 6/9 (Typ.)(Tr/Td) ms | |||||
| View Angle | 89/89/89/89 (Min.)(CR≥10) | |||||
| Backlight | （DLED) | |||||
| Life Hour | 50000H | |||||
| Control System | Smart Dimming | Support | ||||
| Intelligent Temperature Control | Support | |||||
| Remote Control Function | Support | |||||
| AV Inputs | Video | HDMI, VGA | ||||
| Electrical Parameters | Input Voltage | AC110V/220V,50/60HZ | ||||
| Maximum Power | 80W | 160W | 180W | 240W | 300W | |
| Shell | Shell Material | Sheet Metal | ||||
| Product Size | 798*491*108mm | 1044*632*123.6mm | 1170*700*120mm | 1309*780*118.6mm | 1524*899*120mm | |
| Weight | 40kg | 50kg | 65kg | 70kg | 85kg | |
| Shell Anti-Corrosion Process | Use galvanized sheet + surface spray with special outdoor powder (outdoor anti-corrosion for more than 7 years). | |||||
| Protection Glass | Thickness | 5mm AR tempered glass | ||||
| Accessories | Included | AC Power Cable, Remote Control, Wall Mount | ||||
| Operating Environment | Operating Environment | Outdoor IP65 | ||||
| Operating Ttemperature and Humidity | -20-50℃/5%-95%RH | |||||
| Multimedia | Motherboard Type | Android/PC/HD Driver Board (optional) | ||||
| IO interface | HDMI/VGA/DVI | |||||
| Option | AD Board | Andorid Mother Board, Computer Mother Board | ||||
| Network Transmission | Standalone Mode、WIFI、3G、4G | |||||
| Touch | 10 points touch, 20 points touch, Capacitive touch | |||||
32.0" a-Si TFT-LCD Module Specifications
| Category | Specification |
|---|---|
| Panel Size | 32.0 inch |
| Panel Type | a-Si TFT-LCD Module |
| Resolution | 1920 (RGB) × 1080, FHD, 69 PPI |
| Pixel Arrangement | RGB Vertical Stripe |
| Active Area | 698.4 (W) × 392.85 (H) mm |
| Outline Opening | 703.4 (W) × 397.9 (H) mm |
| Surface Treatment | Matte (Haze 2%), Hard Coating (3H) |
| Brightness | 500 – 5000 nits (Typ.) |
| Contrast Ratio | 4000:1 (Typ.) (TM) |
| Viewing Angle (CR≥10) | 89/89/89/89 (L/R/U/D) |
| Display Mode | AMVA3, Normally Black, Transmissive |
| Colors | 16.7M, 99% sRGB |
| Response Time | 8 ms (Typ., G to G) |
| Panel Technologies | IPS Hard Screen Series: AAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich VA Soft Screen Series: ASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA |
| Refresh Rate | 60 Hz 120 Hz (60 Hz input): Built-in MEMC 120 Hz + 120 Hz: Panel + Backlight 240 Hz (60 Hz input): Built-in MEMC |
| Backlight Type | WLED, 50,000 hrs lifetime, Integrated LED Driver |
| Touch Function | None |
| Panel Weight | 4.59 kg (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins, Terminal |
| Power Supply Voltage | 12.0 V (Typ.) |
| Operating Temperature | 0 ~ 70 °C |
| Storage Temperature | -20 ~ 70 °C |
| Application | Digital Signage, Information Display, Industrial & Commercial Display |
Ask a quote for the latest price and one of our team members will respond as soon as possible.
