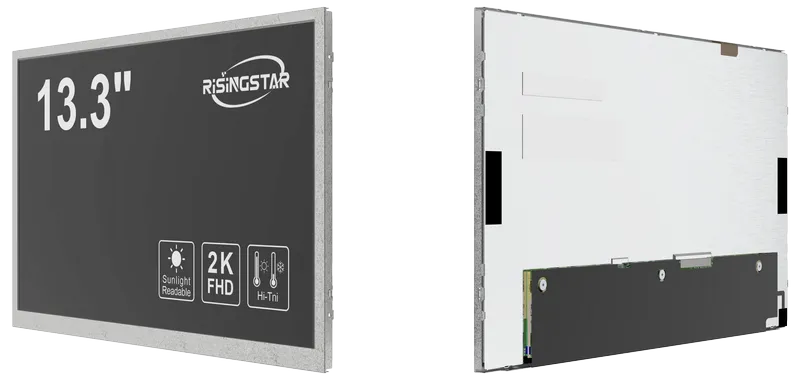

13.3 Inch
Sunlight Readable Display
Widescreen. Full HD. Industrial-Grade.
Purpose-built 13.3 inch sunlight readable displays with 1,000 to 2,000 nits. High-performance 16:9 solution for Level 3 EV chargers, fleet vehicle terminals, and smart outdoor kiosks.
Featured 13.3 inch Products
Premium 13.3 inch widescreen sunlight readable displays.
| Screen size | 13.3 inch |
| Screen type | a-Si TFT-LCD, Transmissive |
| Resolution | 1920(RGB) × 1080 (FHD), 166 PPI |
| Brightness (cd/m²) | 1000 to 5000 |
| Contrast | 800:1 (Typ., Transmissive) |
| Operating temperature | -20 ~ 70 °C |
| Storage temperature | -30 ~ 80 °C |
| Model name | RS133ENT-GE15 |
| Screen size | 13.3" |
| Screen type | Industrial Ultra High Brightness |
| Resolution | 1920(RGB)×1080, FHD, 166PPI |
| Brightness | Brightness can be customized from 500 to 1500. |
| Model name | RS133ENT-NE10 |
| Screen size | 13.3" |
| Screen type | high brightness |
| Resolution | 1920(RGB) × 1080, FHD, 166 PPI |
| Brightness (cd/m²) | Brightness can be customized from 500 to 1500. |
| Model name | RS133FNX01D01-BK |
| Screen size | 13.3" |
| Screen type | open frame display |
| Resolution | 1920(RGB)×1080 |
| Brightness (cd/m²) | 2000 |
| Model name | RS133HAN-GE10 |
| Screen size | 13.3" |
| Resolution | 1920(RGB)×1080 |
| Brightness | 1000 to 2500nits |
| Model name | RS133ENT-GE10 |
| Screen size | 13.3 " |
| Screen type | Outdoor LCD Panel |
| Resolution | 1920(RGB)×1080 |
| Brightness | 800 to 1500nits |
| Model name | RS133HAN-GE10 |
| Screen size | 13.3" |
| Screen type | Outdoor LCD Panel |
| Resolution | 1920(RGB)×1080 |
| Brightness (cd/m²) | 1000 |
| Model name | RS133ENT-N05 |
| Screen size | 13.3 " |
| Screen type | LCD Monitor |
| Resolution | 1920 1080(RGB) |
| Brightness (cd/m²) | 500 to 1500 |
Complete 13.3 inch Series Lineup
Six proven configurations from 800 to 2,000 nits. All feature 13.3" IPS panels, Full HD to 4K resolution, and industrial LVDS interfaces.
| Model | Brightness | Resolution | Aspect Ratio | Best For |
|---|---|---|---|---|
| RS133HAN-GE08 | 800 nits | 1280×800 | 16:10 | Basic outdoor applications |
| RS133HAN-GE10 | 1000 nits | 1920×1080 | 16:9 | Standard high-brightness |
| RS133HAN-GE12 | 1200 nits | 1920×1080 | 16:9 | Enhanced brightness |
| RS133HAN-GE15 | 1500 nits | 1920×1080 | 16:9 | Direct sunlight exposure |
| RS133HAN-GE20 | 2000 nits | 1920×1080 | 16:9 | Extreme sunlight conditions |
| RS133HAN-GE20-4K | 2000 nits | 3840×2160 | 16:9 | Premium 4K signage |
All models feature: 13.3" IPS Full-View (89° viewing angles) | WLED backlight | LVDS 30-pin interface | -20°C to 70°C operating temperature | Industrial-grade Hi-Tni solar resilience | Supports optical bonding & AR/AG/AF coatings
Engineering Specifications
Complete hardware specifications for 13.3 inch sunlight readable LCM modules
Need Technical Details?
Download the complete 13.3 inch LCD datasheet with thermal curves, electrical specs, and OEM integration guides.
Display & Image Quality
| Panel Size | 13.3 inch diagonal |
| Panel Type | a-Si TFT-LCD, LCM |
| LCD Family | IPS (In-Plane Switching) — 178° full viewing |
| Resolution Options | 1920×1080 (Full HD) | 1280×800 (WXGA) | 3840×2160 (4K) |
| Aspect Ratio | 16:9 widescreen |
| Display Colors | 16.7M colors (8-bit) |
| Contrast Ratio | 800:1 (typical) |
| Brightness (Luminance) | 800 ~ 2,000 cd/m² (nits) — configurable per model |
| Backlight Type | WLED (White LED) | Industrial-grade rated to 50,000 hours |
Physical Dimensions & Housing
| Active Area (A.A.) | 293.472 mm (W) × 165.078 mm (H) |
| Outline Dimension | 309.7 mm (W) × 184.1 mm (H) |
| Maximum Thickness | 10.1 mm (slim industrial form factor) |
| Polarizer Type | Transmissive (standard LCD polarizer) |
| Housing Options | Bare LCM | Open-frame | Sealed enclosure | Custom OEM chassis (Aluminum, Stainless Steel, SECC) |
| IP Rating | IP65 / IP66 with optical bonding and sealed connectors |
Interface & Connectivity
| Signal Interface | LVDS (Low Voltage Differential Signaling) |
| Connector Pins | 30-pin LVDS connector (standard industry footprint) |
| Touch Panel Options | Non-touch (standard) | PCAP multi-touch (optional) | Glove & wet-hand rated |
| OEM I/O Customization | Available: HDMI | DisplayPort | VGA | Parallel RGB with custom cable assemblies |
| Power Supply | 12V DC typical | Factory-configurable voltage options |
Environmental & Reliability
| Operating Temperature | -20°C to +70°C (Hi-Tni technology maintains clarity) |
| Storage Temperature | -30°C to +80°C |
| Operating Humidity | 0 to 95% RH non-condensing (sealed with optical bonding for marine use) |
| WLED Backlight Lifespan | Up to 50,000 hours (≈ 5.7 years at 24/7 operation) |
| Optical Treatment Options | Optical bonding | AR (Anti-Reflection) | AG (Anti-Glare) | AF (Anti-Fingerprint) coatings |
| Solar Resilience | Hi-Tni liquid crystals prevent thermal blackening in direct sunlight |
| Certifications | ISO 9001 | CE | FCC | RoHS compliant |
Engineered for Extreme Outdoor Environments.
Standard screens fail within weeks outdoors. Our displays integrate 5 core technologies to ensure 5+ years of reliable, 24/7 operation in any condition.
IP65/IP66 Waterproof Ingress
Non-sealed displays fail quickly from rain, windblown dust, and condensation. Our fully sealed enclosures eliminate vulnerabilities to external elements, ensuring uninterrupted performance during severe weather.
100% dust-tight and water-resistant enclosures protect internal components from rainstorms and coastal salt spray.
IK10 Vandal-Resistant Design
Public deployments face the constant threat of physical impact and vandalism. We utilize robust galvanized steel and specialized glass to shield the core display components from deliberate damage and harsh physical shocks.
IK10-rated tempered front glass combined with a ruggedized metal chassis to absorb heavy impacts.
Smart Auto-Brightness
Integrated ambient light sensors dynamically adjust screen brightness from day to night, maximizing visibility while minimizing power consumption.
Overpowers noon sunlight & auto-dims at night.
Advanced Thermal Control
Intelligent cooling systems and heat dissipation designs prevent overheating and LCD blackening under direct sunlight exposure.
Flawless operation from -20°C to 70°C.
Zero-Gap Optical Bonding
Eliminates the air gap between the LCD panel and front glass, dramatically enhancing contrast and completely preventing moisture condensation.
Reduces light reflection by 80%.
Optimized for Modern Infrastructure.
Level 3 EV Charging
1,000–1,500 nits
The widescreen standard for premium DC chargers. Full HD clarity for multi-step payment and status interfaces. Features fanless aluminum housing with 1/2 sunlight reflection AR coating and Hi-Tni solar-resilient LCD.
Fleet & Heavy Cabs
1,000–1,500 nits
Ruggedized widescreen displays for fleet vehicles and agriculture cabs. Wide -20°C to 70°C temperature range with fanless passive cooling. PCAP touch with glove and rain-noise rejection for outdoor operation.
Outdoor Digital Signage
1,500–2,000 nits
Compact digital signage and wayfinding kiosks. Perfect for storefront windows, transit hubs, and public venues. Optical bonding + AG coating eliminates glare. IP66-sealed with stainless steel enclosure for marine environments.
Industrial HMI Panels
500–1,000 nits
Full HD widescreen interfaces for modern factory machinery and control cabinets. Optimized for thin integration (10.1 mm). Fanless design with passive aluminum radiator and industrial LVDS interface for ruggedized integration.
Factory-Direct OEM/ODM Since 2009
Based in Shenzhen, we design and manufacture professional 13.3 inch outdoor displays for system integrators globally. Every unit undergoes a rigorous 72-hour burn-in test.
8 Hours
Quote Response
10 Days
Sample Delivery
3 Years
Standard Warranty
ISO 9001
Certified Facility
Frequently Asked Questions.
Yes. Our 1,000–1,500 nit 13.3 inch modules are specifically designed for high-ambient environments. For extreme desert conditions, we offer custom modules up to 2,000 nits.
While not mandatory, it is highly recommended for marine and high-humidity environments to prevent fogging and improve contrast by up to 80%.
Our Hi-Tni technology prevents solar-induced blackening, ensuring the panel remains clear and stable within its -20°C to 70°C operating range.
Absolutely. We use industrial PCAP touch controllers specifically tuned for outdoor environments, designed to eliminate rain interference and reliably detect gloved touch — essential for EV charging stations and outdoor self-service kiosks.
Industrial-grade sunlight readable displays with WLED backlighting are typically rated for up to 50,000 hours of operation. At 24/7 usage, this equates to approximately 5.7 years of continuous service.
We offer an industry-leading 3-year warranty for complete monitor units and a 1-year warranty for individual LCD modules. For long-term projects, extended warranty options are available for all products to ensure maximum reliability.
Absolutely. We provide comprehensive OEM/ODM services, including custom chassis materials (Stainless steel, Aluminum, or SECC), specialized optical bonding, high-Tni solar resilience, and bespoke I/O configurations tailored to your technical specifications.
Ready to Deploy in Extremes?
Consult with our technical team to customize a 13.3 inch sunlight-readable solution for your specific project requirements.
