    86 inch high brightness TFT LCD panel
    • 86 inch high brightness TFT LCD panel
    • 86 inch high brightness TFT LCD panel

    86 inch high brightness TFT LCD panel

    RisingLCD 86 inch big size high brightness LCD panel can be embedded in the outdoor device, 3000 nits high brightness and larger size, it is ideal promotional solution for any business in need of maximizing your products and services in the potential market!



    Model No.:


    Screen size:

    86 inch



    Brightness (cd/m²):



    RisingLCD big size 86 inch high brightness TFT LCD panel is along with 4K ultra High resolution, with 3000 nits brightness, it can easily engage and influence your audience, delivers your message with eye-catching details at every angles. You can set it up in a bus station, hospitality, mall or business setting, it is ideal promotional solution for any business in need of maximizing your product and services in the potential market.

    86 inch high brightness TFT LCD panel Main Features:

    1. Original LG a grade IPS open cell

    2. High resolution: 3840*2160

    3. Brightness up to 3000 nits

    4. More brightness adjustment available: Auto brightness sensor, Manual brightness adjustment( PWM brightness adjustment, OSD brightness adjustment)

    5. Almuinum alloy structure easy heat dissipation

    6. 24/7 working time

    IPS TFT panel technology

    Superior image quality and color depth at 178' ultra-wide portrait orientations. It does not produce image distortion and minimizes color shift when viewed from different angles, it provides clear images and instantly optimizes screen color and brightness.

    4K (UHD) High resolution

    The 4K Ultra HD pictures quality ensures perfect colour and rich details in all possible broadcasting surroundings, ranging from shops to restaurants and office buildings, that bring your clear and color full visual enjoyment

    Outstanding visibility high brightness

    With RisingLCD customized great brightness of 3500 nits, the 86 inch high brightness TFL LCD panel well equipped to make the contents and images vividly stand out in any commercial location, you can experience superior pictures quality and optimized visibility.

    Direct LED back light

    RisingLCD customized direct LED back light improves brightness and contrast as well as improving their lifespan and reducing their power consumption

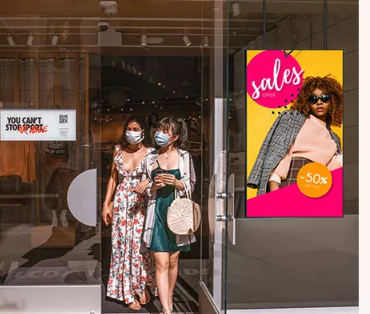

    Large Shop Windows, Car Dealerships, Wedding Shops, Hotels, Tourism, entire retail and hospitality industry

    Hot Tags: 86 inch high brightness TFT LCD panel , manufacturers, suppliers, factory, Customized
    Screen Diagonal86 inch
    Brand Risingstar
    Model NoRS860EQY-ND30
    Active Area1895.04(W)×1065.96(H) mm
    Resolution3840(RGB)×2160, UHD, 51PPI
    Physical Size1930(H)*1111(V)*75.5(D)mm
    Pixel ArrangementR.G.B. Vertical Stripe
    Display Modea-Si TFT-LCD, LCM
    Contrast Ratio :1200:1
    White Luminance ( Center )2000 cd/m2 (Typ.)  [cd/m2 ]
    Optical Response Time8 (Typ.)(G to G) ms
    Nominal Input Voltage12.0V (Typ.)
    Frame Rate60Hz
    Viewing Angle89/89/89/89 (Typ.)(CR≥10)
    Weight [kg]40(Typ.)
    Interface TypeV-by-One 8 lane , 56 pins
    Support Color16.7M/1.07B , 70% DCI-P3GB
    Surface TreatmentAntiglare (Haze 28%),Hard coating (2H)
    RoHS ComplianceRoHS Compliance
    Temperature Range0 ~50 °C
    Storage (Non-Operating)-20 ~ 60 °C
